NSN 5310-00-297-8381 6KB106, 00-297-8381, 002978381
Product Details | BLIND RIVET PLAIN NUT
5310-00-297-8381 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: 6KB106, 5310-00-297-8381, 00-297-8381, 5310002978381, 002978381
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-297-8381 | 01873 ( NUT, PLAIN, BLIND RIVET ) |
Drawings & Photos | NSN 5310-00-297-8381
Cross Reference | NSN 5310-00-297-8381
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6KB106 | 25472 | BFGOODRICH CO THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-297-8381
Technical Data | NSN 5310-00-297-8381
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.186 INCHES NOMINAL |
| NUT LENGTH | 0.812 INCHES NOMINAL |
| NUT GRIP RANGE | 0.065 TO 0.106 INCHES |

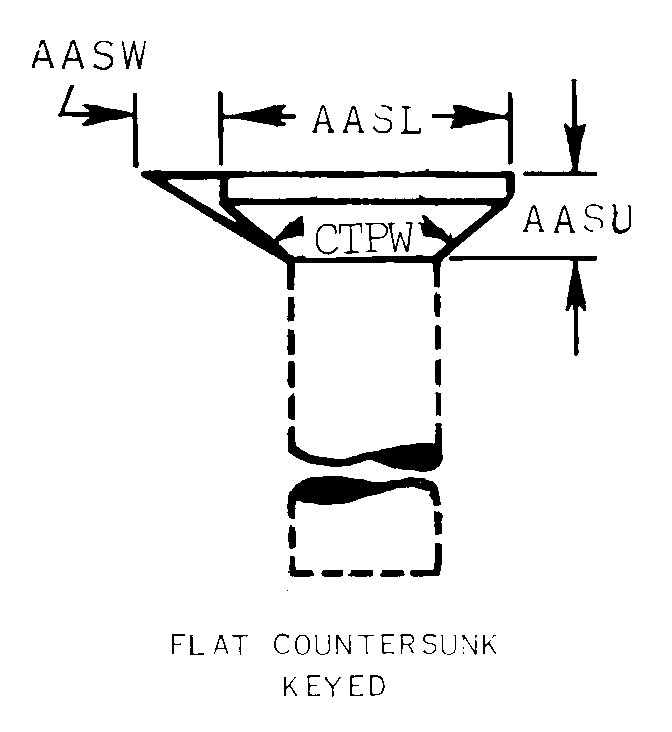

| HEAD STYLE | D15 FLAT COUNTERSUNK KEYED |
| HEAD DIAMETER | 0.325 INCHES NOMINAL |
| HEAD HEIGHT | 0.032 INCHES NOMINAL |
| KEY PROJECTION LENGTH | ANY ACCEPTABLE |
| HEAD COUNTERSINK ANGLE | 100.00 DEGREES NOMINAL |
| SHANK END TYPE | CLOSED |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | BLANK HEAD FOR IDENTIFICATION OF GRIP |
Restrictions/Controls & Freight Information | NSN 5310-00-297-8381
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
