NSN 5310-00-373-3035 K495024, K49502-4, L1117474
Product Details | CLINCH SELF-LOCKING NUT
5310-00-373-3035 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: K495024, K49502-4, L1117474, L11174-7-4, 4021866, 4021905, 4021907, 4023391, 4818DF0481, 4818DF048-1, 5310-00-373-3035, 00-373-3035, 5310003733035, 003733035
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1974 | 00-373-3035 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

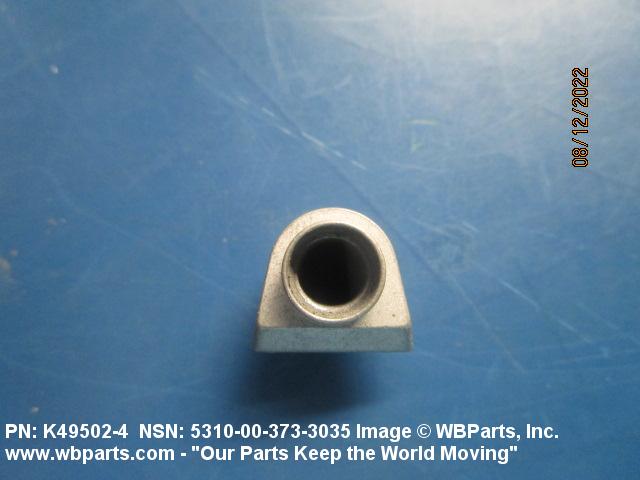

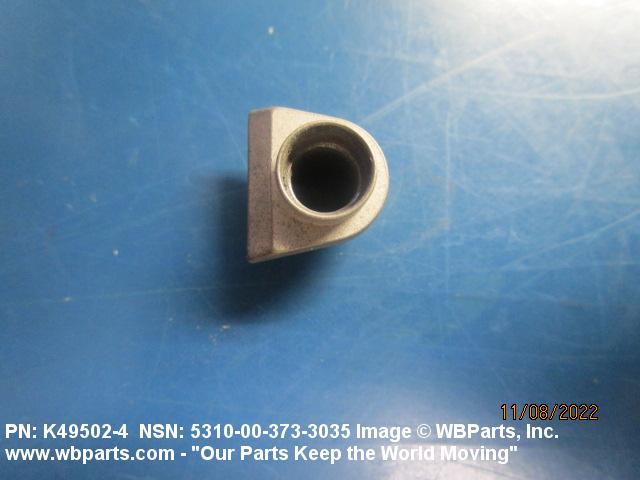

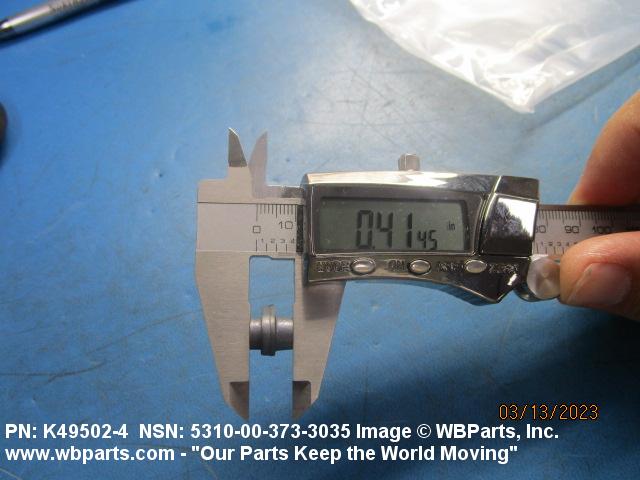

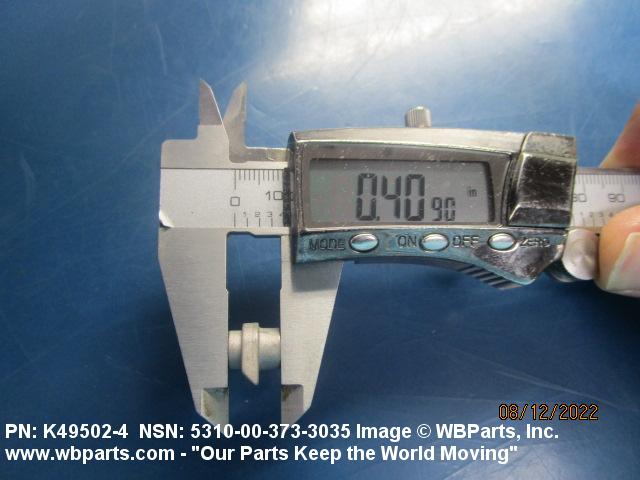

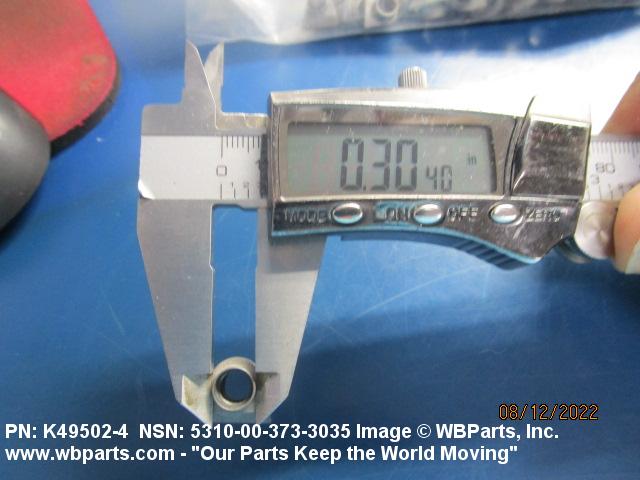

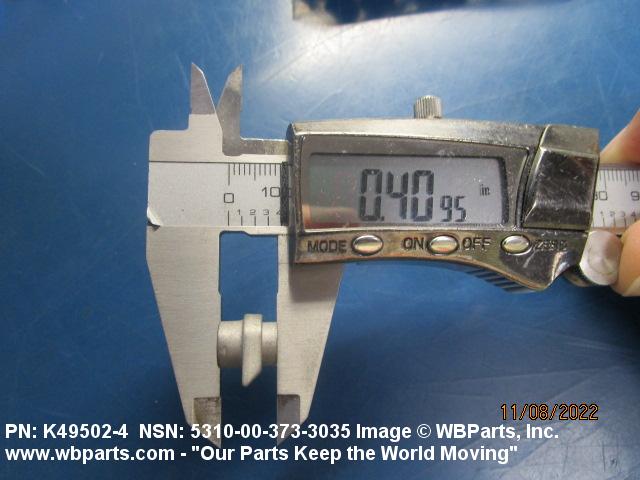

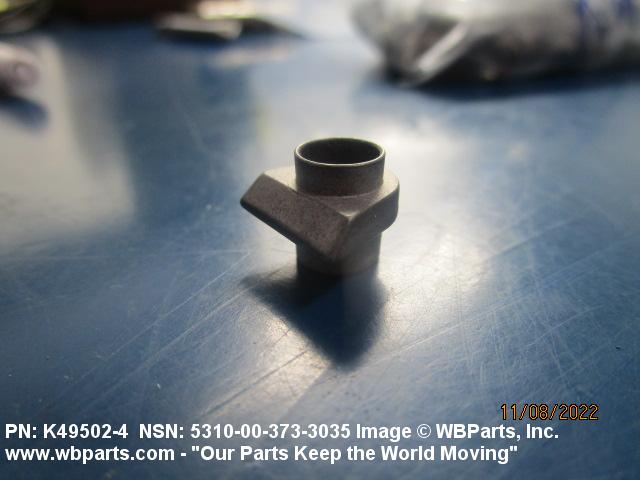

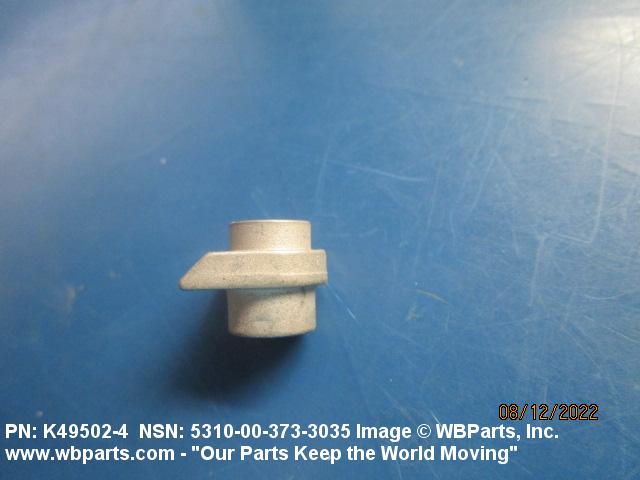

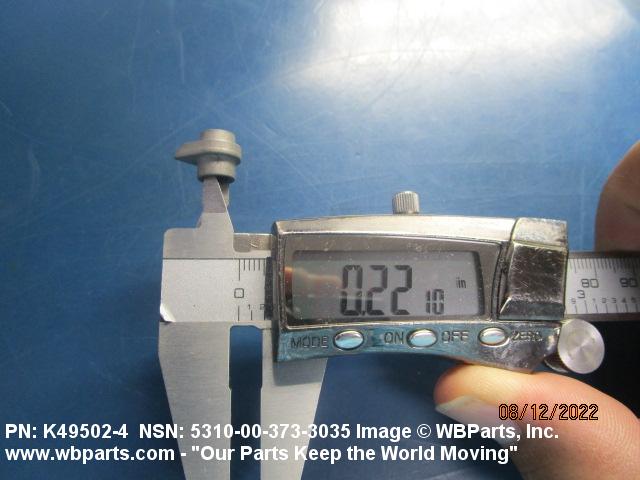

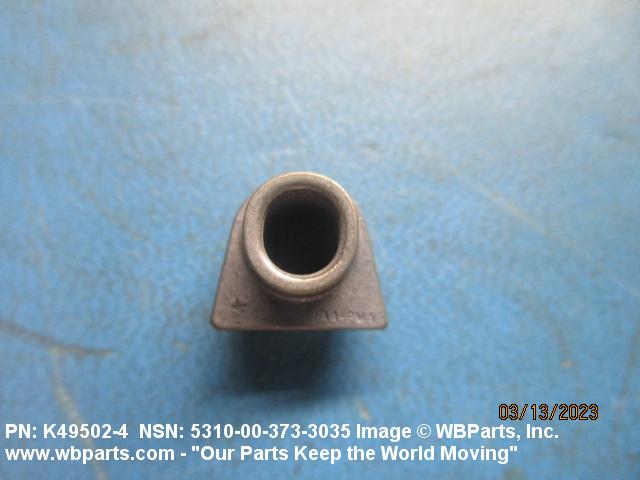

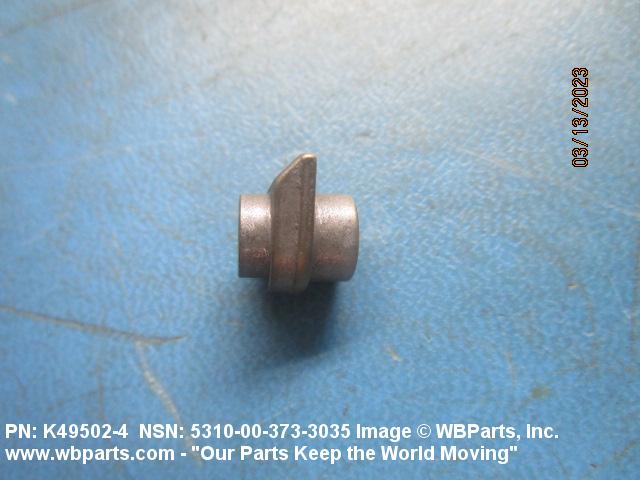

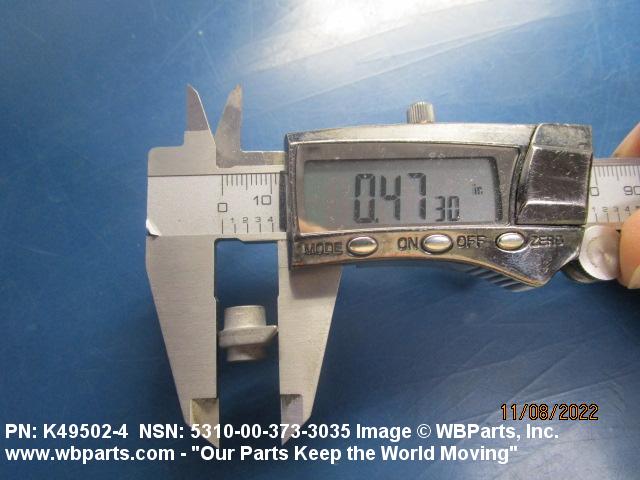

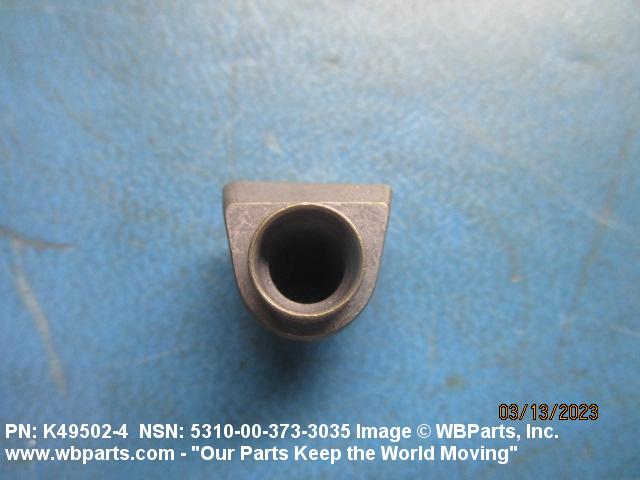

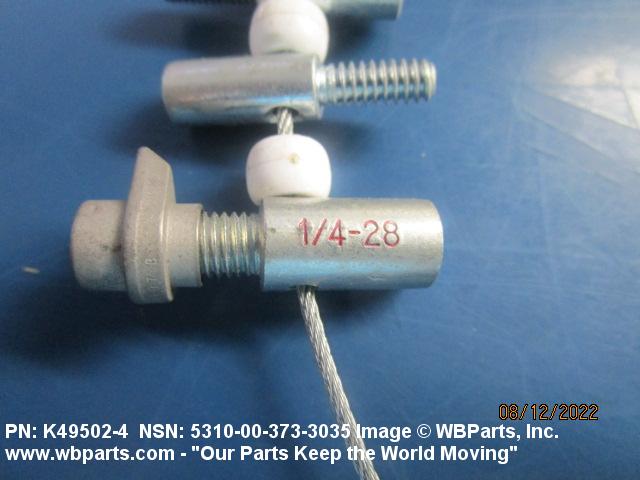

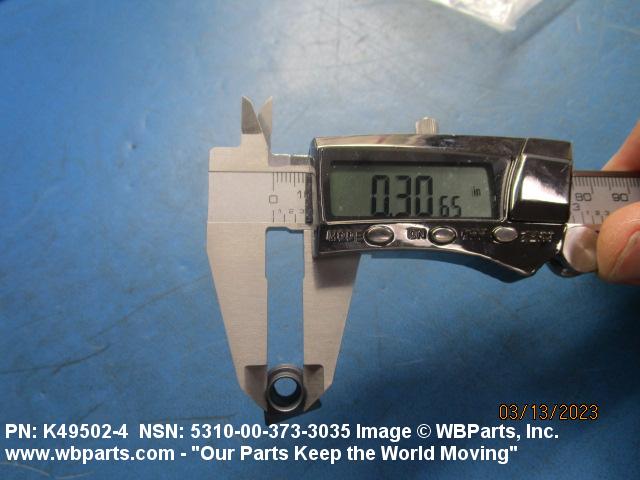

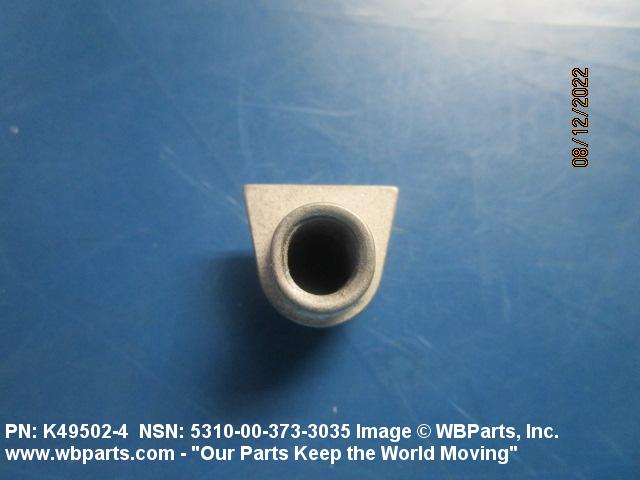

Drawings & Photos | NSN 5310-00-373-3035
Demand History | NSN 5310-00-373-3035
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| K495024 | 2024-08-233 | 500 | US |
| K495024 | 2024-08-233 | 1000 | US |
| 4021907 | 2024-07-213 | 100 | US |
| 4021907 | 2024-07-212 | 100 | US |
| 5310-00-373-3035 | 2024-06-172 | 10 | IT |
| 5310-00-373-3035 | 2024-05-123 | 100 | US |
| 5310-00-373-3035 | 2024-04-116 | 209 | AZ |
| 5310-00-373-3035 | 2024-04-114 | 209 | United States |
| K495024 | 2024-01-02 | 400 | United States |
| 4021907 | 2023-11-334 | 1000 | United States |
| 5310-00-373-3035 | 2023-11-306 | 75 | United States |
| 5310-00-373-3035 | 2023-04-93 | 10 | United States |
| 5310-00-373-3035 | 2023-02-34 | 1000 | United States |
| 5310-00-373-3035 | 2023-01-31 | 72 | United States |
| 4021907 | 2023-01-17 | 72 | United States |
| 5310-00-373-3035 | 2022-09-251 | 72 | United States |
| 5310-00-373-3035 | 2022-07-188 | 72 | United States |
| 4021905 | 2022-06-153 | 907 | DIBBS |
| 4021907 | 2022-06-153 | 907 | DIBBS |
| 4818DF048-1 | 2022-06-153 | 907 | DIBBS |
| 5310-00-373-3035 | 2022-01-25 | 500 | United States |
| 5310-00-373-3035 | 2019-09-262 | 12 | US |
| 4023391 | 2015-11-315 | 10 | United States |
| 5310-00-373-3035 | 2010-09-245 | 2653 | DIBBS |
| 5310-00-373-3035 | 2010-08-216 | 2653 | DIBBS |
| 5310-00-373-3035 | 2009-12-363 | 2783 | DIBBS |
Cross Reference | NSN 5310-00-373-3035
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4021866 | 52661 | UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY |
| 4021866 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4021905 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 4021907 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| 4021907 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4023391 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4818DF048-1 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| K49502-4 | 15633 | WATSON INDUSTRIES INC |
| L11174-7-4 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-373-3035
Related Products | NSN 5310-00-373-3035
Technical Data | NSN 5310-00-373-3035
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2411 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 24.0 ROCKWELL C MINIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.105 INCHES MINIMUM AND 0.111 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.265 INCHES MINIMUM AND 0.270 INCHES MAXIMUM NUT |
| TEMP RATING | NOT RATED |
| III END ITEM IDENTIFICATION | W/S: WNGINE, AIRCRAFT, F100 PW220 (F-15C/D/E); AIRCRAFT, F-16; ENGINE, AIRCRAFT, F100-PW-100 (F-15A/B/C/D) |
| MANUFACTURERS CODE | 77445 |
| MFR SOURCE CONTROLLING REFERENCE | 4023391 |
Restrictions/Controls & Freight Information | NSN 5310-00-373-3035
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095760 | LOCKS/LOCK SETS NOI METAL IN BBL/BX |
| Less than car load rating | U | 50 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-373-3035
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NZ | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
