NSN 5310-01-091-8582 RPN37516SCL, RPN375-16SCL , 7341632

Product Details | CLINCH SELF-LOCKING NUT

5310-01-091-8582 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.

Part Alternates: RPN37516SCL, RPN375-16SCL , 7341632, 19424316, 1942431-6 , 5310-01-091-8582, 01-091-8582, 5310010918582, 010918582

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	14 MAR 1980	01-091-8582	15892 ( NUT, SELF-LOCKING, CLINCH )

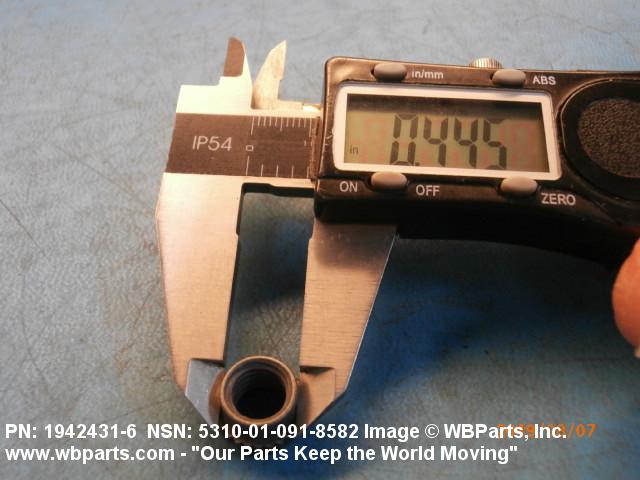

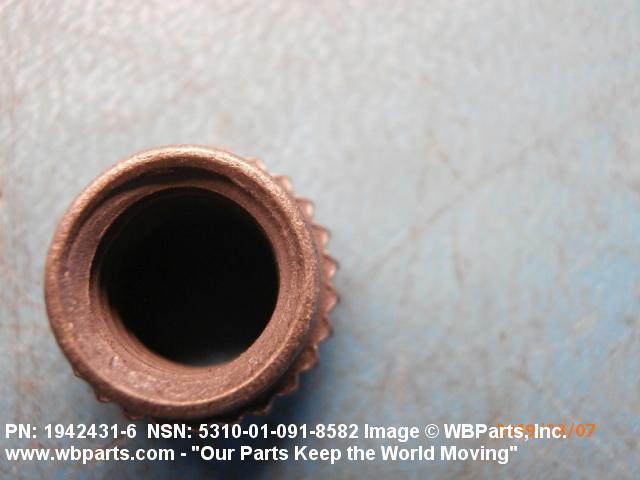

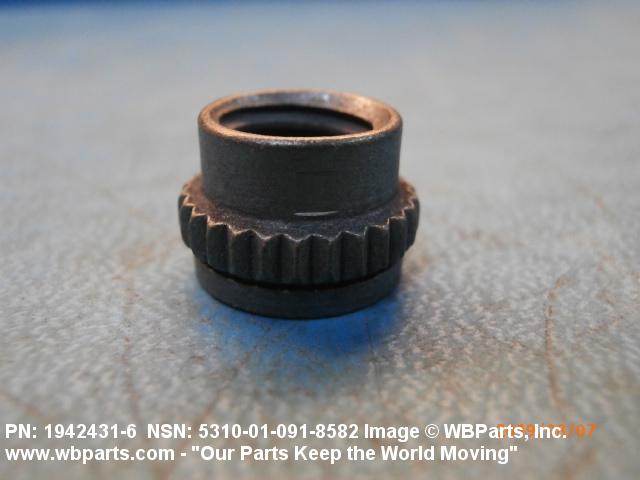

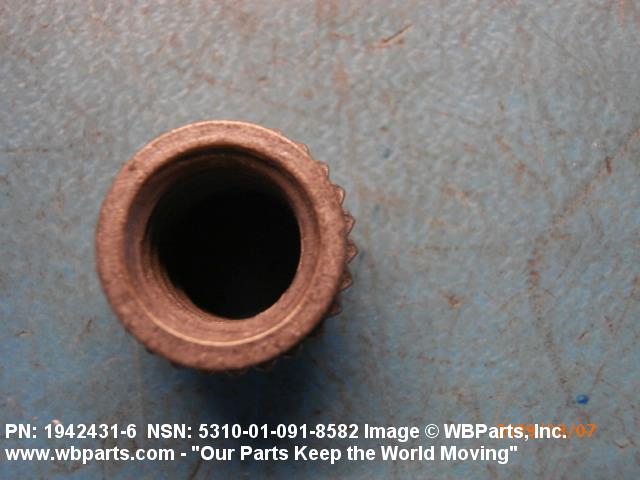

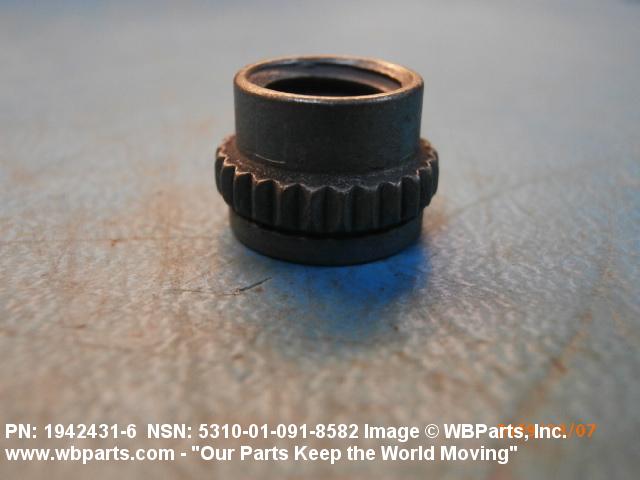

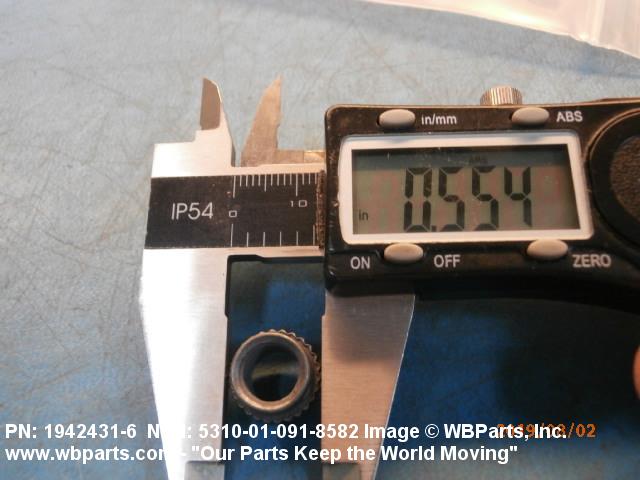

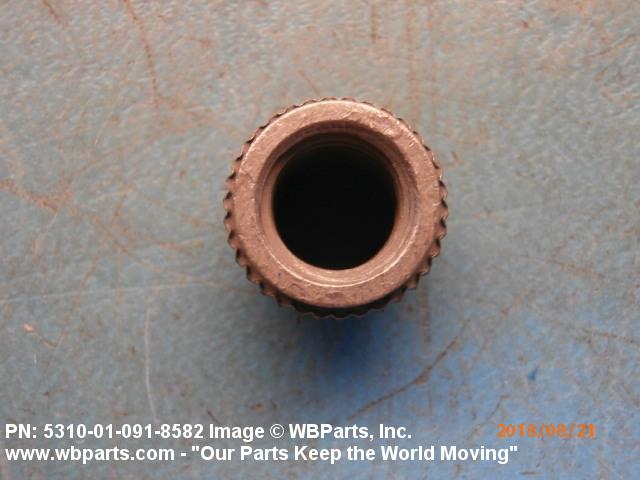

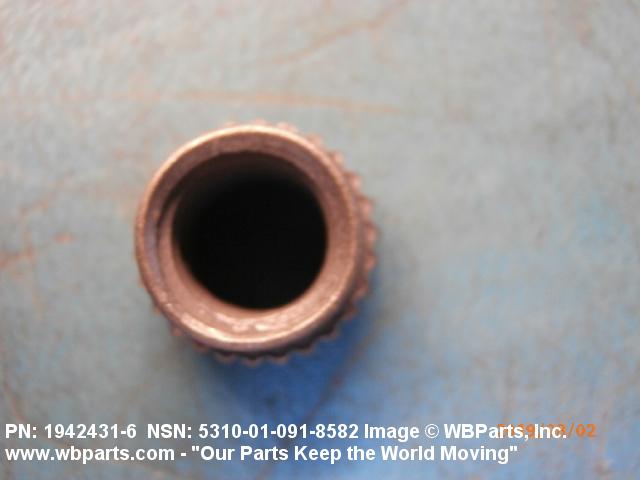

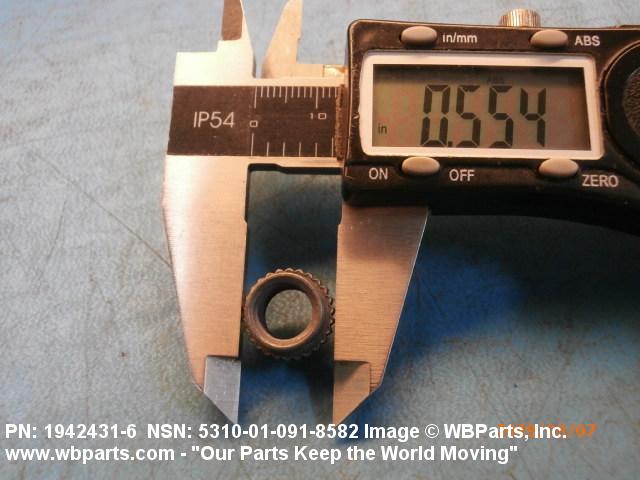

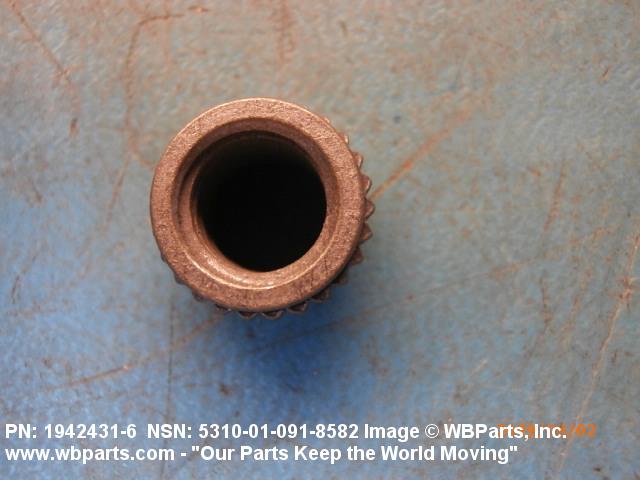

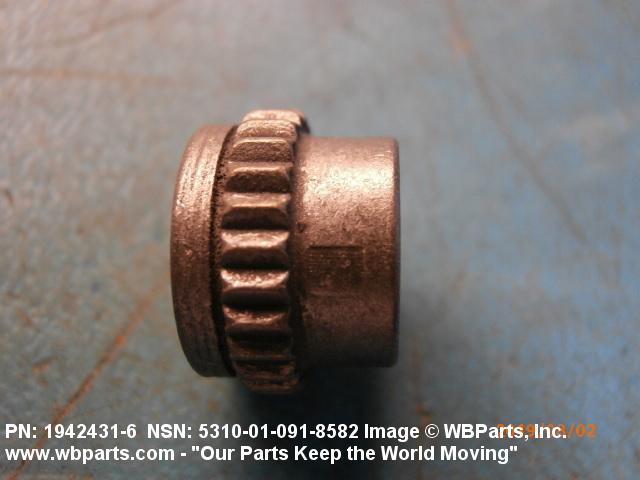

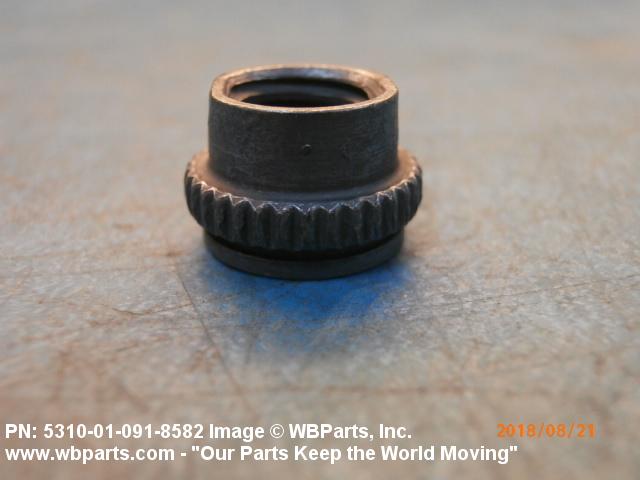

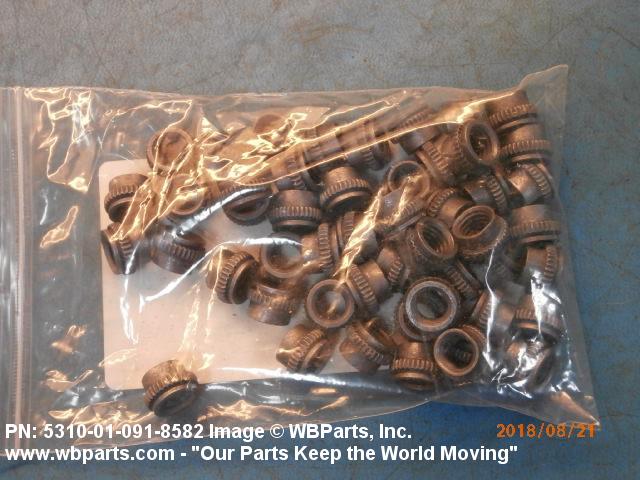

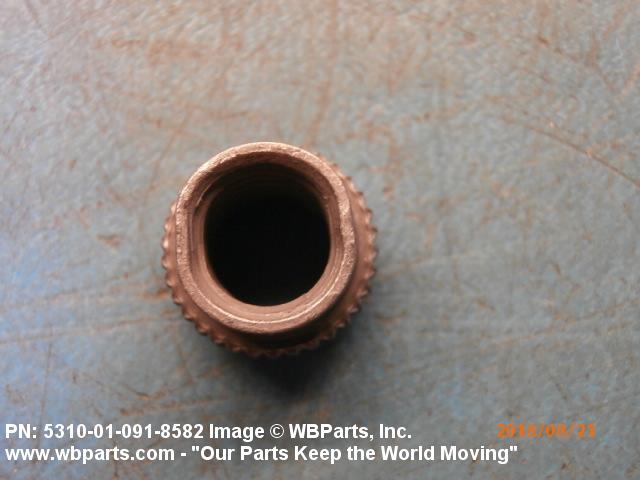

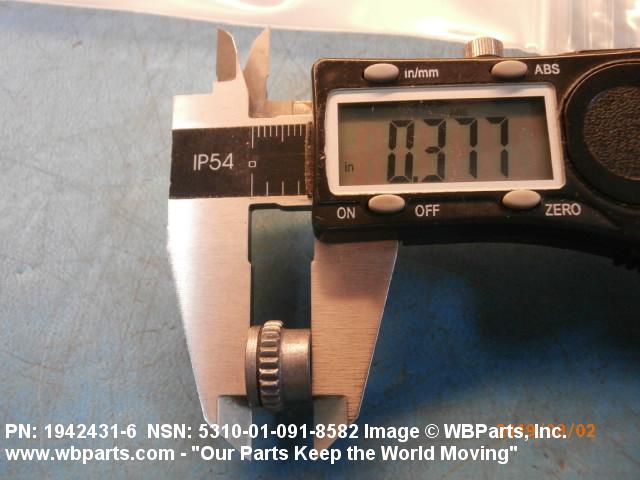

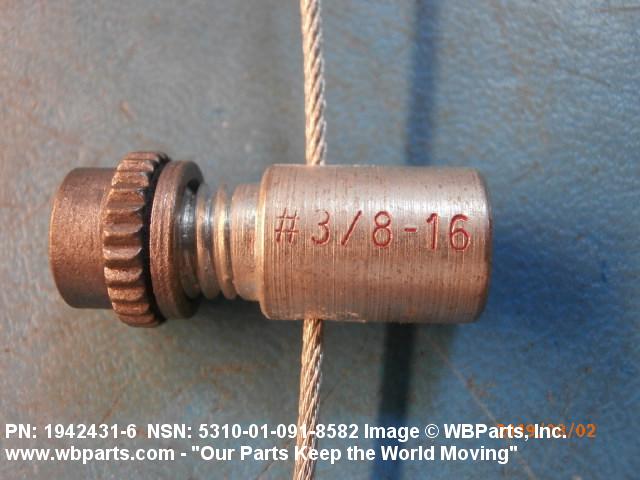

Drawings & Photos | NSN 5310-01-091-8582

Part Number	Request Date	QTY	Origin
1942431-6	2024-08-239	394	DIBBS
7341632	2024-08-239	394	DIBBS
RPN375-16SCL	2024-08-239	394	DIBBS
1942431-6	2024-08-226	394	DIBBS
7341632	2024-08-226	394	DIBBS
RPN375-16SCL	2024-08-226	394	DIBBS
5310-01-091-8582	2024-07-213	50	US
5310-01-091-8582	2023-03-76	20	United States
7341632	2022-01-13	2	United States
7341632	2021-11-316	2	United States
5310-01-091-8582	2021-05-141	300	DE
1942431-6	2020-03-75	193	DIBBS
7341632	2020-03-75	193	DIBBS
RPN375-16SCL	2020-03-75	193	DIBBS
5310-01-091-8582	2019-08-214	100	United States
5310-01-091-8582	2019-07-205	145	United States
5310-01-091-8582	2018-10-282	5	United States
5310-01-091-8582	2018-08-225	50	us
5310-01-091-8582	2018-08-214	60	United States
7341632	2018-02-59	332	US
7341632	2017-12-345	50	United States
5310-01-091-8582	2017-12-342	50	United States
5310-01-091-8582	2017-10-278	1000	DIBBS
5310-01-091-8582	2017-07-207	20	US
5310-01-091-8582	2017-07-199	765	DIBBS
5310-01-091-8582	2017-05-122	100	us
5310-01-091-8582	2017-03-90	820	United States
7341632	2015-02-57	205	US
5310-01-091-8582	2014-10-300	350	US
RPN37516SCL	2012-11-331	4	US
7341632	2012-08-230	808	United States
5310-01-091-8582	2011-12-354	100	US
5310-01-091-8582	2011-07-189	486	DIBBS
5310-01-091-8582	2011-06-166	1	US
7341632	2011-05-139	2325	United States
7341632	2010-06-168	16	United States
5310-01-091-8582	2010-05-140	32	DIBBS
5310-01-091-8582	2009-04-118	24	US
RPN37516SCL	2009-04-104	4	US
5310-01-091-8582	2009-04-99	310	United States
5310-01-091-8582	2009-04-99	310	US
5310-01-091-8582	2009-04-91	500	South Korea
5310-01-091-8582	2009-04-91	500	South Korea
7341632	2009-01-09	200	us

Cross Reference | NSN 5310-01-091-8582

Part Number	Cage Code	Manufacturer
1942431-6	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
7341632	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
RPN375-16SCL	83324	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-091-8582

Compare

Related Products | NSN 5310-01-091-8582

5310-01-091-8583, 5310-01-091-8584, 5310-01-091-8809, 5310-01-091-9009, 5310-01-091-9156

Technical Data | NSN 5310-01-091-8582

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	16
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	NOT RATED

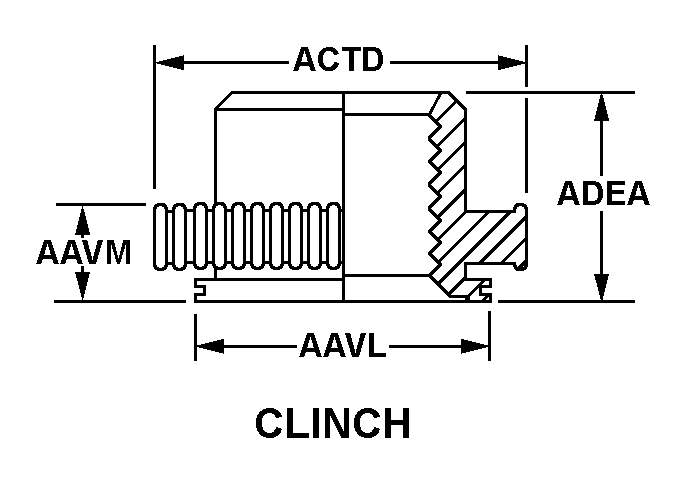

NUT STYLE	A64 CLINCH

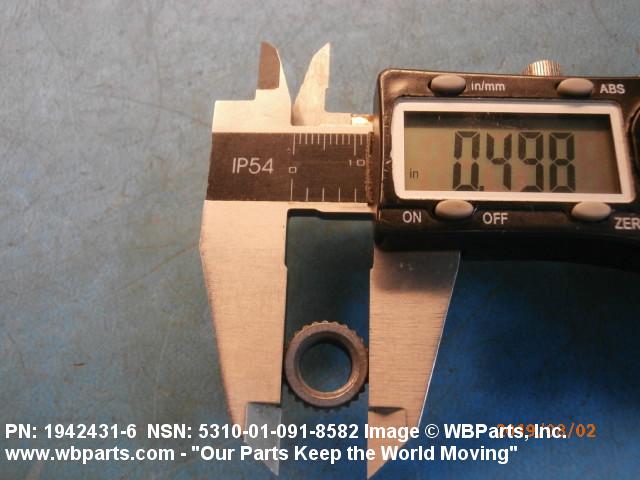

PILOT DIAMETER	0.493 INCHES MINIMUM AND 0.499 INCHES MAXIMUM

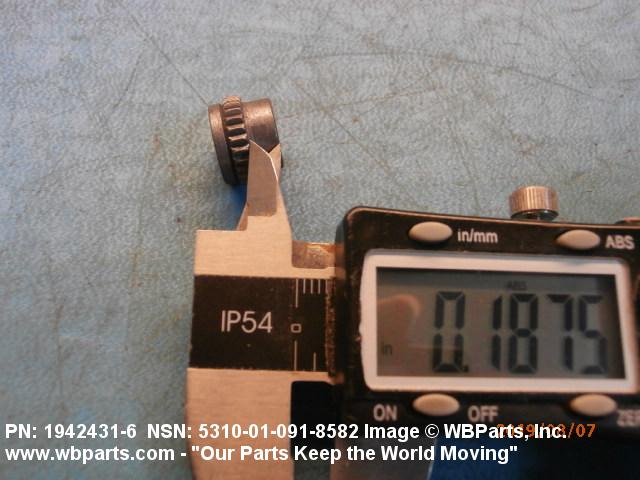

PILOT LENGTH	0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM
NUT DIAMETER	0.545 INCHES MINIMUM AND 0.575 INCHES MAXIMUM

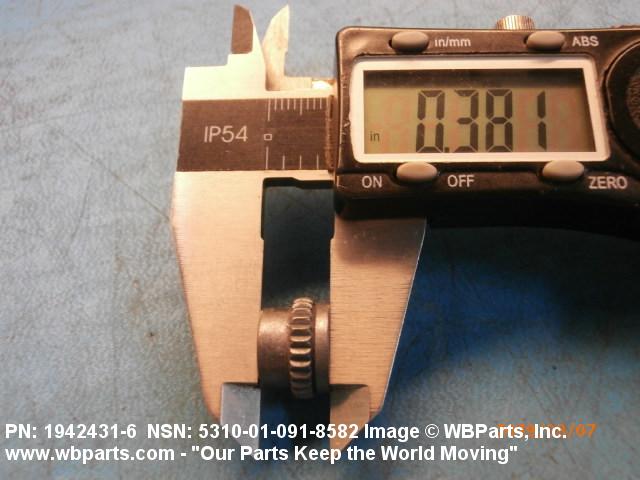

NUT HEIGHT	0.365 INCHES MINIMUM AND 0.390 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	600.0 DEG FAHRENHEIT MAXIMUM

Restrictions/Controls & Freight Information | NSN 5310-01-091-8582

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-091-8582

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
