NSN 5310-01-091-9156 BH001453, BH00145-3, H500683
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-091-9156 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BH001453, BH00145-3, H500683, H50068-3, HCGD8W3S, HCGD8W-3-S , VN726WA021, VN726WA02-1, 4046T32, 4046T32P01, 4046T32P02, 4046T32P03, 5310-01-091-9156, 01-091-9156, 5310010919156, 010919156
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAR 1980 | 01-091-9156 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

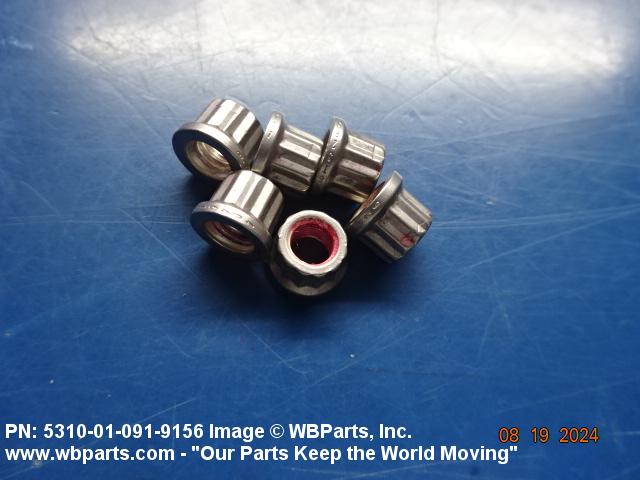

Drawings & Photos | NSN 5310-01-091-9156
Demand History | NSN 5310-01-091-9156
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-091-9156 | 2025-07-192 | 9 | US |
| 5310-01-091-9156 | 2025-06-181 | 180 | US |
| 5310-01-091-9156 | 2025-05-135 | 648 | US |
| 4046T32P01 | 2025-04-113 | 10 | US |
| 5310-01-091-9156 | 2025-02-37 | 240 | United States |
| 5310-01-091-9156 | 2024-12-366 | 2 | United States |
| 5310-01-091-9156 | 2024-06-171 | 6 | us |
| 4046T32P01 | 2024-02-37 | 378 | US |
| 5310-01-091-9156 | 2023-09-251 | 651 | Singapore |
| 5310-01-091-9156 | 2021-12-356 | 720 | US |
| 5310-01-091-9156 | 2021-10-300 | 4 | US |
| 4046T32P01 | 2021-10-279 | 18 | Slovakia |
| 5310-01-091-9156 | 2021-04-110 | 60 | United States |
| 4046T32P01 | 2021-03-76 | 10 | United States |
| 4046T32P01 | 2020-07-196 | 1500 | US |
| 5310-01-091-9156 | 2020-06-157 | 1 | DIBBS-RFPs |
| 5310-01-091-9156 | 2020-04-119 | 20 | Poland |
| 4046T32P01 | 2019-09-260 | 37019 | DIBBS |
| 4046T32P02 | 2019-09-260 | 37019 | DIBBS |
| 4046T32P03 | 2019-09-260 | 37019 | DIBBS |
| 4046T32P04 | 2019-09-260 | 37019 | DIBBS |
| BH00145-3 | 2019-09-260 | 37019 | DIBBS |
| H50068-3 | 2019-09-260 | 37019 | DIBBS |
| HCGD8W-3-S | 2019-09-260 | 37019 | DIBBS |
| 4046T32P01 | 2019-07-182 | 42188 | DIBBS |
| 4046T32P02 | 2019-07-182 | 42188 | DIBBS |
| 4046T32P03 | 2019-07-182 | 42188 | DIBBS |
| 4046T32P04 | 2019-07-182 | 42188 | DIBBS |
| BH00145-3 | 2019-07-182 | 42188 | DIBBS |
| H50068-3 | 2019-07-182 | 42188 | DIBBS |
| HCGD8W-3-S | 2019-07-182 | 42188 | DIBBS |
| 5310-01-091-9156 | 2019-06-177 | 40 | United States |
| 5310-01-091-9156 | 2019-06-177 | 40 | United States |
| 5310-01-091-9156 | 2019-06-177 | 60 | United States |
| 5310-01-091-9156 | 2018-12-346 | 1 | DIBBS-RFPs |
| 4046T32P01 | 2018-08-233 | 5 | United States |
| 4046T32P01 | 2018-08-227 | 65 | United States |
| 5310-01-091-9156 | 2018-04-115 | 2000 | United States |
| 4046T32P01 | 2016-08-232 | 120 | United States |
| 5310-01-091-9156 | 2015-07-195 | 60 | Turkey |
| 5310-01-091-9156 | 2014-11-315 | 35161 | DIBBS |
| 5310-01-091-9156 | 2014-09-272 | 500 | US |
| 5310-01-091-9156 | 2014-09-254 | 826 | MANUAL |
| 4046T32P01 | 2011-04-97 | 20 | United States |
| 5310-01-091-9156 | 2008-11-309 | 40000 | DIBBS |
| 5310-01-091-9156 | 2008-08-218 | 110521 | DIBBS |
Cross Reference | NSN 5310-01-091-9156
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4046T32 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| 4046T32P01 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| 4046T32P02 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| 4046T32P03 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| 4046T32P04 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
| BH00145-3 | 27238 | BRISTOL INDUSTRIES |
| H50068-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| H50068-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| VN726WA02-1 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-091-9156
Related Products | NSN 5310-01-091-9156
Technical Data | NSN 5310-01-091-9156
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | NICKEL ALLOY UNS N07001 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5709 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2411 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A293 DOUBLE HEXAGON |
| WASHER OUTSIDE DIAMETER | 0.330 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.235 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| WASHER THICKNESS | 0.035 INCHES MINIMUM AND 0.045 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 99207 |
| MFR SOURCE CONTROLLING REFERENCE | 4046T32 |
Restrictions/Controls & Freight Information | NSN 5310-01-091-9156
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
