NSN 5310-00-452-5092 AFF50150001, AFF501500-01, 00-452-5092
Product Details | KEY WASHER
5310-00-452-5092 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: AFF50150001, AFF501500-01, 5310-00-452-5092, 00-452-5092, 5310004525092, 004525092
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAY 1970 | 00-452-5092 | 01869 ( WASHER, KEY ) |
Drawings & Photos | NSN 5310-00-452-5092
Demand History | NSN 5310-00-452-5092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-452-5092 | 2025-02-49 | 875 | Malaysia |
| 5310-00-452-5092 | 2014-11-329 | 122 | IN |
| AFF50150001 | 2009-04-105 | 100 | United Kingdom |
Cross Reference | NSN 5310-00-452-5092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AFF501500-01 | U1585 | THE HYMATIC ENGINEERING COMPANYLIMITED T/A HONEYWELL HYMATIC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-452-5092

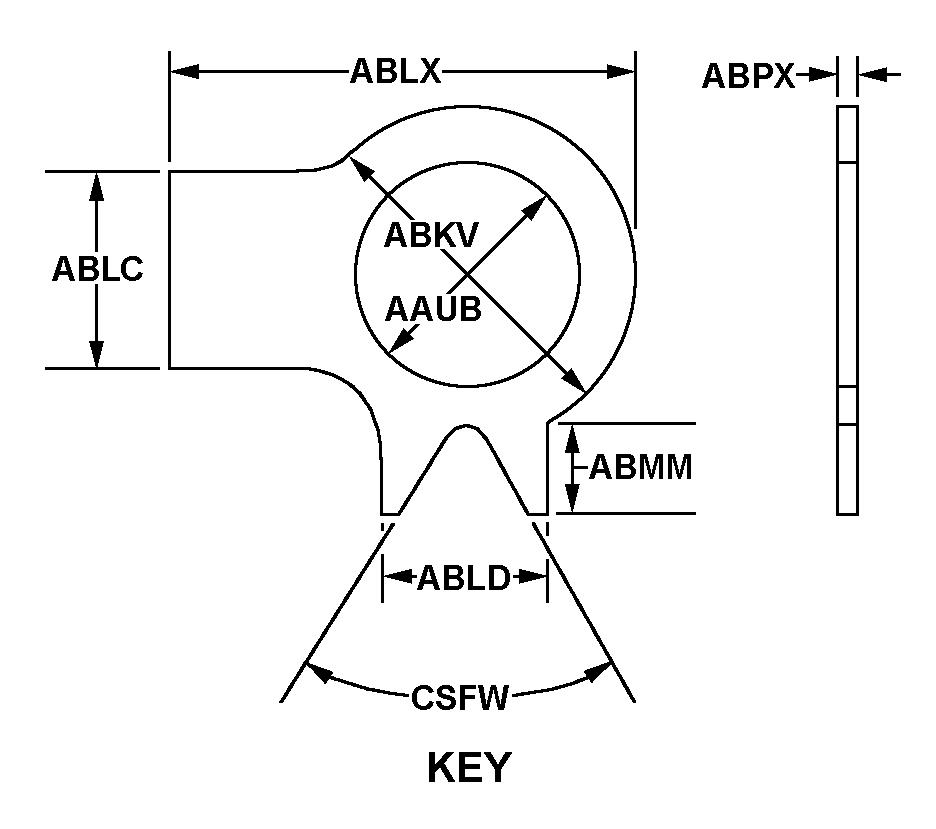

Technical Data | NSN 5310-00-452-5092
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 185 KEY |
| HOLE DIAMETER | 0.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| EXTERNAL STRAIGHT KEY WIDTH | 0.094 INCHES NOMINAL |
| EXTERNAL TAPERED KEY WIDTH | 0.156 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 0.438 INCHES NOMINAL |
| SPLIT KEY LENGTH | 0.062 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| ANGLE BETWEEN EXTERNAL KEYS | 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | U1585 |
| DESIGN CONTROL REFERENCE | AFF501500-01 |
Restrictions/Controls & Freight Information | NSN 5310-00-452-5092
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-452-5092
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
