Product Details | KEY WASHER
5310-01-007-1558 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 004-003182, 5310-01-007-1558, 01-007-1558, 5310010071558, 010071558, 004003182
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 JUL 1975 | 01-007-1558 | 01869 ( WASHER, KEY ) |

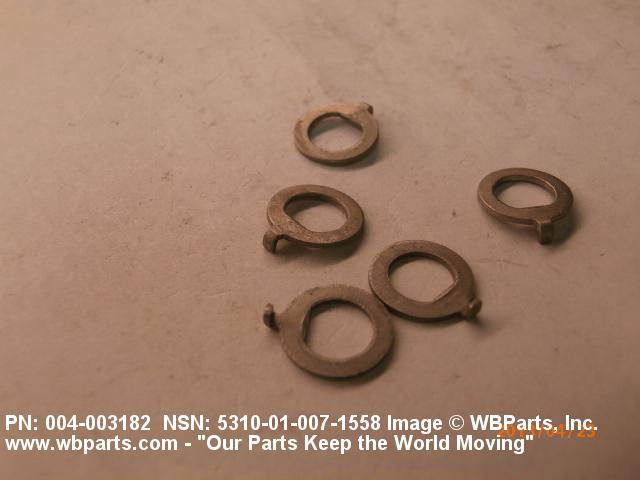

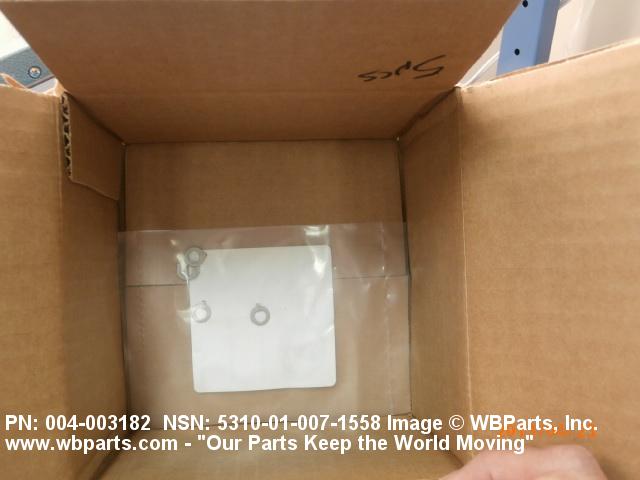

Drawings & Photos | NSN 5310-01-007-1558
Demand History | NSN 5310-01-007-1558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-007-1558 | 2013-11-15 | 1 | DIBBS |
| 5310-01-007-1558 | 2013-10-31 | 1 | DIBBS |
| 5310-01-007-1558 | 2013-04-18 | 1 | United States |
| 004003182 | 2013-02-26 | 5 | United States |
| 004003182 | 2013-02-19 | 2 | United States |
| 5310-01-007-1558 | 2013-02-13 | 1 | DIBBS |
| 5310-01-007-1558 | 2013-02-04 | 1 | DIBBS |
Cross Reference | NSN 5310-01-007-1558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 004-003182 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-007-1558
Related Products | NSN 5310-01-007-1558
5310-01-007-1561, 5310-01-007-1563, 5310-01-007-1565, 5310-01-007-1566, 5310-01-007-1569
Technical Data | NSN 5310-01-007-1558
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 166 KEY |

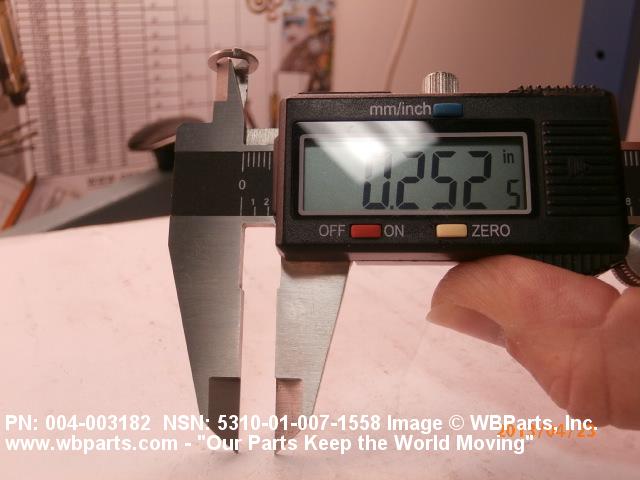

| HOLE DIAMETER | 0.252 INCHES MINIMUM AND 0.258 INCHES MAXIMUM |

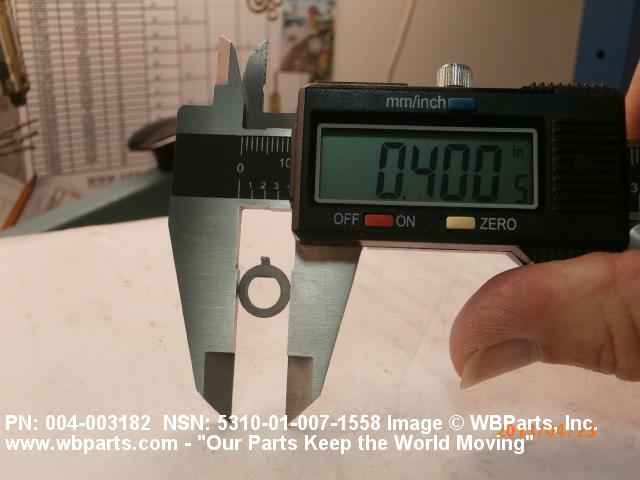

| OUTSIDE DIAMETER | 0.388 INCHES MINIMUM AND 0.408 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY LENGTH | 0.050 INCHES NOMINAL |

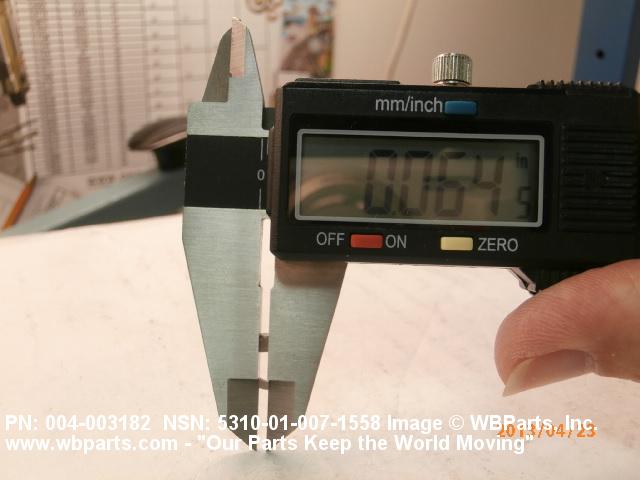

| EXTERNAL PREBENT KEY WIDTH | 0.062 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO TOP OF INTERNAL KEY | 0.105 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY | 0.234 INCHES NOMINAL |

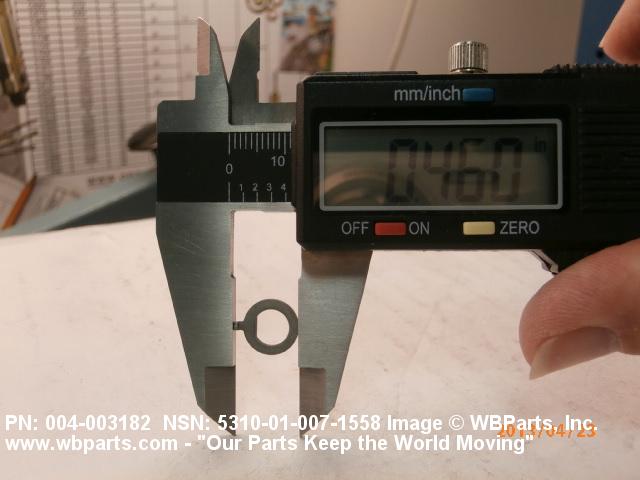

| OVERALL DISTANCE INCLUDING KEYS | 0.462 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.029 INCHES NOMINAL |
| MANUFACTURERS CODE | 26916 |
| DESIGN CONTROL REFERENCE | 004-003182 |
Restrictions/Controls & Freight Information | NSN 5310-01-007-1558
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-007-1558
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
