Product Details | KEY WASHER
5310-00-779-0921 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 1591564, 5310-00-779-0921, 00-779-0921, 5310007790921, 007790921
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-779-0921 | 01869 ( WASHER, KEY ) |

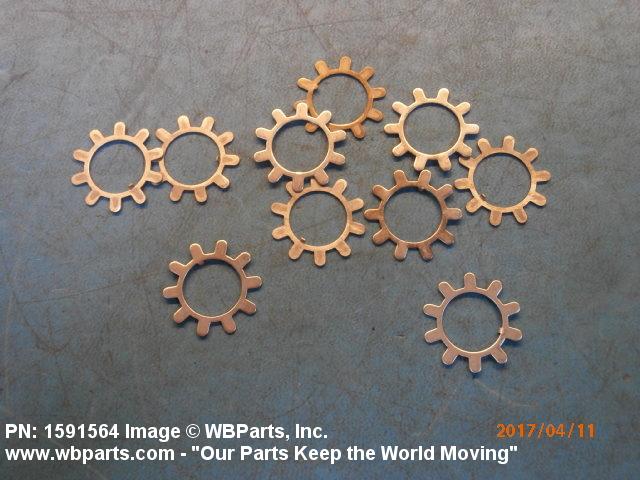

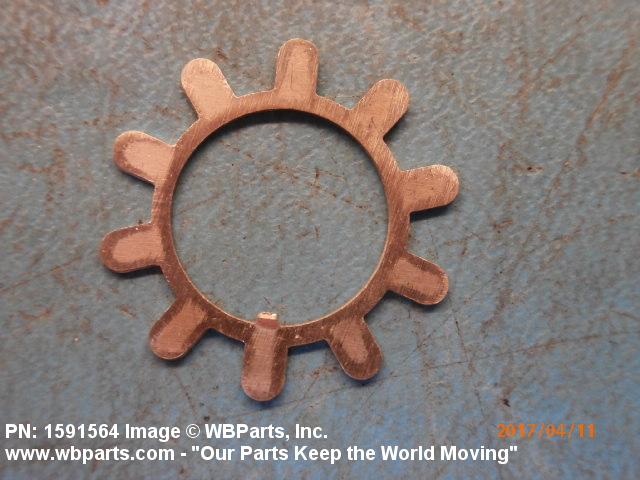

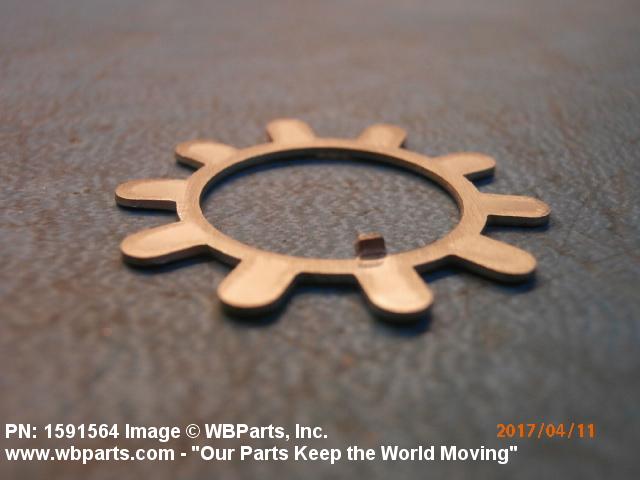

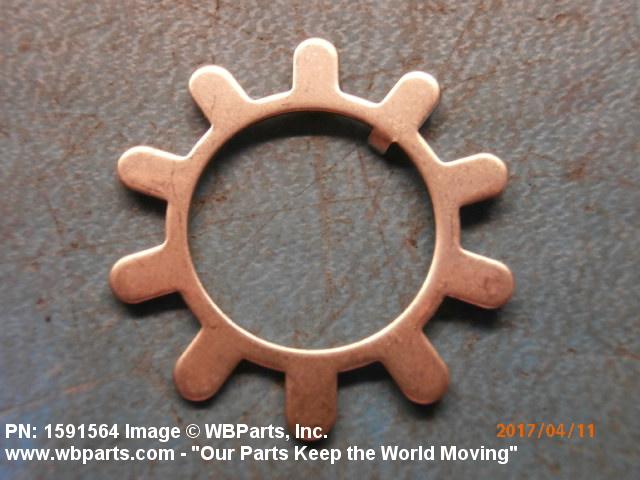

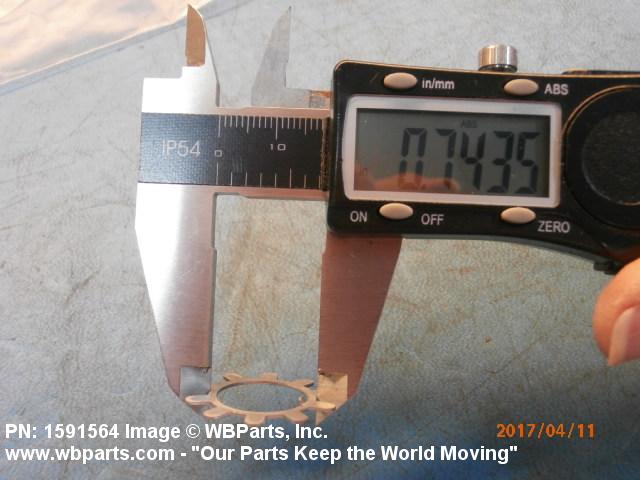

Drawings & Photos | NSN 5310-00-779-0921
Demand History | NSN 5310-00-779-0921
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-779-0921 | 2024-02-29 | 132 | DIBBS |
| 5310-00-779-0921 | 2024-02-21 | 132 | DIBBS |
| 5310-00-779-0921 | 2022-06-15 | 312 | DIBBS |
| 5310-00-779-0921 | 2022-03-23 | 104 | DIBBS |
| 1591564 | 2021-07-06 | 5 | IN |
| 5310-00-779-0921 | 2020-10-15 | 173 | DIBBS |
| 5310-00-779-0921 | 2020-10-07 | 173 | DIBBS |
| 5310-00-779-0921 | 2019-05-27 | 138 | DIBBS |
| 5310-00-779-0921 | 2019-02-05 | 138 | DIBBS |
| 5310-00-779-0921 | 2019-01-27 | 138 | DIBBS |
| 5310-00-779-0921 | 2017-09-27 | 120 | DIBBS |
| 5310-00-779-0921 | 2017-03-24 | 2 | Denmark |
| 5310-00-779-0921 | 2017-01-19 | 64 | DIBBS |
| 5310-00-779-0921 | 2013-10-14 | 262 | DIBBS |
| 5310-00-779-0921 | 2011-06-27 | 216 | DIBBS |
| 5310-00-779-0921 | 2010-07-20 | 298 | DIBBS |
| 5310-00-779-0921 | 2010-03-09 | 229 | DIBBS |
Cross Reference | NSN 5310-00-779-0921
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1591564 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-779-0921
Related Products | NSN 5310-00-779-0921
5310-00-779-0971, 5310-00-779-1957, 5310-00-779-2523, 5310-00-779-2849, 5310-00-779-3361
Technical Data | NSN 5310-00-779-0921
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-766 FED SPEC 1ST MATERIAL RESPONSE OVERALL |

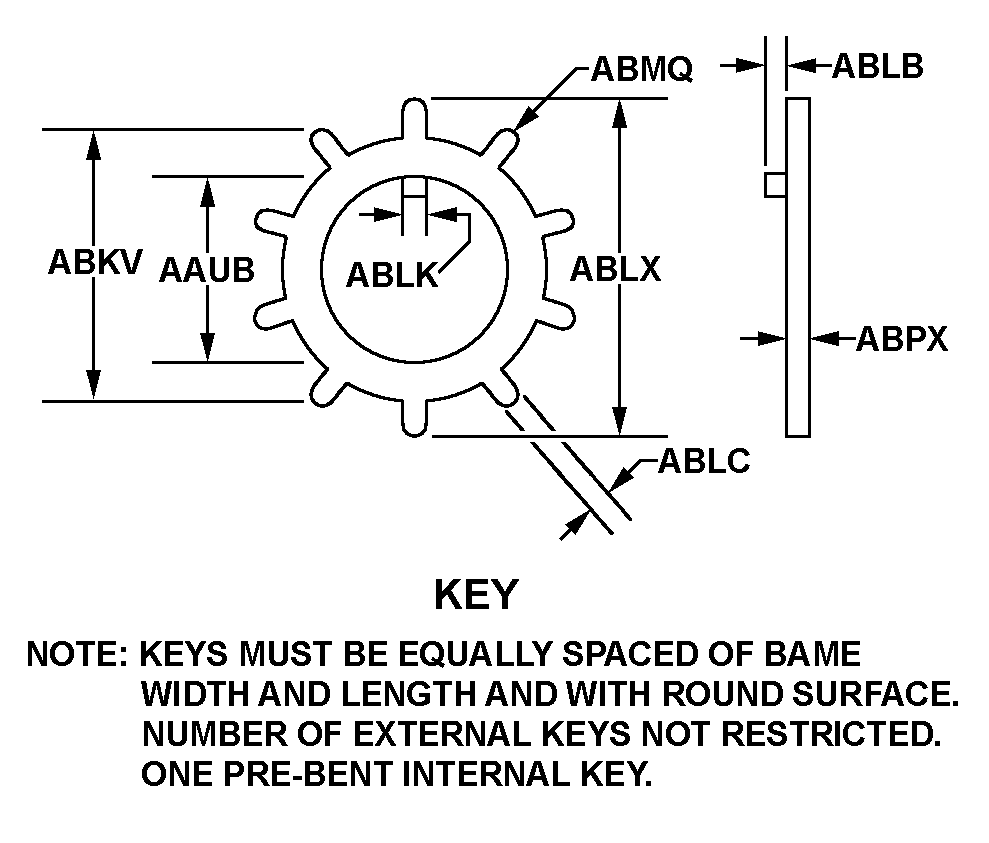

| STYLE DESIGNATOR | 146 KEY |
| EXTERNAL KEY QUANTITY | 10 |

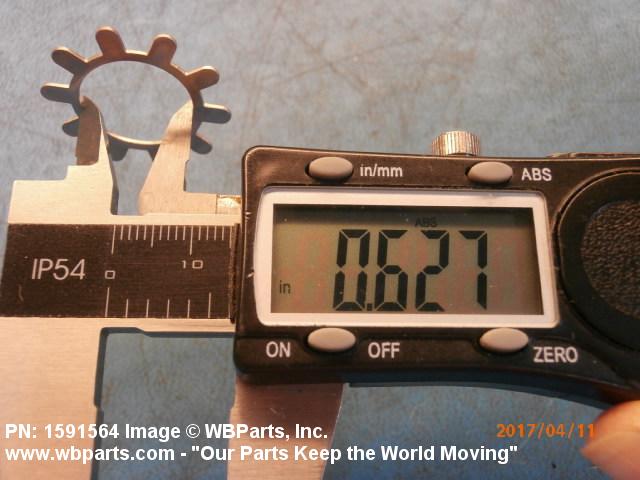

| HOLE DIAMETER | 0.626 INCHES MINIMUM AND 0.636 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |

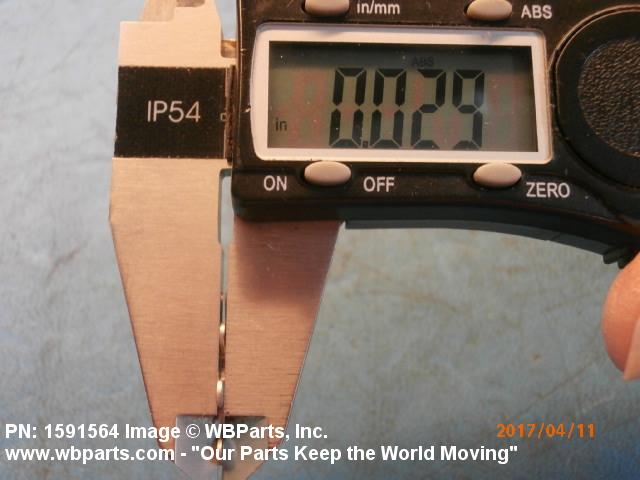

| INTERNAL PREBENT KEY LENGTH | 0.020 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
| EXTERNAL STRAIGHT KEY WIDTH | 0.125 INCHES NOMINAL |

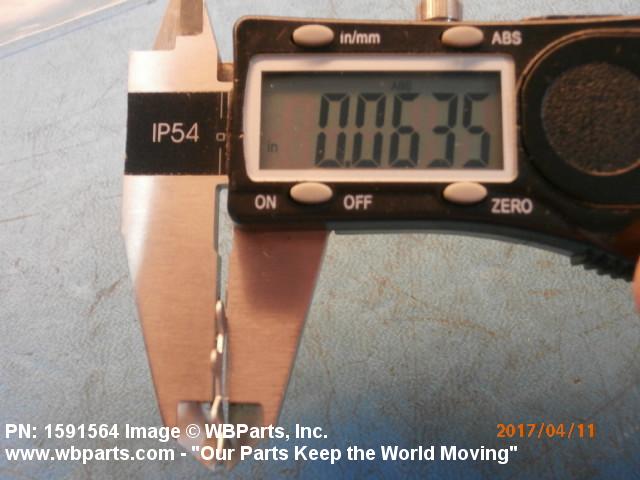

| INTERNAL PREBENT KEY WIDTH | 0.059 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| OVERALL DISTANCE INCLUDING KEYS | 1.062 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1591564 |
Restrictions/Controls & Freight Information | NSN 5310-00-779-0921
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-779-0921
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
H EA : Each |
