NSN 5310-00-495-4310 NS10312702, NS103127-02, F297243
Product Details | PLATE SELF-LOCKING NUT
5310-00-495-4310 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS10312702, NS103127-02, F297243, F29724-3, LHA841102K, LHA8411-02K, 68574-1032, 594405, 594413, 594414, 5310-00-495-4310, 00-495-4310, 5310004954310, 004954310, 685741032
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUN 1971 | 00-495-4310 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

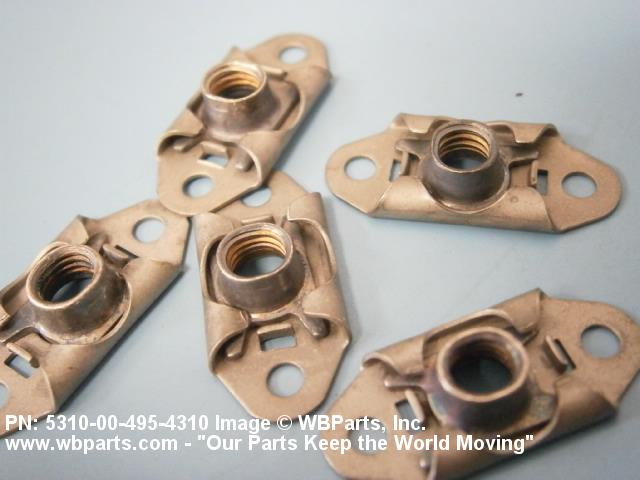

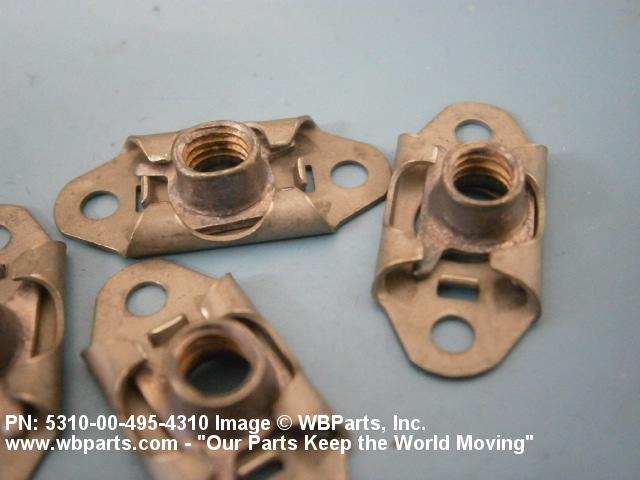

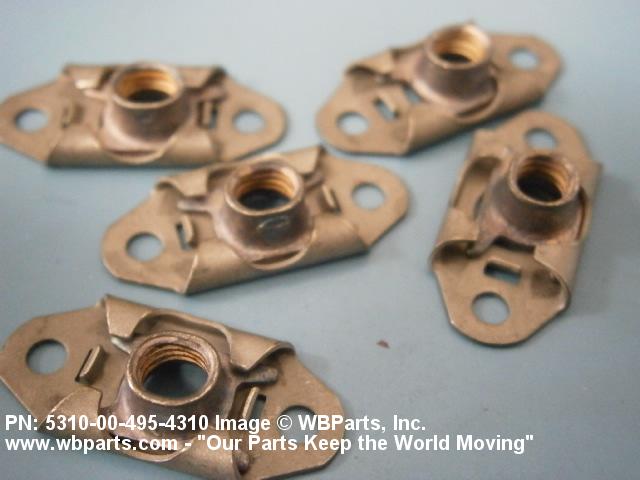

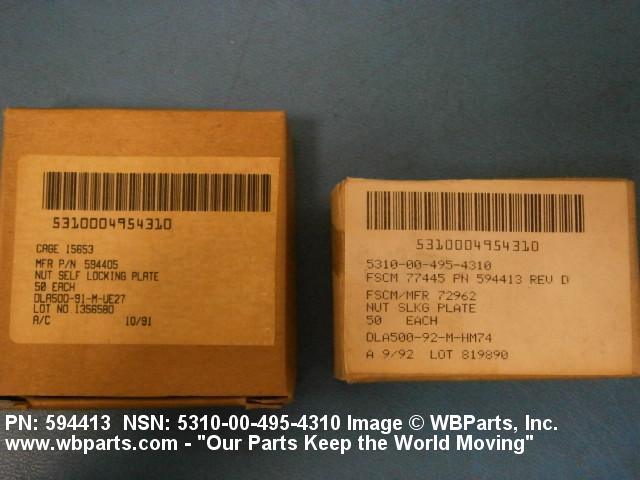

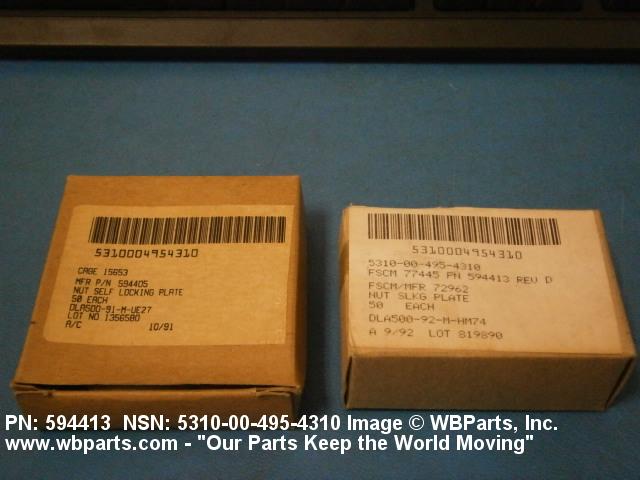

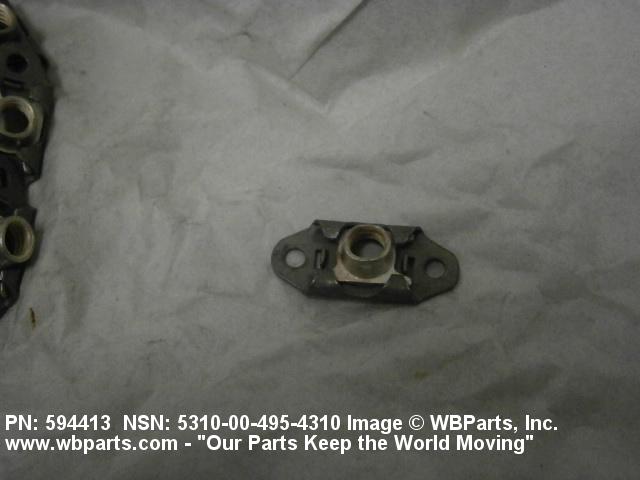

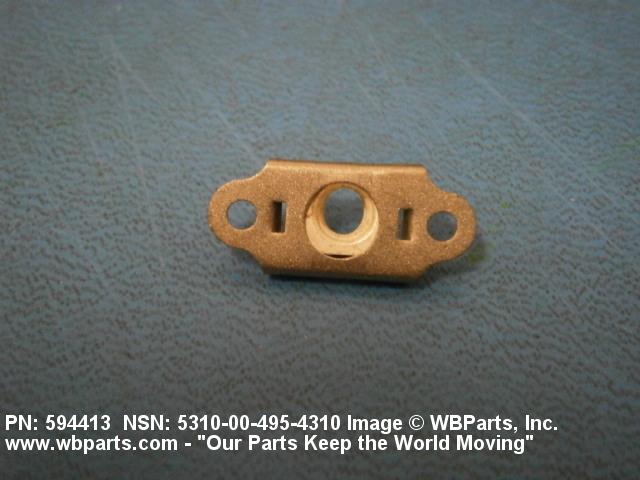

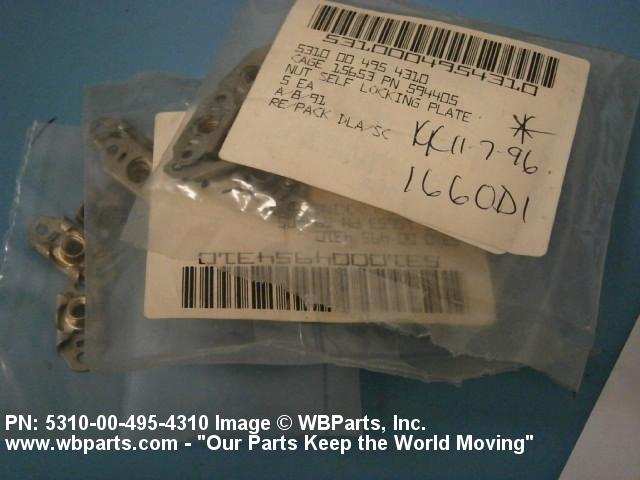

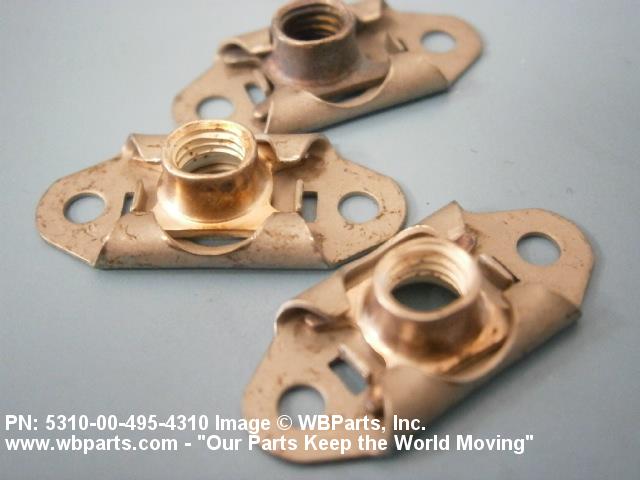

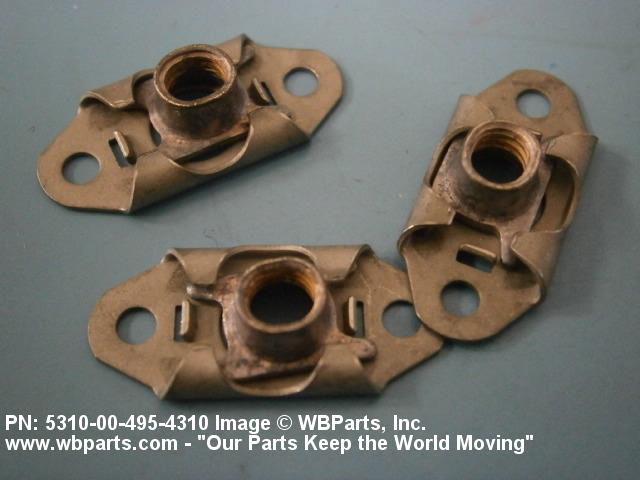

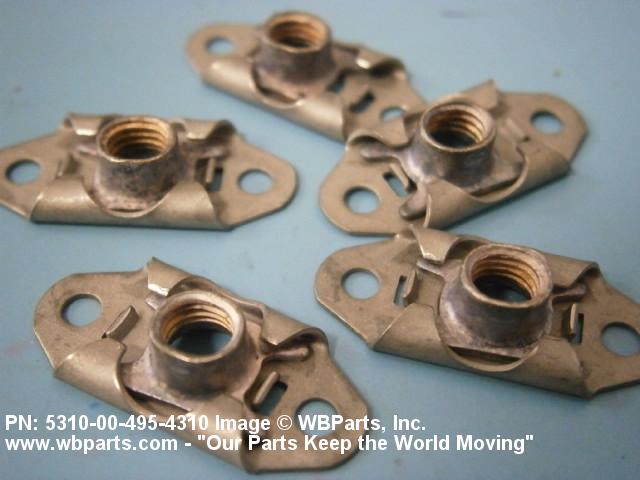

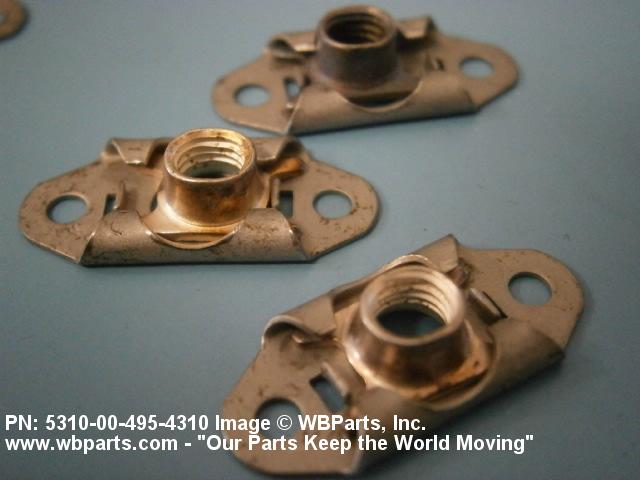

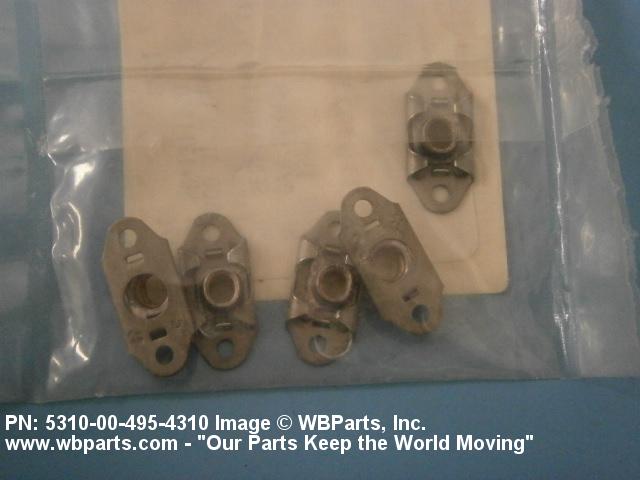

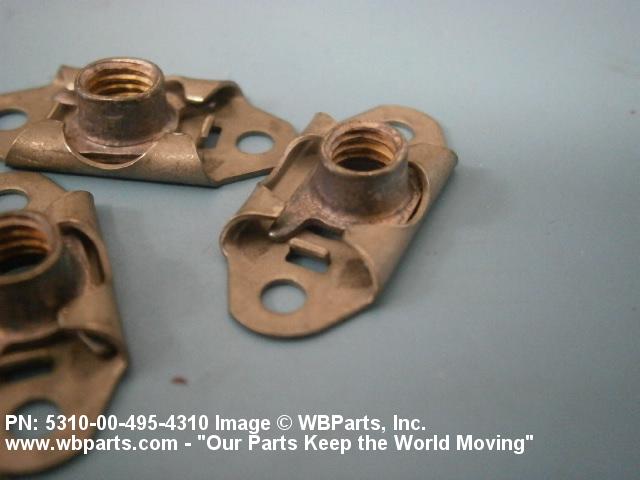

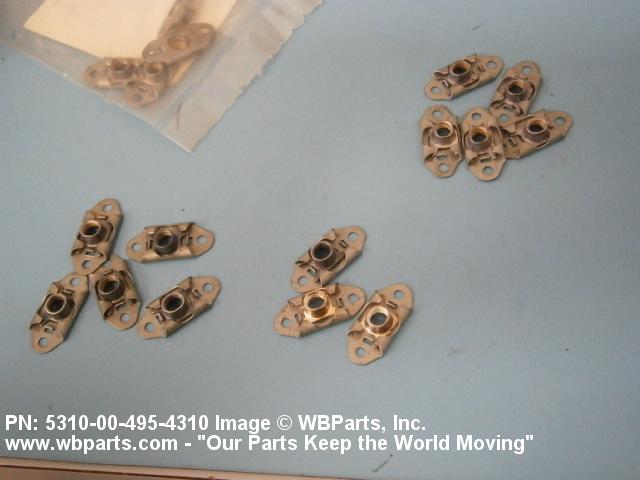

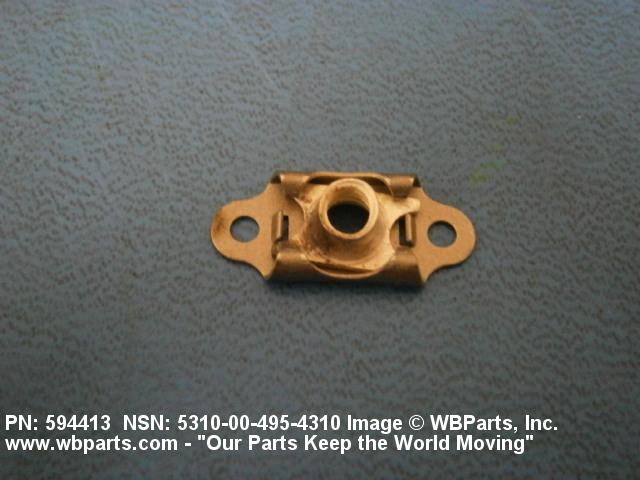

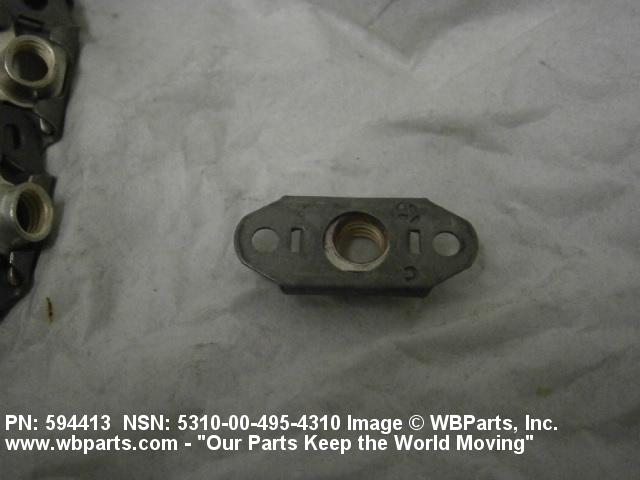

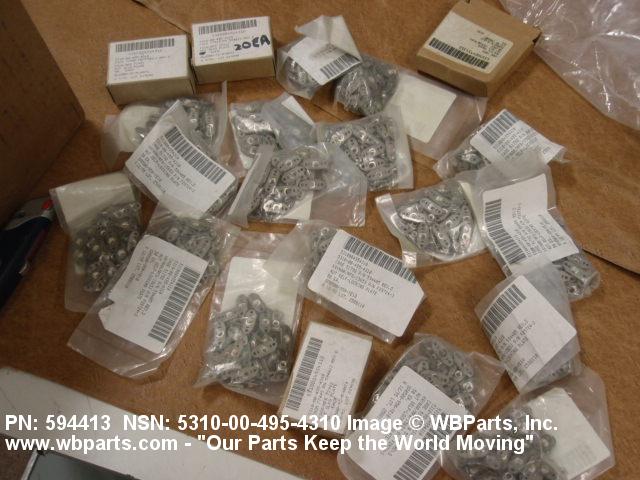

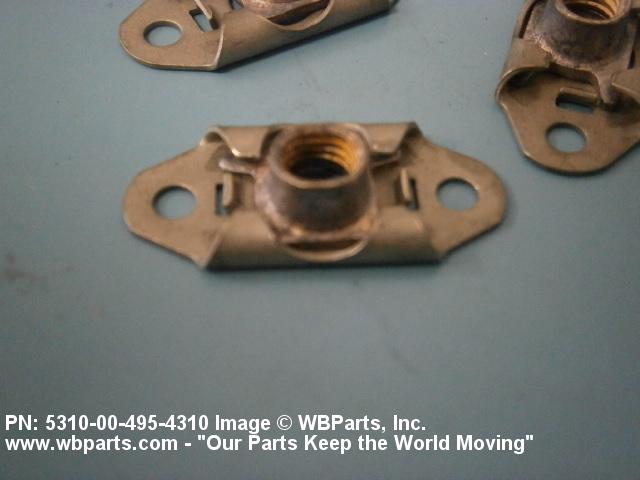

Drawings & Photos | NSN 5310-00-495-4310
Demand History | NSN 5310-00-495-4310
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 594414 | 2013-04-108 | 400 | United States |
| 594414 | 2013-01-07 | 500 | United States |
| 594414 | 2012-02-60 | 550 | United States |
| 5310-00-495-4310 | 2012-01-11 | 515 | United States |
| 5310-00-495-4310 | 2011-05-132 | 500 | United States |
| 5310-00-495-4310 | 2011-05-130 | 1000 | us |
| 594413 | 2011-04-117 | 200 | US |
| 594413 | 2009-03-90 | 1000 | United States |
| NS10312702 | 2009-03-90 | 1000 | United States |
Cross Reference | NSN 5310-00-495-4310
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 594405 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 594405 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| 594405 | 72962 | HARVARD INDUSTRIES INC |
| 594405 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 594413 | 11449 | TURBO POWER & MARINE SYSTEM INC SUB OF UNITED TECHNOLOGIES CORP |
| 594413 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 594414 | 16553 | SKYTRONICS, INC. |
| 594414 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 594414 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 594414 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 68574-1032 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| F29724-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| LHA8411-02K | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| LHA8411-02K | 72962 | HARVARD INDUSTRIES INC |
| NS103127-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-495-4310
Related Products | NSN 5310-00-495-4310
Technical Data | NSN 5310-00-495-4310
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3BG |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.940 INCHES MAXIMUM |
| NUT HEIGHT | 0.205 INCHES MAXIMUM |
| PLATE THICKNESS | 0.024 INCHES NOMINAL |
| PLATE WIDTH | 0.416 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.062 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.194 INCHES MINIMUM NUT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-00-495-4310
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
