NSN 5310-00-527-3977 MILN25027, 123T177, 22NA2122048
Product Details | PLATE SELF-LOCKING NUT
5310-00-527-3977 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MILN25027, 123T177, 22NA2122048, 22NA21-22-048, 5310-00-527-3977, 00-527-3977, 5310005273977, 005273977
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-527-3977 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

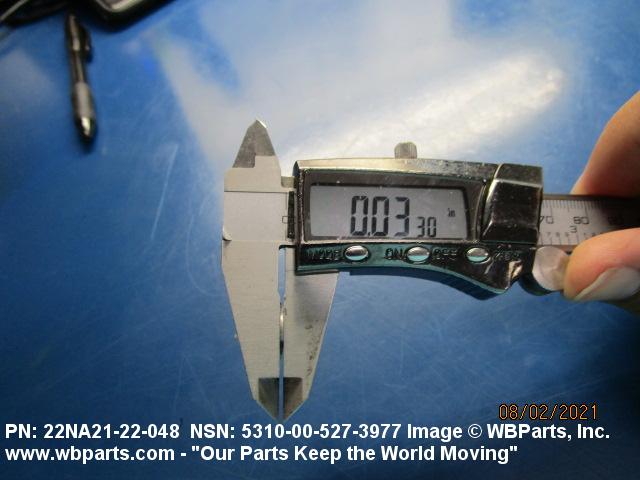

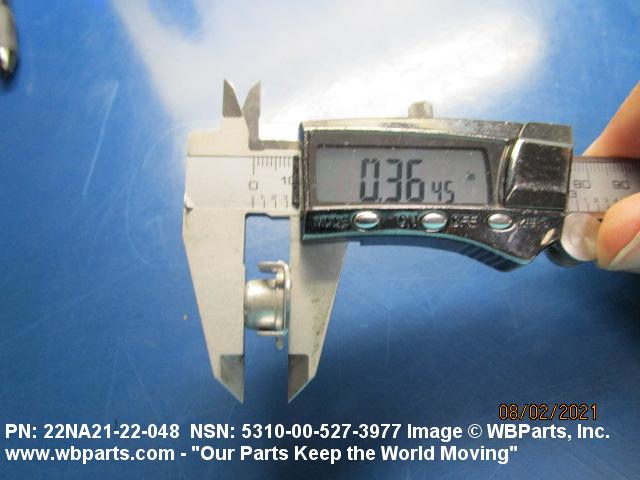

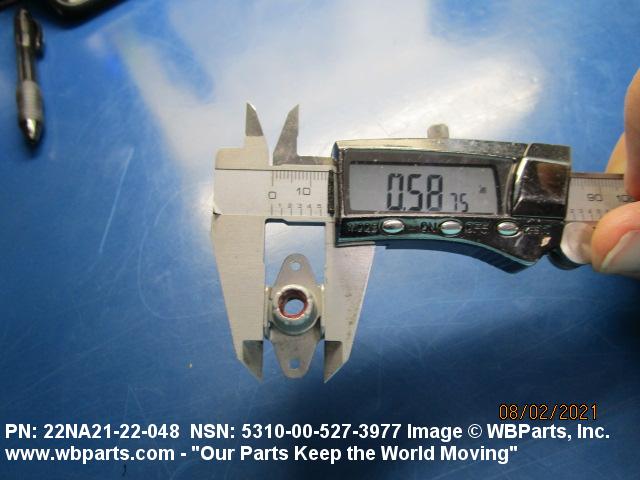

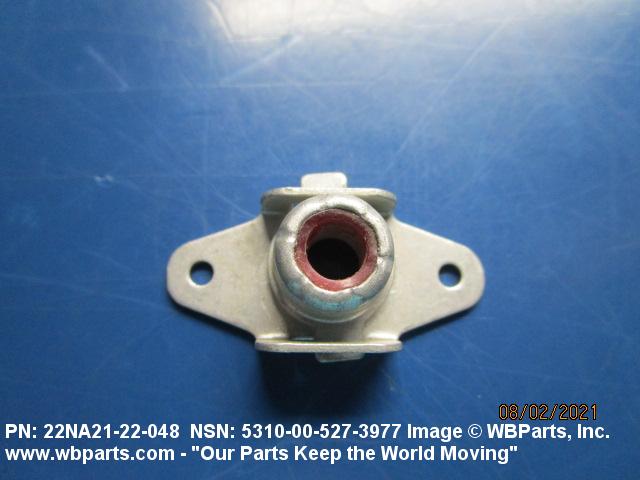

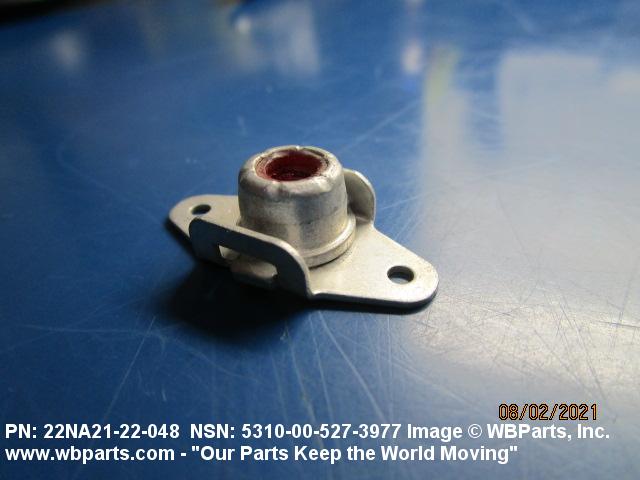

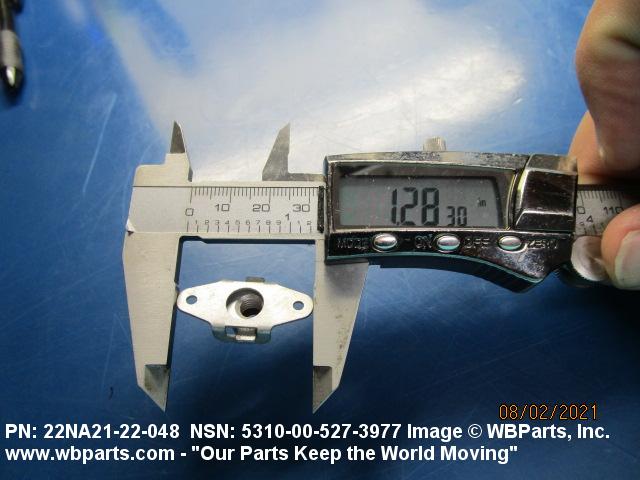

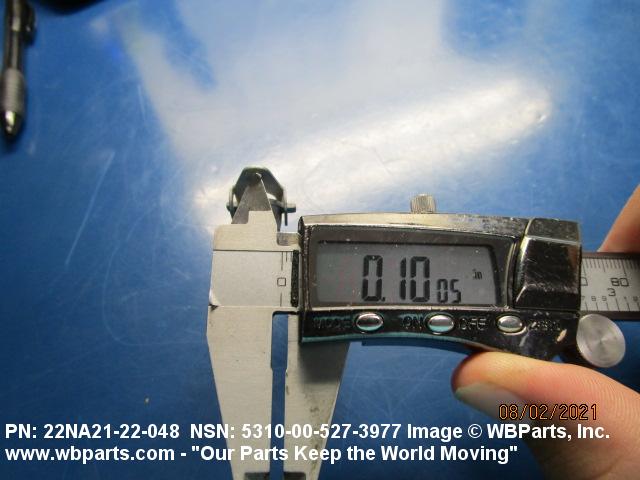

Drawings & Photos | NSN 5310-00-527-3977
Demand History | NSN 5310-00-527-3977
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILN25027 | 2023-08-236 | 54 | US |
| 5310-00-527-3977 | 2021-05-144 | 72 | United States |
| MILN25027 | 2020-09-262 | 156 | US |
| MILN25027 | 2012-06-157 | 16 | United States |
| MILN25027 | 2012-05-139 | 15 | United States |
| MILN25027 | 2011-09-265 | 28 | US |
| MILN25027 | 2011-09-264 | 25 | Canada |
| MILN25027 | 2011-02-49 | 5 | US |
| MILN25027 | 2011-02-49 | 10 | US |
| MILN25027 | 2011-02-49 | 40 | US |
| MILN25027 | 2010-06-181 | 50 | United States |
| MILN25027 | 2010-04-111 | 5000 | US |
| MILN25027 | 2009-11-321 | 560 | US |
| MILN25027 | 2009-10-281 | 8 | Canada |
| MILN25027 | 2008-09-270 | 50 | Italy |
Cross Reference | NSN 5310-00-527-3977
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123T177 | 48521 | COLT INDUSTRIES OPERATING CORP PRATT AND WHITNEY MACHINE TOOL DIV |
| 123T177 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 22NA21-22-048 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 22NA21-22-048 | 72962 | HARVARD INDUSTRIES INC |
| MILN25027 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-527-3977
Technical Data | NSN 5310-00-527-3977
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1010 NUT STEEL COMP 1010 SHELL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE NUT AISI ASSN STD SINGLE MATERIAL RESPONSE SHELL |
| SURFACE TREATMENT | CADMIUM SHELL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| OVERALL HEIGHT | 0.343 INCHES NOMINAL |
| NUT LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| NUT HEIGHT | 0.343 INCHES NOMINAL |
| PLATE THICKNESS | 0.027 INCHES MINIMUM AND 0.037 INCHES MAXIMUM |
| PLATE WIDTH | 0.594 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILN25027 |
Restrictions/Controls & Freight Information | NSN 5310-00-527-3977
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
