NSN 5310-00-557-4672 MS210624W, MS21062-4W, RF100C4W
Product Details | PLATE SELF-LOCKING NUT
5310-00-557-4672 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210624W, MS21062-4W, RF100C4W, T66C428CPWB, F20314P, F2031-4P, LHTA5172860P048, LHTA517-2860P-048, 5310-00-557-4672, 00-557-4672, 5310005574672, 005574672
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 NOV 1974 | 00-557-4672 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

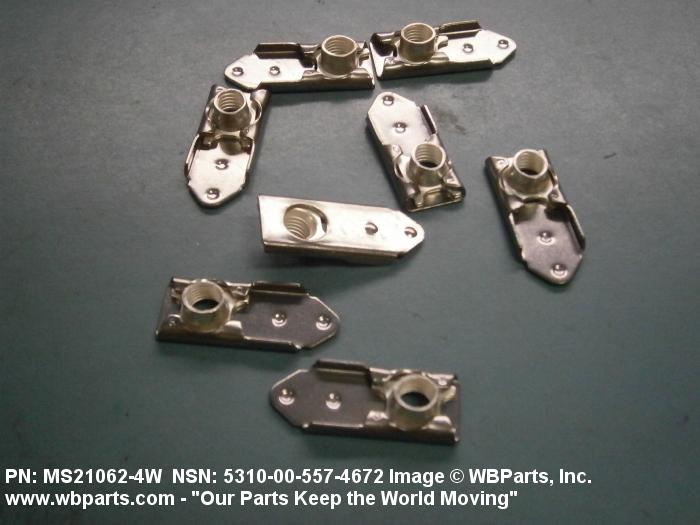

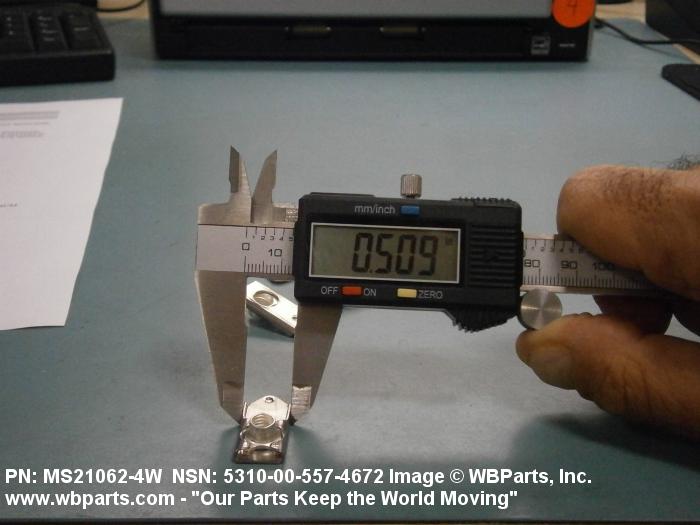

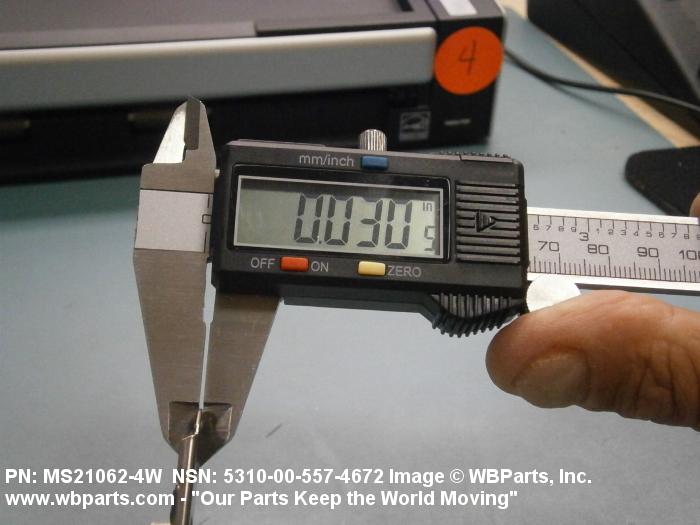

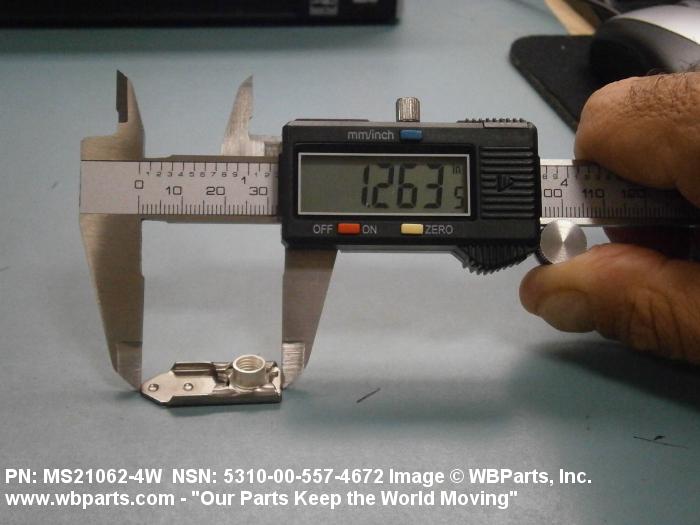

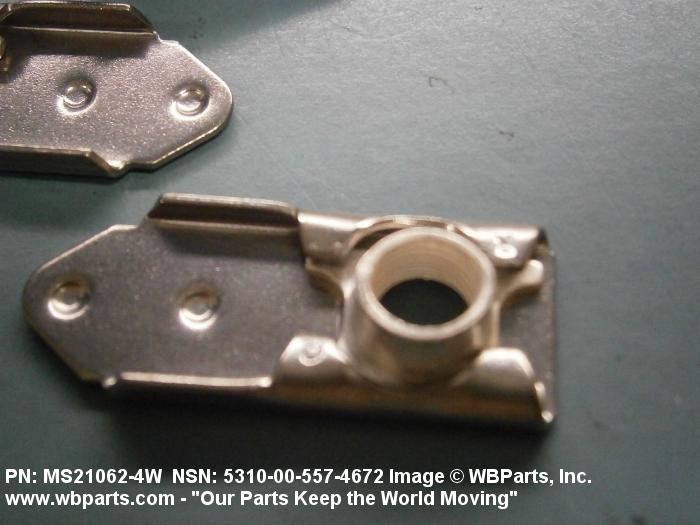

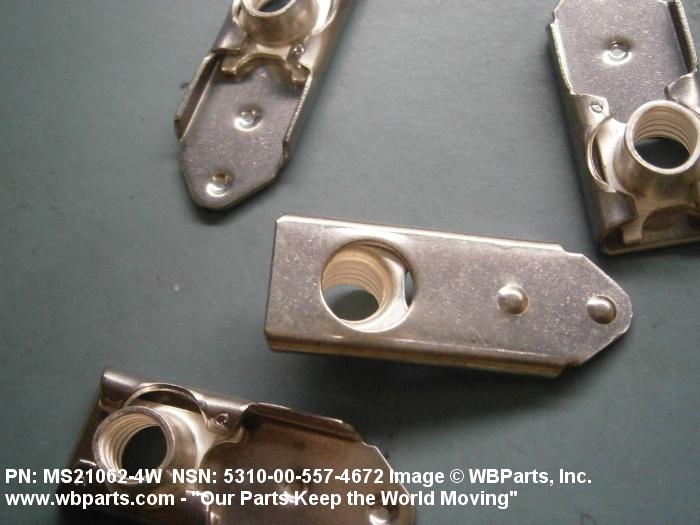

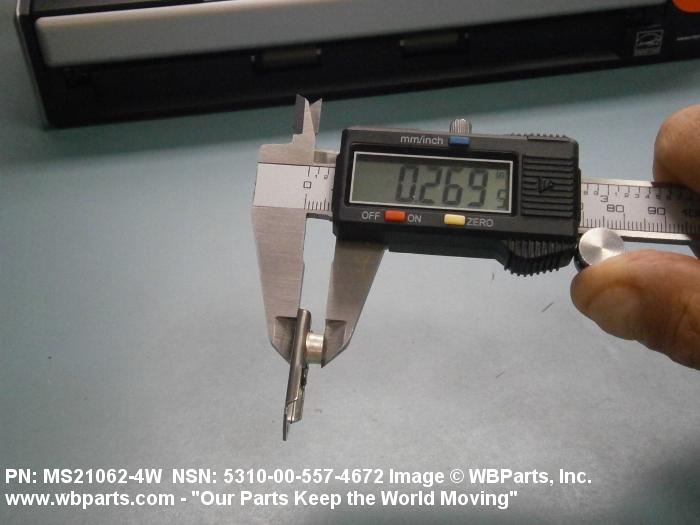

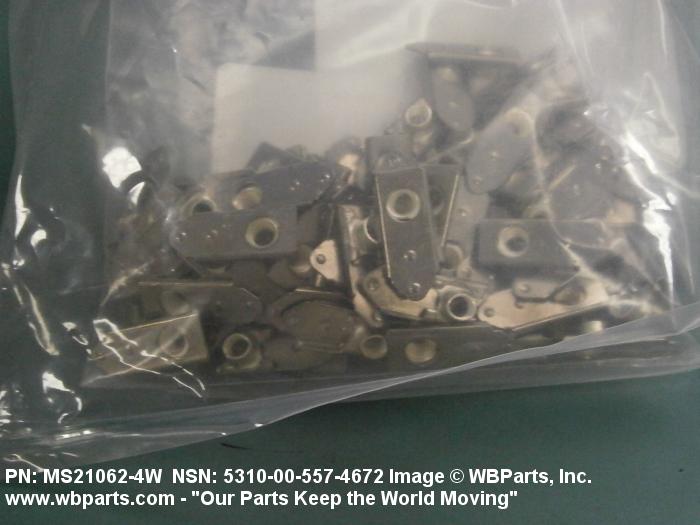

Drawings & Photos | NSN 5310-00-557-4672
Demand History | NSN 5310-00-557-4672
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-557-4672 | 2015-06-166 | 20 | us |
| 5310-00-557-4672 | 2015-06-154 | 20 | us |
| MS210624W | 2013-07-203 | 76 | United States |
Cross Reference | NSN 5310-00-557-4672
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F2031-4P | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F2031-4P | R1120 | SATAIR A/S |
| LHTA517-2860P-048 | 72962 | HARVARD INDUSTRIES INC |
| MS21062-4W | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21062-4W | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RF100C4W | 52828 | REPUBLIC FASTENER MFG. CORP. |
| T66C428CPWB | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-557-4672
Technical Data | NSN 5310-00-557-4672
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| OVERALL HEIGHT | 0.281 INCHES MAXIMUM |
| NUT LENGTH | 1.306 INCHES MAXIMUM |
| PLATE THICKNESS | 0.032 INCHES NOMINAL |
| PLATE WIDTH | 0.350 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| WELDING PROJECTION QUANTITY | 2 |
| TEMP RATING | 800.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-00-557-4672
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093480 | BOLTS/NUTS METAL SILVER PLATED |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
