NSN 5310-00-576-7028 2371644, 00-576-7028, 005767028
Product Details | RECESSED WASHER
5310-00-576-7028 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: 2371644, 5310-00-576-7028, 00-576-7028, 5310005767028, 005767028
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-576-7028 | 15933 ( WASHER, RECESSED ) |

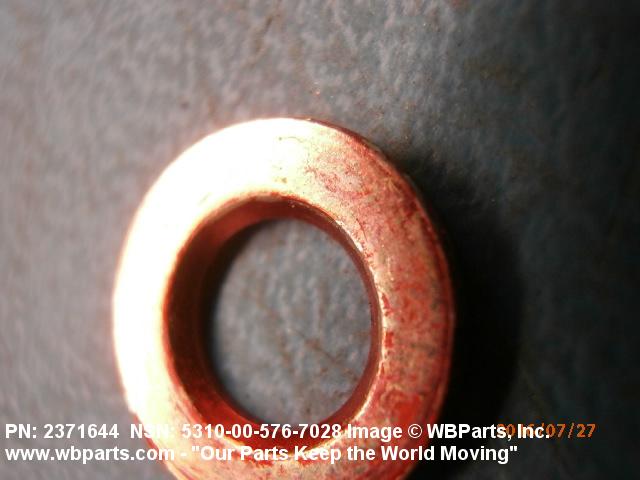

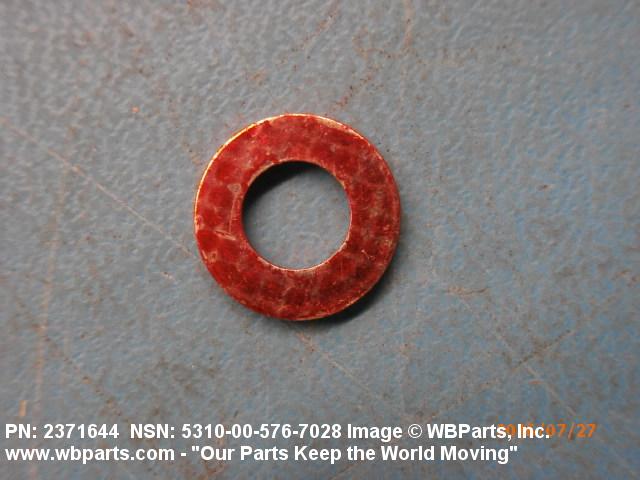

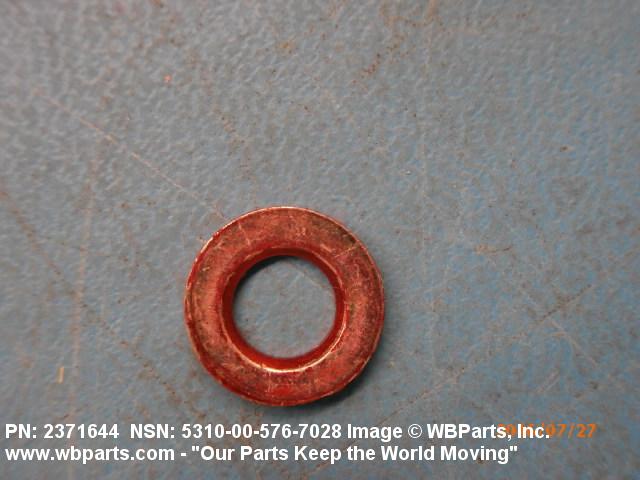

Drawings & Photos | NSN 5310-00-576-7028
Demand History | NSN 5310-00-576-7028
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2371644 | 2016-06-180 | 1500 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-576-7028
Technical Data | NSN 5310-00-576-7028
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 15 RECESS |

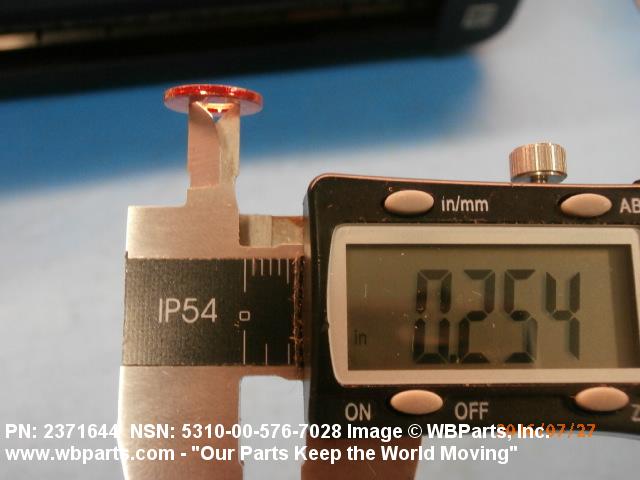

| HOLE DIAMETER | 0.252 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

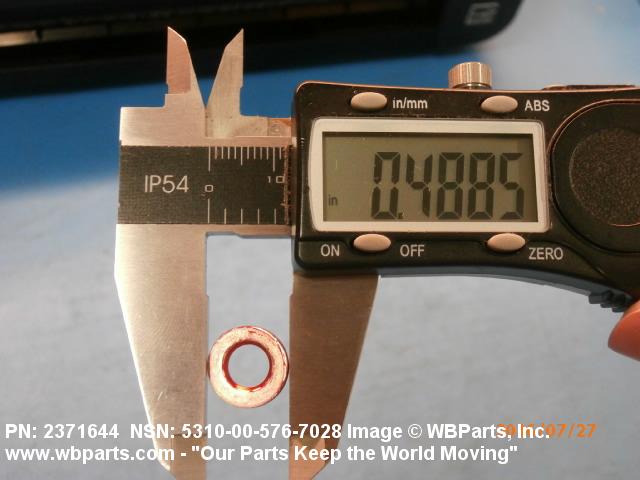

| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |

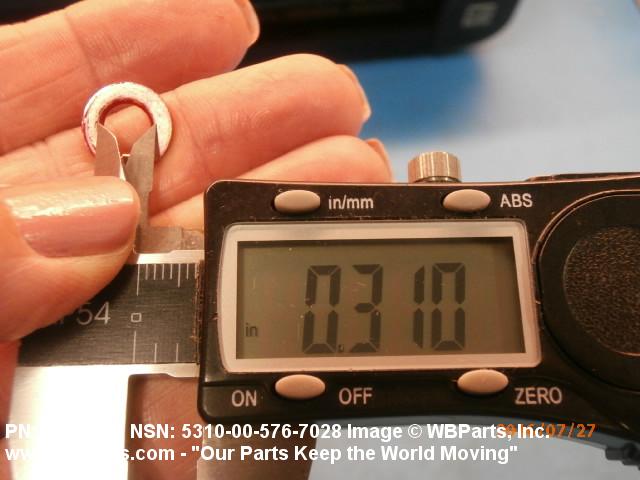

| RECESS DIAMETER | 0.310 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |

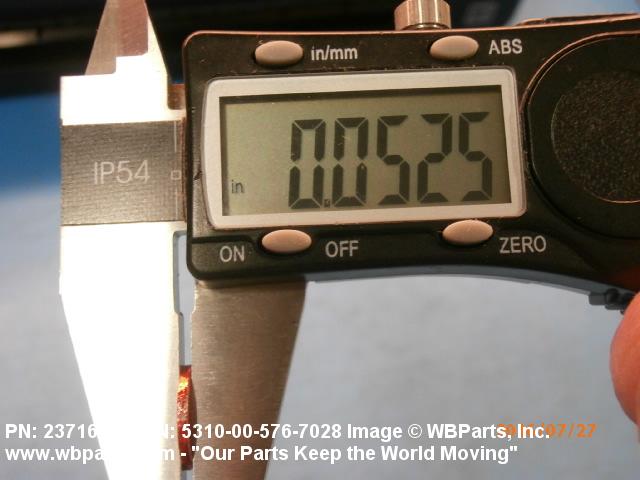

| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |
| RECESS ANGLE | 90.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 2371644 |
Restrictions/Controls & Freight Information | NSN 5310-00-576-7028
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
