NSN 5310-00-576-8034 A2500064, A2500-064, F19686
Product Details | PLATE SELF-LOCKING NUT
5310-00-576-8034 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: A2500064, A2500-064, F19686, F1968-6, 8094484, 5310-00-576-8034, 00-576-8034, 5310005768034, 005768034
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-576-8034 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

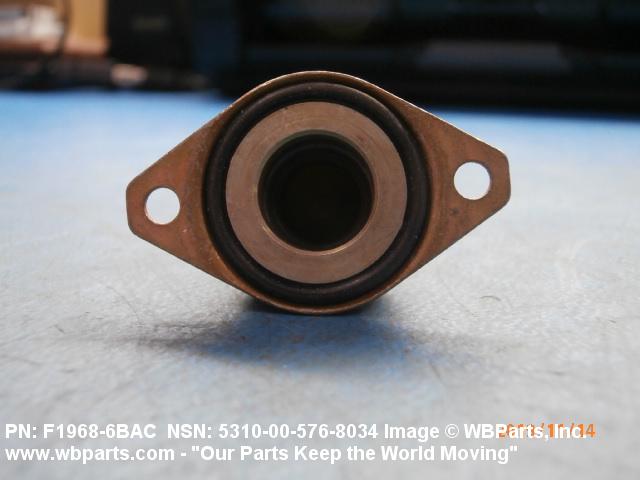

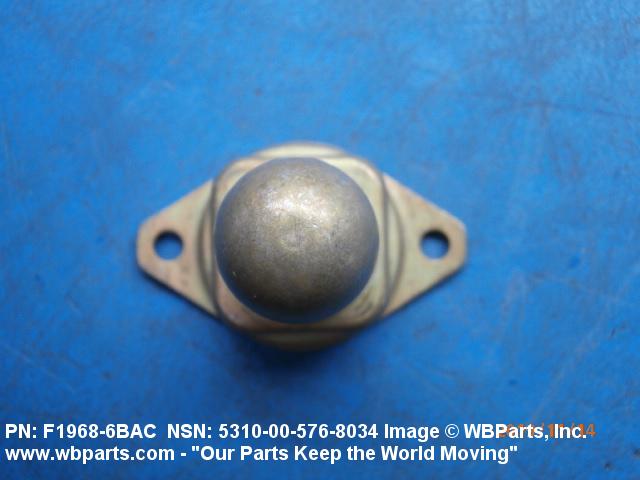

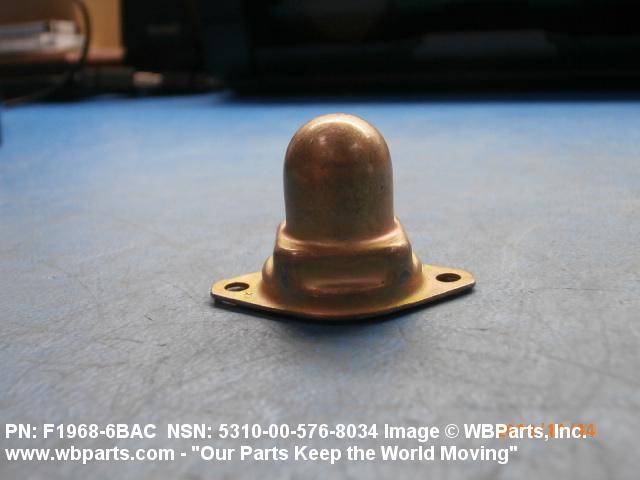

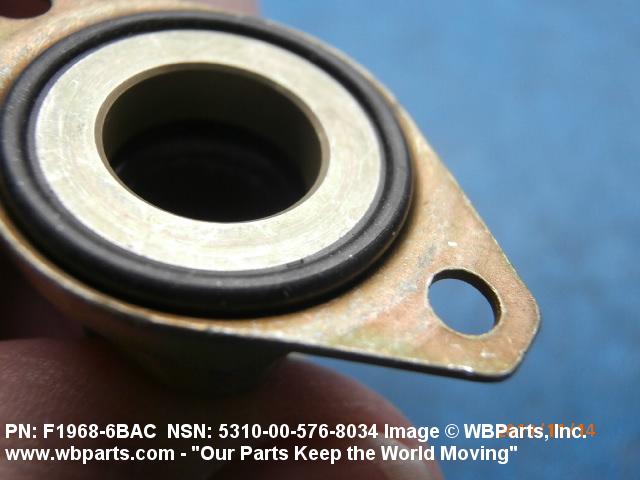

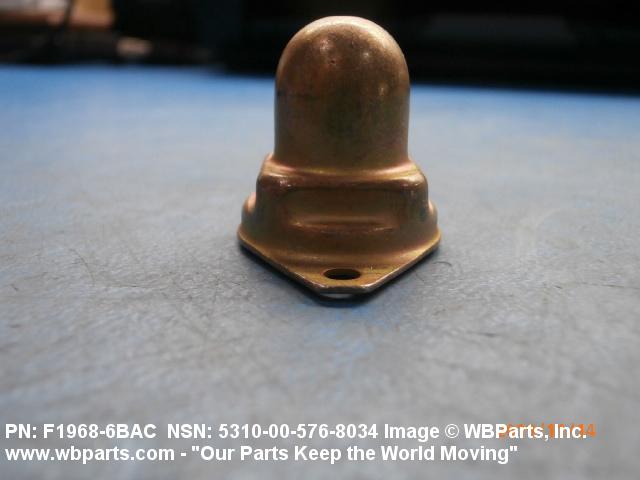

Drawings & Photos | NSN 5310-00-576-8034
Demand History | NSN 5310-00-576-8034
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-576-8034 | 2024-05-137 | 60 | KR |
| F19686 | 2019-08-239 | 1000 | GE |
| 5310-00-576-8034 | 2019-08-239 | 1000 | GE |
| 5310-00-576-8034 | 2019-08-219 | 11 | United States |
| 5310-00-576-8034 | 2019-08-219 | 25 | United States |
| 5310-00-576-8034 | 2019-08-219 | 50 | United States |
| 5310-00-576-8034 | 2019-08-219 | 100 | United States |
| A2500064 | 2011-10-280 | 150 | United States |
| A2500064 | 2011-05-130 | 50 | US |
| A2500064 | 2010-03-62 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-576-8034
Related Products | NSN 5310-00-576-8034
Technical Data | NSN 5310-00-576-8034
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |

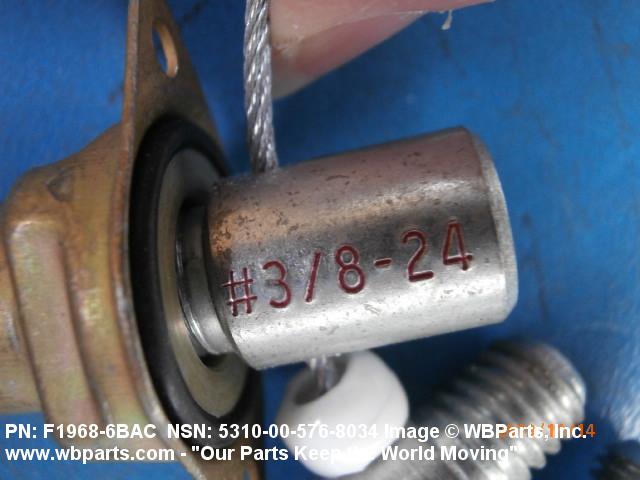

| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 7075 BASE STEEL CAP STEEL COMP 4130 NUT RUBBER SYNTHETIC SEAL ALUMINUM ALLOY 7075 SHELL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/13,TEMPER T6 FED SPEC SINGLE MATERIAL RESPONSE BASE AISI ASSN STD SINGLE MATERIAL RESPONSE NUT MIL-R-6855,CLASS 1 MIL SPEC SINGLE MATERIAL RESPONSE SEAL QQ-A-250/13,TEMPER T6 FED SPEC SINGLE MATERIAL RESPONSE SHELL |
| SURFACE TREATMENT | ANODIZE BASE CADMIUM NUT ANODIZE SHELL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

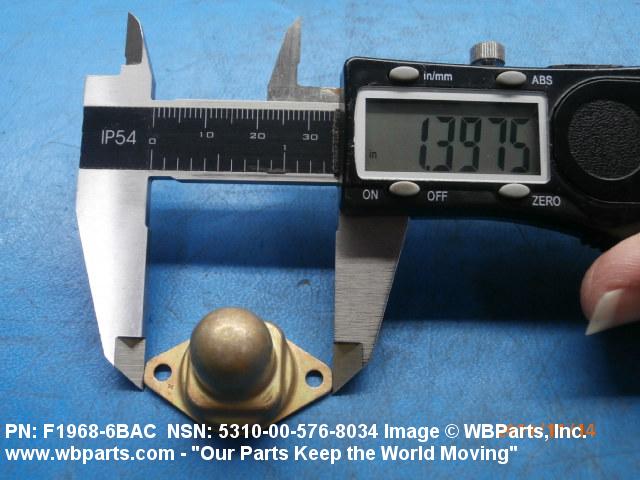

| NUT LENGTH | 1.406 INCHES NOMINAL |
| NUT HEIGHT | 0.929 INCHES NOMINAL |

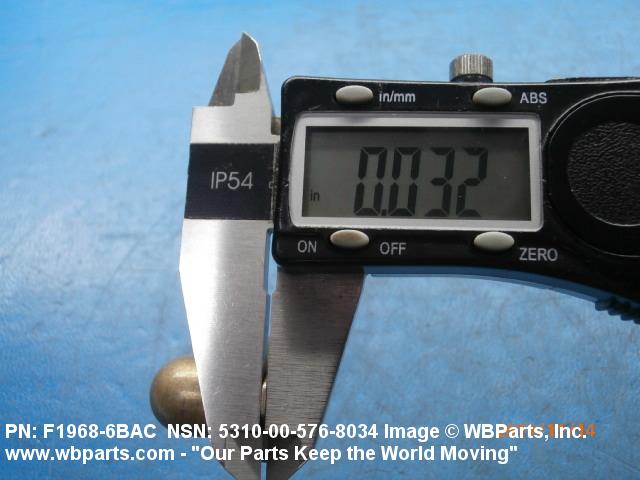

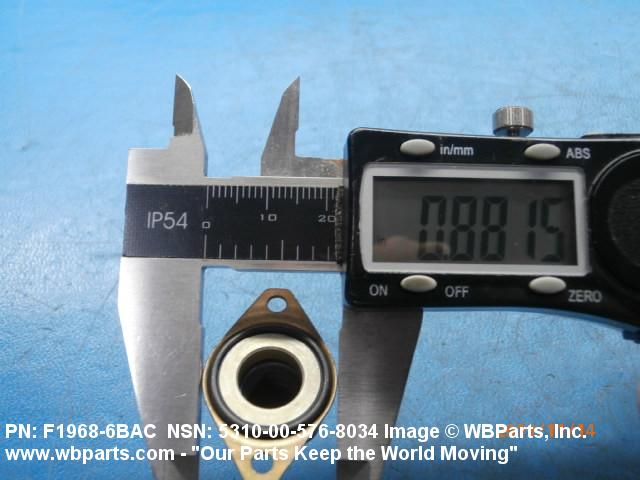

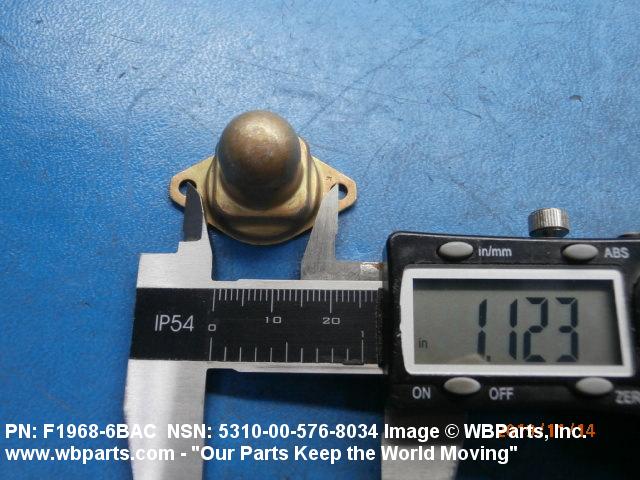

| PLATE THICKNESS | 0.030 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| PLATE WIDTH | 0.860 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.123 INCHES MINIMUM AND 1.127 INCHES MAXIMUM |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 18876 |
| MFR SOURCE CONTROLLING REFERENCE | 8094484 |
