5310-00-595-7078 - RECESSED WASHER, MS20002C5, NAS1435C, NAS143-5C

Product Details | RECESSED WASHER

5310-00-595-7078 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.

Part Alternates: MS20002C5, NAS1435C, NAS143-5C, NASM20002C5, NASM20002-C5, 80908500, 809085-00, 8147985, 938.75.11.102, 938.75.11.104 , 9387511102, 9387511104, 21073 FIND 29, 21073FIND29, 2114033, 21140-33, 2117049, 21170-49, 2126030, 21260-30, 21317 FIND 42, 21317FIND42, 21331 FIND 29, 21331FIND29, 21340 FIND 34, 21340FIND34, 21342 FIND 46, 21342FIND46, 21816-001 FIND 38, 21816001FIND38, 21817 FIND 32, 21817FIND32, 21820 FIND 39, 21820FIND39, 21835 FIND 49, 21835FIND49, 21837 FIND 43, 21837FIND43, 52103 FIND 53, 52103FIND53, 52122 FIND 53, 52122FIND53, 5310-00-595-7078, 00-595-7078, 5310005957078, 005957078

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-595-7078	15933 ( WASHER, RECESSED )

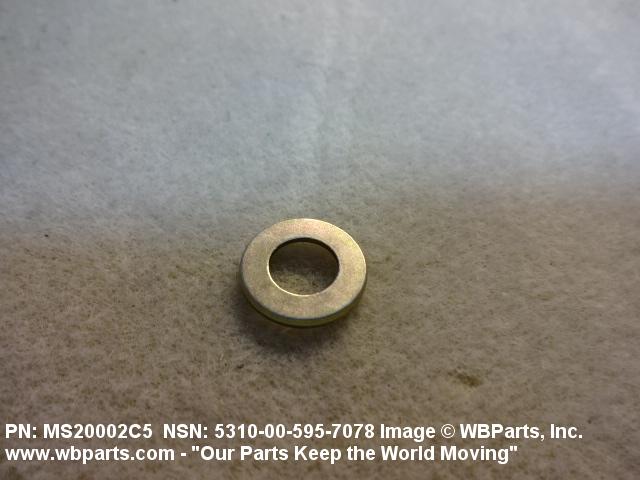

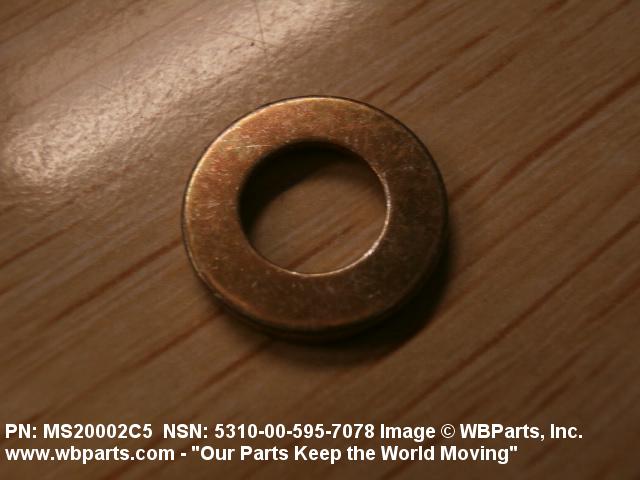

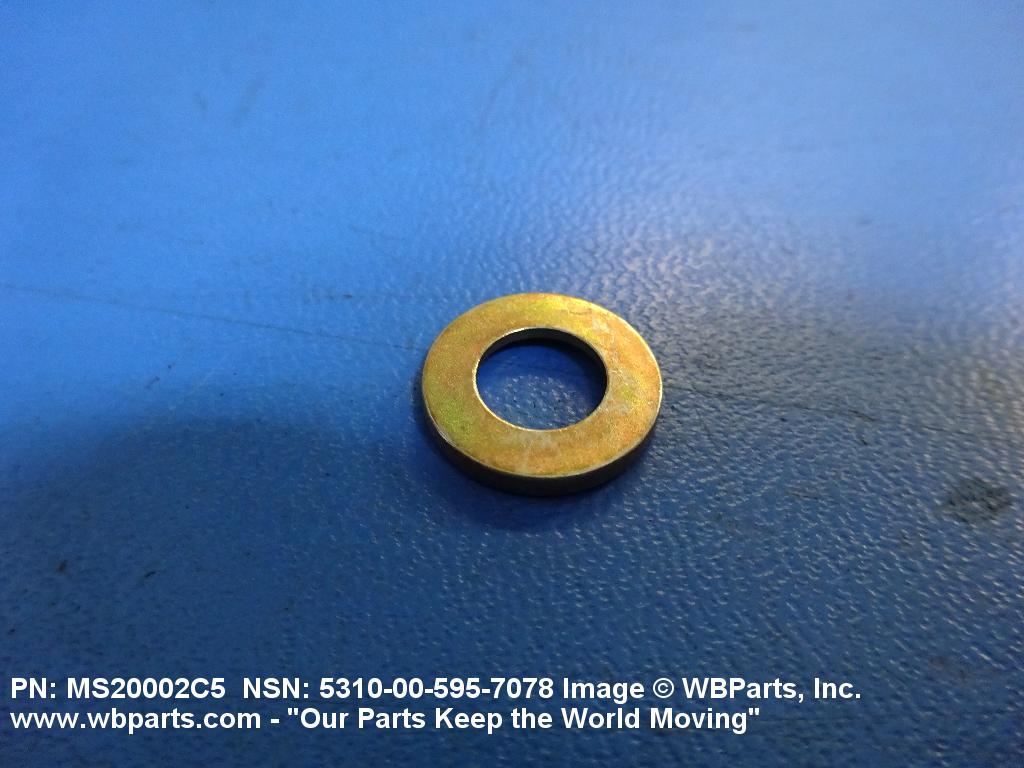

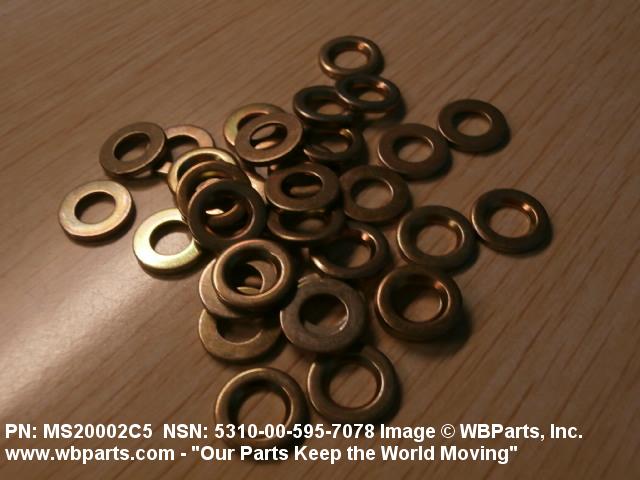

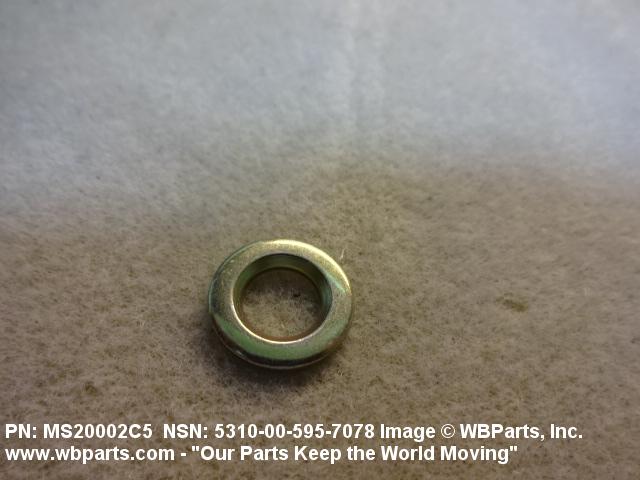

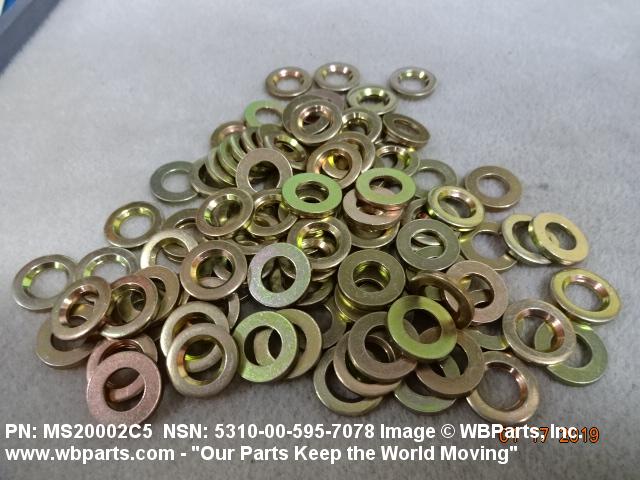

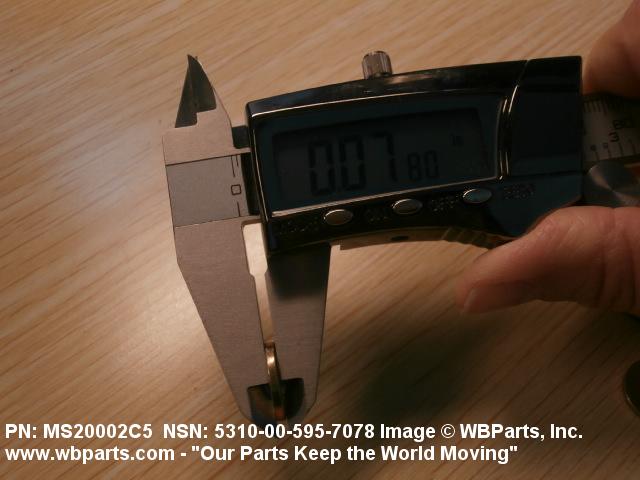

Drawings & Photos | NSN 5310-00-595-7078

Part Number	Request Date	QTY	Origin
MS20002C5	2024-03-04	16	Germany
5310-00-595-7078	2024-02-21	20	us
MS20002C5	2024-02-02	50	Croatia
MS20002C5	2023-08-29	6	United States
MS20002C5	2023-01-31	64	United States
MS20002C5	2021-06-16	75	US
MS20002C5	2020-03-17	236	US
5310-00-595-7078	2019-12-02	200	Singapore
5310-00-595-7078	2019-11-27	200	Singapore
5310-00-595-7078	2019-05-02	4	GR
5310-00-595-7078	2019-04-05	200	India
5310-00-595-7078	2019-03-26	200	Singapore
MS20002C5	2019-02-11	200	Lebanon
MS20002C5	2018-08-22	40	US
MS20002C5	2018-04-26	4	United States
5310-00-595-7078	2018-03-27	24	US
MS20002C5	2018-03-02	4	United States
9387511102	2017-11-29	1000	AE
MS20002C5	2017-10-05	4	United States
5310-00-595-7078	2017-08-28	125	DIBBS
NASM20002C5	2017-08-23	36	US
5310-00-595-7078	2017-08-23	2758	DIBBS
5310-00-595-7078	2017-08-08	19948	DIBBS
MS20002C5	2017-07-17	500	US
MS20002C5	2017-07-17	500	US
5310-00-595-7078	2017-05-01	100	United States
MS20002C5	2017-03-20	30	United States
5310-00-595-7078	2017-02-22	4	MANUAL
5310-00-595-7078	2016-12-14	1000	DIBBS
5310-00-595-7078	2016-12-01	353	DIBBS
5310-00-595-7078	2016-11-30	232	DIBBS
MS20002C5	2015-04-30	10	Ecuador
5310-00-595-7078	2015-04-29	374	DIBBS
MS20002C5	2015-03-03	50	US
5310-00-595-7078	2015-02-18	2	EG
MS20002C5	2014-08-11	24	Belgium
MS20002C5	2014-03-26	50	United States
MS20002C5	2014-03-11	62	United States
MS20002C5	2014-02-05	150	United States
MS20002C5	2014-01-14	36	United States
MS20002C5	2013-11-18	15	Belgium
MS20002C5	2013-04-17	4	US
MS20002C5	2012-11-05	55
MS20002C5	2012-06-01	100	Poland
MS20002C5	2012-05-10	100	US
MS20002C5	2012-01-26	8	CA
MS20002C5	2011-11-11	4	AU
MS20002C5	2011-09-15	45	United States
5310-00-595-7078	2011-08-23	120	ZA
MS20002C5	2011-08-09	50	Indonesia
5310-00-595-7078	2011-07-28	35	United States
MS20002C5	2011-03-14	100	US
5310-00-595-7078	2011-02-07	6	US
MS20002C5	2011-01-14	25	United States
MS20002C5	2011-01-14	45	US
MS20002C5	2011-01-13	25	US
5310-00-595-7078	2010-12-27	16	US
MS20002C5	2010-09-21	6	US
5310-00-595-7078	2010-09-20	250	US
MS20002C5	2010-03-31	200	Malaysia
MS20002C5	2010-03-31	200	Malaysia
5310-00-595-7078	2010-02-03	600	US
NAS1435C	2010-01-21	10	FI
5310-00-595-7078	2009-12-21	105	US
5310-00-595-7078	2009-11-05	13	US
5310-00-595-7078	2009-10-15	52	United States
5310-00-595-7078	2009-02-04	32	IT
5310-00-595-7078	2008-10-24	84	US
5310-00-595-7078	2008-09-18	15	US
NASM20002C5	2008-05-30	750	us
MS20002C5	2008-05-30	7	us
5310-00-595-7078	2007-11-09	2	US
MS20002C5	2007-09-18	1950	United States
5310-00-595-7078	2007-02-26	200	United States
MS20002C5	2006-08-21	80	Philippines

Cross Reference | NSN 5310-00-595-7078

Part Number	Cage Code	Manufacturer
21073 FIND 29	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21140-33	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21170-49	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21260-30	53711	NAVAL SEA SYSTEMS COMMAND
21317 FIND 42	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21331 FIND 29	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21340 FIND 34	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21342 FIND 46	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21816-001 FIND 38	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21817 FIND 32	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21820 FIND 39	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21835 FIND 49	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
21837 FIND 43	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
52103 FIND 53	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
52122 FIND 53	78062	DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE
5310005957078	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
809085-00	32345	DEFENSE REDUCTION AGENCY
8147985	18876	U S ARMY AVIATION AND MISSILE COMMAND
938.75.11.102	S4080	PILATUS AIRCRAFT LTD
MS20002C5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20002C5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS143-5C	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NASM20002-C5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5310-00-595-7078

Compare

Related Products | NSN 5310-00-595-7078

5310-00-595-7079, 5310-00-595-7083, 5310-00-595-7087, 5310-00-595-7089, 5310-00-595-7101

Technical Data | NSN 5310-00-595-7078

Characteristic	Specifications
MATERIAL	STEEL COMP 1330 OR STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	15 RECESS

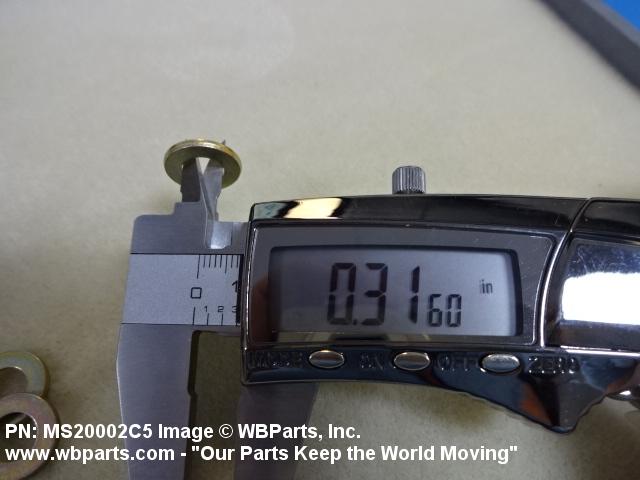

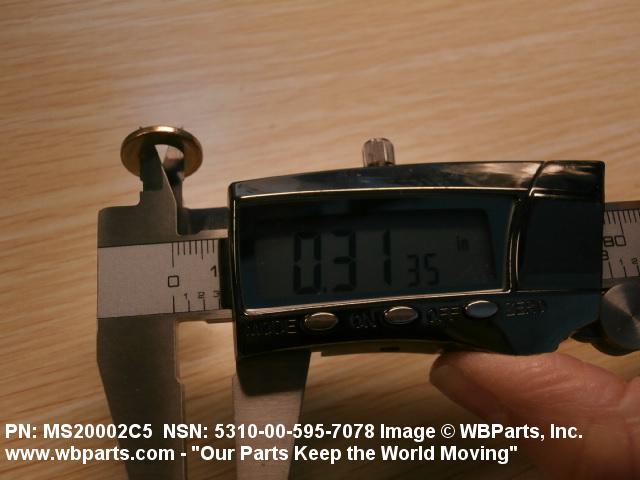

HOLE DIAMETER	0.315 INCHES MINIMUM AND 0.324 INCHES MAXIMUM

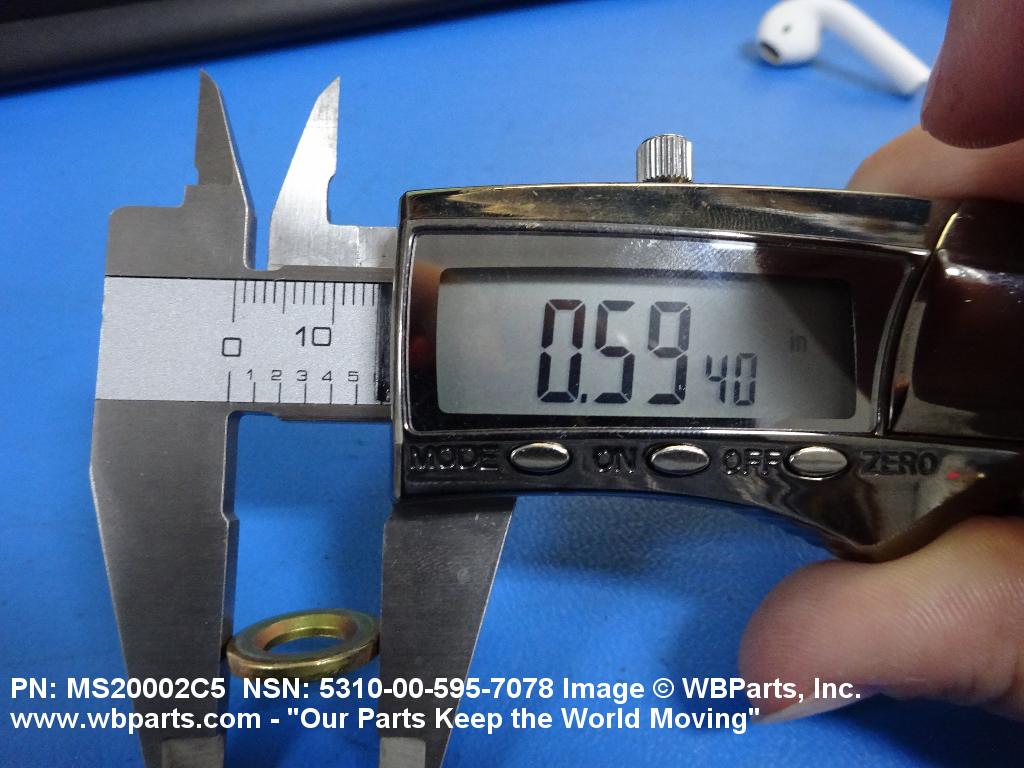

OUTSIDE DIAMETER	0.583 INCHES MINIMUM AND 0.603 INCHES MAXIMUM

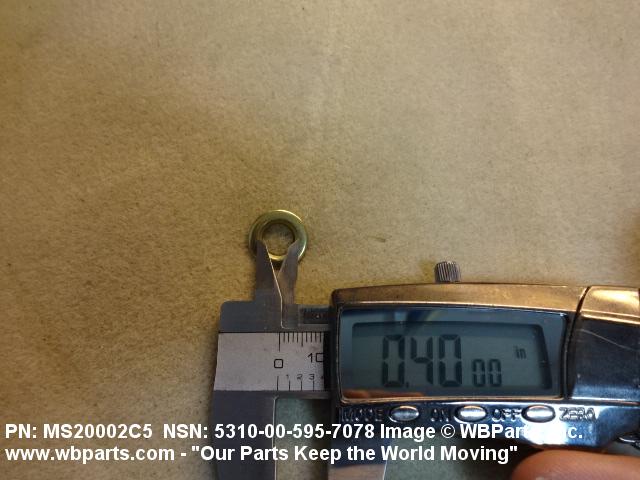

RECESS DIAMETER	0.396 INCHES MINIMUM AND 0.406 INCHES MAXIMUM
MATERIAL THICKNESS	0.068 INCHES MINIMUM AND 0.088 INCHES MAXIMUM
RECESS ANGLE	89.0 DEGREES MINIMUM AND 91.0 DEGREES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS143 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20002C5

Restrictions/Controls & Freight Information | NSN 5310-00-595-7078

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-595-7078

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
