NSN 5310-00-621-5971 ST4M1343100, ST4M134-3-100, WSI4100
Product Details | PLATE SELF-LOCKING NUT
5310-00-621-5971 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: ST4M1343100, ST4M134-3-100, WSI4100, WSI-4-100, WSI4100D, WSI4-100D, WSI4100NH, WSI-4-100NH, 10121561 , 5300014100, 5300014-100, 5310-00-621-5971, 00-621-5971, 5310006215971, 006215971
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 FEB 1975 | 00-621-5971 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

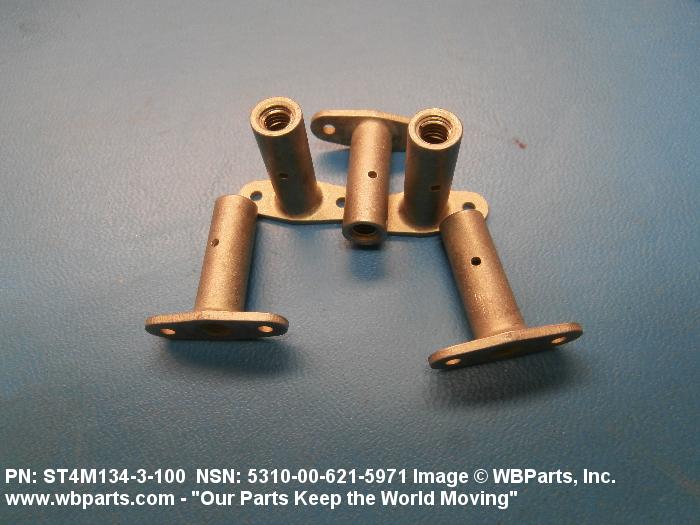

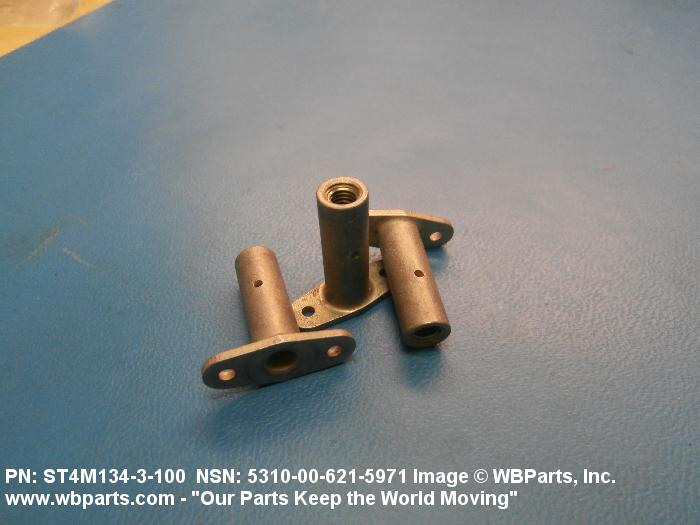

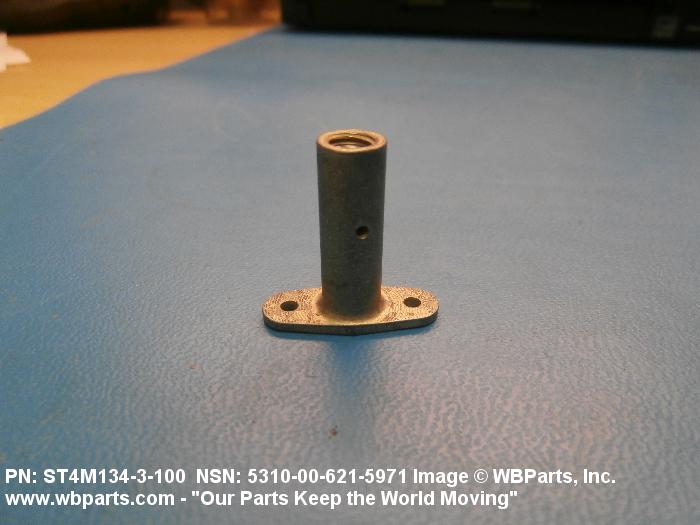

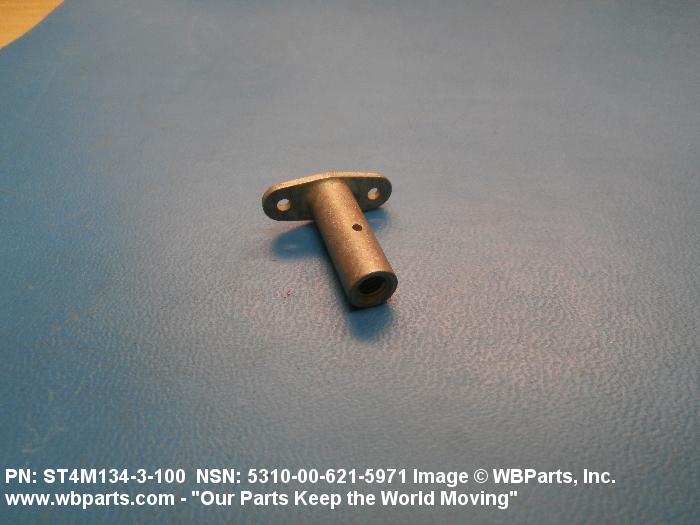

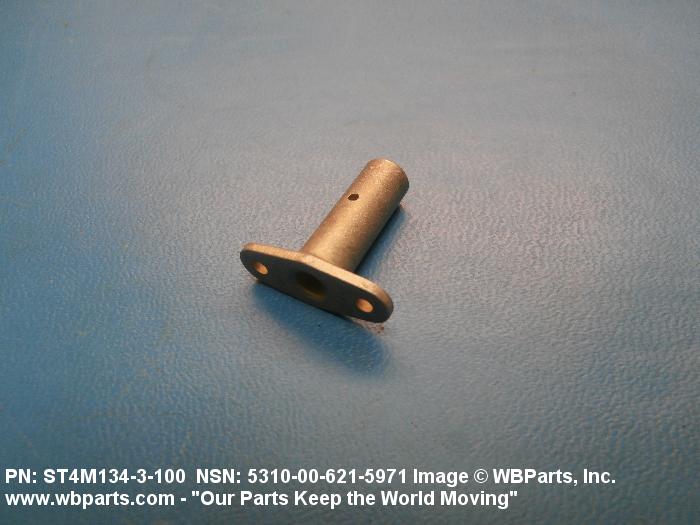

Drawings & Photos | NSN 5310-00-621-5971
Demand History | NSN 5310-00-621-5971
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-621-5971 | 2022-11-312 | 30 | US |
| 5300014-100 | 2021-12-337 | 140 | DIBBS |
| ST4M134-3-100 | 2021-12-337 | 140 | DIBBS |
| WSI-4-100 | 2021-12-337 | 140 | DIBBS |
| WSI-4-100NH | 2021-12-337 | 140 | DIBBS |
| 5300014-100 | 2021-11-326 | 140 | DIBBS |
| ST4M134-3-100 | 2021-11-326 | 140 | DIBBS |
| WSI-4-100 | 2021-11-326 | 140 | DIBBS |
| WSI-4-100NH | 2021-11-326 | 140 | DIBBS |
| 5300014-100 | 2021-10-298 | 140 | DIBBS |
| ST4M134-3-100 | 2021-10-298 | 140 | DIBBS |
| WSI-4-100 | 2021-10-298 | 140 | DIBBS |
| WSI-4-100NH | 2021-10-298 | 140 | DIBBS |
| 5300014-100 | 2021-10-285 | 140 | DIBBS |
| ST4M134-3-100 | 2021-10-285 | 140 | DIBBS |
| WSI-4-100 | 2021-10-285 | 140 | DIBBS |
| WSI-4-100NH | 2021-10-285 | 140 | DIBBS |
| 5300014-100 | 2019-02-36 | 28 | DIBBS |
| ST4M134-3-100 | 2019-02-36 | 28 | DIBBS |
| WSI-4-100 | 2019-02-36 | 28 | DIBBS |
| WSI-4-100NH | 2019-02-36 | 28 | DIBBS |
| 5300014-100 | 2019-01-27 | 28 | DIBBS |
| ST4M134-3-100 | 2019-01-27 | 28 | DIBBS |
| WSI-4-100 | 2019-01-27 | 28 | DIBBS |
| WSI-4-100NH | 2019-01-27 | 28 | DIBBS |
| 5310-00-621-5971 | 2018-08-217 | 159 | DIBBS |
| 5310-00-621-5971 | 2015-10-278 | 91 | DIBBS |
| ST4M1343100 | 2014-12-337 | 5 | United States |
| 5310-00-621-5971 | 2014-11-313 | 113 | DIBBS |
| 5310-00-621-5971 | 2014-06-160 | 57 | DIBBS |
| 5310-00-621-5971 | 2014-05-149 | 57 | DIBBS |
| 5310-00-621-5971 | 2010-06-168 | 119 | DIBBS |
| 5310-00-621-5971 | 2010-06-153 | 37 | DIBBS |
| 5310-00-621-5971 | 2010-01-25 | 22 | DIBBS |
| 5310-00-621-5971 | 2009-12-357 | 15 | DIBBS |
| 5310-00-621-5971 | 2009-12-345 | 103 | DIBBS |
| 5310-00-621-5971 | 2009-02-43 | 12 | DIBBS |
| 5310-00-621-5971 | 2008-07-190 | 25 | DIBBS |
Cross Reference | NSN 5310-00-621-5971
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5300014-100 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| ST4M134-3-100 | 76301 | BOEING COMPANY, THE DBA BOEING |
| WSI-4-100 | 04169 | ATLAS CORP WESTERN SKY INDUSTRIES DIV |
| WSI-4-100 | 83014 | HARTWELL CORPORATION |
| WSI-4-100NH | 83014 | HARTWELL CORPORATION |
| WSI4-100D | 04169 | ATLAS CORP WESTERN SKY INDUSTRIES DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-621-5971
Related Products | NSN 5310-00-621-5971
Technical Data | NSN 5310-00-621-5971
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 6061 OR STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-12545 MIL SPEC 1ST MATERIAL RESPONSE OR AMS7245 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

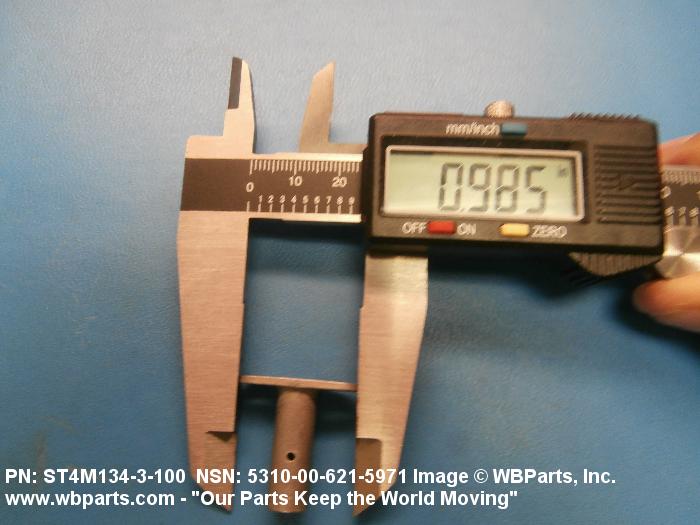

| NUT LENGTH | 0.985 INCHES NOMINAL |

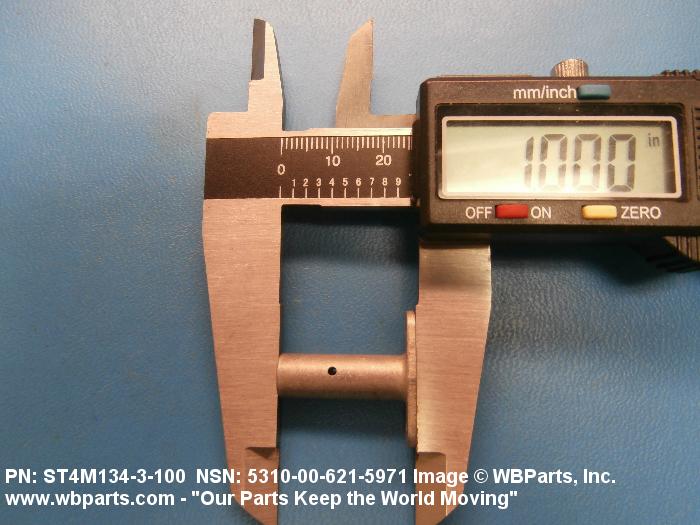

| NUT HEIGHT | 1.000 INCHES NOMINAL |

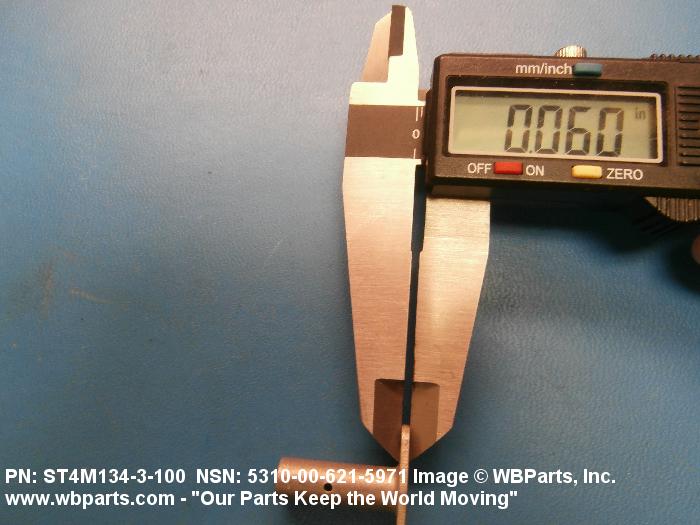

| PLATE THICKNESS | 0.060 INCHES NOMINAL |

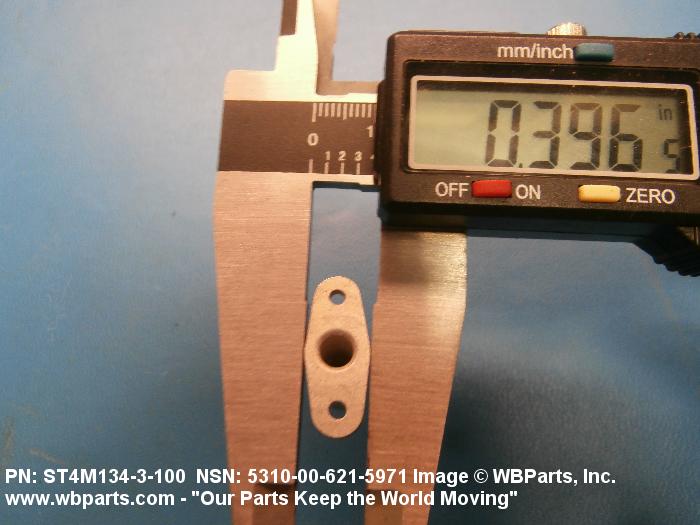

| PLATE WIDTH | 0.396 INCHES NOMINAL |
| REMOVABLE NUT MANUFACTURER CODE | 96906 |
| REMOVABLE NUT MANUFACTURER PART NUMBER | MS-21209 |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |

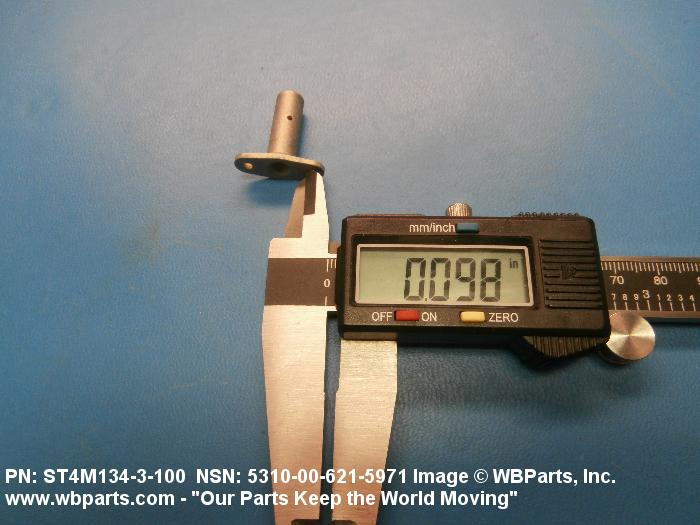

| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |

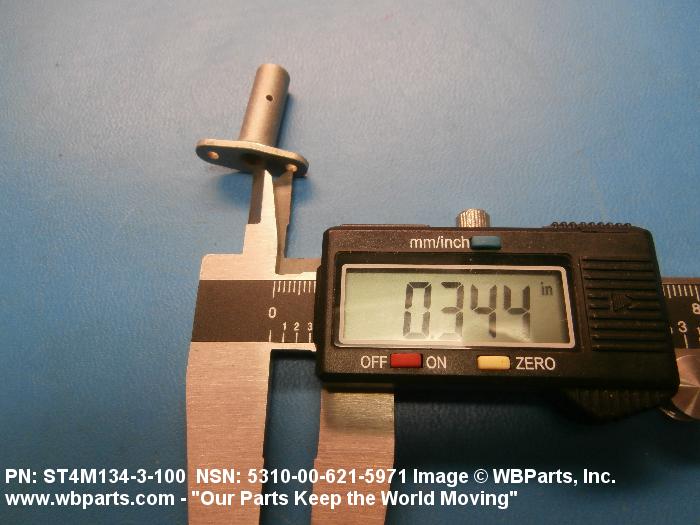

| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.344 INCHES NOMINAL |

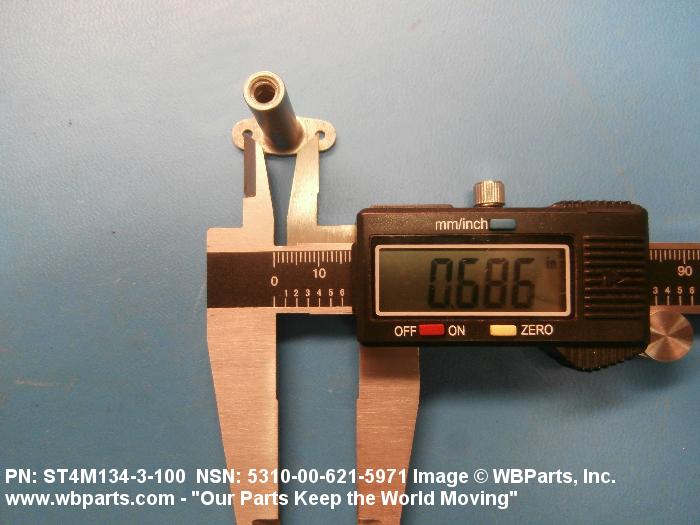

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | ST4M134-3-100 |
Restrictions/Controls & Freight Information | NSN 5310-00-621-5971
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-621-5971
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
