NSN 5310-00-655-6162 MA1261002, MA12610-02, MK20003
Product Details | PLATE SELF-LOCKING NUT
5310-00-655-6162 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MA1261002, MA12610-02, MK20003, MK2000-3, NAS696A3, BACN10JP3B, GN10B1032, RM52LHTA57M02, 5638334, 563833-4, 5310-00-655-6162, 00-655-6162, 5310006556162, 006556162
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-655-6162 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

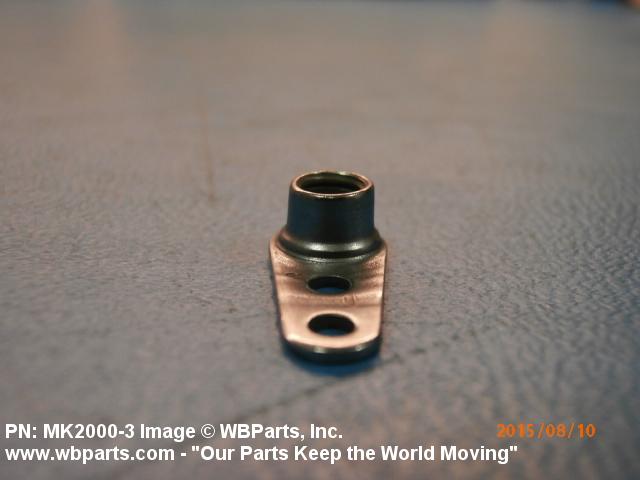

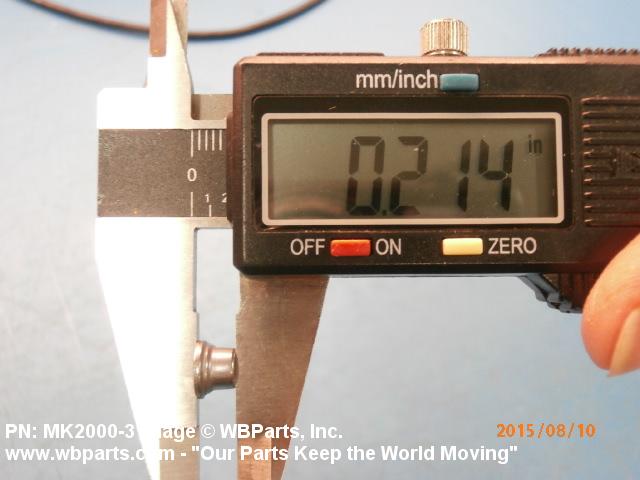

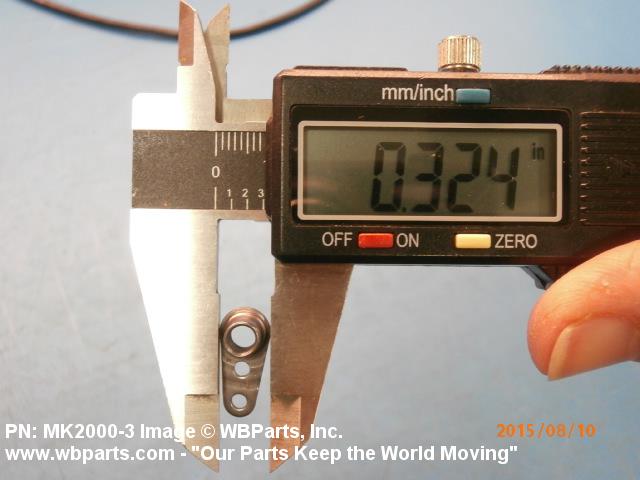

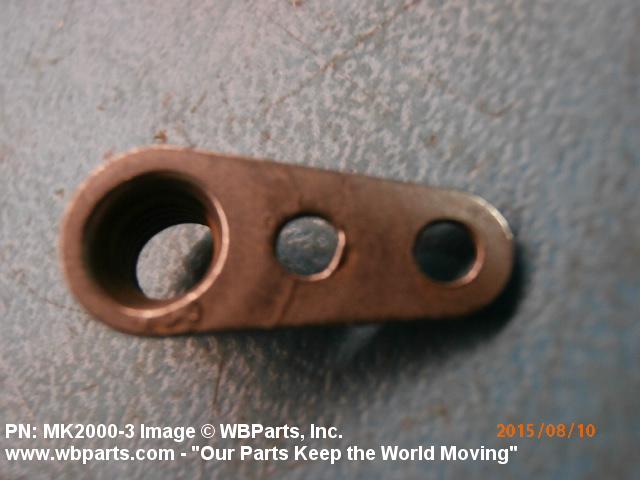

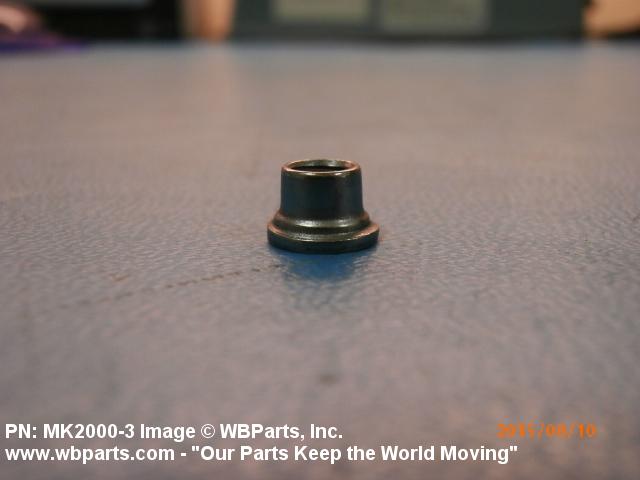

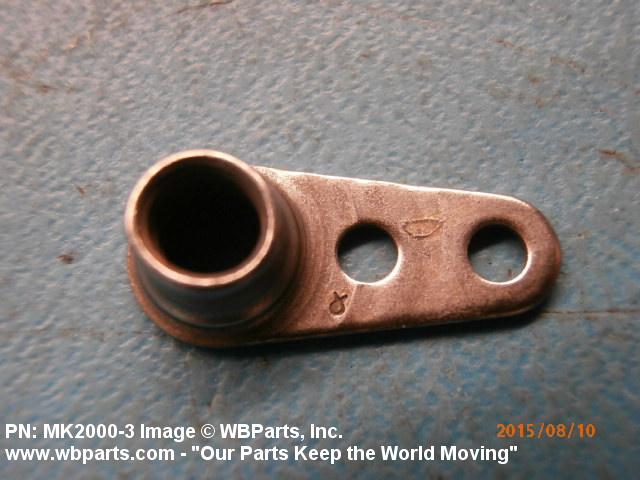

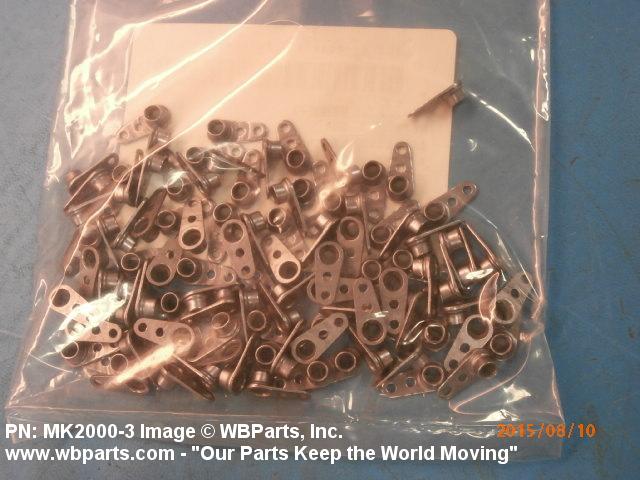

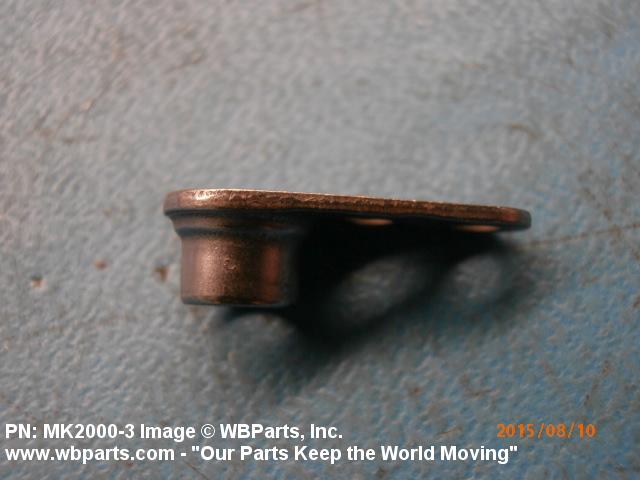

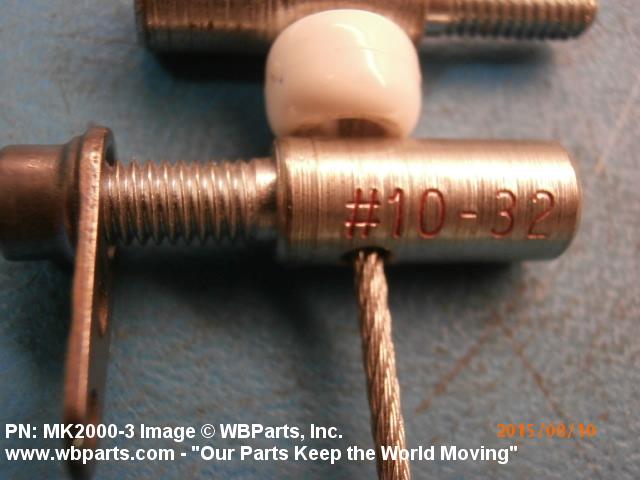

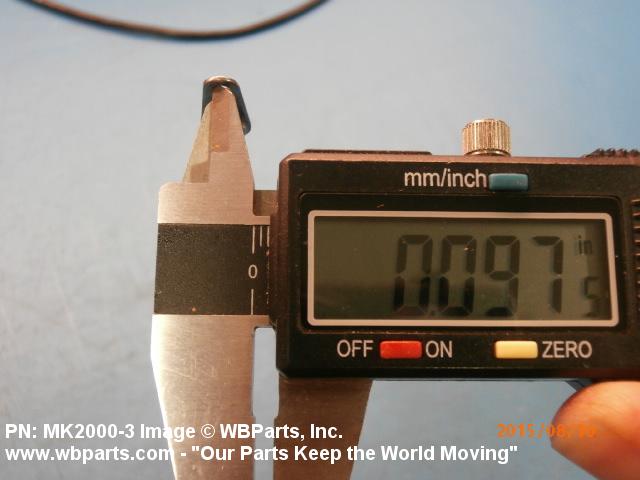

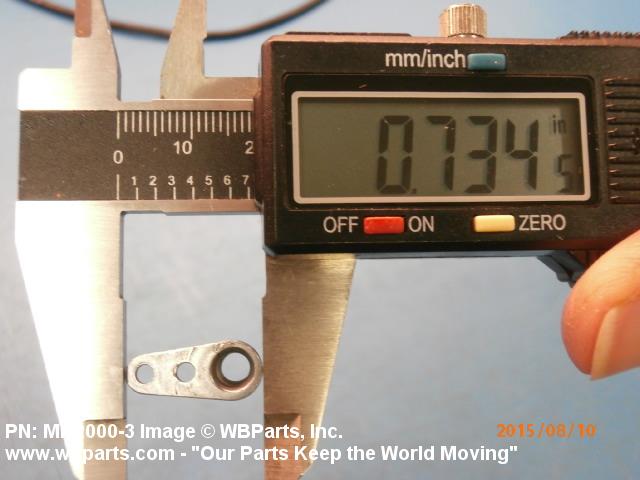

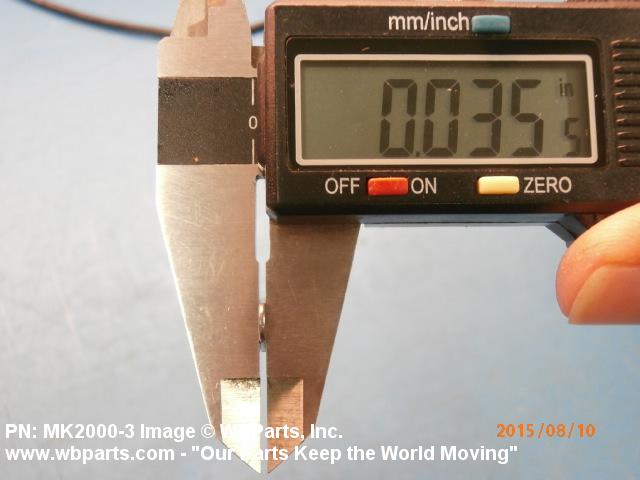

Drawings & Photos | NSN 5310-00-655-6162
Demand History | NSN 5310-00-655-6162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS696A3 | 2025-06-171 | 16 | Canada |
| 5310-00-655-6162 | 2025-06-165 | 35 | AE |
| 5310-00-655-6162 | 2019-11-329 | 200 | US |
| 5310-00-655-6162 | 2019-08-239 | 300 | United States |
| NAS696A3 | 2018-01-23 | 20 | United States |
| 5310-00-655-6162 | 2017-08-242 | 20 | US |
| BACN10JP3B | 2015-11-316 | 320 | United States |
| MK20003 | 2015-08-216 | 10 | United States |
| NAS696A3 | 2015-05-134 | 10 | SA |
| BACN10JP3B | 2013-12-336 | 18 | US |
| BACN10JP3B | 2013-12-336 | 18 | US |
| BACN10JP3B | 2012-02-55 | 100 | United States |
| BACN10JP3B | 2012-02-55 | 200 | United States |
| BACN10JP3B | 2010-06-160 | 2600 | US |
| 5310-00-655-6162 | 2010-03-90 | 10 | PK |
| 5310-00-655-6162 | 2008-12-365 | 20 | United States |
| 5310-00-655-6162 | 2008-11-319 | 175 | US |
| NAS696A3 | 2007-06-170 | 10000 | United States |
Cross Reference | NSN 5310-00-655-6162
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 563833-4 | 06840 | BENDIX CORP THE |
| BACN10JP3B | 82918 | THE BOEING COMPANY DBA BOEING |
| GN10B1032 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MA12610-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MK2000-3 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MK2000-3 | 75327 | KINDLE LITE CORP |
| MK2000-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| NAS696A3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| RM52LHTA57M02 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-655-6162
Technical Data | NSN 5310-00-655-6162
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A124 PLATE |
| NUT LENGTH | 0.745 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.047 INCHES MAXIMUM |
| PLATE WIDTH | 0.328 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F44 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM |
| TEMP RATING | 500.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 81205-BACN10JP MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-655-6162
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
