NSN 5310-00-655-9716 NA2102, NA21-02, F22NA212202
Product Details | PLATE SELF-LOCKING NUT
5310-00-655-9716 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NA2102, NA21-02, F22NA212202, F22NA21-22-02, 61006420, 8196807, 87014900, 870149-00, 1819195008, 1819195-008, 22A21P2202, 22A21P22-02, 22NA212202, 22NA21-22-02, 22NA21C28C, 22NA21-C28C, 22NA21P2202, 22NA21P22-02, 5310-00-655-9716, 00-655-9716, 5310006559716, 006559716
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-655-9716 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

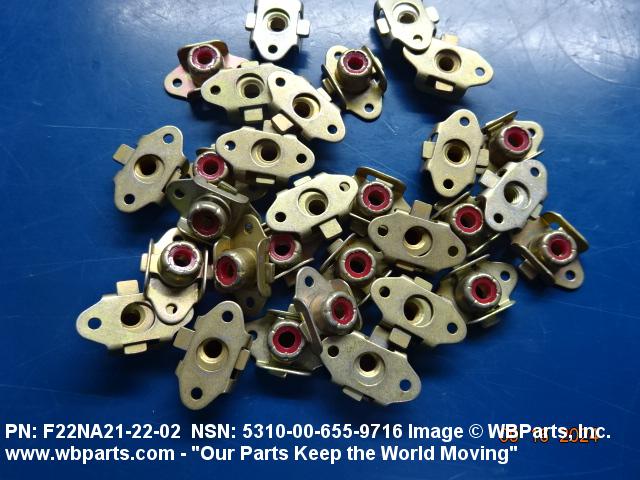

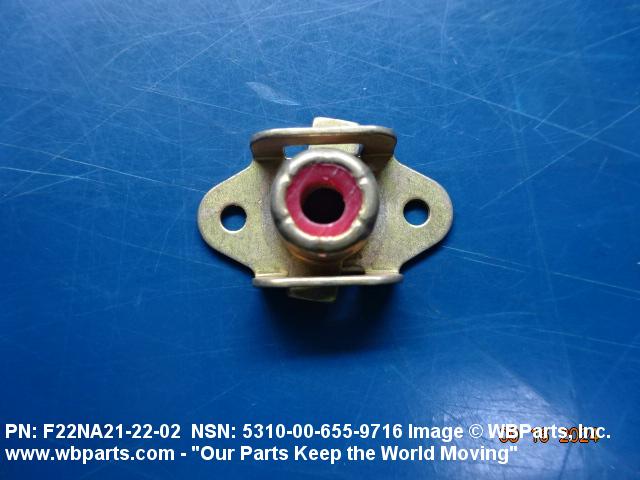

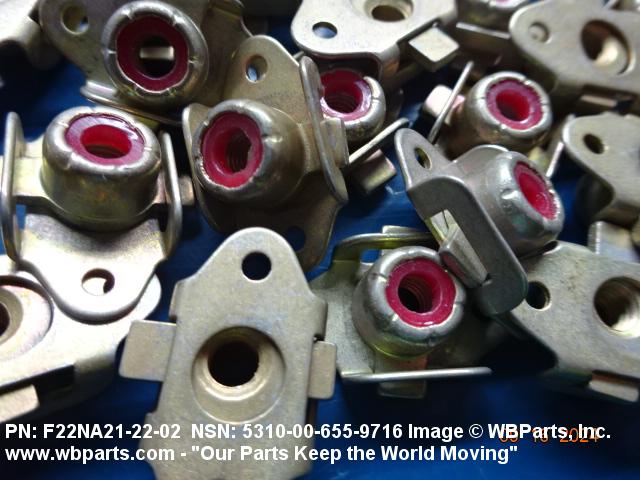

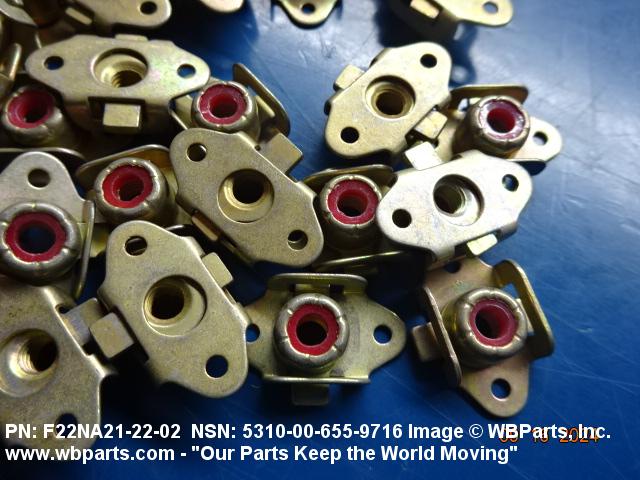

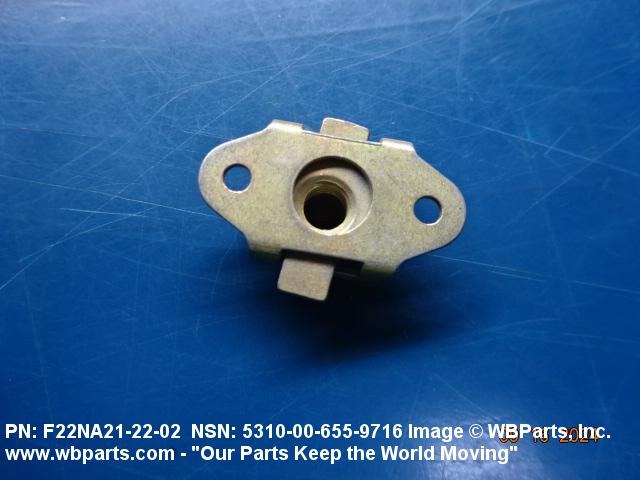

Drawings & Photos | NSN 5310-00-655-9716
Demand History | NSN 5310-00-655-9716
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-655-9716 | 2025-12-335 | 20 | United States |
| 5310-00-655-9716 | 2025-07-188 | 1 | DIBBS |
| 5310-00-655-9716 | 2024-09-248 | 30 | United States |
| 5310-00-655-9716 | 2022-07-192 | 40 | DIBBS |
| 22NA212202 | 2021-05-141 | 10 | US |
| 5310-00-655-9716 | 2020-12-351 | 100 | DIBBS |
| 5310-00-655-9716 | 2020-12-343 | 100 | DIBBS |
| 5310-00-655-9716 | 2017-08-240 | 9 | DIBBS |
| 5310-00-655-9716 | 2017-07-195 | 16 | DIBBS |
| 5310-00-655-9716 | 2017-07-187 | 16 | DIBBS |
| 5310-00-655-9716 | 2017-02-32 | 9 | DIBBS |
| 5310-00-655-9716 | 2016-11-314 | 9 | DIBBS |
| 5310-00-655-9716 | 2016-09-272 | 1 | US |
| 5310-00-655-9716 | 2016-09-272 | 9 | DIBBS |
| 22NA212202 | 2015-07-211 | 100 | United States |
| 22NA212202 | 2015-07-203 | 100 | United States |
| 5310-00-655-9716 | 2013-05-141 | 1 | CA |
| 5310-00-655-9716 | 2013-05-141 | 20 | CA |
| F22NA212202 | 2011-06-159 | 100 | AU |
Cross Reference | NSN 5310-00-655-9716
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1819195-008 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 22A21P22-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 22A21P22-02 | 72962 | HARVARD INDUSTRIES INC |
| 22NA21-22-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 22NA21-22-02 | 72962 | HARVARD INDUSTRIES INC |
| 22NA21-C28C | 72962 | HARVARD INDUSTRIES INC |
| 22NA21P22-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 22NA21P22-02 | 72962 | HARVARD INDUSTRIES INC |
| 61006420 | 05030 | RAYTHEON CO MISSILE SYSTEMS DIV |
| 61006420 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 61006420 | 92294 | DU MONT ALLEN B LABORATORIES INC |
| 8196807 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 870149-00 | 32345 | DEFENSE REDUCTION AGENCY |
| F22NA21-22-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F22NA21-22-02 | 72962 | HARVARD INDUSTRIES INC |
| NA21-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| NA21-02 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-655-9716
Related Products | NSN 5310-00-655-9716
Technical Data | NSN 5310-00-655-9716
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT STEEL COMP 1010 SHELL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE SHELL |
| SURFACE TREATMENT | CADMIUM NUT CADMIUM SHELL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE SHELL QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE BOTH ENDS |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

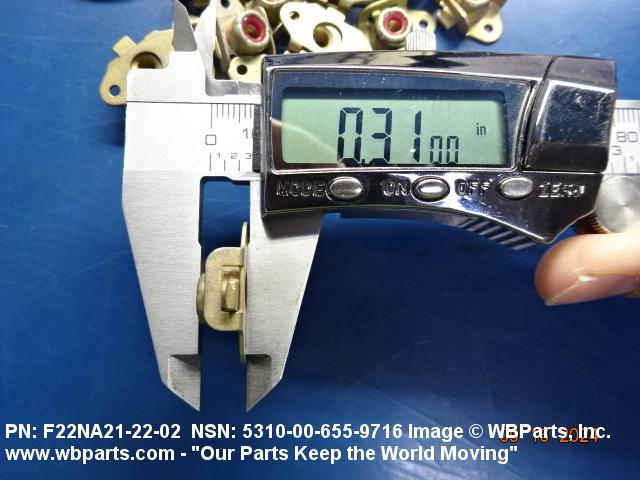

| OVERALL HEIGHT | 0.313 INCHES NOMINAL |

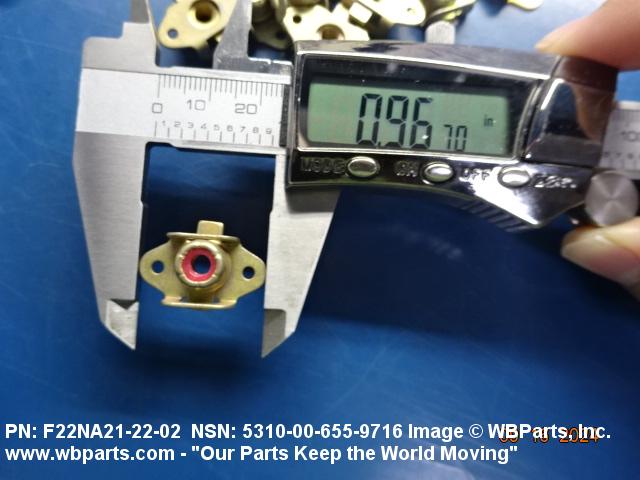

| NUT LENGTH | 0.969 INCHES NOMINAL |
| NUT HEIGHT | 0.281 INCHES NOMINAL |
| PLATE THICKNESS | 0.027 INCHES MINIMUM AND 0.037 INCHES MAXIMUM |

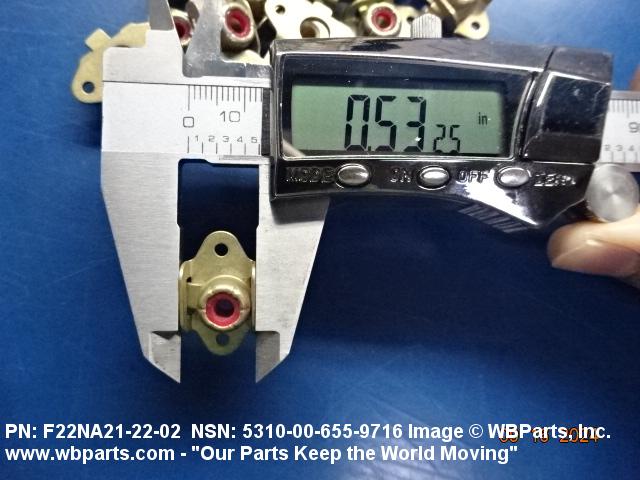

| PLATE WIDTH | 0.531 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-00-655-9716
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-655-9716
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
