Product Details | PLATE PLAIN NUT

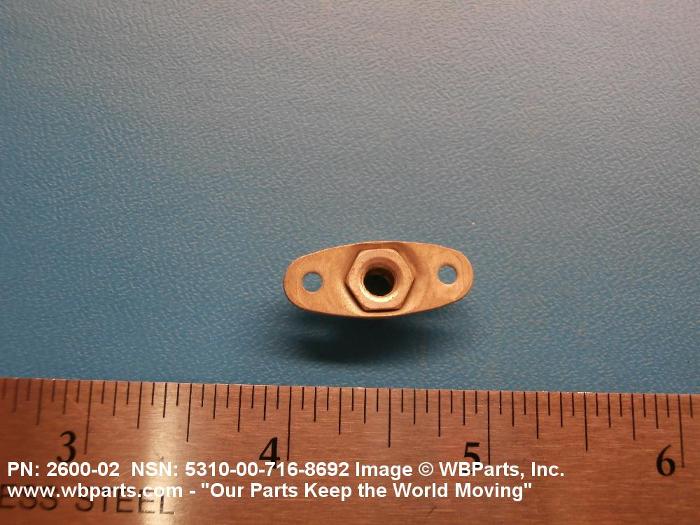

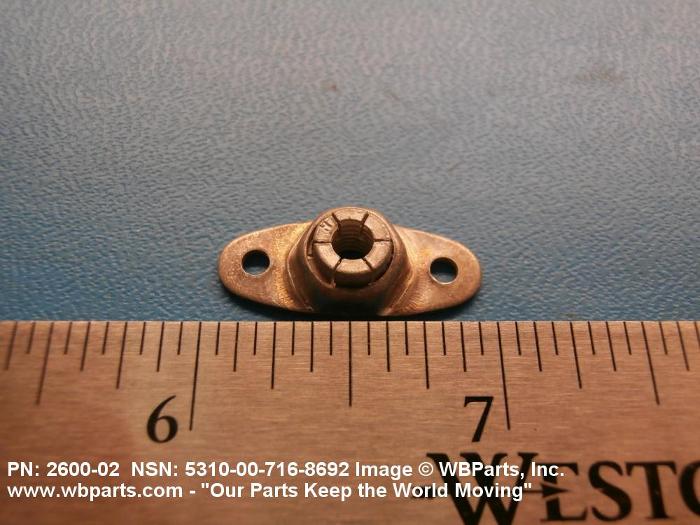

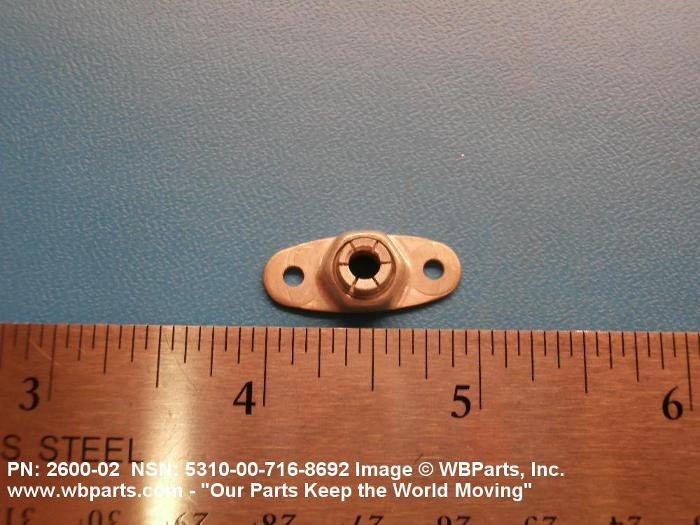

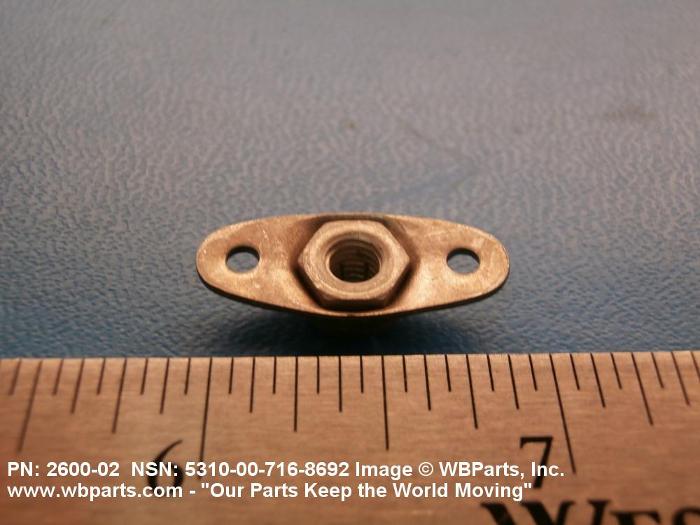

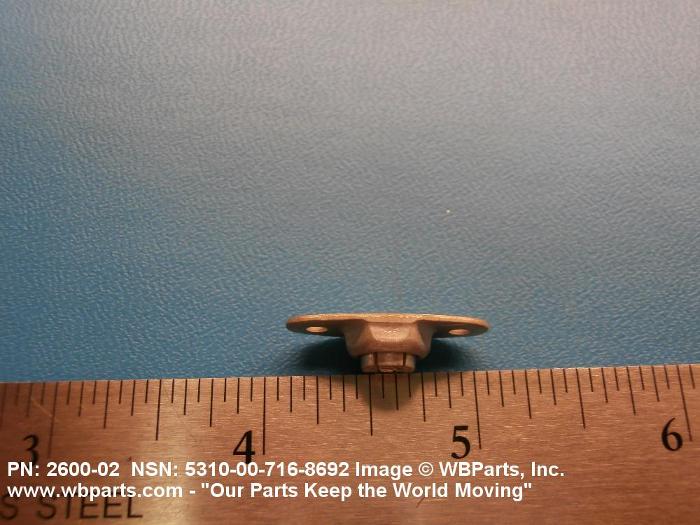

5310-00-716-8692 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding, intergral prongs or by bonding.
Part Alternates: 260002, 2600-02, 5310-00-716-8692, 00-716-8692, 5310007168692, 007168692
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-716-8692 | 01872 ( NUT, PLAIN, PLATE ) |
Drawings & Photos | NSN 5310-00-716-8692
Demand History | NSN 5310-00-716-8692
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 260002 | 2021-05-14 | 12 | United States |
| 5310-00-716-8692 | 2013-05-30 | 500 | US |
| 5310-00-716-8692 | 2013-05-25 | 0 | DIBBS |
| 5310-00-716-8692 | 2013-03-27 | 791 | DIBBS |
| 5310-00-716-8692 | 2013-03-08 | 1250 | DIBBS |
| 5310-00-716-8692 | 2012-11-02 | 385 | DIBBS |
| 5310-00-716-8692 | 2012-08-30 | 443 | United States |
| 5310-00-716-8692 | 2012-06-06 | 443 | DIBBS |
| 5310-00-716-8692 | 2012-04-23 | 0 | DIBBS |
| 5310-00-716-8692 | 2012-02-14 | 1600 | DIBBS |
| 5310-00-716-8692 | 2011-11-14 | 684 | DIBBS |
| 5310-00-716-8692 | 2011-07-22 | 926 | DIBBS |
| 5310-00-716-8692 | 2011-06-03 | 1747 | DIBBS |
| 5310-00-716-8692 | 2010-11-19 | 457 | DIBBS |
| 5310-00-716-8692 | 2010-06-24 | 1547 | DIBBS |
| 5310-00-716-8692 | 2010-03-06 | 400 | DIBBS |
| 5310-00-716-8692 | 2010-02-25 | 400 | DIBBS |
| 5310-00-716-8692 | 2010-01-28 | 1729 | DIBBS |
| 5310-00-716-8692 | 2009-08-13 | 803 | DIBBS |
| 5310-00-716-8692 | 2009-06-23 | 532 | DIBBS |
| 5310-00-716-8692 | 2009-03-30 | 8 | DIBBS |
| 5310-00-716-8692 | 2008-03-16 | 1 | DIBBS |
