Product Details | PLATE PLAIN NUT
5310-00-765-6803 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding, intergral prongs or by bonding.
Part Alternates: 395647, 5310-00-765-6803, 00-765-6803, 5310007656803, 007656803
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-765-6803 | 01872 ( NUT, PLAIN, PLATE ) |

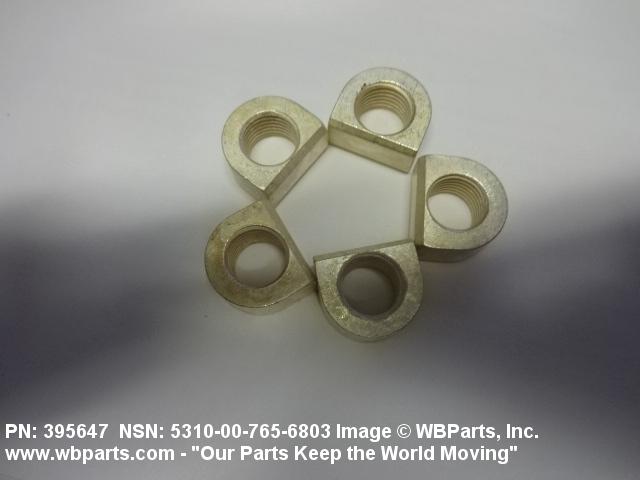

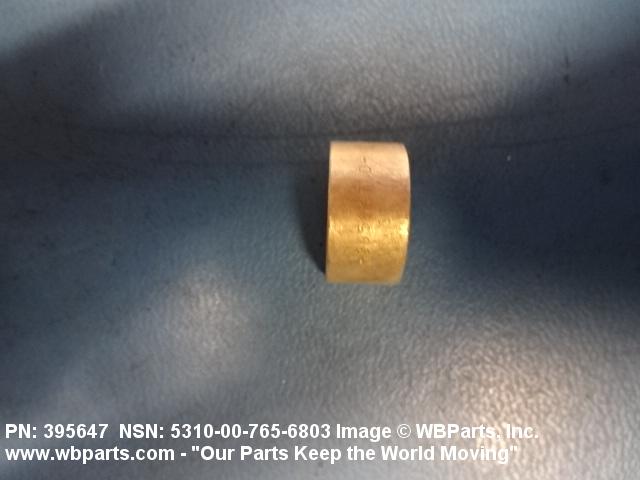

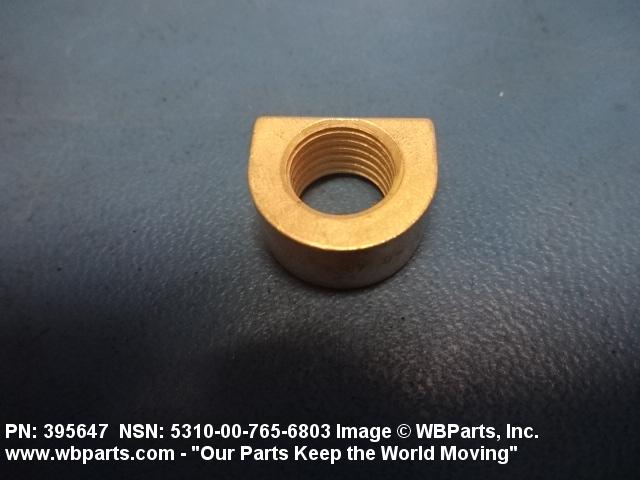

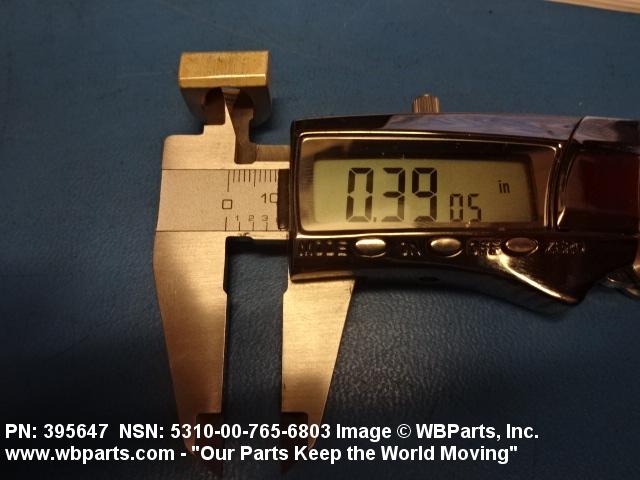

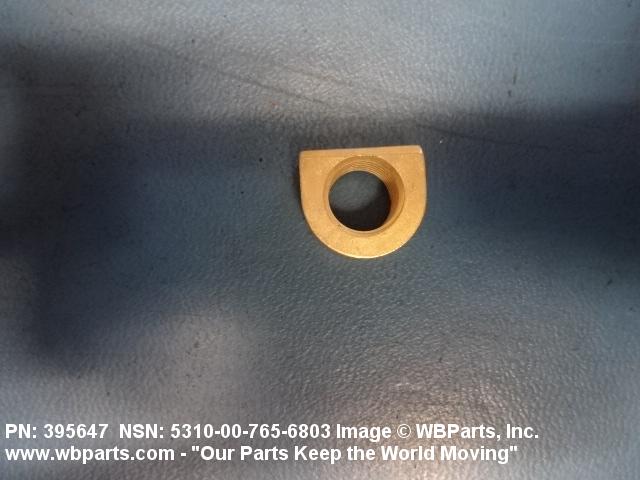

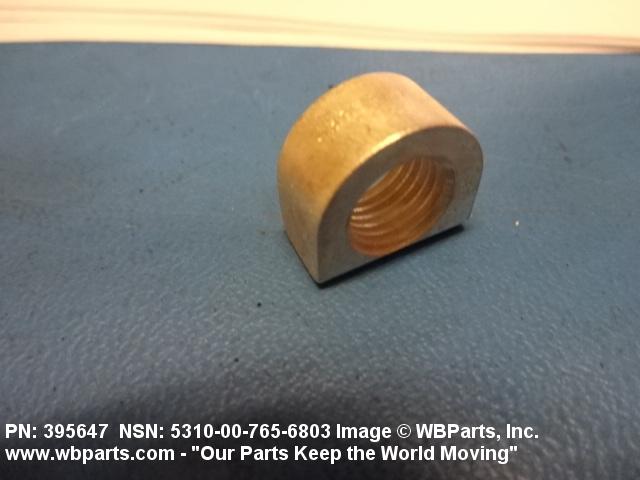

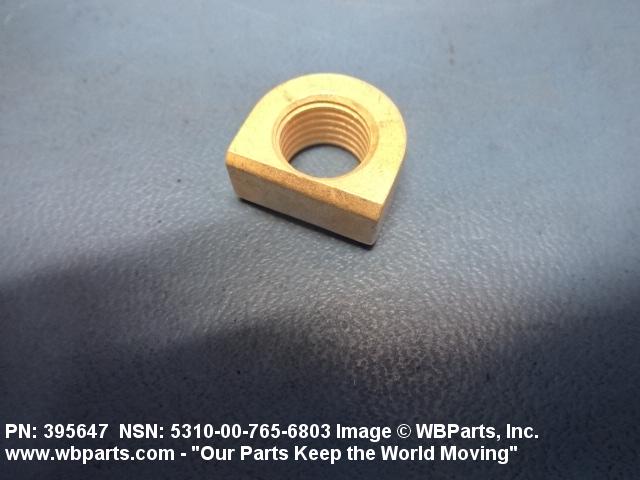

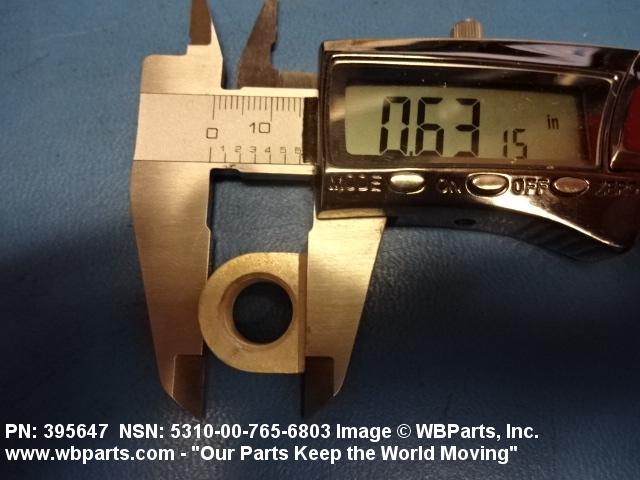

Drawings & Photos | NSN 5310-00-765-6803
Demand History | NSN 5310-00-765-6803
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-765-6803 | 2017-12-11 | 9742 | DIBBS |
| 5310-00-765-6803 | 2017-11-30 | 1305 | United States |
| 5310-00-765-6803 | 2017-11-16 | 1305 | DIBBS |
| 5310-00-765-6803 | 2017-08-03 | 552 | DIBBS |
| 5310-00-765-6803 | 2017-06-15 | 240 | DIBBS |
| 5310-00-765-6803 | 2017-02-13 | 417 | DIBBS |
| 5310-00-765-6803 | 2016-12-15 | 100 | Turkey |
| 5310-00-765-6803 | 2016-09-01 | 402 | DIBBS |
| 5310-00-765-6803 | 2016-03-24 | 100 | us |
Cross Reference | NSN 5310-00-765-6803
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 395647 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 395647 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 395647 | 61062 | COMET MFG CO INC |
| 395647 | 72962 | HARVARD INDUSTRIES INC |
| 395647 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-765-6803
Related Products | NSN 5310-00-765-6803
5310-00-765-7535, 5310-00-765-9716, 5310-00-765-9806, 5310-00-765-9948, 5310-00-766-0324
Technical Data | NSN 5310-00-765-6803
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |

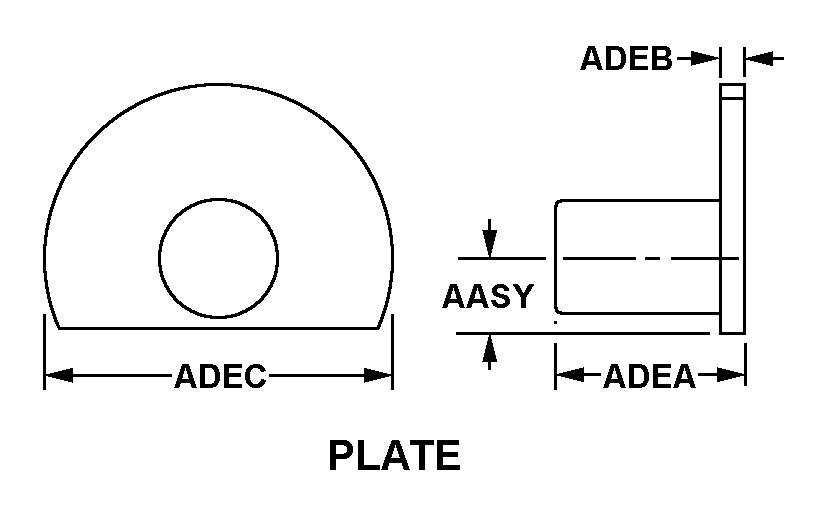

| NUT STYLE | A118 PLATE |
| DISTANCE FROM CENTERLINE TO FLAT | 0.272 INCHES MINIMUM AND 0.282 INCHES MAXIMUM |

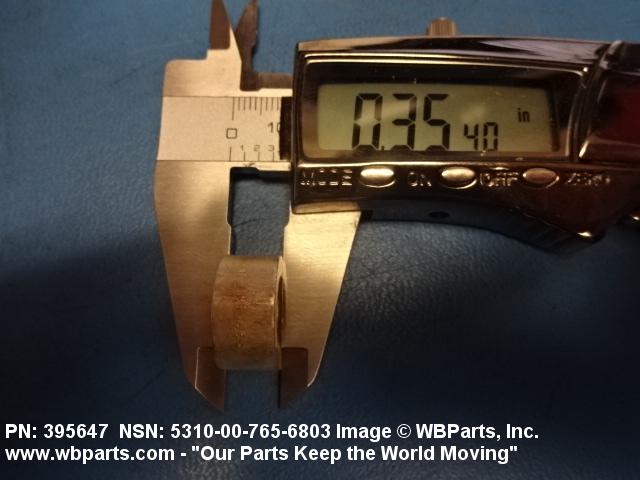

| NUT HEIGHT | 0.340 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |

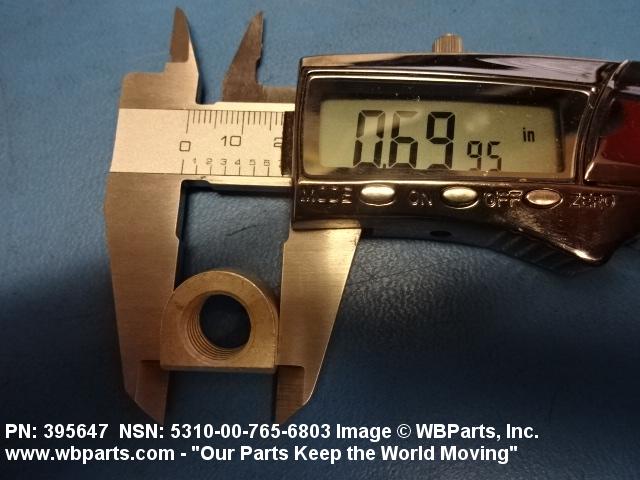

| PLATE WIDTH | 0.690 INCHES MINIMUM AND 0.710 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-00-765-6803
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-765-6803
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
