Product Details | SLEEVE NUT
5310-00-766-0324 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.
Part Alternates: 7135276P23, 5310-00-766-0324, 00-766-0324, 5310007660324, 007660324
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-766-0324 | 29735 ( NUT, SLEEVE ) |

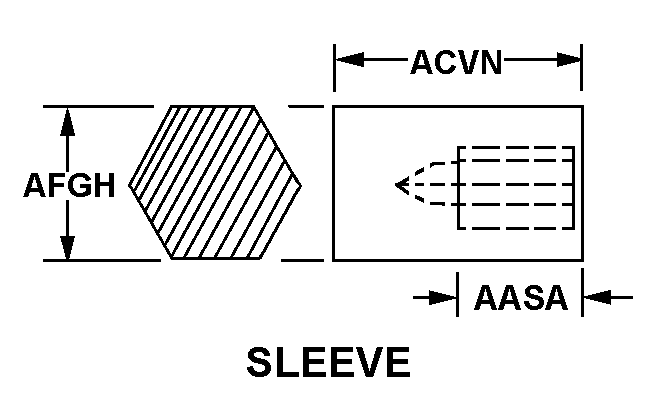

Drawings & Photos | NSN 5310-00-766-0324
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-00-766-0324
5310-00-766-0342, 5310-00-766-0345, 5310-00-766-0346, 5310-00-766-0363, 5310-00-766-0383
Technical Data | NSN 5310-00-766-0324
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A24A SLEEVE |
| THREAD LENGTH | 0.312 INCHES NOMINAL |
| NUT LENGTH | 0.625 INCHES NOMINAL |
| NUT WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE | HEXAGONAL NUT |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 03538 |
| DESIGN CONTROL REFERENCE | 7135276P23 |
Restrictions/Controls & Freight Information | NSN 5310-00-766-0324
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
