NSN 5310-00-775-5245 ST9M4122, ST9M412-2, FDW0002001
Product Details | RECESSED WASHER
5310-00-775-5245 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: ST9M4122, ST9M412-2, FDW0002001, FD-W0002-001, 82-46-101-39, 824610139NAT, 82-46-101-39NAT, 930328, 1031394, 103139-4, 10823, 283009-001, 3184682800, 3184682-800, 639547-917, 74B059162, 74B059162201, 74B059162-201, 5310-00-775-5245, 00-775-5245, 5310007755245, 283009001, 007755245, 639547917, 824610139
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-775-5245 | 15933 ( WASHER, RECESSED ) |
Drawings & Photos | NSN 5310-00-775-5245
Demand History | NSN 5310-00-775-5245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-775-5245 | 2022-01-14 | 10 | Australia |
| 5310-00-775-5245 | 2019-02-52 | 10 | United States |
| 283009001 | 2018-10-296 | 5 | United States |
| 5310-00-775-5245 | 2016-10-301 | 11700 | DIBBS |
| 5310-00-775-5245 | 2016-05-141 | 6978 | DIBBS |
| 5310-00-775-5245 | 2016-05-133 | 6978 | DIBBS |
| 82-46-101-39 | 2014-06-157 | 50 | United States |
| 5310-00-775-5245 | 2010-07-200 | 10 | Singapore |
| 5310-00-775-5245 | 2010-05-133 | 2230 | DIBBS |
| 5310-00-775-5245 | 2010-04-119 | 150 | United States |
| 5310-00-775-5245 | 2009-12-338 | 16441 | DIBBS |
Cross Reference | NSN 5310-00-775-5245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103139-4 | 15057 | GULTON INDUSTRIES INC MEASUREMENT AND CONTROL SYSTEMS DIV |
| 10823 | 82423 | KLEINSCHMIDT INC |
| 283009-001 | 25512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA DENRO SYSTEMS |
| 283009-001 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| 3184682-800 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 3184682-800 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 639547-917 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 639547-917 | 95403 | GENERAL DYNAMICS CORPORATION |
| 74B059162 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74B059162-201 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 82-46-101-39 | 94222 | SOUTHCO, INC. |
| 82-46-101-39NAT | 94222 | SOUTHCO, INC. |
| 930328 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| FD-W0002-001 | 33875 | RAYTHEON E-SYSTEMS INC |
| ST9M412-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-775-5245
Related Products | NSN 5310-00-775-5245
Technical Data | NSN 5310-00-775-5245
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| STYLE DESIGNATOR | 16 RECESS |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |

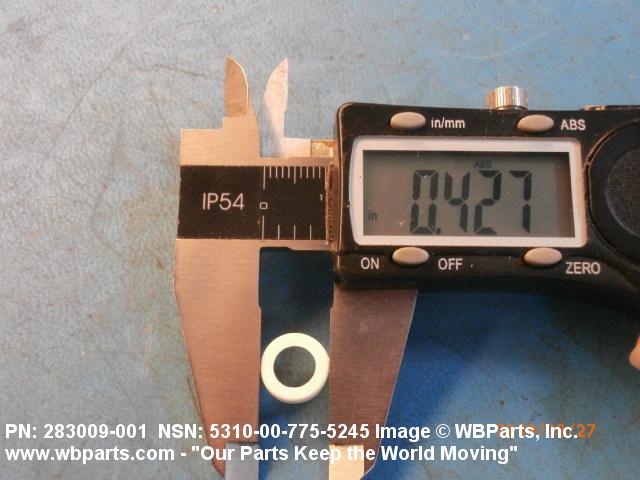

| OUTSIDE DIAMETER | 0.420 INCHES NOMINAL |

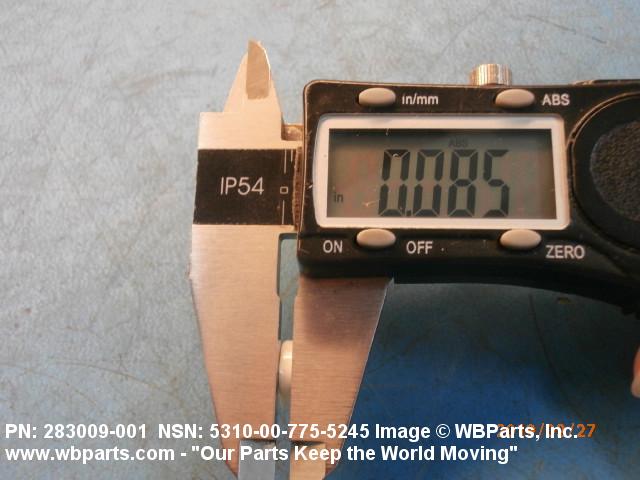

| OVERALL HEIGHT | 0.080 INCHES NOMINAL |

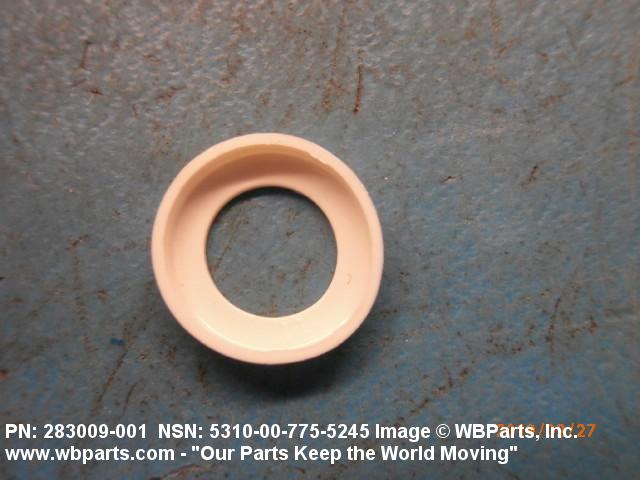

| RECESS DEPTH | 0.060 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| SPECIAL FEATURES | COLOR NATURAL |
