NSN 5310-00-778-9480 MS21061L3, NAS687A3, NS10318502

Product Details | PLATE SELF-LOCKING NUT

5310-00-778-9480 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21061L3, NAS687A3, NS10318502, NS103185-02, BACN10KB3F, BRF100A3, F2000101032, F2000-10-1032, F20003, F2000-3, F200031032, F2000-3-1032, F20003BAC, F2000-3BAC, RF100A3, RM52LHTA51702, RM52LHTA517-02, RMF92073, RMF9207-3, T66S1032S, T8114S1032S, VN151A102, VN151A1-02, Z00.N5435389225, Z00N5435389225, 10121681 , 1361502, 13615-02, 5310-00-778-9480, 00-778-9480, 5310007789480, 007789480

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-778-9480	05280 ( NUT, SELF-LOCKING, PLATE )

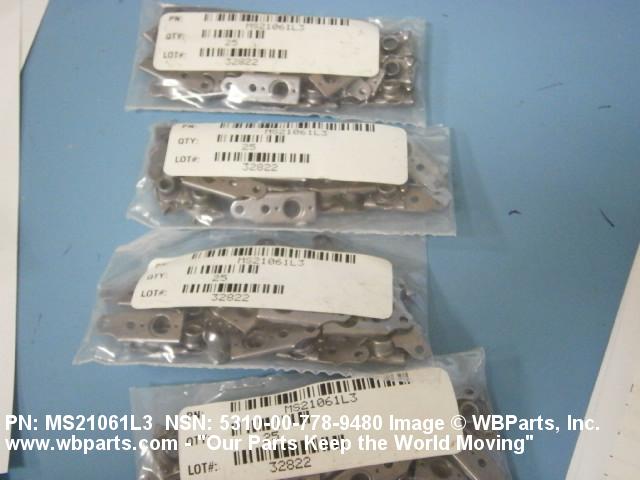

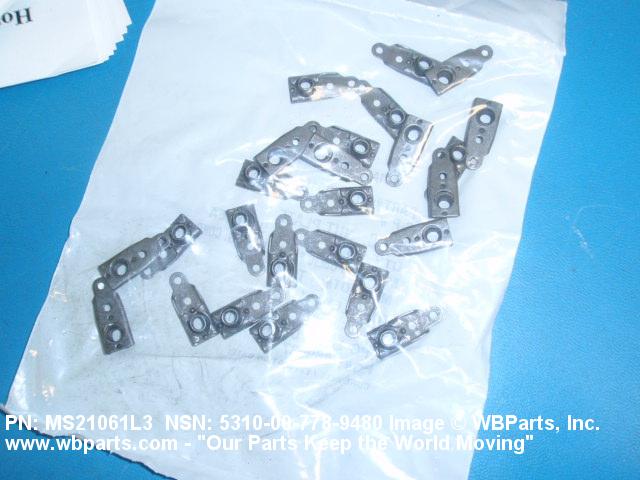

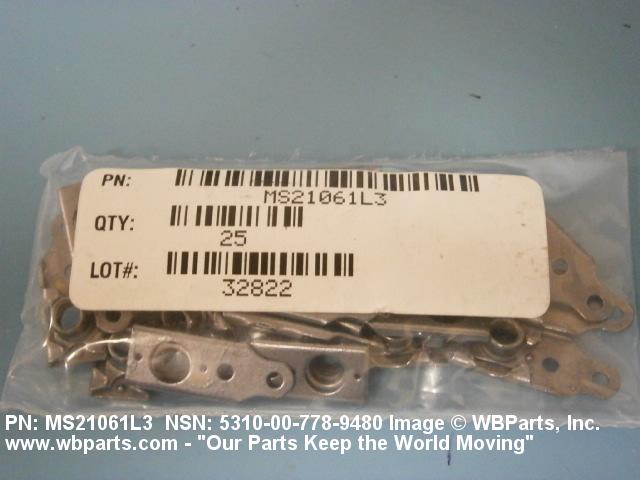

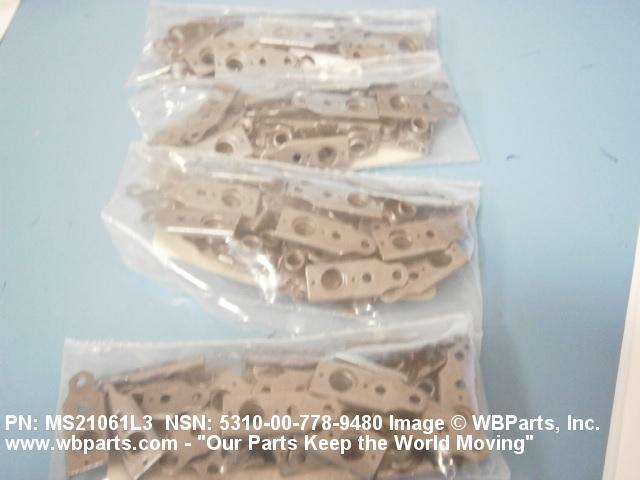

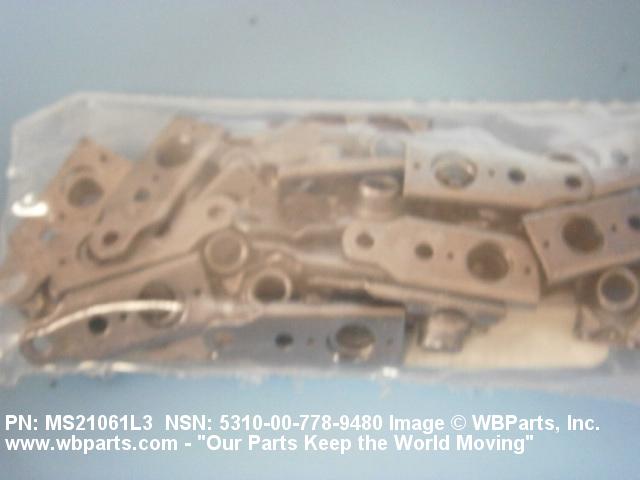

Drawings & Photos | NSN 5310-00-778-9480

Part Number	Request Date	QTY	Origin
MS21061L3	2025-07-206	35	United States
F20003	2025-01-08	65	Canada
MS21061L3	2024-11-330	6	US
BACN10KB3F	2024-10-304	18	United States
NAS687A3	2024-10-298	2	US
NAS687A3	2024-10-298	10	US
NAS687A3	2024-10-298	25	US
MS21061L3	2024-03-61	10	US
MS21061L3	2024-02-40	84	United States
MS21061L3	2024-01-17	500	India
MS21061L3	2023-12-341	200	FR
MS21061L3	2023-09-254	50	US
5310-00-778-9480	2023-08-228	150	TR
MS21061L3	2023-08-222	1000	India
MS21061L3	2023-03-76	56	United States
MS21061L3	2022-09-248	280	India
MS21061L3	2022-04-98	100	Turkey
MS21061L3	2022-01-21	20	Croatia
MS21061L3	2021-08-238	300	US
MS21061L3	2021-04-119	200	United States
MS21061L3	2020-07-202	100	US
MS21061L3	2020-04-97	50	Malaysia
MS21061L3	2020-01-06	50	United States
MS21061L3	2020-01-06	50	United States
MS21061L3	2019-03-64	30	United States
MS21061L3	2017-10-296	64	United States
MS21061L3	2017-10-296	224	United States
MS21061L3	2017-10-296	480	United States
MS21061L3	2017-10-296	928	United States
MS21061L3	2017-07-208	40	US
MS21061L3	2017-05-129	50	United States
5310-00-778-9480	2017-02-53	9	MANUAL
MS21061L3	2016-10-291	4	United States
MS21061L3	2016-05-141	200	US
MS21061L3	2016-02-42	108	Turkey
MS21061L3	2015-12-341	200	Spain
MS21061L3	2015-09-259	1	United States
MS21061L3	2015-05-146	48	United States
5310-00-778-9480	2015-05-126	250	Spain
BACN10KB3F	2014-06-164	1	Singapore
MS21061L3	2014-05-134	60	Romania
MS21061L3	2014-04-113	200	US
MS21061L3	2014-04-98	20	IL
MS21061L3	2014-03-79	2352	United States
MS21061L3	2014-03-66	300	United Arab Emirates
MS21061L3	2014-02-56	2200	US
MS21061L3	2013-10-297	8	United States
MS21061L3	2013-10-297	8	United States
MS21061L3	2013-08-239	100	TR
MS21061L3	2013-08-239	150	TR
MS21061L3	2013-08-238	480	US
MS21061L3	2013-08-238	960	US
5310-00-778-9480	2013-03-86	115253	DIBBS
MS21061L3	2013-02-56	1000	United States
5310-00-778-9480	2013-02-50	8	IN
5310-00-778-9480	2012-11-310	69637	DIBBS
MS21061L3	2012-11-310	50
MS21061L3	2012-08-230	200	United States
MS21061L3	2012-03-67	50	United States
MS21061L3	2012-02-59	340	US
F2000101032	2012-02-46	3	United States
MS21061L3	2012-01-25	100	Brazil
F2000-10-1032	2012-01-24	3	United States
MS21061L3	2011-04-94	5	United States
MS21061L3	2010-12-350	100	United States
MS21061L3	2010-09-264	50	US
5310-00-778-9480	2010-04-97	100	MX
MS21061L3	2010-03-85	100	United States
5310-00-778-9480	2009-10-285	20	Australia
5310-00-778-9480	2009-09-253	6	United States
5310-00-778-9480	2009-07-211	200	US
5310-00-778-9480	2009-07-210	150	US
MS21061L3	2009-07-196	125	US
MS21061L3	2009-05-126	400	US
MS21061L3	2009-04-103	200	US
MS21061L3	2009-04-103	200	US
NAS687A3	2009-04-96	250	US
5310-00-778-9480	2009-03-78	200	US
MS21061L3	2009-01-07	200	US
MS21061L3	2008-12-346	500	US
5310-00-778-9480	2008-11-319	76	US
5310-00-778-9480	2008-11-312	76	US
5310-00-778-9480	2008-05-152	5605	DIBBS
5310-00-778-9480	2008-04-110	5605	DIBBS
5310-00-778-9480	2008-02-38	38300	DIBBS
BACN10KB3F	2007-09-256	5	United States
BACN10KB3F	2006-09-258	40	US

Cross Reference | NSN 5310-00-778-9480

Part Number	Cage Code	Manufacturer
13615-02	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
13615-02	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
BACN10KB3F	81205	THE BOEING COMPANY DBA BOEING
BRF100A3	52828	REPUBLIC FASTENER MFG. CORP.
F2000-10-1032	15653	ALCOA GLOBAL FASTENERS, INC.
F2000-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
F2000-3-1032	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
F2000-3BAC	15653	ALCOA GLOBAL FASTENERS, INC.
F2000-3BAC	F6033	TECNOTEC SARL
F2000-3BAC	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
F2000-3BAC	R1120	SATAIR A/S
MS21061L3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21061L3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21061L3	A1577	AEREA SPA
NAS687A3	52828	REPUBLIC FASTENER MFG. CORP.
NAS687A3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NS103185-02	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
RF100A3	52828	REPUBLIC FASTENER MFG. CORP.
RM52LHTA517-02	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RM52LHTA517-02	72962	HARVARD INDUSTRIES INC
RMF9207-3	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMF9207-3	72962	HARVARD INDUSTRIES INC
T66S1032S	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T66S1032S	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
T8114S1032S	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN151A1-02	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN151A1-02	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
Z00.N5435389225	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-778-9480

Compare

Related Products | NSN 5310-00-778-9480

5310-00-778-9482, 5310-00-778-9491, 5310-00-778-9493, 5310-00-778-9505, 5310-00-778-9507

Technical Data | NSN 5310-00-778-9480

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A124 PLATE
NUT LENGTH	1.051 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.032 INCHES MAXIMUM
PLATE WIDTH	0.290 INCHES MINIMUM AND 0.422 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F44 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-778-9480

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-778-9480

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	HL	TG:TH-1H SUPT HELICOPTER
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
