NSN 5310-00-812-7766 AN3108, AN310-8, 404 105
Product Details | HEXAGON CASTELLATED PLAIN NUT
5310-00-812-7766 A nut having 6 flat sides, flat on the bottom and having a slotted cylindrical or dome shaped upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, SLOTTED, HEXAGON.
Part Alternates: AN3108, AN310-8, 404 105, 404105, 5310-00-812-7766, 00-812-7766, 5310008127766, 008127766
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-812-7766 | 01854 ( NUT, PLAIN, CASTELLATED, HEXAGON ) |

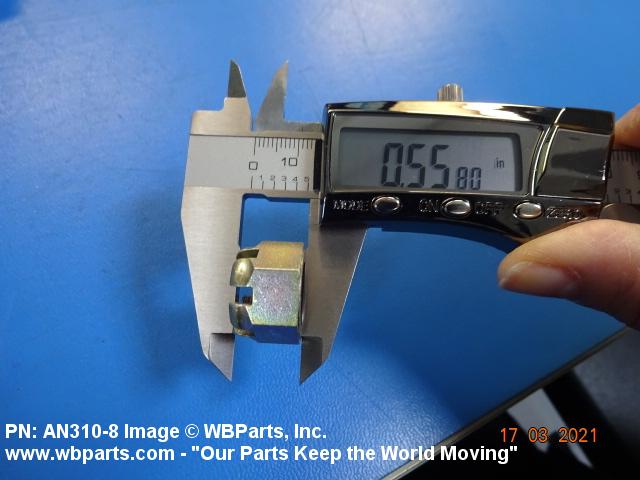

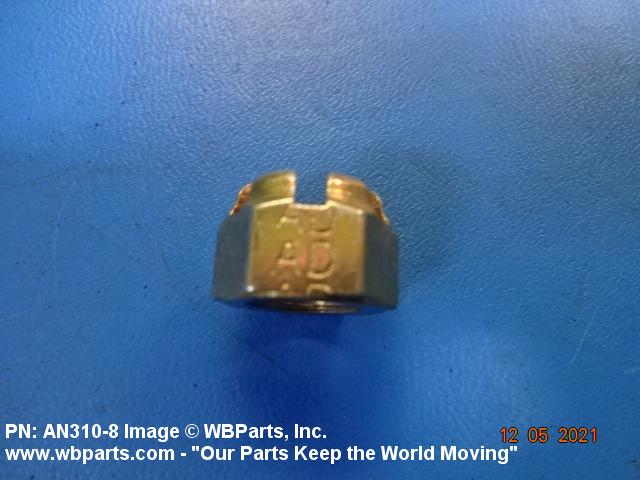

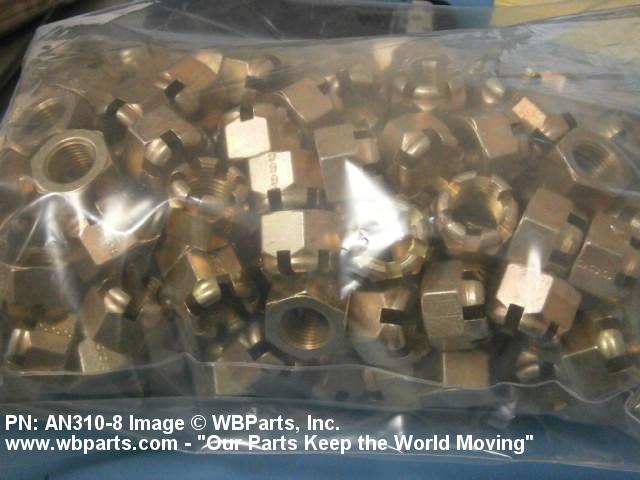

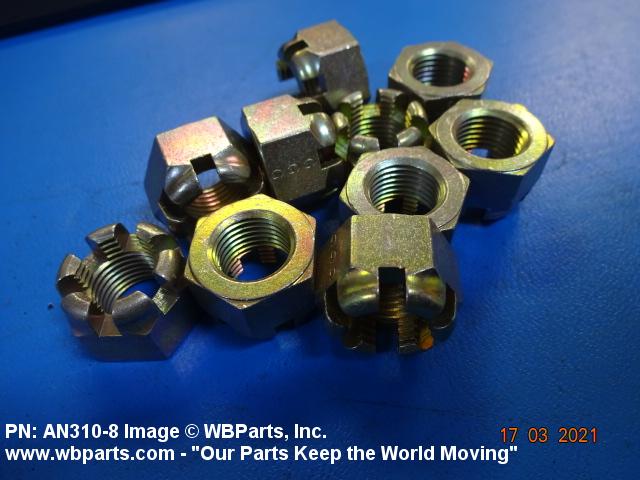

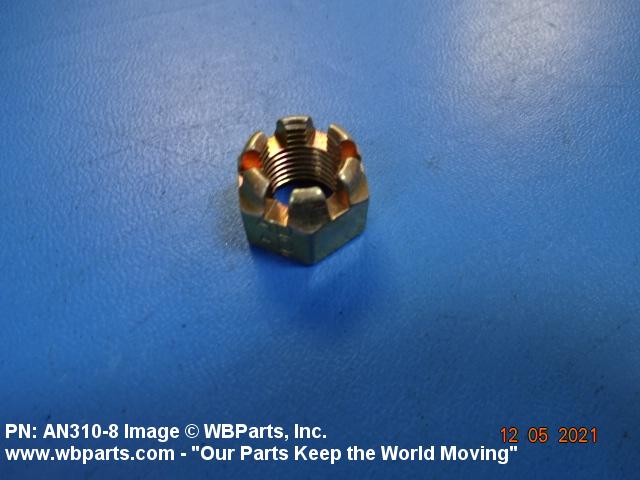

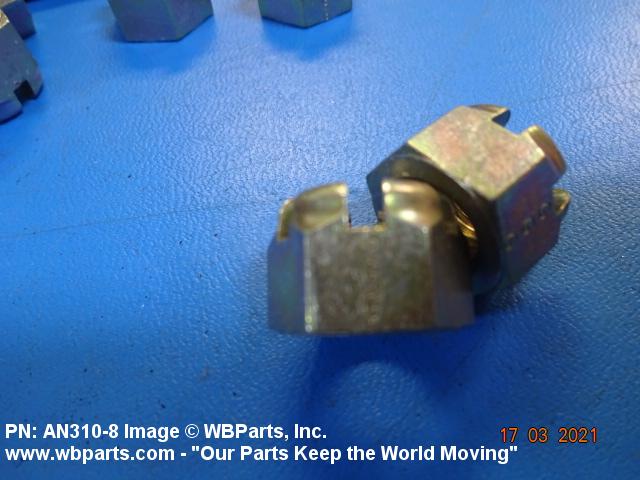

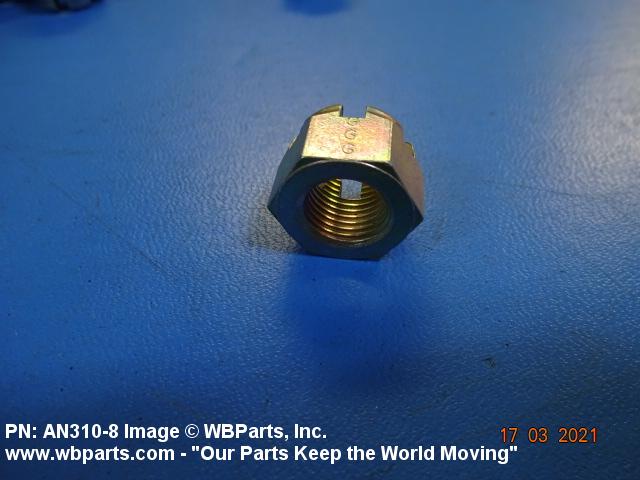

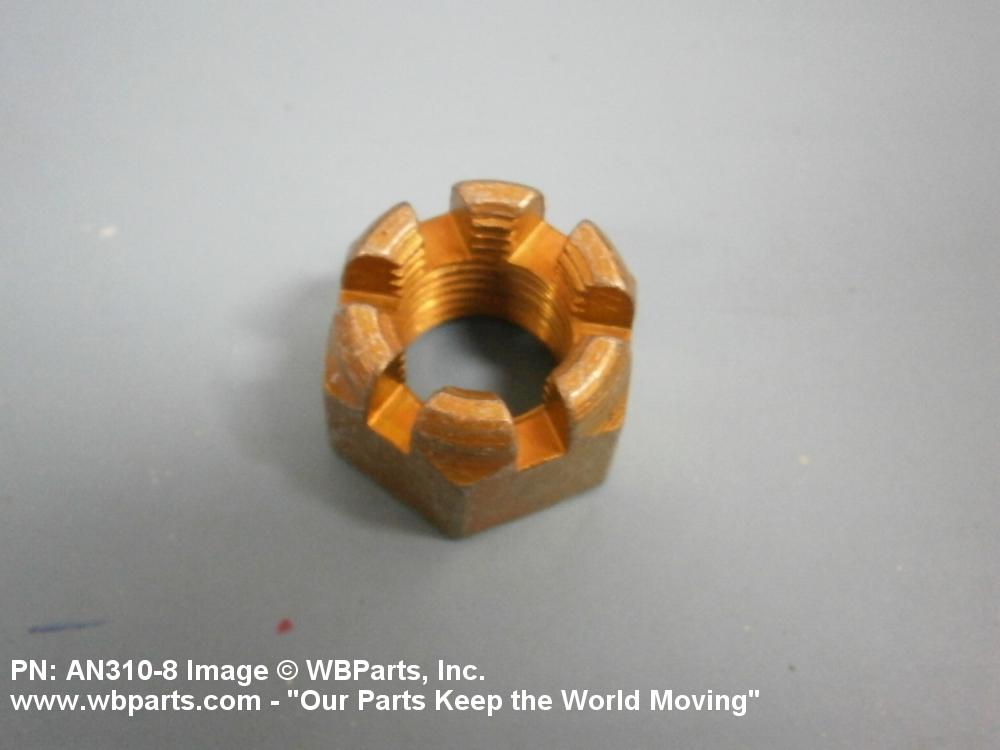

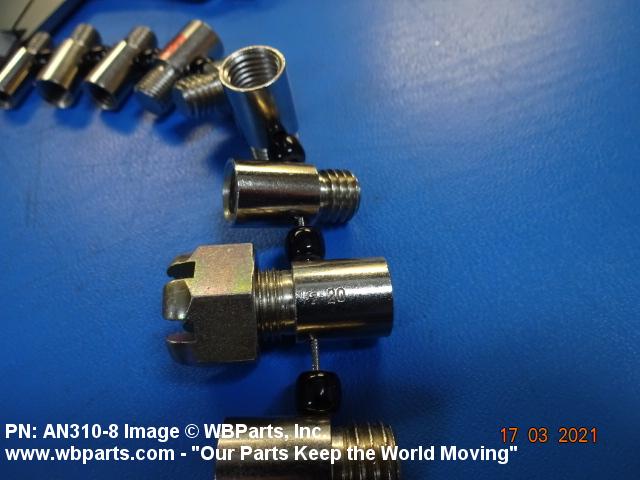

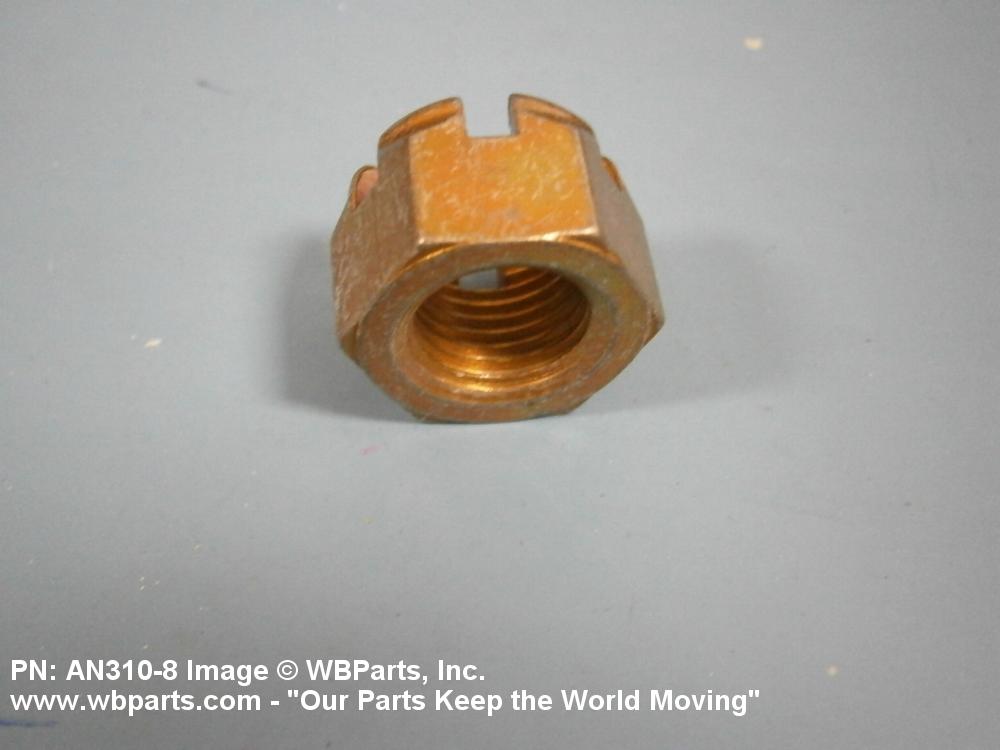

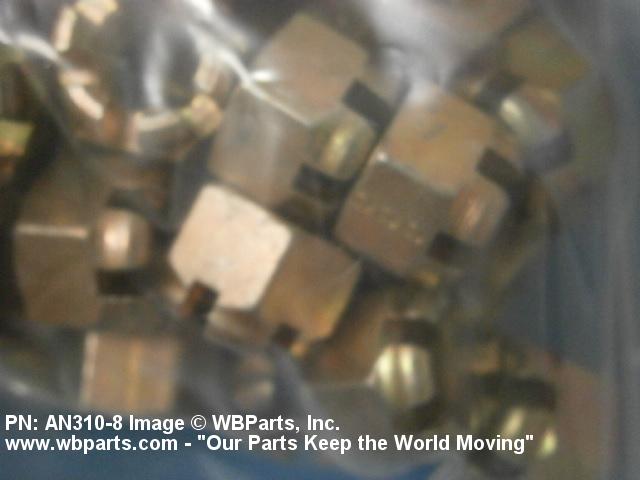

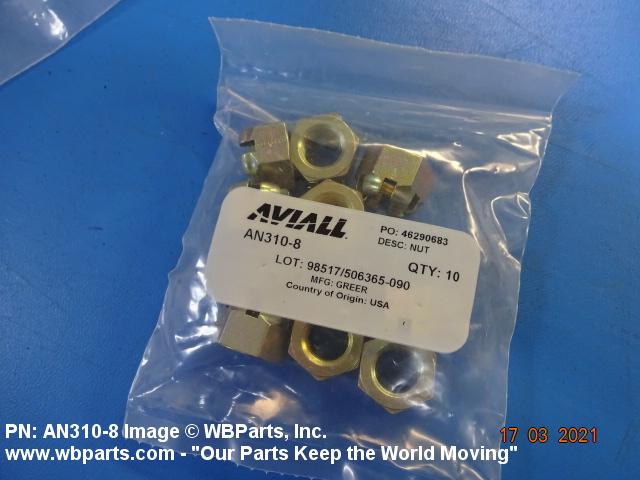

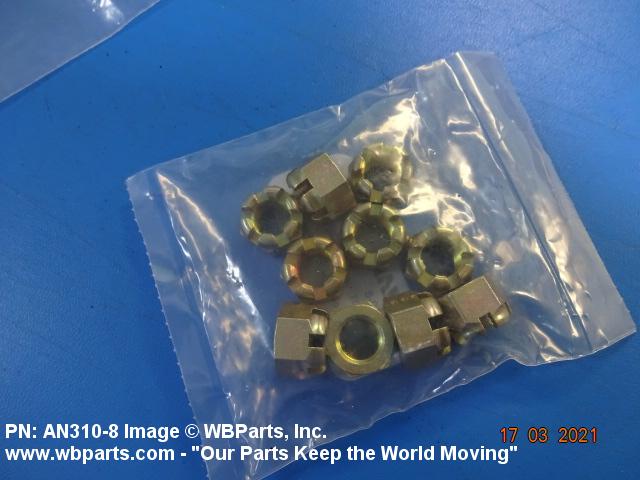

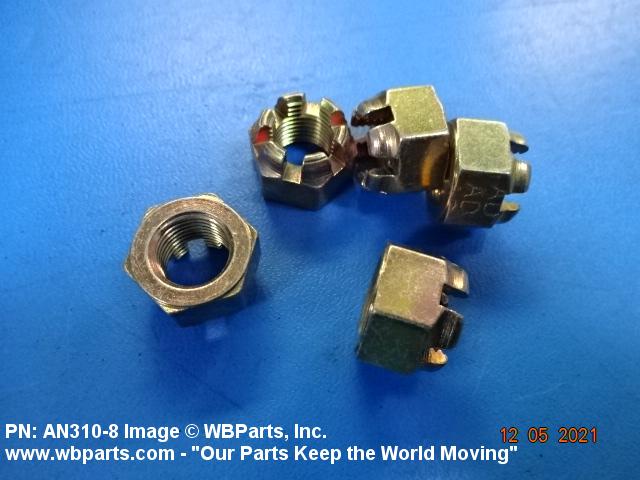

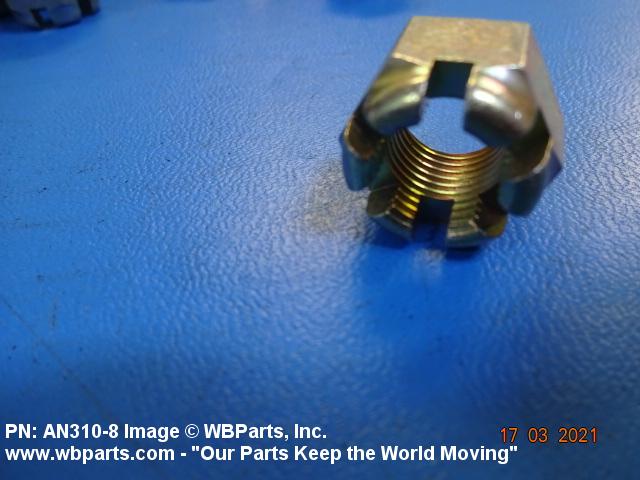

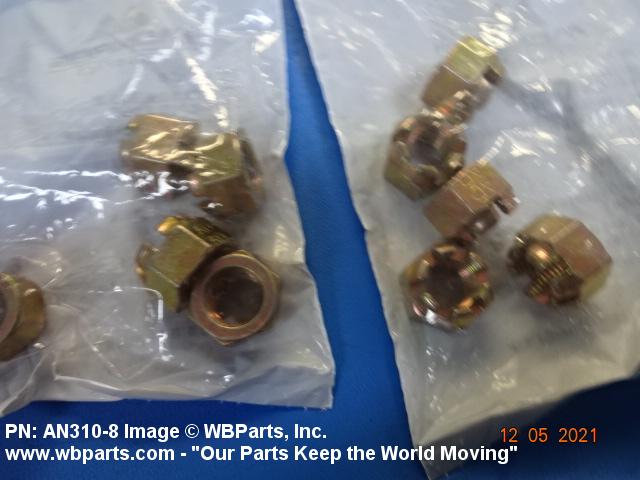

Drawings & Photos | NSN 5310-00-812-7766
Demand History | NSN 5310-00-812-7766
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN3108 | 2022-01-27 | 200 | United States |
| AN3108 | 2021-05-137 | 6 | US |
| AN3108 | 2020-08-223 | 100 | United States |
| AN3108 | 2020-01-06 | 50 | United States |
| AN3108 | 2017-10-297 | 20 | United Arab Emirates |
| AN310-8 | 2014-11-308 | 5000 | United States |
| AN310-8 | 2014-08-232 | 36 | Australia |
| AN310-8 | 2014-08-232 | 36 | United States |
| AN310-8 | 2014-08-232 | 36 | United States |
| AN310-8 | 2014-08-227 | 36 | Australia |
| AN3108 | 2014-04-118 | 24 | South Korea |
| AN310-8 | 2014-03-78 | 9 | United States |
| AN310-8 | 2014-03-71 | 5 | United States |
| AN3108 | 2013-05-123 | 8 | United States |
| AN3108 | 2013-04-106 | 25 | United States |
| AN310-8 | 2012-11-310 | 50 | |
| AN3108 | 2012-03-88 | 2 | Colombia |
| AN3108 | 2011-12-353 | 200 | United States |
| AN3108 | 2011-12-341 | 3 | United States |
| AN3108 | 2011-11-327 | 200 | United States |
| AN3108 | 2010-11-327 | 1 | United States |
| AN310-8 | 2010-11-322 | 100 | |
| AN3108 | 2010-05-139 | 1 | United States |
| AN3108 | 2009-09-245 | 12 | Netherlands |
| AN3108 | 2008-07-210 | 30 | US |
| AN3108 | 2006-10-290 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-812-7766
Technical Data | NSN 5310-00-812-7766
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A1 CASTELLATED, HEXAGON |
| NUT HEIGHT | 0.562 INCHES NOMINAL |

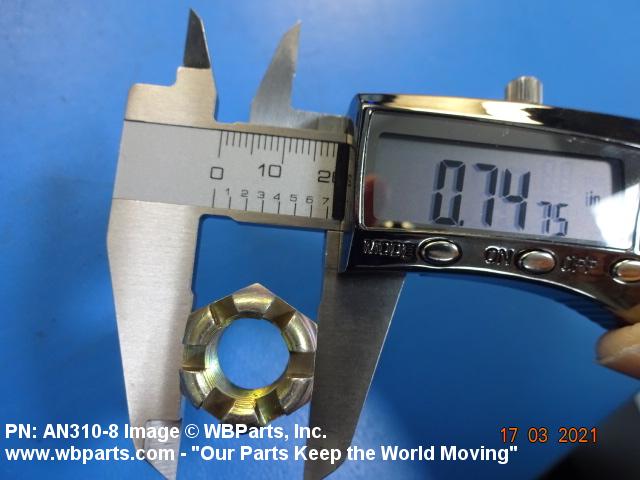

| WIDTH ACROSS FLATS | 0.738 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| BEARING SURFACE TYPE | FLAT OR WASHER FACED |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | SPECIALLY SELECTED FOR FBM APPLICATIONPEP OP 2747 |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY SPECIAL FEATURES |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN310-8 |
Restrictions/Controls & Freight Information | NSN 5310-00-812-7766
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
