NSN 5310-00-820-3007 MA13601023, MA13601-02-3, MF1905833
Product Details | PLATE SELF-LOCKING NUT
5310-00-820-3007 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MA13601023, MA13601-02-3, MF1905833, MF19058-3-3, S987DC33, S987DC3-3, BACN10LK5A33, RM52LHA3006M302, RM52LHA3006M3-02, 5480150P1, 59061323, 5906132-3, 5310-00-820-3007, 00-820-3007, 5310008203007, 008203007
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-820-3007 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

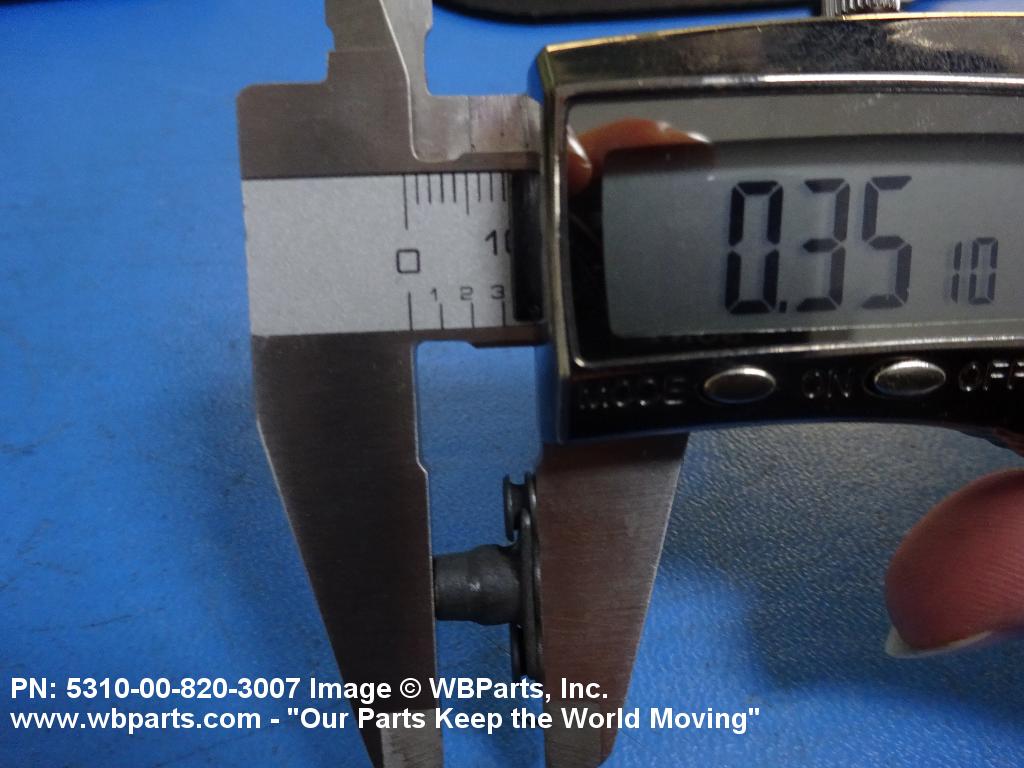

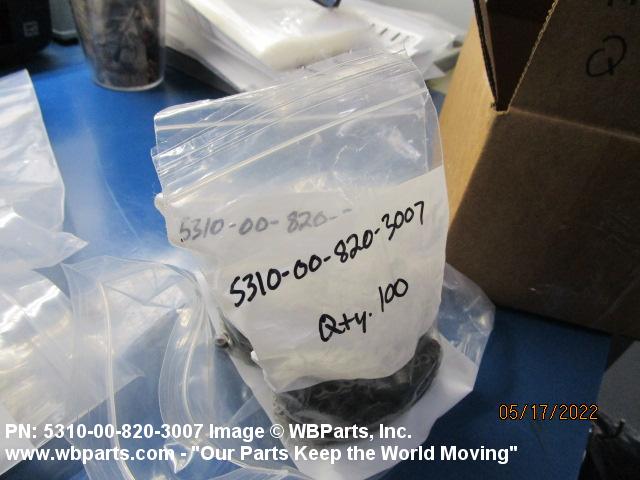

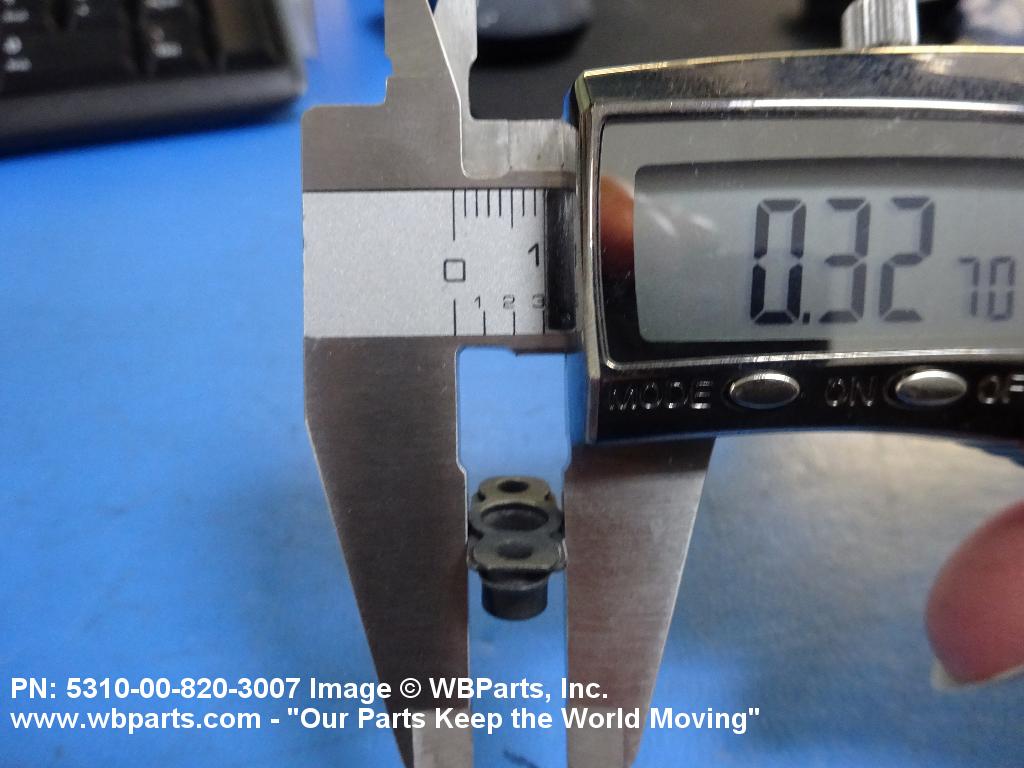

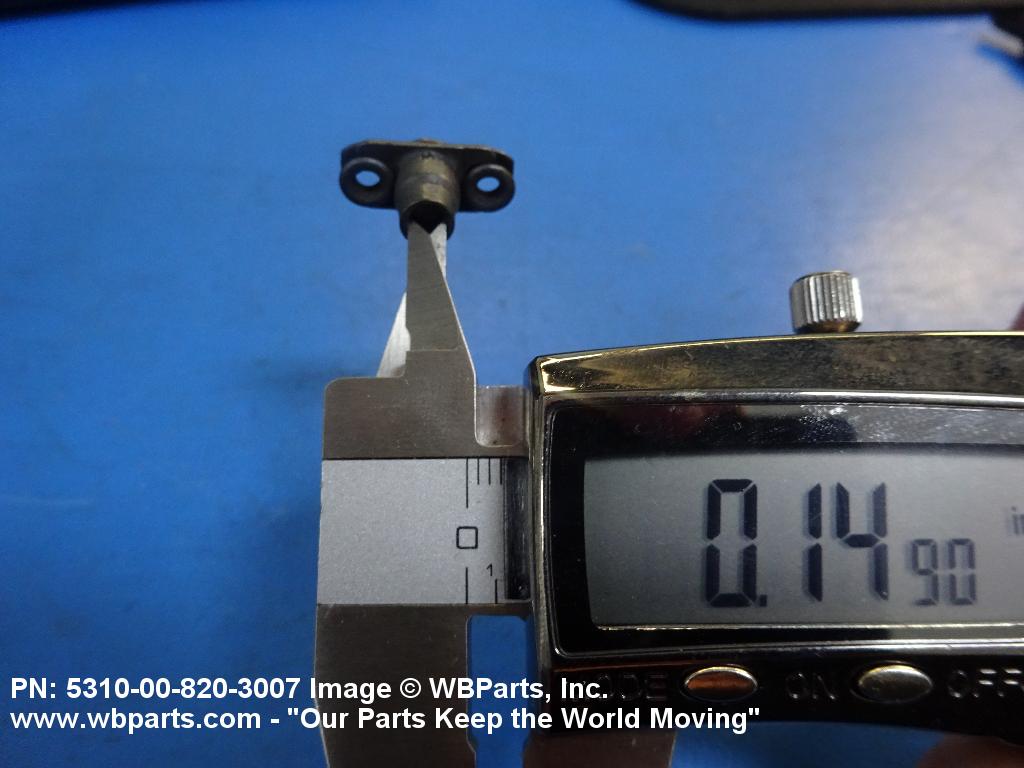

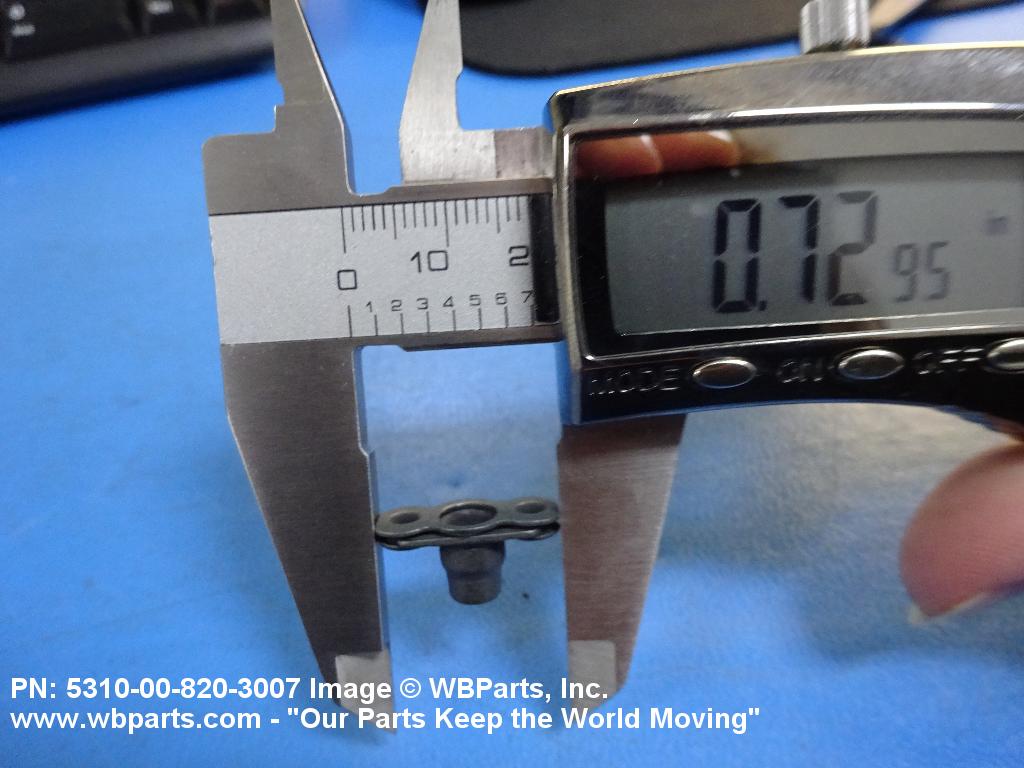

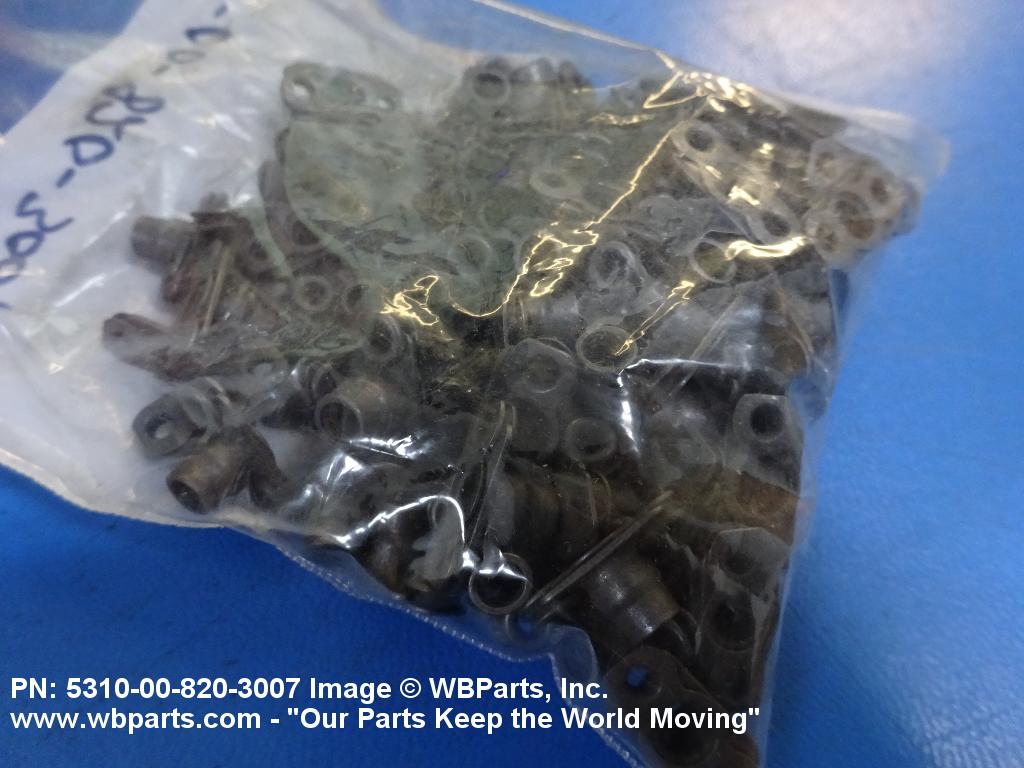

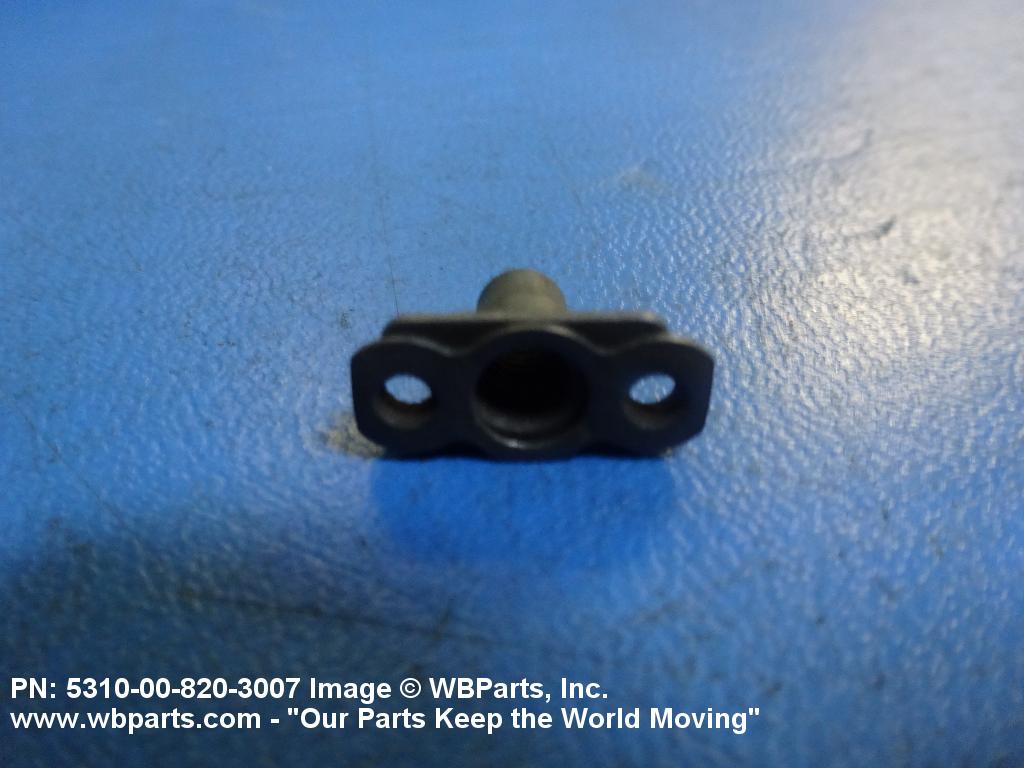

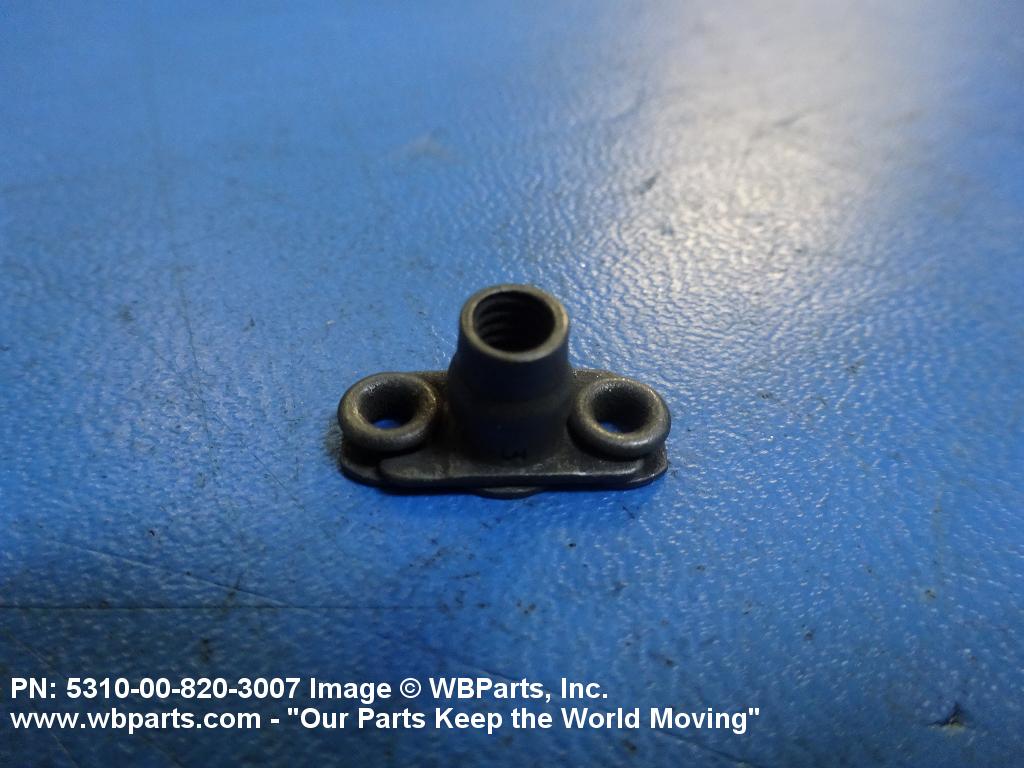

Drawings & Photos | NSN 5310-00-820-3007
Demand History | NSN 5310-00-820-3007
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-820-3007 | 2022-05-125 | 500 | United States |
| 5310-00-820-3007 | 2021-09-251 | 500 | United States |
| 5310-00-820-3007 | 2020-06-162 | 15 | US |
| S987DC33 | 2020-06-160 | 462 | United States |
| 5310-00-820-3007 | 2017-02-53 | 6 | MANUAL |
| S987DC33 | 2011-01-24 | 1 | US |
| 5310-00-820-3007 | 2010-01-05 | 100 | us |
| 5310-00-820-3007 | 2009-11-308 | 72 | United States |
| 5310-00-820-3007 | 2008-11-332 | 17 | us |
| S987DC33 | 2008-06-158 | 100 | US |
Cross Reference | NSN 5310-00-820-3007
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5906132-3 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| BACN10LK5A33 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BACN10LK5A33 | 81205 | THE BOEING COMPANY DBA BOEING |
| MA13601-02-3 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MA13601-02-3 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| MF19058-3-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MF19058-3-3 | F6033 | TECNOTEC SARL |
| MF19058-3-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| RM52LHA3006M3-02 | 72962 | HARVARD INDUSTRIES INC |
| S987DC3-3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-820-3007
Related Products | NSN 5310-00-820-3007
Technical Data | NSN 5310-00-820-3007
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.739 INCHES MAXIMUM |
| NUT HEIGHT | 0.375 INCHES MAXIMUM |
| PLATE THICKNESS | 0.125 INCHES NOMINAL |
| PLATE WIDTH | 0.327 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.188 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.194 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| TEMP RATING | 500.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 81205-BACN10LK MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-820-3007
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-820-3007
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
