NSN 5310-00-840-1321 MA1360062F2, MA13600-62F2, MF100006T2
Product Details | PLATE SELF-LOCKING NUT
5310-00-840-1321 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MA1360062F2, MA13600-62F2, MF100006T2, MF1000-06T2, MF500006CW, MF5000-06CW, NAS1068A06L, A3650502069, A3-65050-2069, SMC2088462, SMC208846-2, GN10E632, 1140142002, 114-0142-002, 1251700201, 12-517-00-201, 202-11838-2, 4027264902, 40-272-649-02, 440637, 4639522, 463952-2, 5634442, 563444-2, 575R004H02, 65050-2069, 8537371, 9500392, 950039-2, 5310-00-840-1321, 00-840-1321, 5310008401321, 202118382, 650502069, 008401321
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-840-1321 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

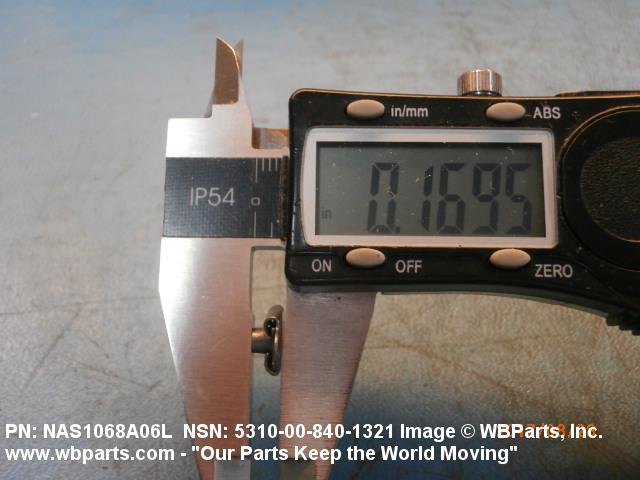

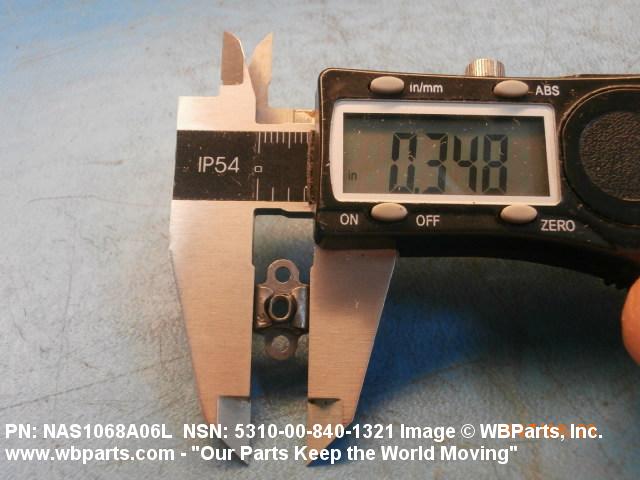

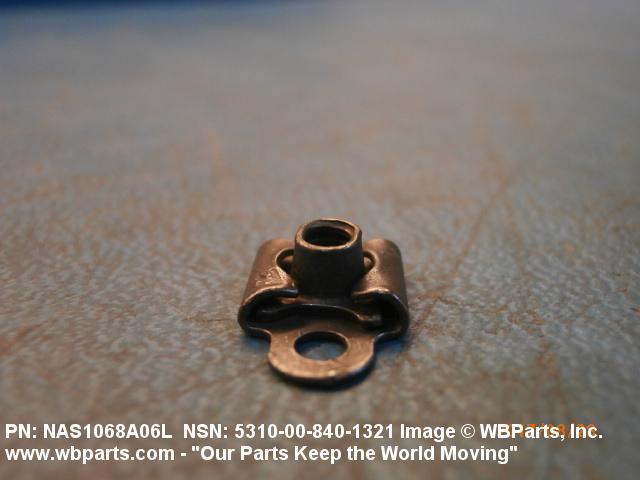

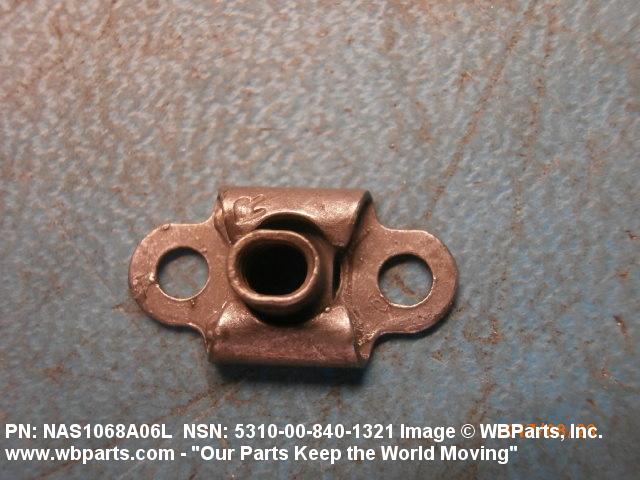

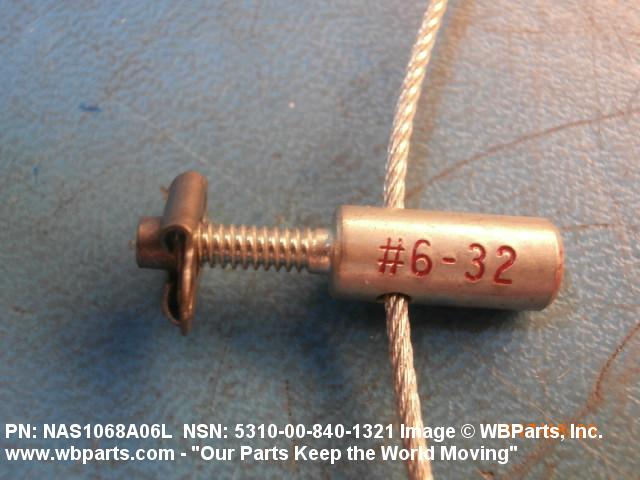

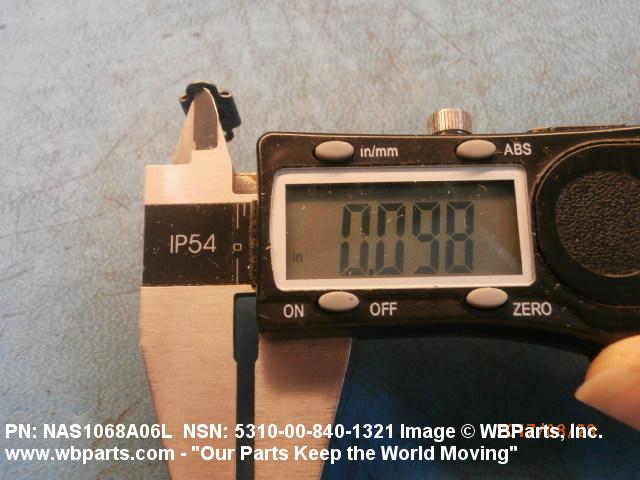

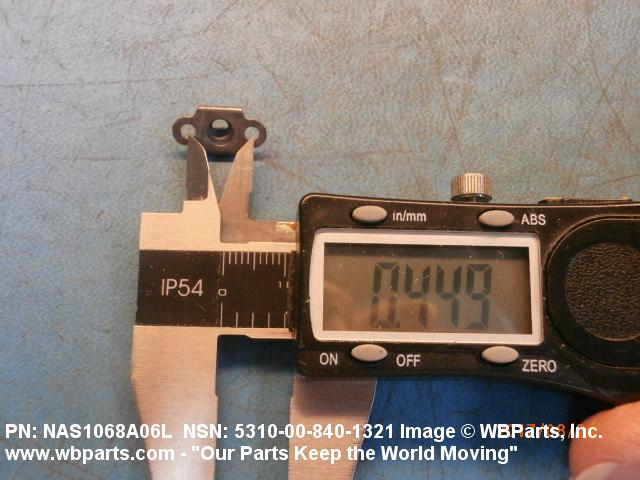

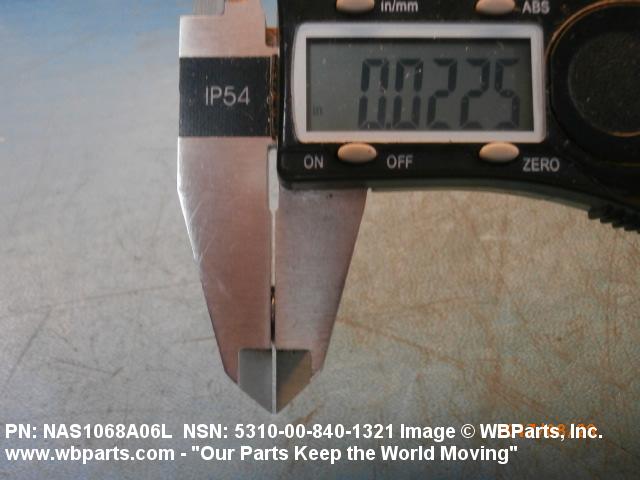

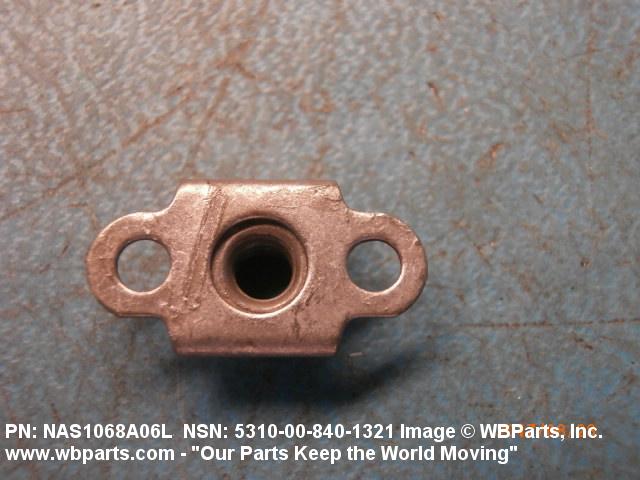

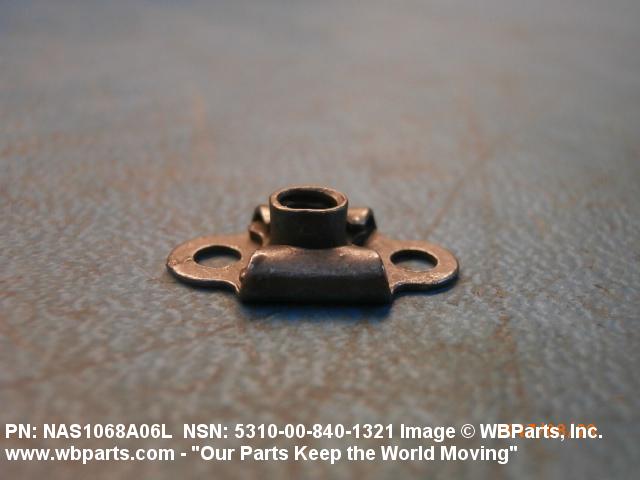

Drawings & Photos | NSN 5310-00-840-1321
Demand History | NSN 5310-00-840-1321
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1068A06L | 2022-10-304 | 20 | US |
| 5310-00-840-1321 | 2022-05-143 | 10 | US |
| NAS1068A06L | 2022-05-143 | 1000 | TR |
| 5310-00-840-1321 | 2022-04-115 | 25 | CA |
| 5310-00-840-1321 | 2019-11-310 | 500 | UA |
| 5310-00-840-1321 | 2017-08-220 | 2 | United States |
| 5310-00-840-1321 | 2017-07-201 | 2 | United States |
| 5310-00-840-1321 | 2017-03-72 | 2 | United States |
| NAS1068A06L | 2011-12-339 | 60 | United States |
| MF500006CW | 2011-10-294 | 5 | us |
| NAS1068A06L | 2011-05-129 | 60 | United States |
| 5310-00-840-1321 | 2008-09-252 | 110 | Canada |
| NAS1068A06L | 2007-12-353 | 18 | US |
Cross Reference | NSN 5310-00-840-1321
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114-0142-002 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 12-517-00-201 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 202-11838-2 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 202-11838-2 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 40-272-649-02 | K0802 | MEGGITT (UK) LTD DBA MEGGITT SENSING SYSTEMS |
| 440637 | F0057 | THALES COMMUNICATIONS & SECURITY S.A.S |
| 463952-2 | 94589 | DICKSON |
| 563444-2 | 06844 | VULCAN PACIFIC CORP |
| 563444-2 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 563444-2 | 80670 | AIR PRODUCTS AND CHEMICALS INC |
| 575R004H02 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 65050-2069 | K1384 | RACAL RADAR DEFENCE SYSTEMS LTD |
| 65050-2069 | U4338 | THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS |
| 8537371 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 950039-2 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 950039-2 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| A3-65050-2069 | K1384 | RACAL RADAR DEFENCE SYSTEMS LTD |
| A3-65050-2069 | U4338 | THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS |
| GN10E632 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MA13600-62F2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| MF1000-06T2 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MF5000-06CW | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MF5000-06CW | F6033 | TECNOTEC SARL |
| MF5000-06CW | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| MF5000-06CW | R1120 | SATAIR A/S |
| NAS1068A06L | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| NAS1068A06L | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| NAS1068A06L | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SMC208846-2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-840-1321
Related Products | NSN 5310-00-840-1321
Technical Data | NSN 5310-00-840-1321
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

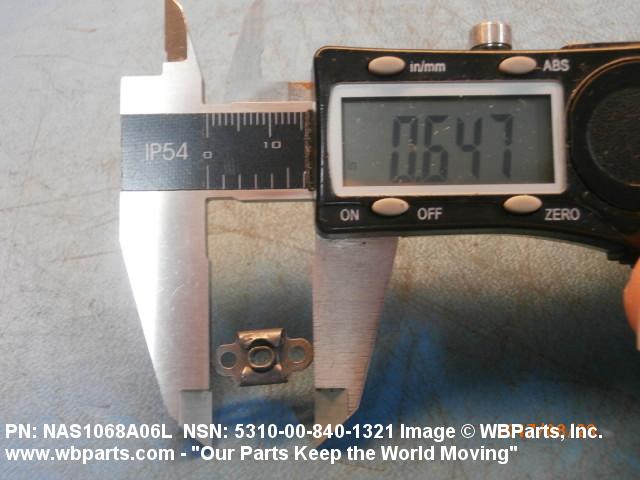

| NUT LENGTH | 0.682 INCHES MAXIMUM |
| NUT HEIGHT | 0.171 INCHES MAXIMUM |
| PLATE THICKNESS | 0.140 INCHES MAXIMUM |
| PLATE WIDTH | 0.357 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |

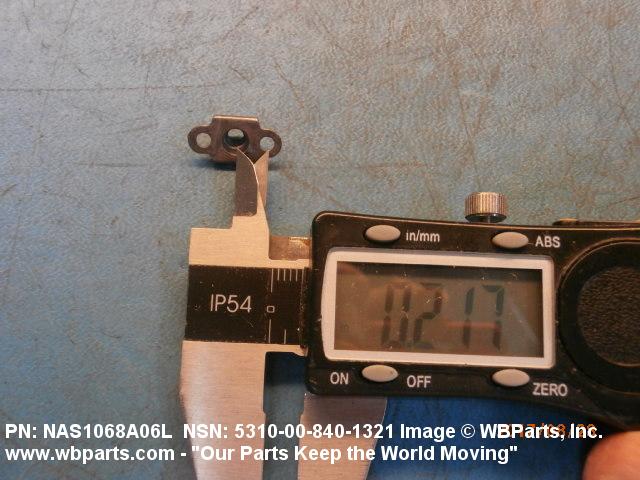

| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.218 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.435 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 97942-575R004 MANUFACTURERS SPECIFICATION CONTROL AND 80205-NAS1068 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-840-1321
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-840-1321
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
