NSN 5310-00-841-0108 MF14003, MF1400-3, B9102854
Product Details | PLATE SELF-LOCKING NUT
5310-00-841-0108 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MF14003, MF1400-3, B9102854, B910285-4, HE11400480004, HE114-0048-0004, 02P05061V001, 02-P05061V001, 5310-00-841-0108, 00-841-0108, 5310008410108, 008410108
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-841-0108 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

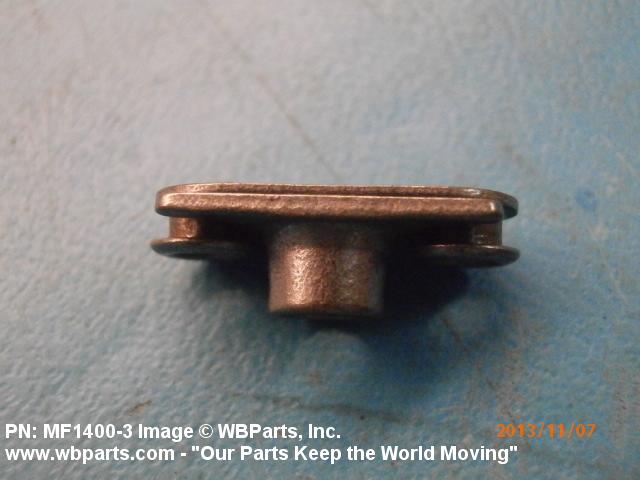

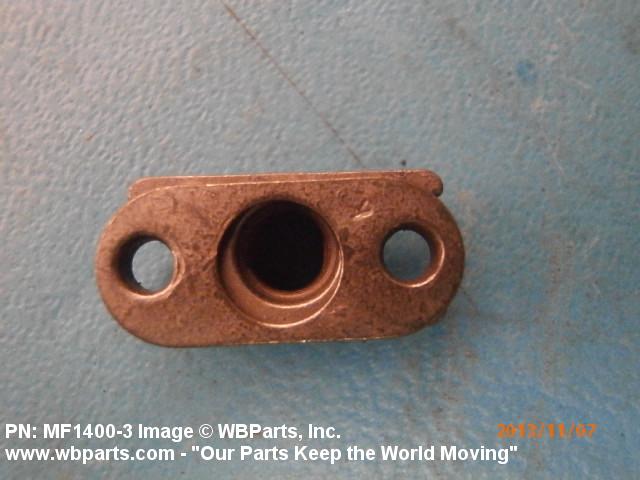

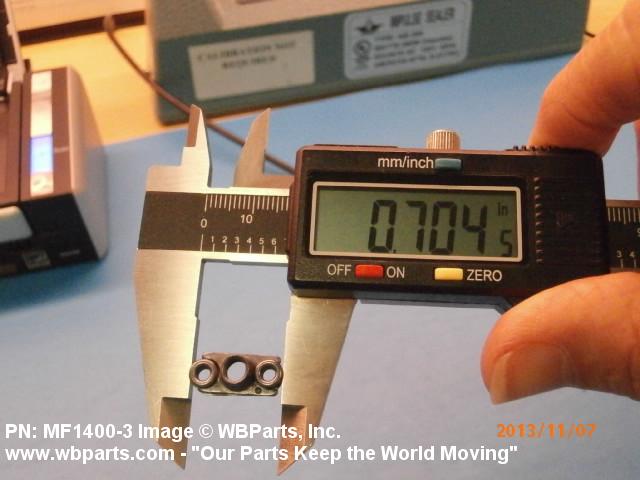

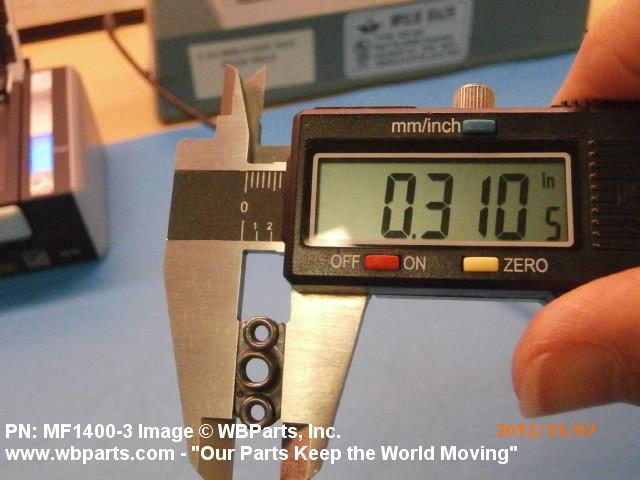

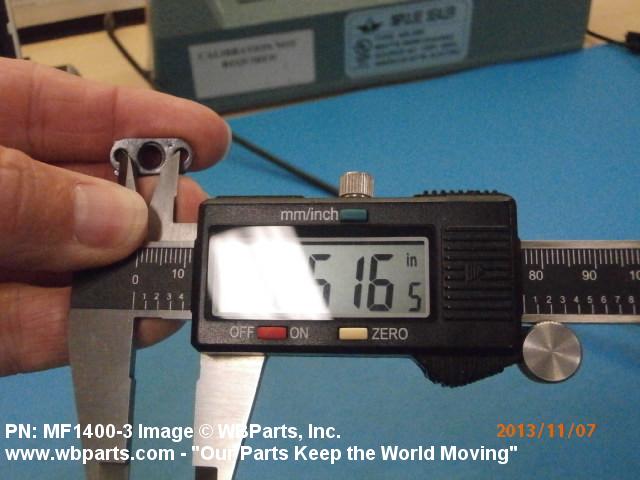

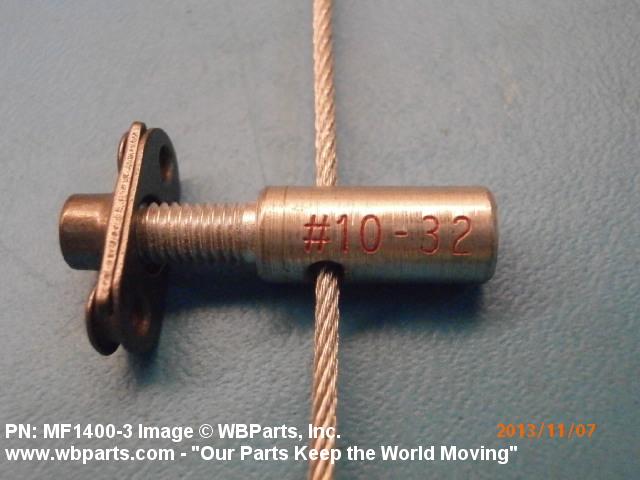

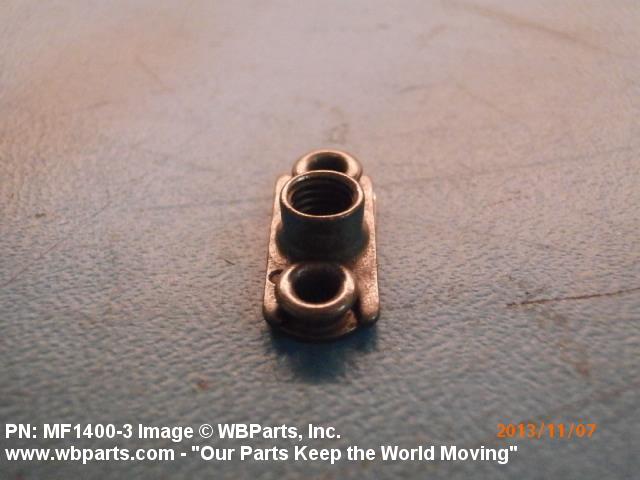

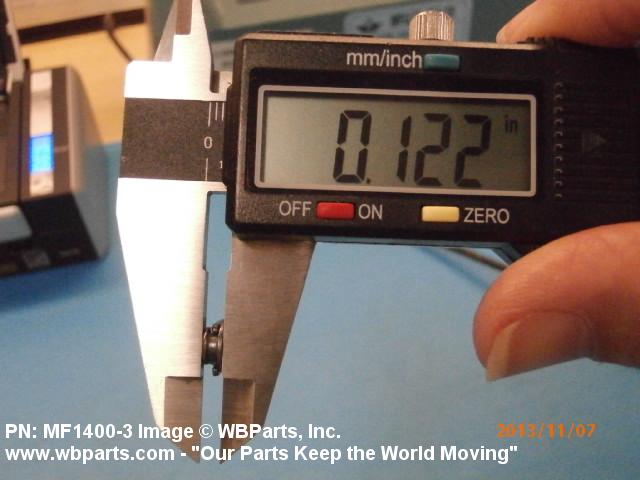

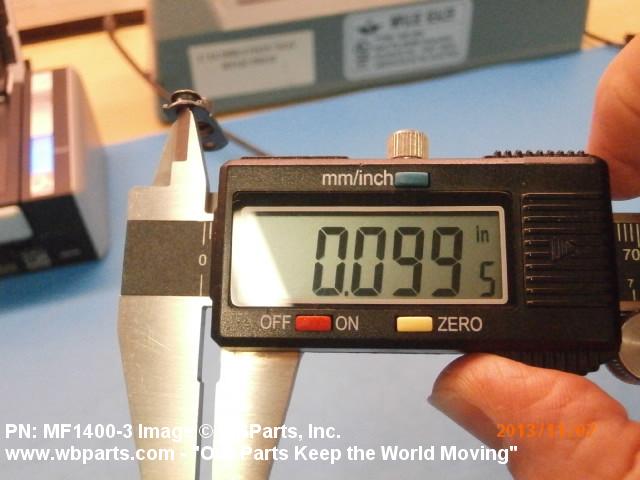

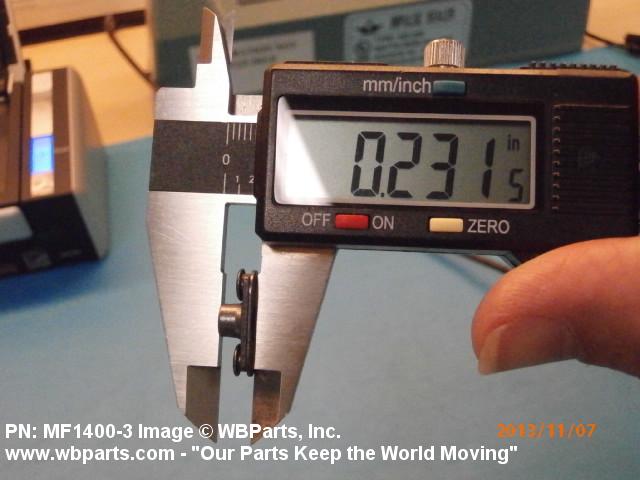

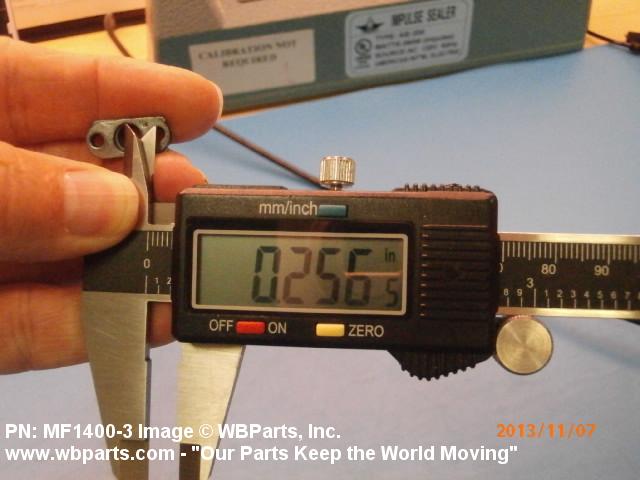

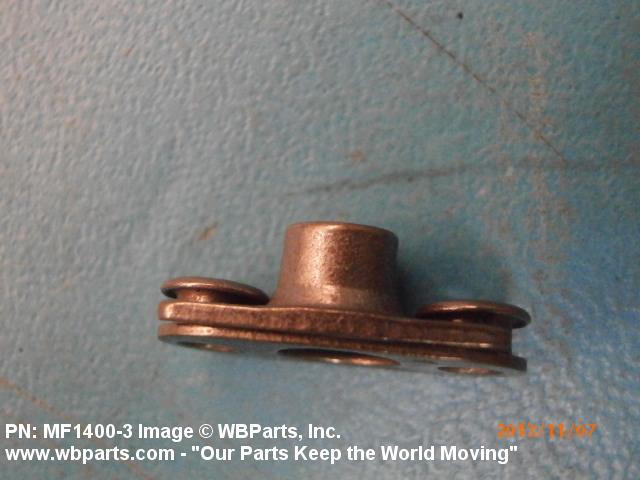

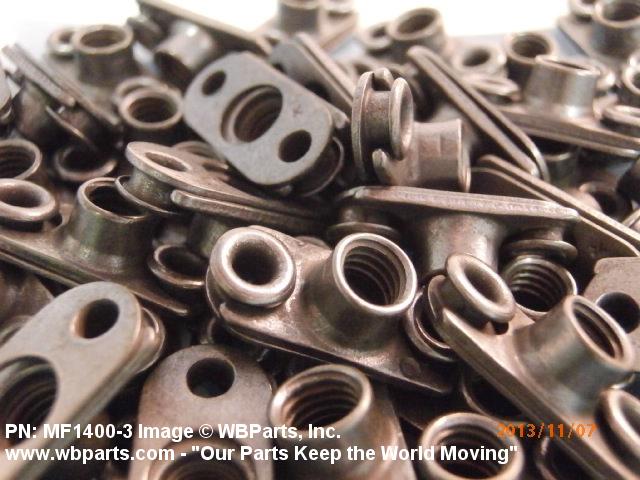

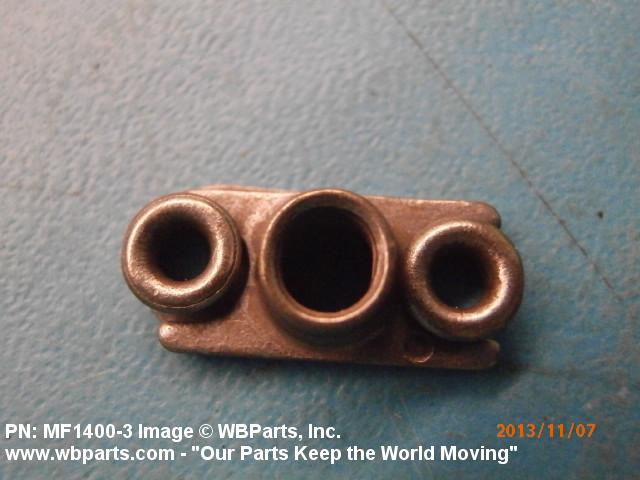

Drawings & Photos | NSN 5310-00-841-0108
Demand History | NSN 5310-00-841-0108
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 02-P05061V001 | 2025-05-149 | 1836 | DIBBS |
| MF1400-3 | 2025-05-149 | 1836 | DIBBS |
| 02-P05061V001 | 2025-05-138 | 1836 | DIBBS |
| MF1400-3 | 2025-05-138 | 1836 | DIBBS |
| 02-P05061V001 | 2021-10-290 | 565 | DIBBS |
| MF1400-3 | 2021-10-290 | 565 | DIBBS |
| 02-P05061V001 | 2021-06-172 | 382 | DIBBS |
| MF1400-3 | 2021-06-172 | 382 | DIBBS |
| 02-P05061V001 | 2021-05-125 | 1290 | DIBBS |
| MF1400-3 | 2021-05-125 | 1290 | DIBBS |
| 02-P05061V001 | 2020-12-364 | 3334 | DIBBS |
| MF1400-3 | 2020-12-364 | 3334 | DIBBS |
| 5310-00-841-0108 | 2015-09-253 | 2287 | DIBBS |
| MF14003 | 2013-11-310 | 1 | United States |
| MF14003 | 2013-10-304 | 1 | Brazil |
| 5310-00-841-0108 | 2013-01-09 | 1468 | DIBBS |
| 5310-00-841-0108 | 2012-03-89 | 1539 | DIBBS |
| 5310-00-841-0108 | 2011-11-313 | 1040 | DIBBS |
| 5310-00-841-0108 | 2008-11-316 | 1547 | DIBBS |
| 5310-00-841-0108 | 2008-10-281 | 1072 | DIBBS |
Cross Reference | NSN 5310-00-841-0108
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02-P05061V001 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 02-P05061V001 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| B910285-4 | K0268 | RAYTHEON SYSTEMS LTD |
| HE114-0048-0004 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
| MF1400-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MF1400-3 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MF1400-3 | F6033 | TECNOTEC SARL |
| MF1400-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-841-0108
Related Products | NSN 5310-00-841-0108
Technical Data | NSN 5310-00-841-0108
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.739 INCHES NOMINAL |
| NUT HEIGHT | 0.250 INCHES NOMINAL |
| PLATE THICKNESS | 0.125 INCHES NOMINAL |
| PLATE WIDTH | 0.327 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.500 INCHES NOMINAL |
| TEMP RATING | 500.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 15653 |
| DESIGN CONTROL REFERENCE | MF1400-3 |
Restrictions/Controls & Freight Information | NSN 5310-00-841-0108
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
