NSN 5310-00-945-0581 NAS1193122, NAS1193-12-2, 00-945-0581
Product Details | KEY WASHER
5310-00-945-0581 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: NAS1193122, NAS1193-12-2, 5310-00-945-0581, 00-945-0581, 5310009450581, 009450581
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18-FEB-66 | 00-945-0581 | 01869 ( WASHER, KEY ) |

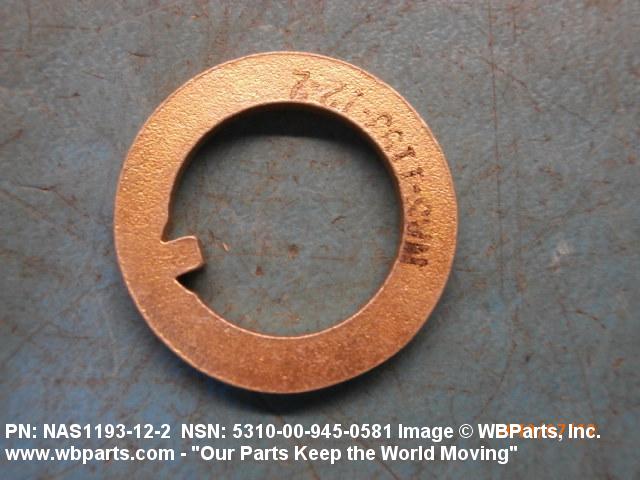

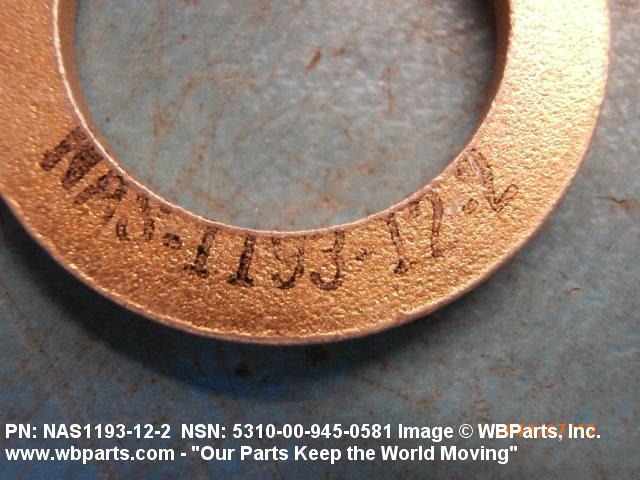

Drawings & Photos | NSN 5310-00-945-0581
Demand History | NSN 5310-00-945-0581
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1193122 | 2019-06-172 | 12 | United States |
| 5310-00-945-0581 | 2012-11-330 | 15 | DIBBS |
| 5310-00-945-0581 | 2012-06-162 | 15 | DIBBS |
Cross Reference | NSN 5310-00-945-0581
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1193K12-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-945-0581
Technical Data | NSN 5310-00-945-0581
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 154 KEY |
| INTERNAL KEY QUANTITY | 1 |

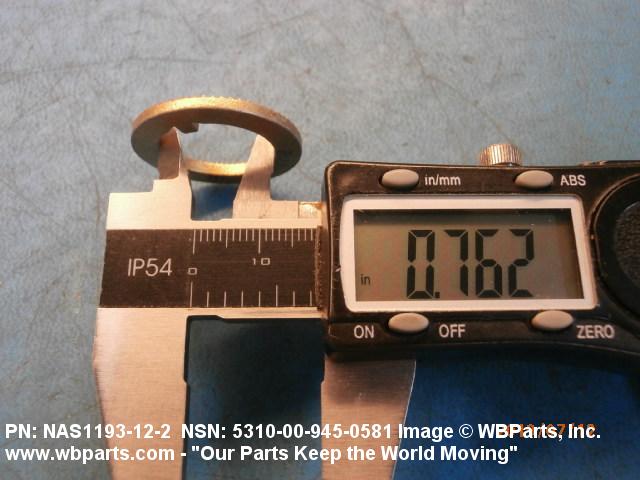

| HOLE DIAMETER | 0.755 INCHES MINIMUM AND 0.771 INCHES MAXIMUM |

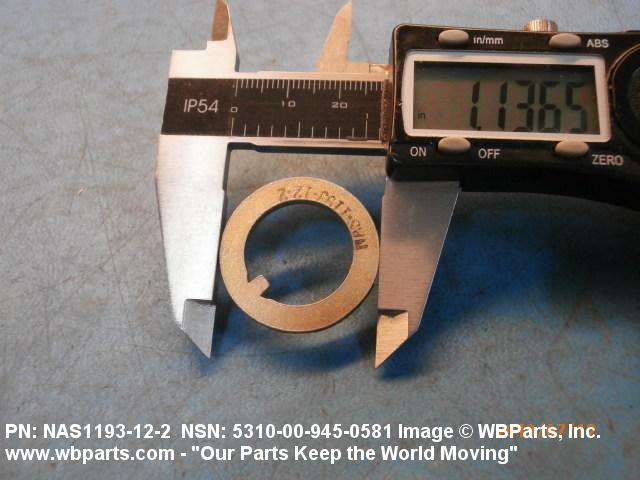

| OUTSIDE DIAMETER | 1.120 INCHES MINIMUM AND 1.140 INCHES MAXIMUM |
| INTERNAL STRAIGHT KEY WIDTH | 0.109 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |

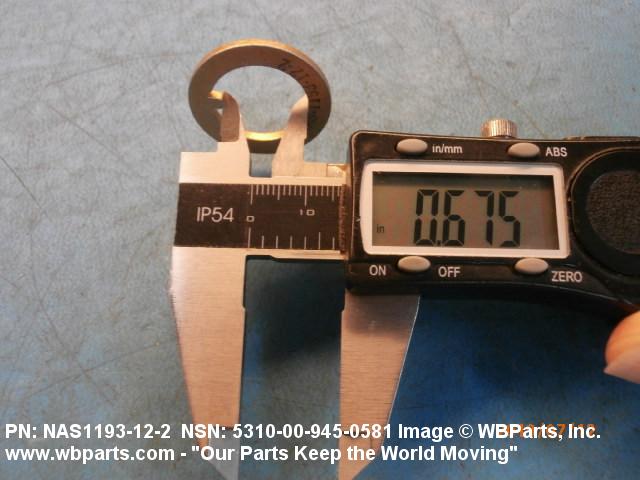

| DISTANCE FROM CENTERLINE TO TOP OF INTERNAL KEY | 0.297 INCHES NOMINAL |

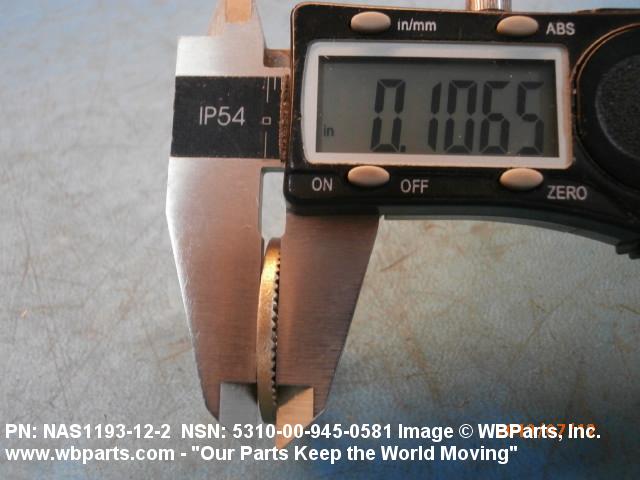

| MATERIAL THICKNESS | 0.095 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |

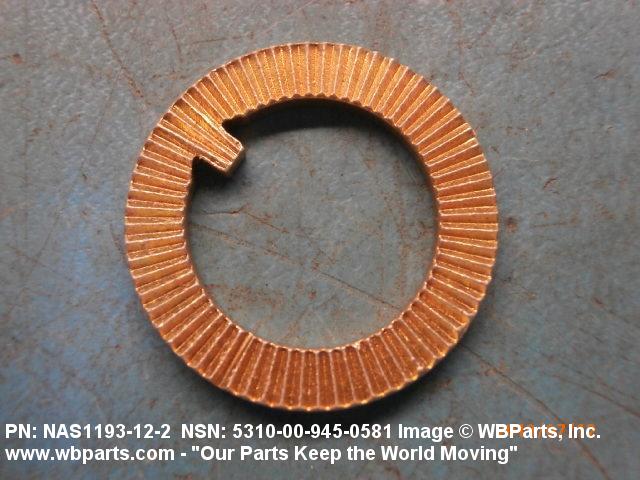

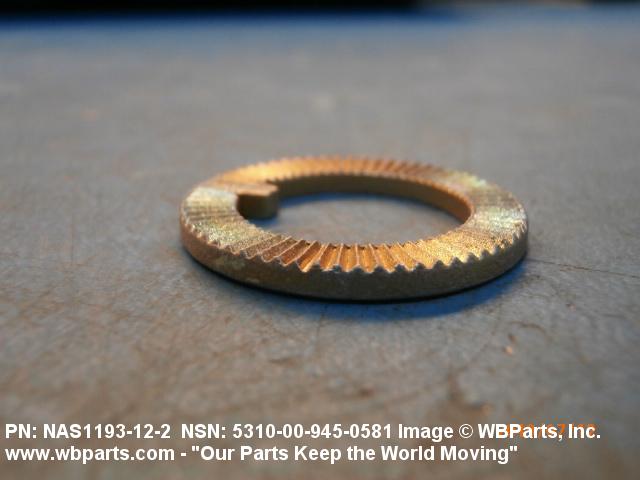

| SPECIAL FEATURES | SERRATED WASHER FACE |
| SPECIFICATION/STANDARD DATA | 80205-NAS1193 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | W/S: AIRCRAFT, STARLIFTER C-141 |
Restrictions/Controls & Freight Information | NSN 5310-00-945-0581
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
