NSN 5310-00-968-3055 MA1464062, MA14640-62, MT13S 632K1
Product Details | PLATE SELF-LOCKING NUT
5310-00-968-3055 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MA1464062, MA14640-62, MT13S 632K1, MT13S632K1, C057A06, RMLHA6969K162, RMLHA6969K1-62, 5310-00-968-3055, 00-968-3055, 5310009683055, 009683055
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUN 1966 | 00-968-3055 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

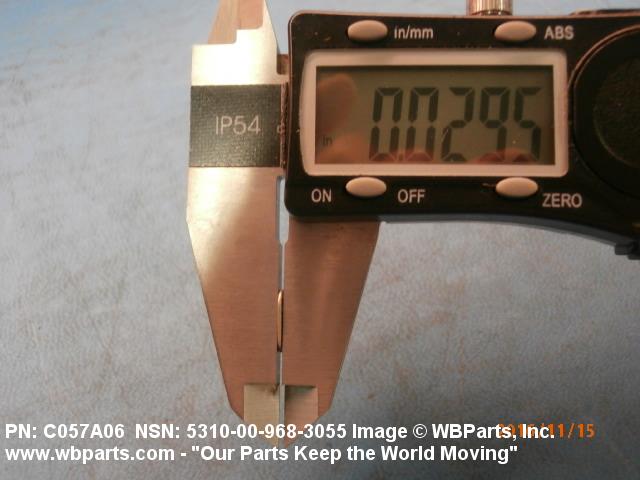

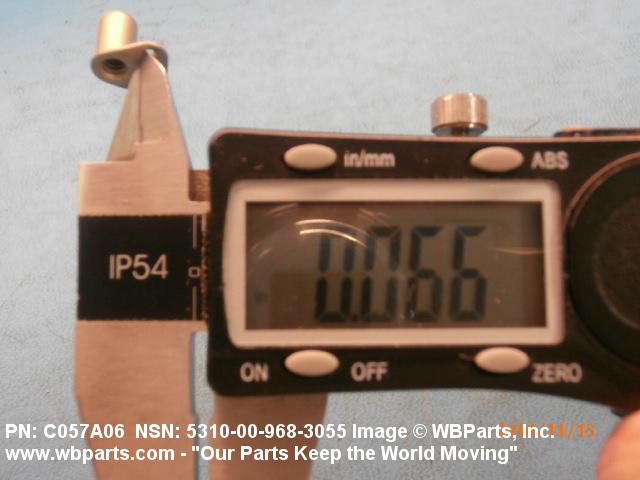

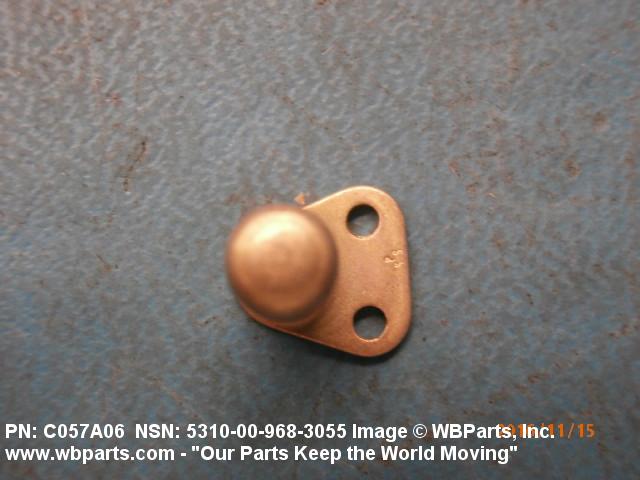

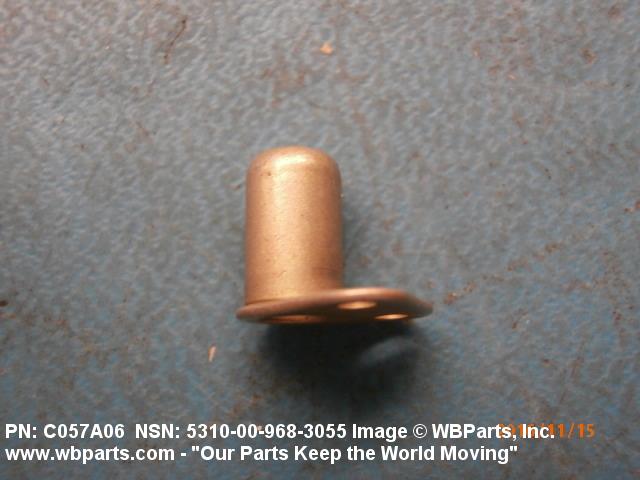

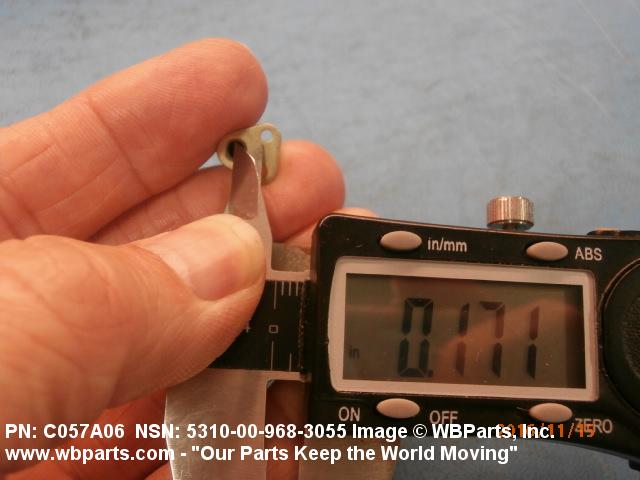

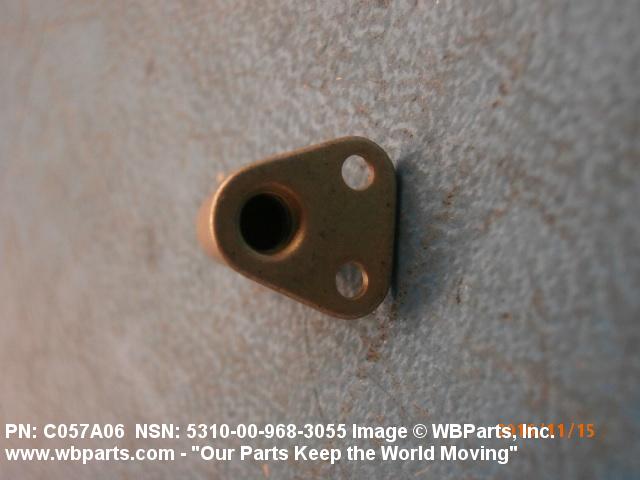

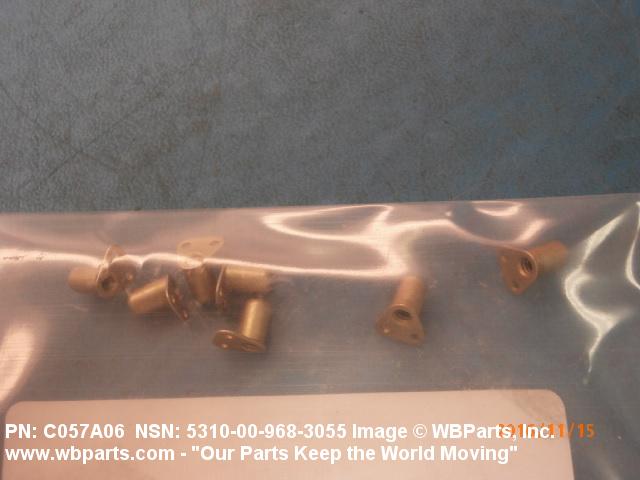

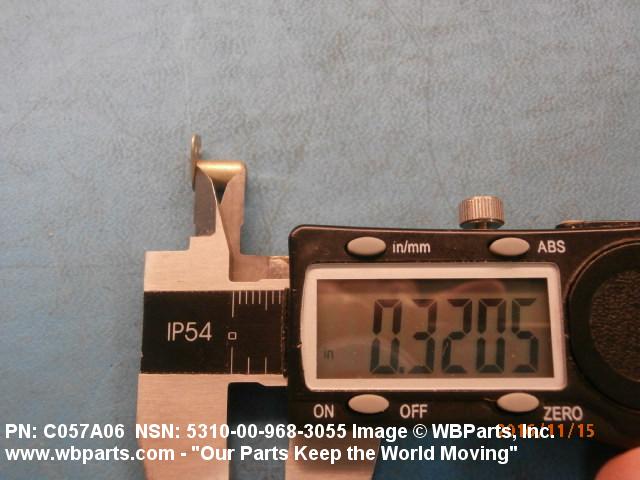

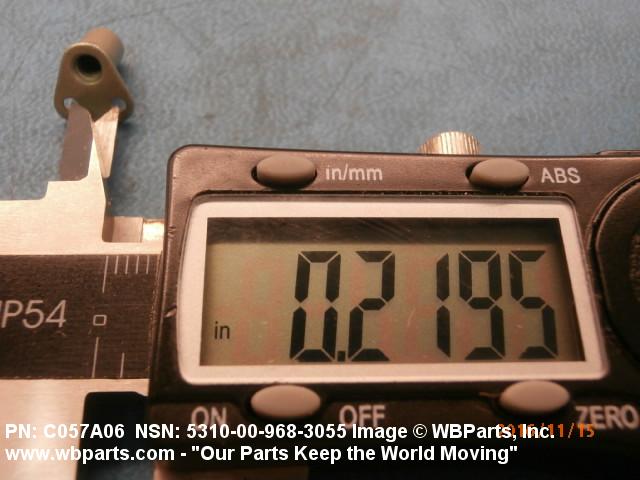

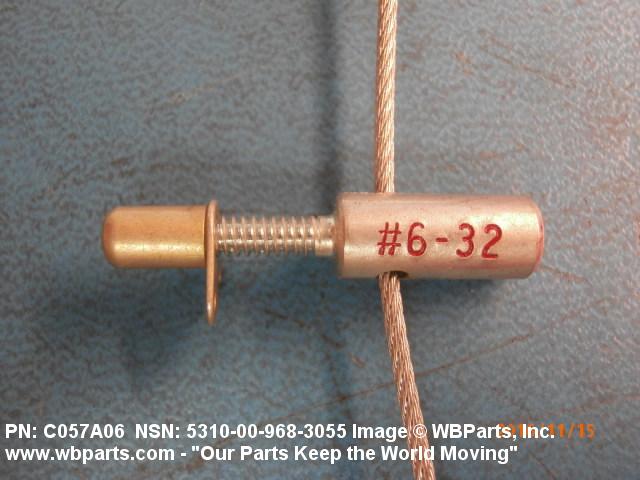

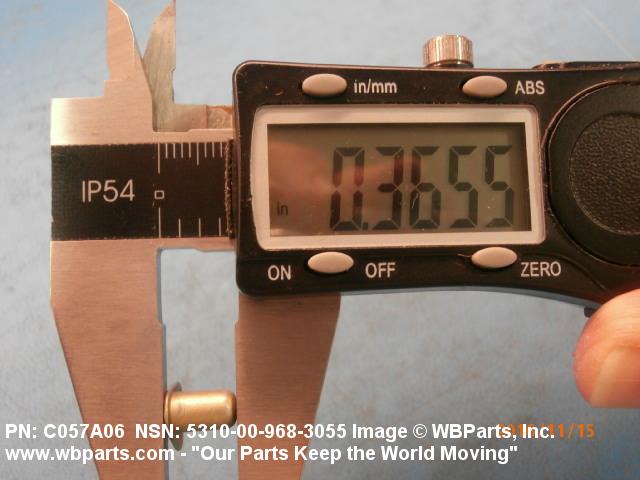

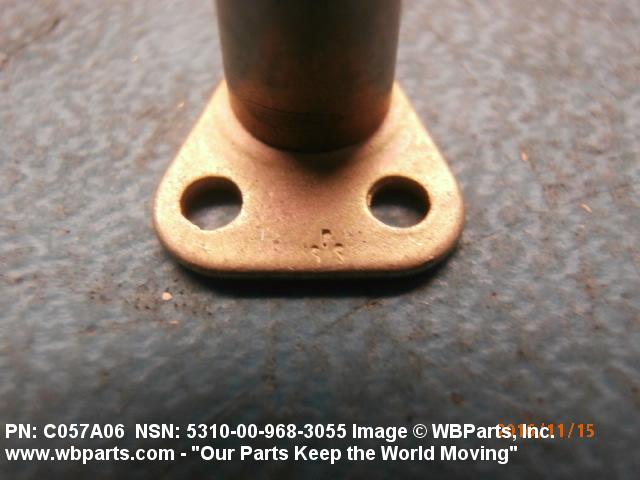

Drawings & Photos | NSN 5310-00-968-3055
Demand History | NSN 5310-00-968-3055
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C057A06 | 2024-04-108 | 203 | DIBBS |
| MA14640-62 | 2024-04-108 | 203 | DIBBS |
| MT13S 632K1 | 2024-04-108 | 203 | DIBBS |
| C057A06 | 2023-11-332 | 275 | DIBBS |
| MA14640-62 | 2023-11-332 | 275 | DIBBS |
| MT13S 632K1 | 2023-11-332 | 275 | DIBBS |
| C057A06 | 2021-11-319 | 290 | DIBBS |
| MA14640-62 | 2021-11-319 | 290 | DIBBS |
| MT13S 632K1 | 2021-11-319 | 290 | DIBBS |
| C057A06 | 2019-04-112 | 178 | DIBBS |
| MA14640-62 | 2019-04-112 | 178 | DIBBS |
| MT13S 632K1 | 2019-04-112 | 178 | DIBBS |
| C057A06 | 2019-04-104 | 178 | DIBBS |
| MA14640-62 | 2019-04-104 | 178 | DIBBS |
| MT13S 632K1 | 2019-04-104 | 178 | DIBBS |
| 5310-00-968-3055 | 2018-11-332 | 32 | DIBBS |
| 5310-00-968-3055 | 2018-03-87 | 26 | DIBBS |
| 5310-00-968-3055 | 2018-03-64 | 27 | DIBBS |
| 5310-00-968-3055 | 2017-08-235 | 27 | DIBBS |
| 5310-00-968-3055 | 2017-07-200 | 27 | DIBBS |
| 5310-00-968-3055 | 2017-03-85 | 35 | DIBBS |
| C057A06 | 2016-11-312 | 7 | United States |
| MT13S632K1 | 2016-09-252 | 2 | United States |
| 5310-00-968-3055 | 2016-01-21 | 22 | United States |
| 5310-00-968-3055 | 2016-01-10 | 44 | DIBBS |
| 5310-00-968-3055 | 2015-11-327 | 24 | DIBBS |
| 5310-00-968-3055 | 2015-06-176 | 33 | DIBBS |
| 5310-00-968-3055 | 2014-10-280 | 25 | United States |
| 5310-00-968-3055 | 2014-08-217 | 25 | DIBBS |
| 5310-00-968-3055 | 2014-04-103 | 30 | DIBBS |
| 5310-00-968-3055 | 2014-02-48 | 31 | DIBBS |
| 5310-00-968-3055 | 2013-03-78 | 31 | DIBBS |
| 5310-00-968-3055 | 2012-09-261 | 7 | DIBBS |
| 5310-00-968-3055 | 2010-07-204 | 67 | DIBBS |
| 5310-00-968-3055 | 2008-05-127 | 29 | DIBBS |
| 5310-00-968-3055 | 2008-01-23 | 11 | DIBBS |
Cross Reference | NSN 5310-00-968-3055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C057A06 | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
| C057A06 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MA14640-62 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| MT13S 632K1 | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
| MT13S632K1 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| RMLHA6969K1-62 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-968-3055
Related Products | NSN 5310-00-968-3055
Technical Data | NSN 5310-00-968-3055
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A124 PLATE |
| OVERALL HEIGHT | 0.365 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| NUT LENGTH | 0.393 INCHES MAXIMUM |
| NUT HEIGHT | 0.156 INCHES NOMINAL |
| PLATE THICKNESS | 0.031 INCHES NOMINAL |
| PLATE WIDTH | 0.380 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F45 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.066 INCHES MINIMUM AND 0.071 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.167 INCHES MINIMUM AND 0.177 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-968-3055
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-968-3055
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
