NSN 5310-01-009-6712 BACN10NX326, BACN10NX32-6, 01-009-6712
Product Details | PLATE SELF-LOCKING NUT

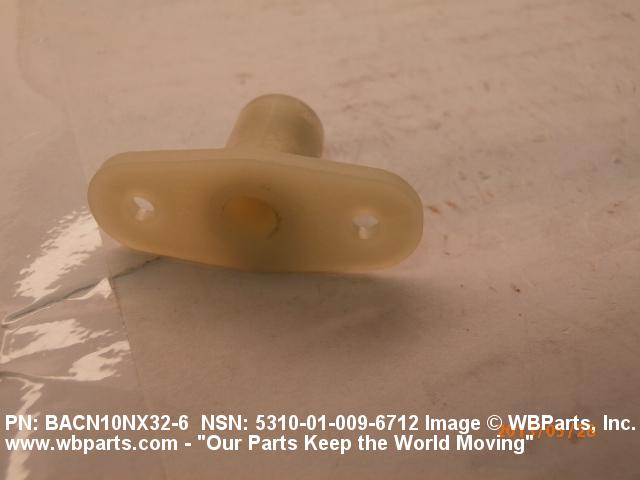

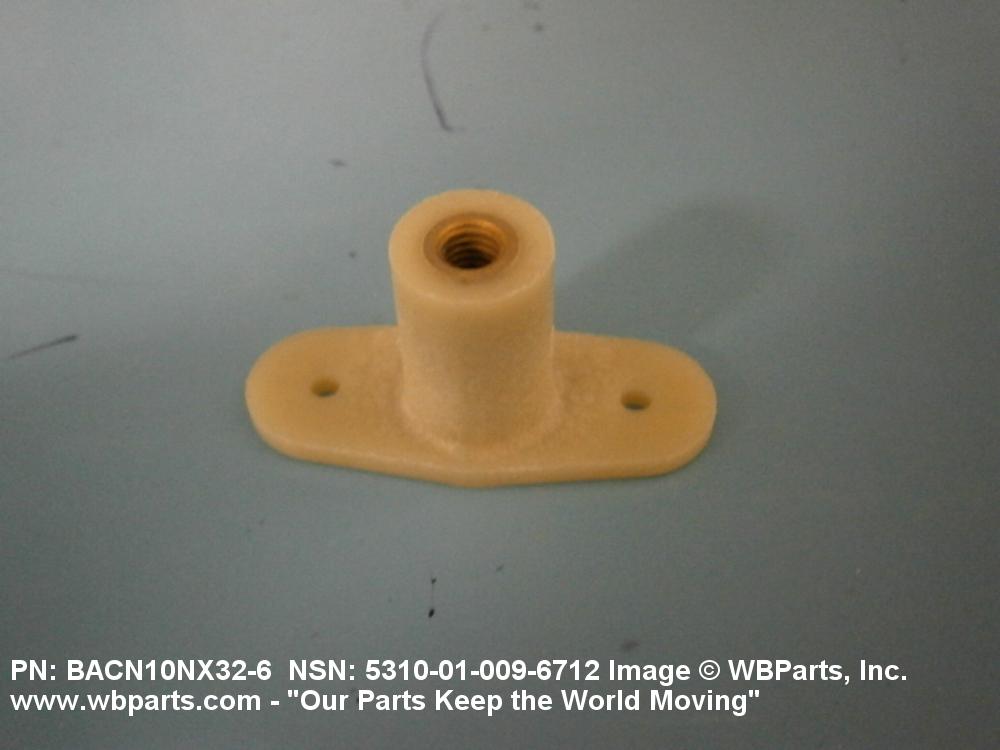

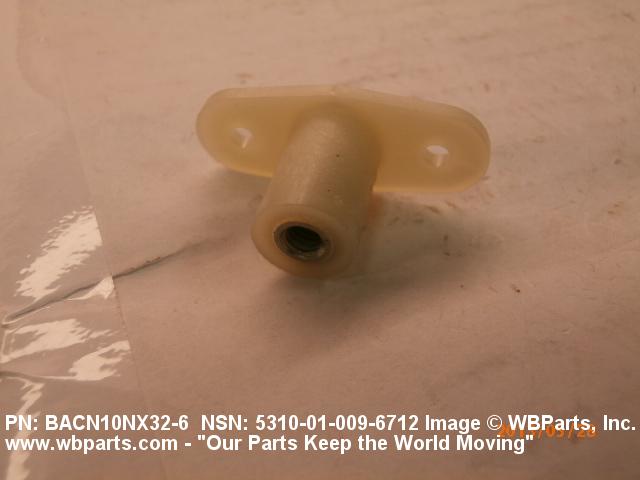

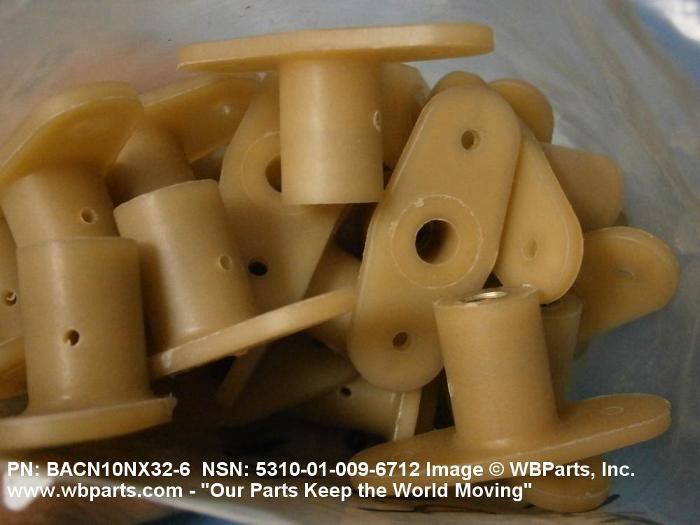

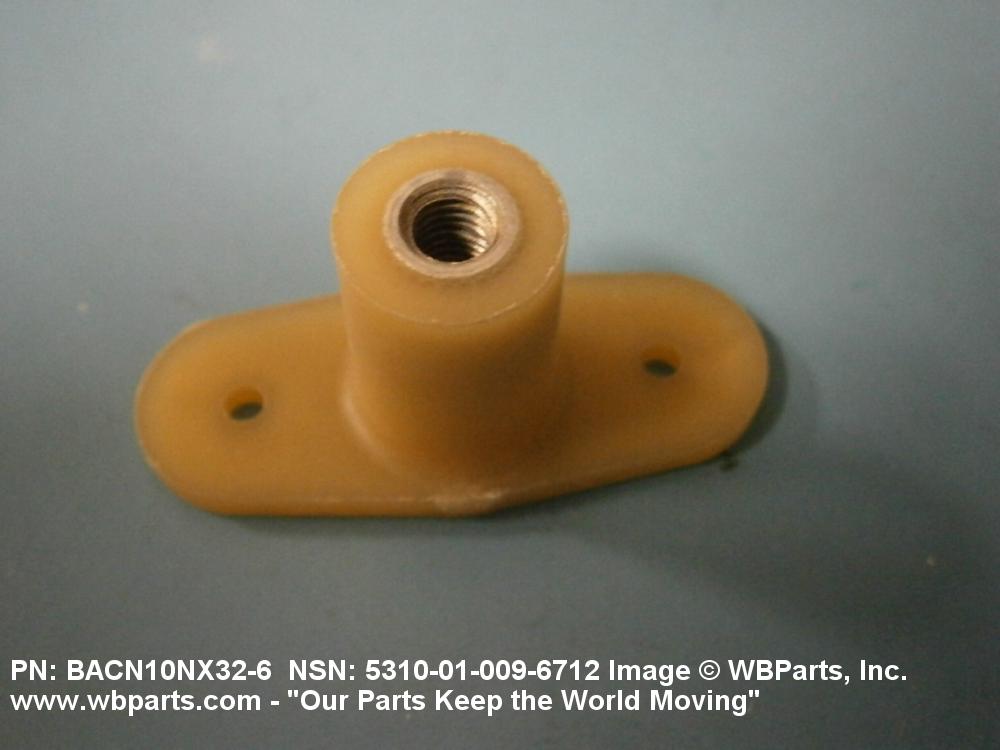

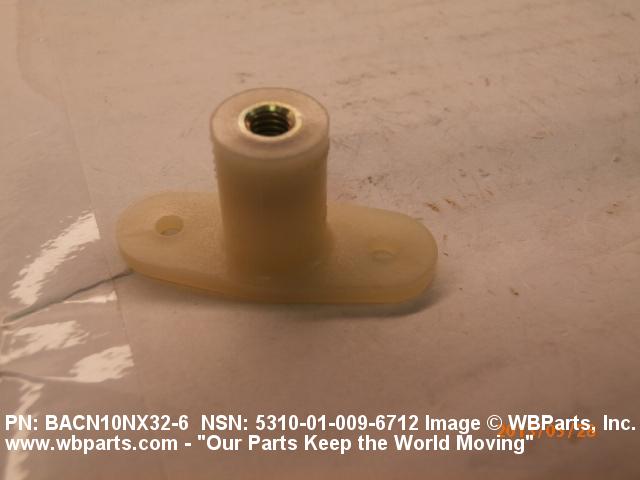

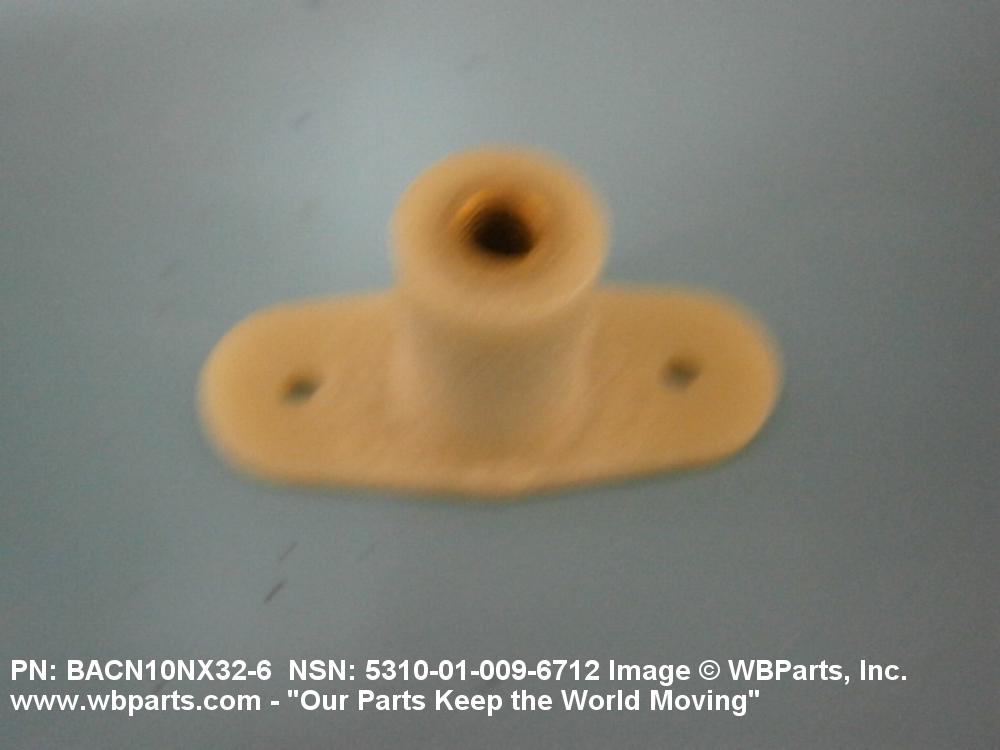

5310-01-009-6712 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10NX326, BACN10NX32-6, 5310-01-009-6712, 01-009-6712, 5310010096712, 010096712
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-009-6712 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

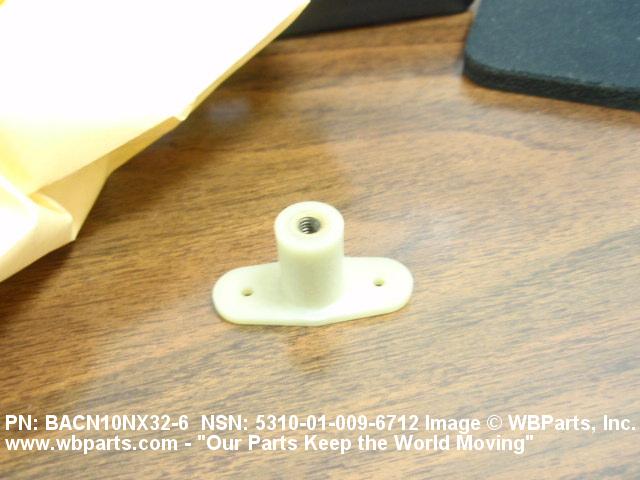

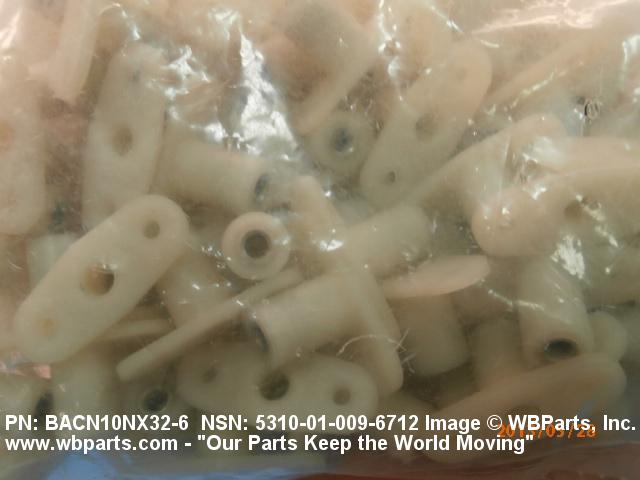

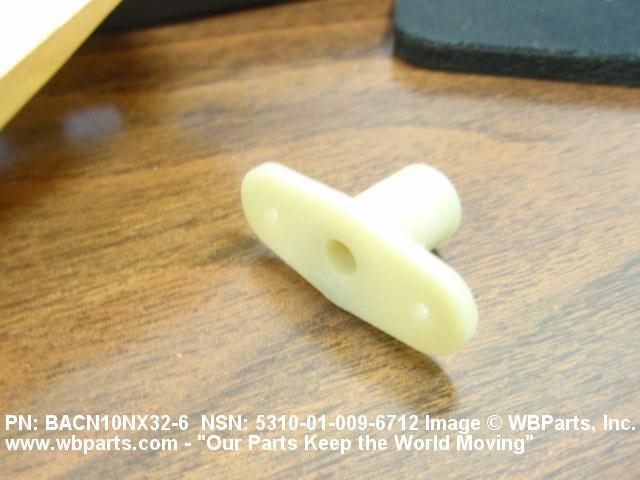

Drawings & Photos | NSN 5310-01-009-6712
Demand History | NSN 5310-01-009-6712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10NX326 | 2014-01-22 | 500 | United States |
| BACN10NX326 | 2014-01-22 | 1000 | United States |
| BACN10NX326 | 2014-01-21 | 500 | United States |
| BACN10NX326 | 2014-01-21 | 1000 | United States |
| BACN10NX326 | 2014-01-20 | 400 | United States |
| BACN10NX326 | 2014-01-20 | 500 | United States |
| BACN10NX326 | 2013-04-120 | 600 | United States |
| BACN10NX326 | 2012-05-129 | 250 | United States |
| BACN10NX326 | 2011-01-21 | 250 | United States |
| 5310-01-009-6712 | 2010-09-250 | 250 | United States |
| BACN10NX326 | 2010-01-16 | 170 | MX |
| BACN10NX326 | 2010-01-16 | 200 | MX |
| 5310-01-009-6712 | 2010-01-14 | 170 | MX |
| BACN10NX326 | 2010-01-13 | 200 | MX |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-009-6712
Technical Data | NSN 5310-01-009-6712
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL LOCKING INSERT PLASTIC SHELL |
| SURFACE TREATMENT | CADMIUM LOCKING INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE LOCKING INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

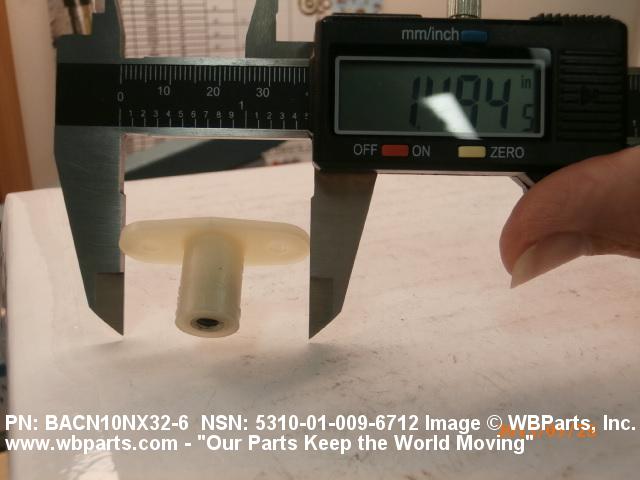

| NUT LENGTH | 1.470 INCHES MINIMUM AND 1.530 INCHES MAXIMUM |

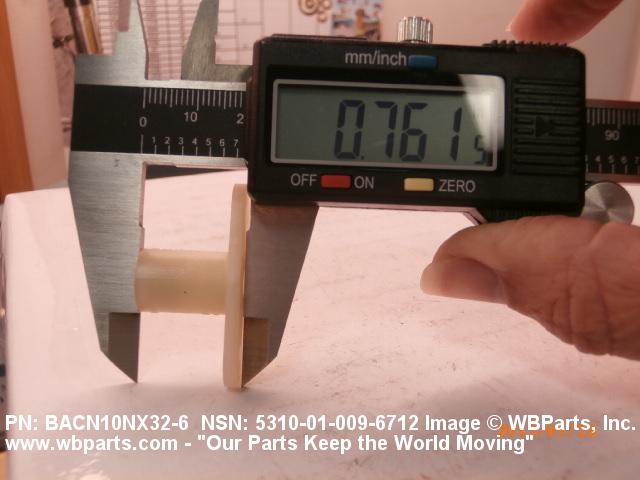

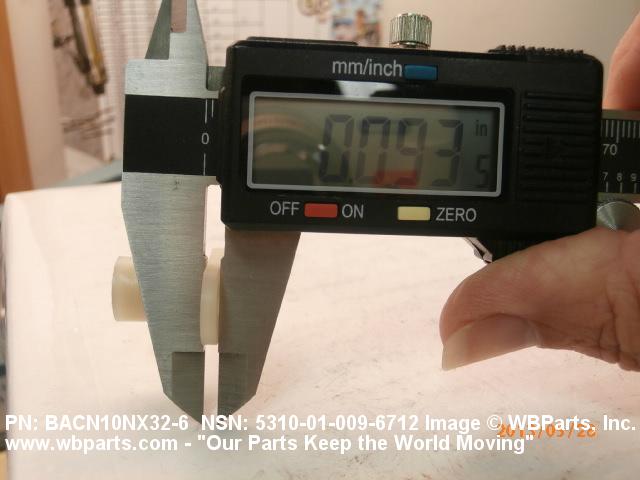

| NUT HEIGHT | 0.720 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| PLATE THICKNESS | 0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| PLATE WIDTH | 0.590 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH METALLIC INSERT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 81205-BACN10NX MANUFACTURERS STANDARD |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | BACN10NX32-6 |
