Product Details | BLIND RIVET PLAIN NUT
5310-01-017-6519 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: MS27130S37K, MS27130-S37K, S2528K80CFI, 5310-01-017-6519, 01-017-6519, 5310010176519, 010176519
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1976 | 01-017-6519 | 01873 ( NUT, PLAIN, BLIND RIVET ) |
Drawings & Photos | NSN 5310-01-017-6519
Demand History | NSN 5310-01-017-6519
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-017-6519
Related Products | NSN 5310-01-017-6519
5310-01-017-6520, 5310-01-017-6521, 5310-01-017-6522, 5310-01-017-6523, 5310-01-017-6525
Technical Data | NSN 5310-01-017-6519
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1110 OR STEEL COMP 1108 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.328 INCHES MINIMUM AND 0.332 INCHES MAXIMUM |
| NUT LENGTH | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| NUT GRIP RANGE | 0.020 TO 0.080 INCHES |

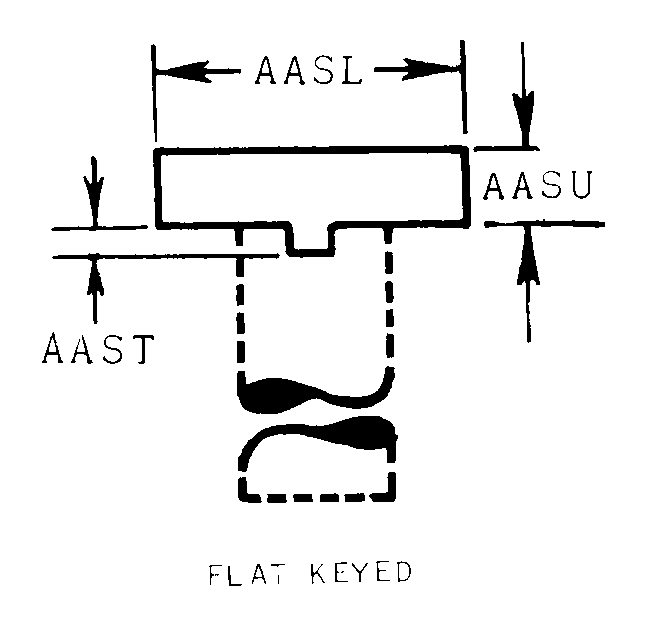

| HEAD STYLE | D18 FLAT KEYED |
| HEAD DIAMETER | 0.460 INCHES MINIMUM AND 0.490 INCHES MAXIMUM |
| KEY LENGTH | 0.093 INCHES NOMINAL |
| HEAD HEIGHT | 0.058 INCHES NOMINAL |
| SHANK END TYPE | OPEN |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27130-S37K |
