NSN 5310-01-023-6628 BACN10DW3F16, BACN10DW3F-16, WSI3F16
Product Details | PLATE SELF-LOCKING NUT
5310-01-023-6628 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10DW3F16, BACN10DW3F-16, WSI3F16, WSI-3F-16, 5310-01-023-6628, 01-023-6628, 5310010236628, 010236628
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUN 1976 | 01-023-6628 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-023-6628
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-023-6628
Technical Data | NSN 5310-01-023-6628
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 COMP 2014 T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TYPE 1 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A128 PLATE |
| NUT LENGTH | 3.040 INCHES MINIMUM AND 3.180 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.350 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| NUT HEIGHT | 2.250 INCHES MINIMUM AND 2.310 INCHES MAXIMUM |
| PLATE THICKNESS | 0.120 INCHES NOMINAL |
| PLATE WIDTH | 1.840 INCHES MINIMUM AND 1.950 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |

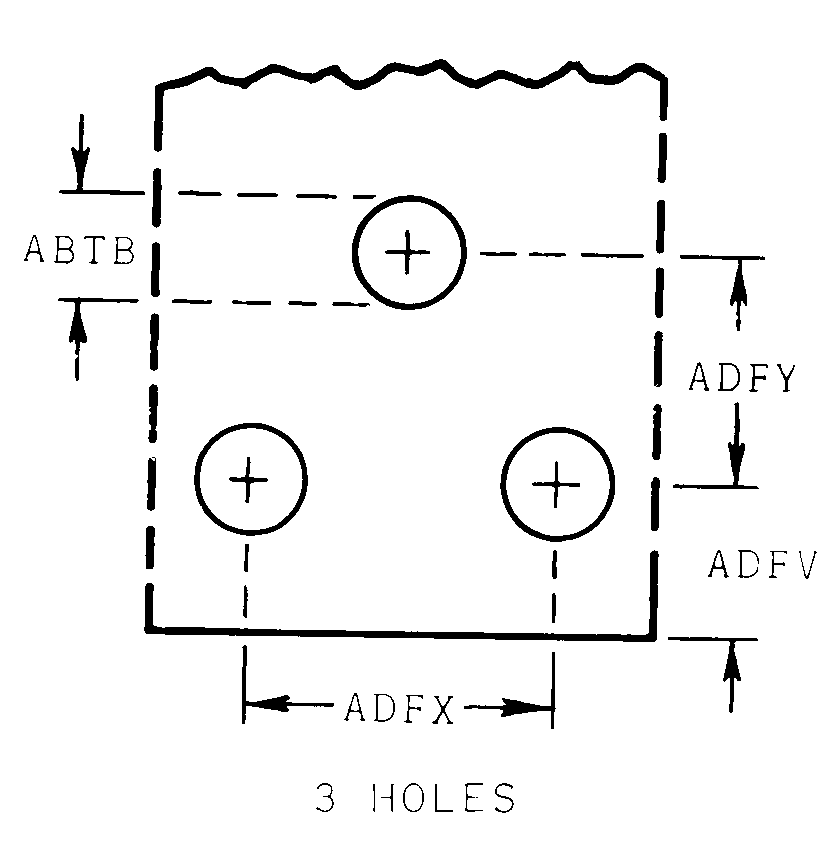

| MOUNTING HOLE ARRANGEMENT STYLE | F9 3 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.360 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.120 INCHES MINIMUM AND 1.150 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.730 INCHES MINIMUM AND 0.770 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-023-6628
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
