NSN 5310-01-024-4816 NS202184021, NS202184-02-1, ST3M720C3M1
Product Details | PLATE SELF-LOCKING NUT

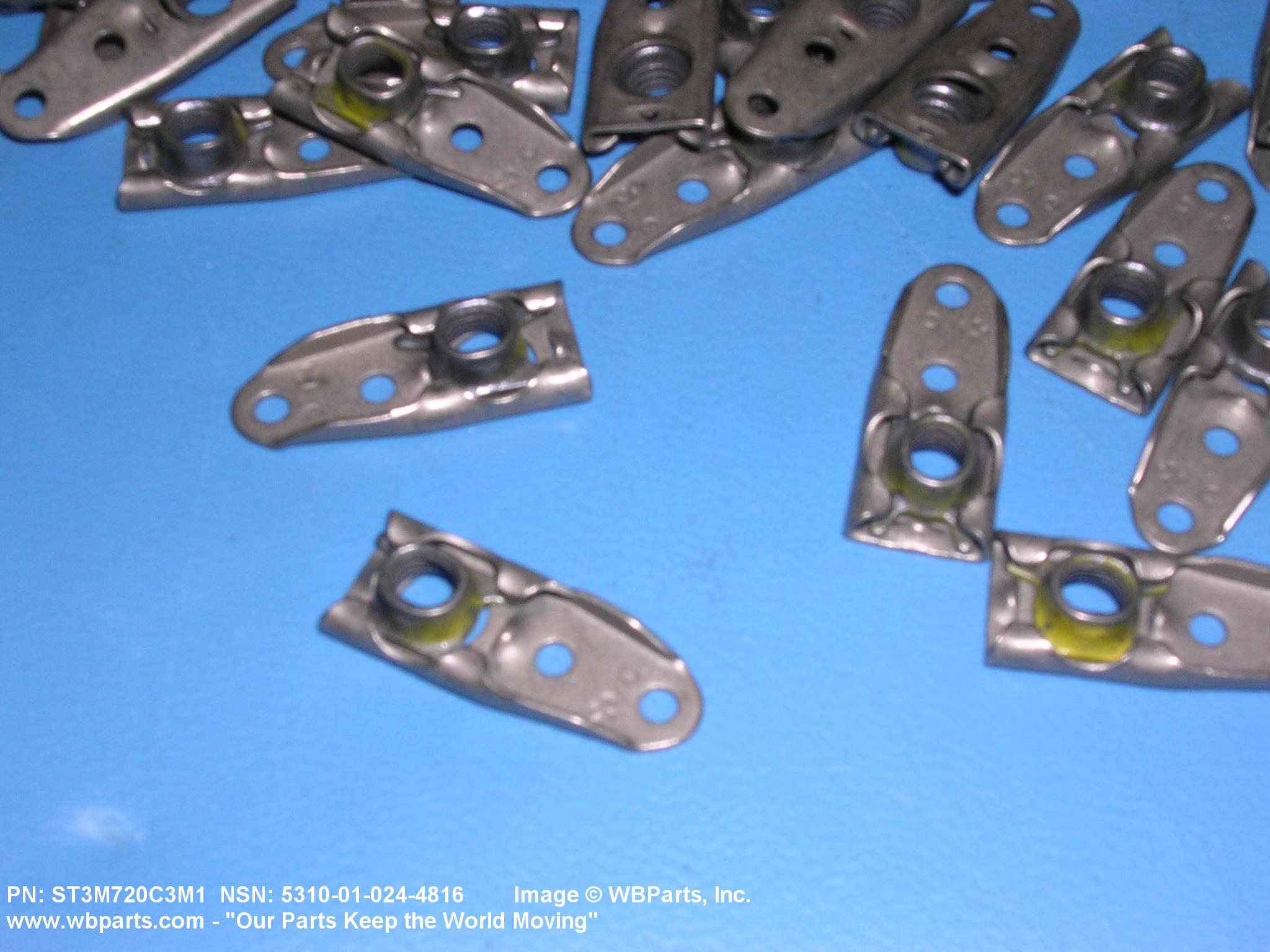

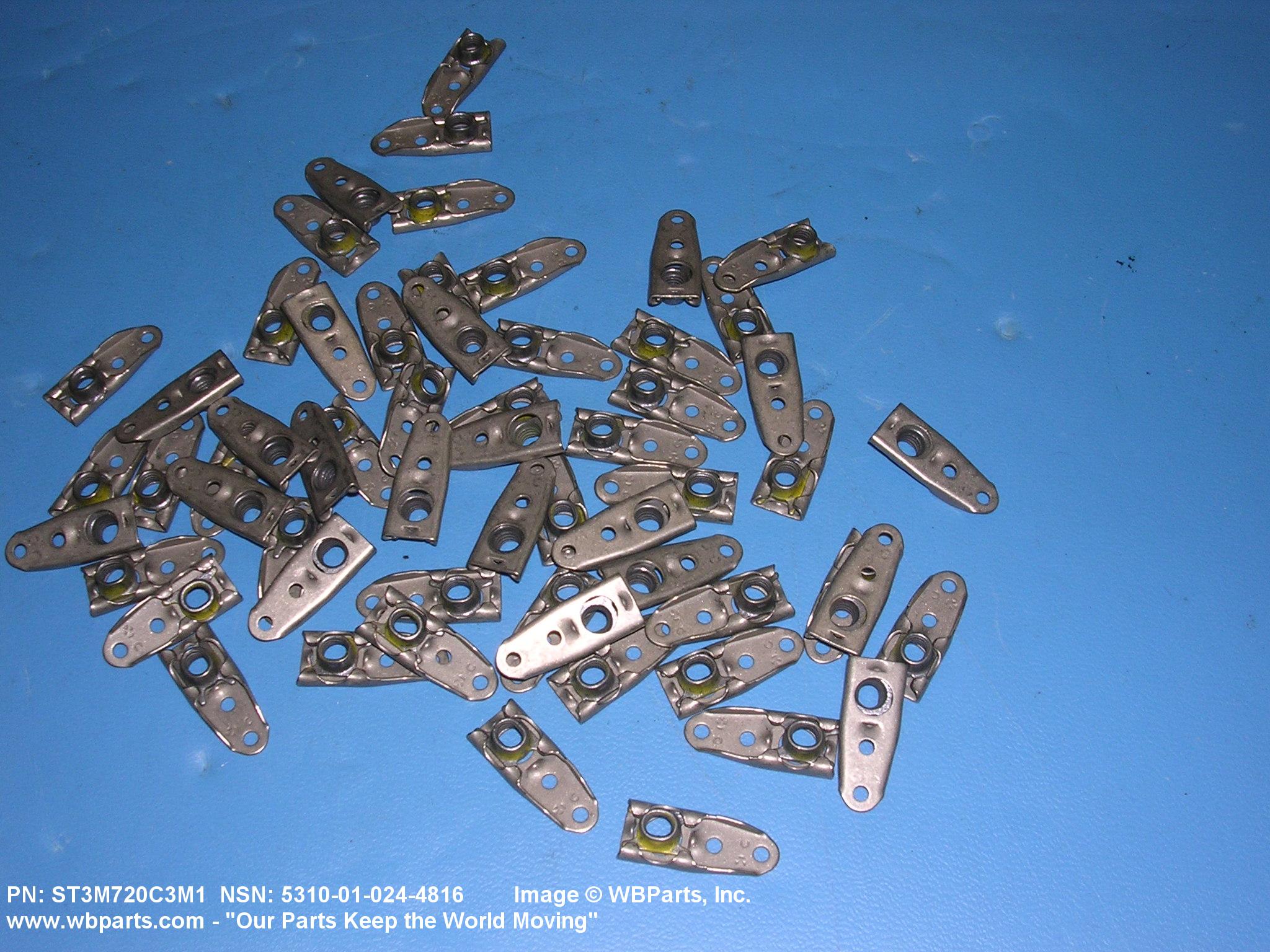

5310-01-024-4816 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS202184021, NS202184-02-1, ST3M720C3M1, BFN720C3M1, F1208913, F12089-1-3, F5034031, F50340-3-1, 10121990 , 5310-01-024-4816, 01-024-4816, 5310010244816, 010244816
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUL 1976 | 01-024-4816 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-024-4816
Demand History | NSN 5310-01-024-4816
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-024-4816 | 2026-03-72 | 100 | US |
| 5310-01-024-4816 | 2025-07-196 | 20 | Spain |
| ST3M720C3M1 | 2025-01-28 | 1 | United States |
| ST3M720C3M1 | 2025-01-28 | 2 | United States |
| 5310-01-024-4816 | 2025-01-22 | 320 | Singapore |
| BFN720C3M1 | 2024-10-305 | 771 | DIBBS |
| F50340-3-1 | 2024-10-305 | 771 | DIBBS |
| NS202184-02-1 | 2024-10-305 | 771 | DIBBS |
| ST3M720C3M1 | 2024-10-276 | 100 | United States |
| BFN720C3M1 | 2024-09-267 | 1270 | DIBBS |
| F50340-3-1 | 2024-09-267 | 1270 | DIBBS |
| NS202184-02-1 | 2024-09-267 | 1270 | DIBBS |
| 5310-01-024-4816 | 2024-08-218 | 100 | Saudi Arabia |
| ST3M720C3M1 | 2024-07-194 | 20 | VI |
| ST3M720C3M1 | 2024-05-142 | 52 | United States |
| ST3M720C3M1 | 2024-05-128 | 2 | United States |
| ST3M720C3M1 | 2024-04-101 | 291 | United States |
| ST3M720C3M1 | 2024-03-71 | 125 | United States |
| ST3M720C3M1 | 2024-01-31 | 44 | United States |
| ST3M720C3M1 | 2021-10-298 | 48 | United States |
| ST3M720C3M1 | 2020-06-174 | 30 | US |
| ST3M720C3M1 | 2020-06-174 | 30 | US |
| ST3M720C3M1 | 2020-06-174 | 30 | US |
| 5310-01-024-4816 | 2020-05-122 | 1 | DIBBS-RFPs |
| BFN720C3M1 | 2019-08-216 | 2038 | DIBBS |
| F50340-3-1 | 2019-08-216 | 2038 | DIBBS |
| NS202184-02-1 | 2019-08-216 | 2038 | DIBBS |
| BFN720C3M1 | 2019-04-106 | 1785 | DIBBS |
| F50340-3-1 | 2019-04-106 | 1785 | DIBBS |
| NS202184-02-1 | 2019-04-106 | 1785 | DIBBS |
| 5310-01-024-4816 | 2018-01-24 | 567 | DIBBS |
| ST3M720C3M1 | 2017-11-317 | 16 | United Kingdom |
| 5310-01-024-4816 | 2017-08-233 | 1843 | DIBBS |
| ST3M720C3M1 | 2017-04-94 | 1 | United States |
| ST3M720C3M1 | 2017-01-24 | 40 | United States |
| ST3M720C3M1 | 2017-01-23 | 6 | United States |
| 5310-01-024-4816 | 2016-12-340 | 1005 | DIBBS |
| 5310-01-024-4816 | 2016-05-138 | 450 | DIBBS |
| 5310-01-024-4816 | 2013-09-269 | 20 | US |
| ST3M720C3M1 | 2013-03-73 | 24 | US |
| ST3M720C3M1 | 2012-04-96 | 15 | US |
| ST3M720C3M1 | 2011-07-182 | 24 | US |
| 5310-01-024-4816 | 2010-12-335 | 100 | United States |
| 5310-01-024-4816 | 2010-10-285 | 20 | US |
| ST3M720C3M1 | 2010-09-253 | 10 | United States |
| ST3M720C3M1 | 2009-11-314 | 2500 | US |
| F5034031 | 2009-09-265 | 1 | US |
| 5310-01-024-4816 | 2009-09-244 | 20 | United States |
| 5310-01-024-4816 | 2009-09-244 | 20 | United States |
| ST3M720C3M1 | 2008-08-239 | 30 | United States |
| ST3M720C3M1 | 2008-06-172 | 60 | United States |
| ST3M720C3M1 | 2008-01-18 | 280 | United States |
| ST3M720C3M1 | 2007-04-108 | 30 | US |
Cross Reference | NSN 5310-01-024-4816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BFN720C3M1 | 27238 | BRISTOL INDUSTRIES |
| F12089-1-3 | 72962 | HARVARD INDUSTRIES INC |
| F12089-1-3 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| F50340-3-1 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| NS202184-02-1 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M720C3M1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-024-4816
Related Products | NSN 5310-01-024-4816
Technical Data | NSN 5310-01-024-4816
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A124 PLATE |
| NUT LENGTH | 1.051 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.015 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| PLATE WIDTH | 0.422 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F44 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | COLOR YELLOW |
| SPECIFICATION/STANDARD DATA | 76301-ST3M720 MANUFACTURERS STANDARD |
