NSN 5310-01-056-3542 BACN10TS320, BACN10TS3-20, 01-056-3542
Product Details | PLATE SELF-LOCKING NUT
5310-01-056-3542 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10TS320, BACN10TS3-20, 5310-01-056-3542, 01-056-3542, 5310010563542, 010563542
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-056-3542 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

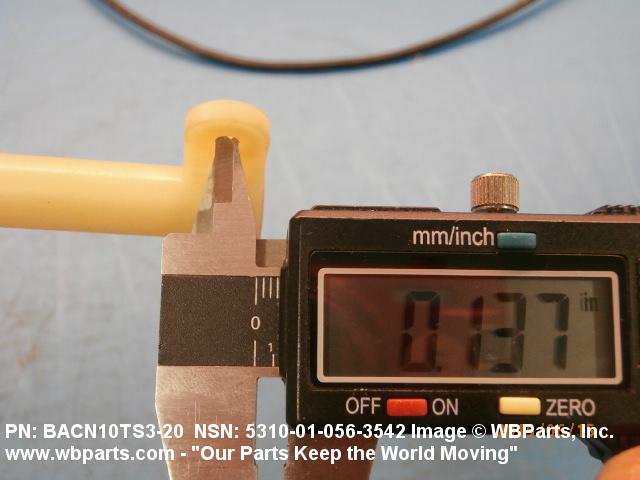

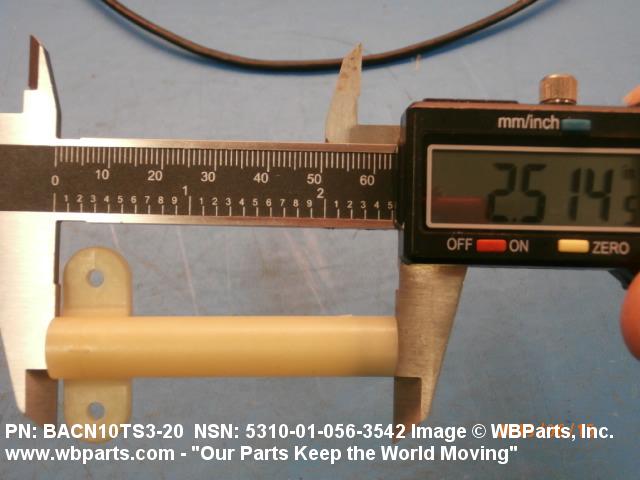

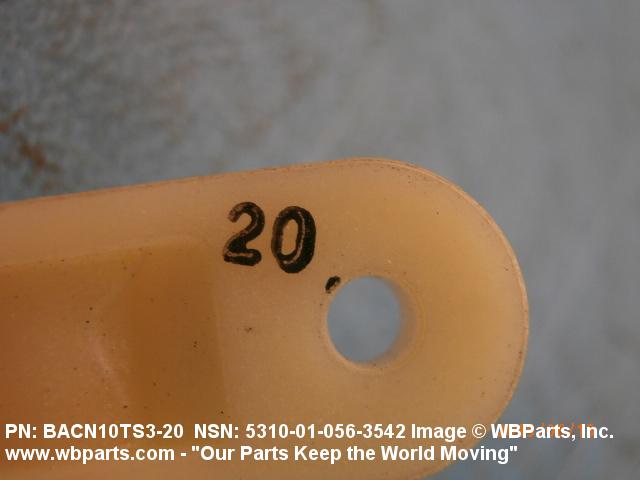

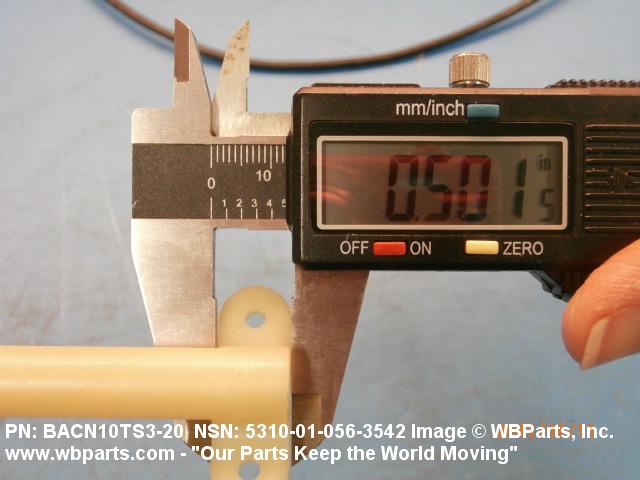

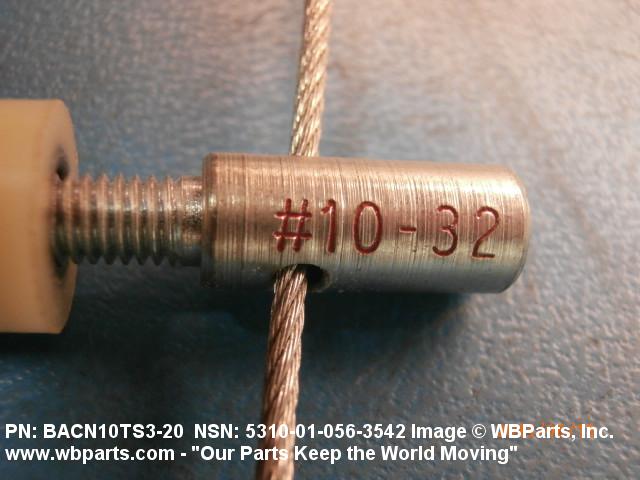

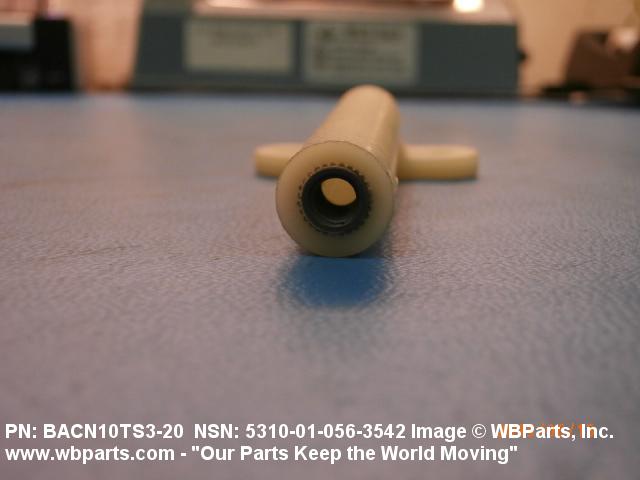

Drawings & Photos | NSN 5310-01-056-3542
Demand History | NSN 5310-01-056-3542
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-056-3542 | 2018-01-22 | 25 | US |
| BACN10TS320 | 2015-05-135 | 21 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-056-3542
Technical Data | NSN 5310-01-056-3542
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC OVERALL EXCEPT THREADS STEEL THREADS |
| MATERIAL DOCUMENT AND CLASSIFICATION | L-P-395 6/6 TYPE 1 CLASS 1 OR 2 FED SPEC SINGLE MATERIAL RESPONSE OVERALL EXCEPT THREADS |
| SURFACE TREATMENT | CADMIUM AND CHROMATE THREADS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES THREADS |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A129 PLATE |
| NUT LENGTH | 2.410 INCHES MINIMUM AND 2.590 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.280 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| NUT HEIGHT | ANY ACCEPTABLE |
| PLATE THICKNESS | 0.110 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| PLATE WIDTH | 1.440 INCHES MINIMUM AND 1.590 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F57 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.133 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.000 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | BACN10TS3-20 |
Restrictions/Controls & Freight Information | NSN 5310-01-056-3542
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
