NSN 5310-01-060-5991 20066231, 2006623-1, 20066231D
Product Details | SLEEVE NUT
5310-01-060-5991 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.
Part Alternates: 20066231, 2006623-1, 20066231D, 2006623-1D, 5310-01-060-5991, 01-060-5991, 5310010605991, 010605991
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAY 1978 | 01-060-5991 | 29735 ( NUT, SLEEVE ) |

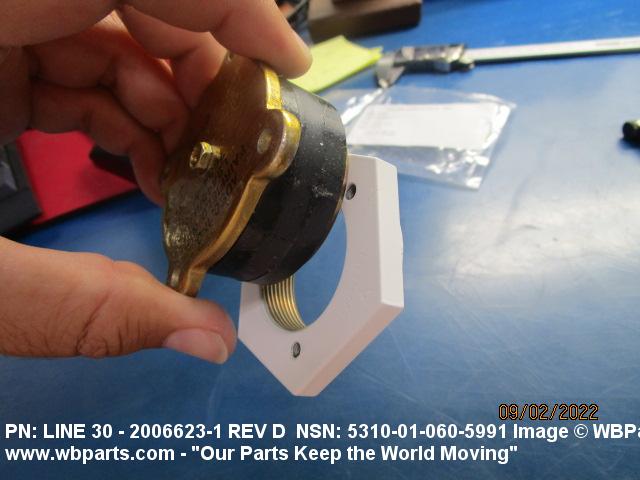

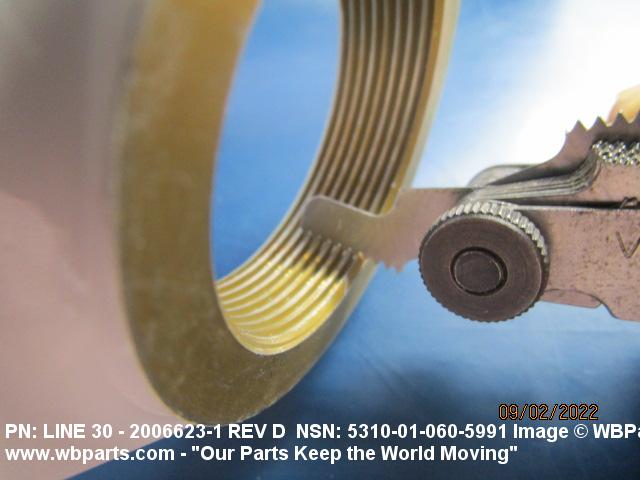

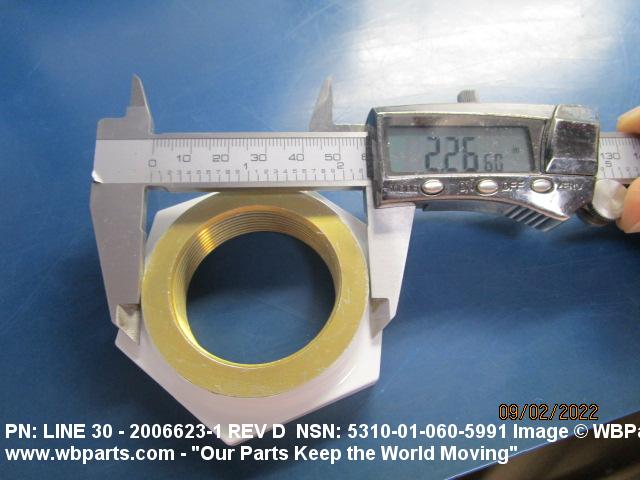

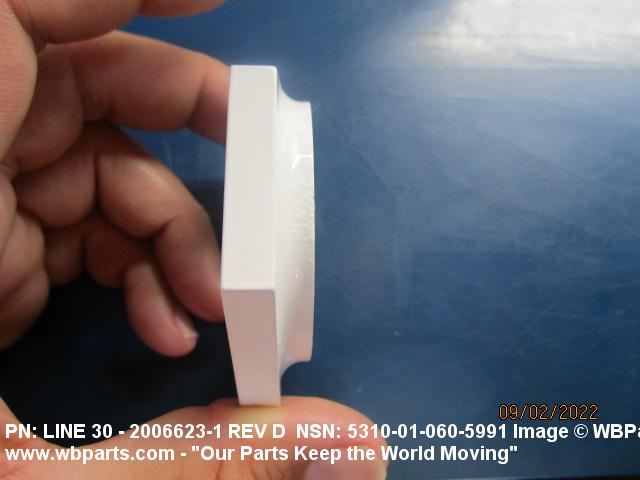

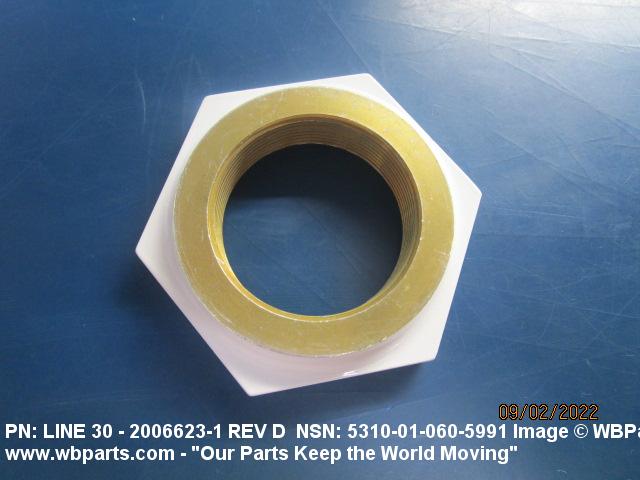

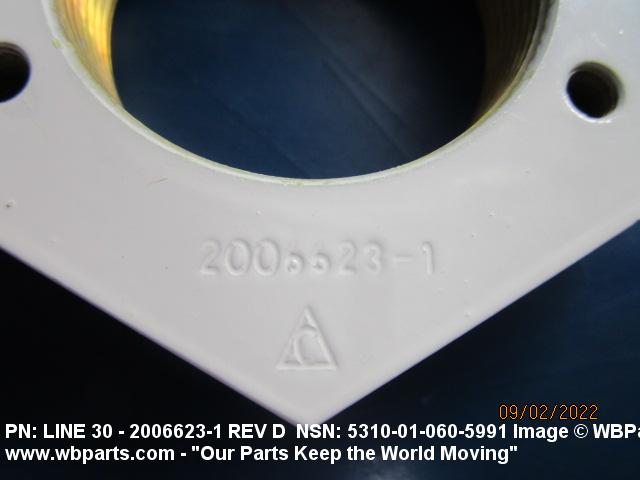

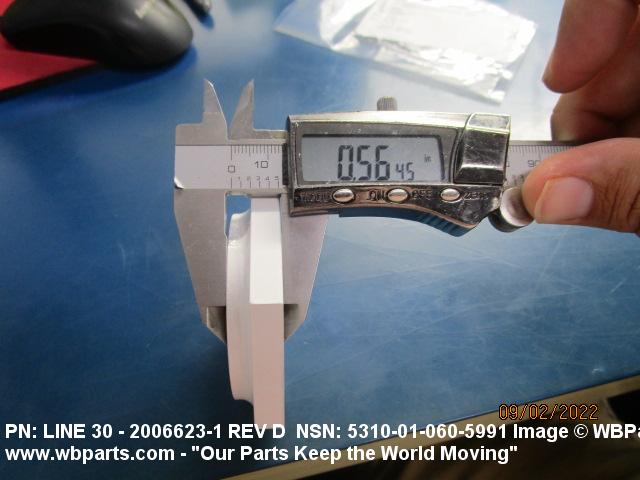

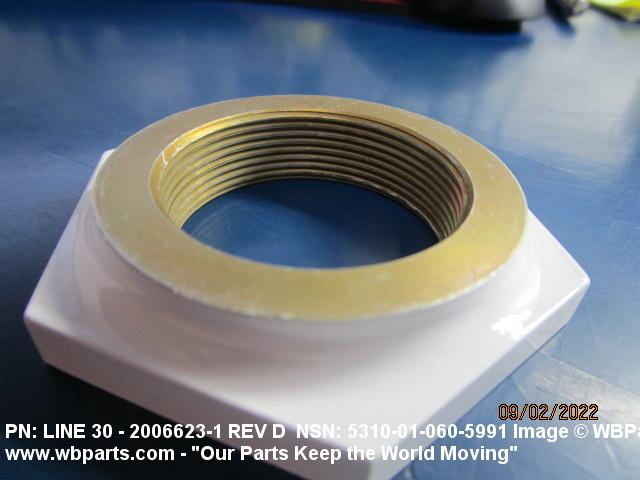

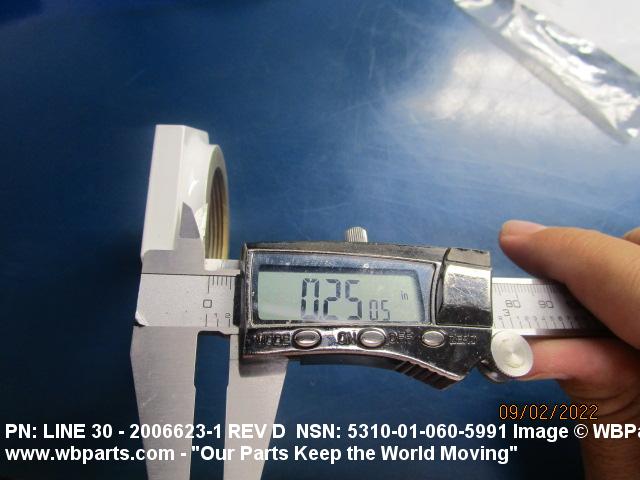

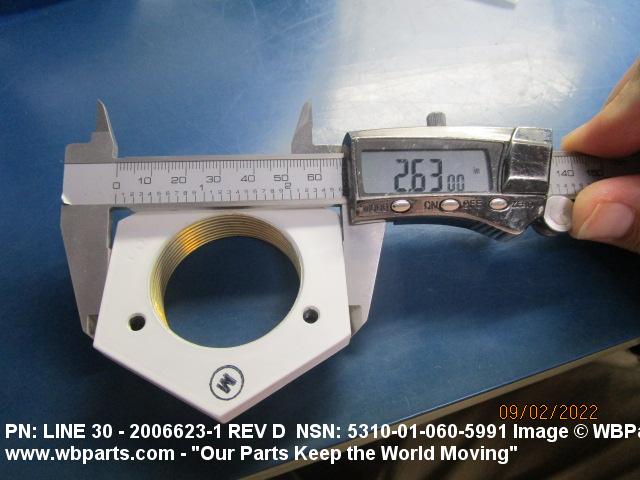

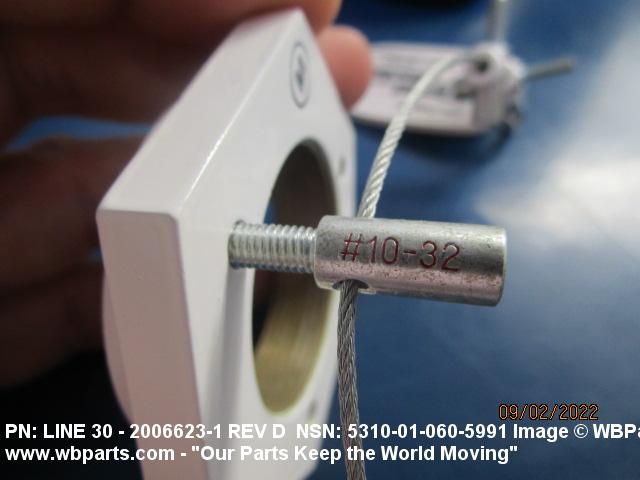

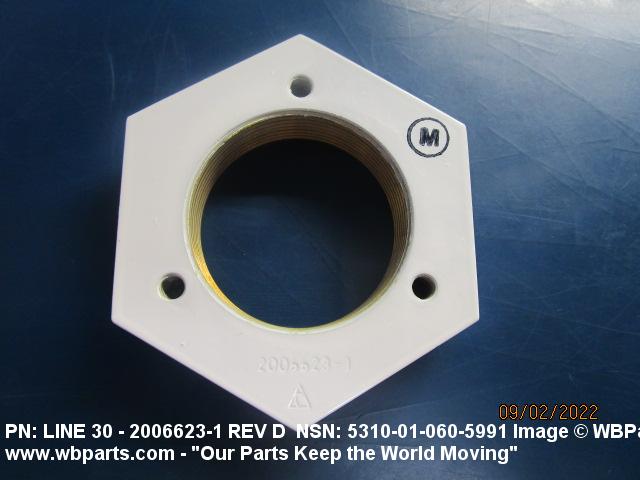

Drawings & Photos | NSN 5310-01-060-5991
Demand History | NSN 5310-01-060-5991
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20066231 | 2025-09-252 | 5 | US |
| 20066231 | 2023-08-219 | 1 | US |
| 20066231 | 2023-08-216 | 1 | AE |
| 20066231 | 2023-02-58 | 1 | US |
| 20066231 | 2023-02-58 | 1 | US |
| 20066231 | 2023-02-33 | 1 | United States |
| 20066231 | 2022-08-215 | 1 | United States |
| 5310-01-060-5991 | 2018-10-284 | 490 | DIBBS |
| 5310-01-060-5991 | 2017-10-297 | 134 | DIBBS |
| 5310-01-060-5991 | 2017-10-289 | 259 | DIBBS |
| 5310-01-060-5991 | 2017-02-32 | 242 | DIBBS |
| 5310-01-060-5991 | 2016-06-160 | 212 | DIBBS |
| 5310-01-060-5991 | 2015-07-200 | 202 | DIBBS |
| 20066231 | 2014-05-136 | 2 | US |
| 5310-01-060-5991 | 2013-10-287 | 220 | DIBBS |
| 5310-01-060-5991 | 2013-06-172 | 210 | DIBBS |
| 5310-01-060-5991 | 2012-01-13 | 28 | DIBBS |
| 5310-01-060-5991 | 2011-09-244 | 51 | DIBBS |
| 5310-01-060-5991 | 2011-01-27 | 83 | DIBBS |
| 5310-01-060-5991 | 2011-01-12 | 55 | DIBBS |
| 5310-01-060-5991 | 2010-04-91 | 1912 | DIBBS |
| 5310-01-060-5991 | 2009-04-105 | 1912 | DIBBS |
| 5310-01-060-5991 | 2009-03-72 | 1083 | DIBBS |
| 5310-01-060-5991 | 2009-03-69 | 1073 | DIBBS |
| 5310-01-060-5991 | 2008-12-344 | 213 | DIBBS |
| 5310-01-060-5991 | 2007-12-340 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-060-5991
Technical Data | NSN 5310-01-060-5991
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJ |
| NOMINAL THREAD SIZE | 1.688 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626,COND E4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A33A SLEEVE |
| NUT DIAMETER | 2.250 INCHES NOMINAL |
| NUT LENGTH | 0.250 INCHES NOMINAL |
| FLANGE WIDTH ACROSS FLATS | 2.625 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | H8 CONFIGURATION H |
| HOLE TYPE AND QUANTITY | 1 TAPPED |
| HOLE NOMINAL THREAD DIAMETER | 0.155 INCHES |
| HOLE THREAD QUANTITY PER INCH | 32 |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL FLANGE |
| CROSS-SECTIONAL SHAPE | ROUND NUT ROUND FLANGE |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 17576 |
| DESIGN CONTROL REFERENCE | 2006623-1 |
Restrictions/Controls & Freight Information | NSN 5310-01-060-5991
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-060-5991
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
