NSN 5310-01-074-3856 NS20212048, NS20212-048, NS2023212048
Product Details | PLATE SELF-LOCKING NUT
5310-01-074-3856 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS20212048, NS20212-048, NS2023212048, NS2023212-048 , ST3M725C4M, BFN725C4M, F121984, F12198-4, F504054, F50405-4, 10122083, 5310-01-074-3856, 01-074-3856, 5310010743856, 010743856
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAR 1979 | 01-074-3856 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

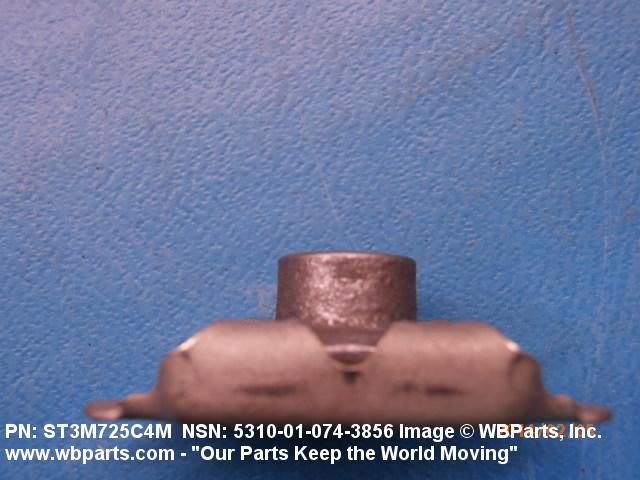

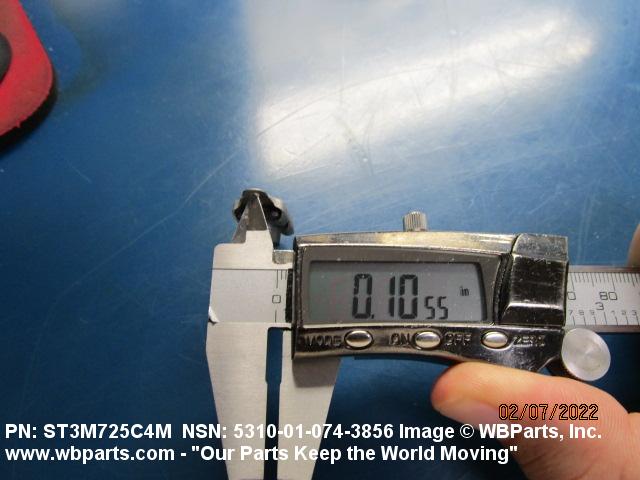

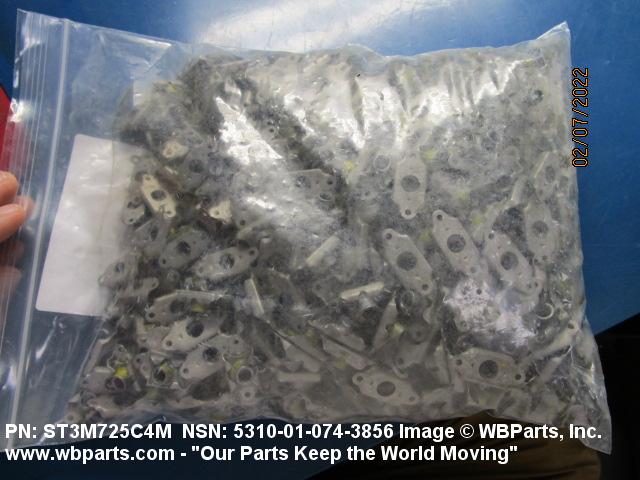

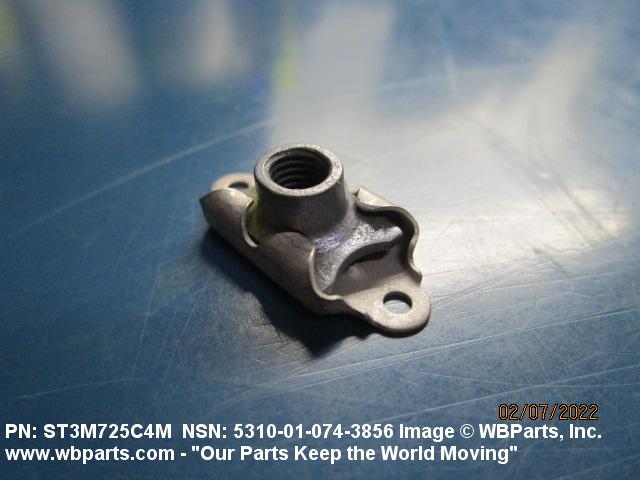

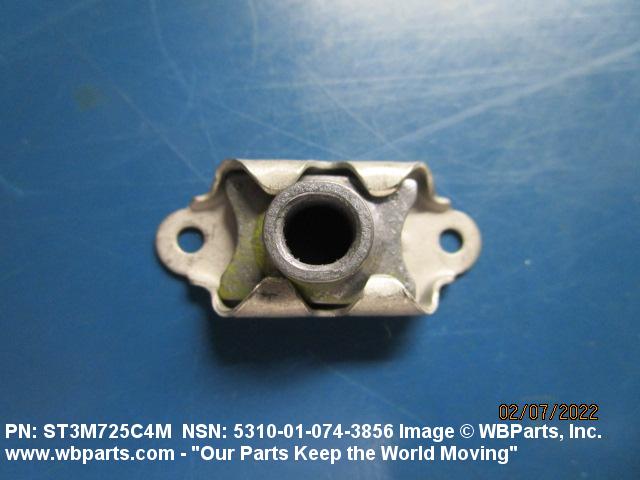

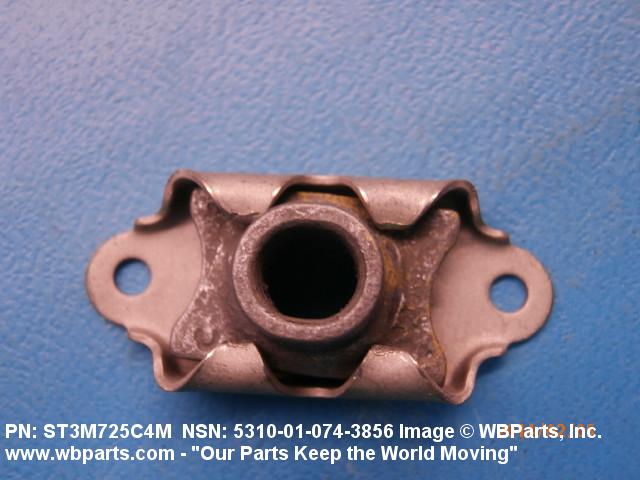

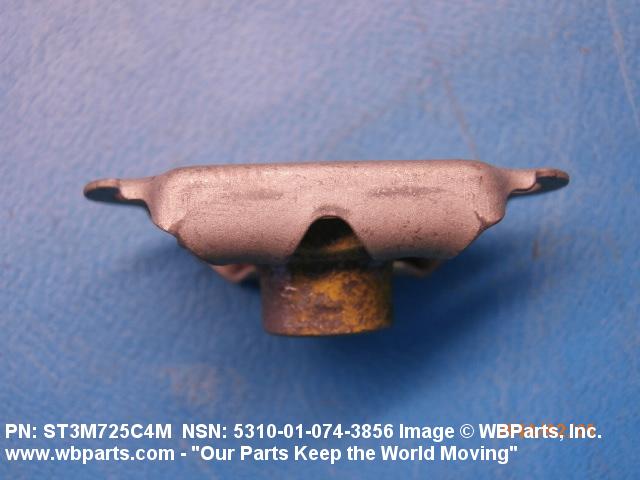

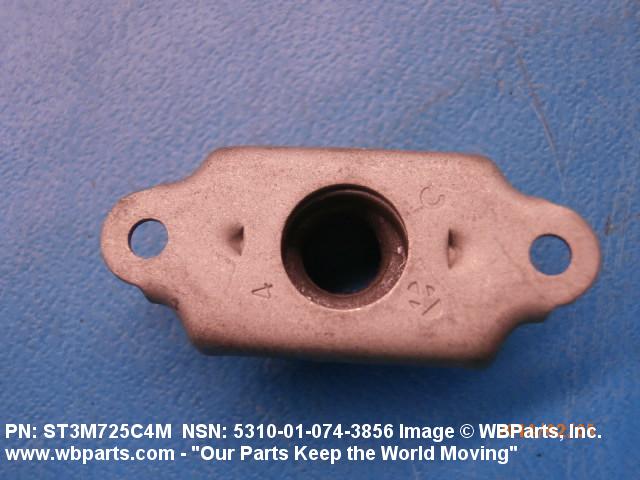

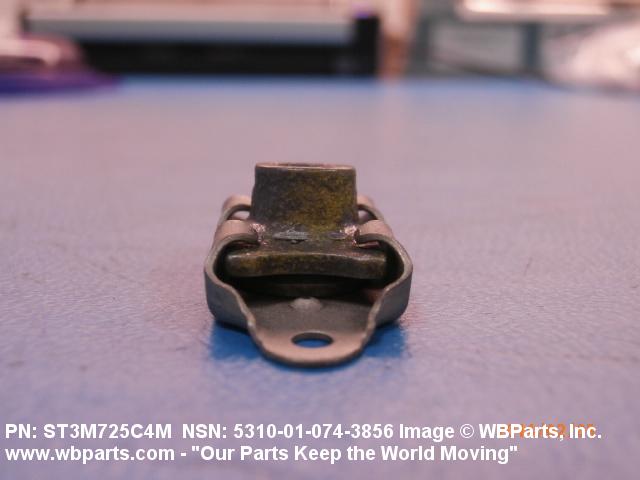

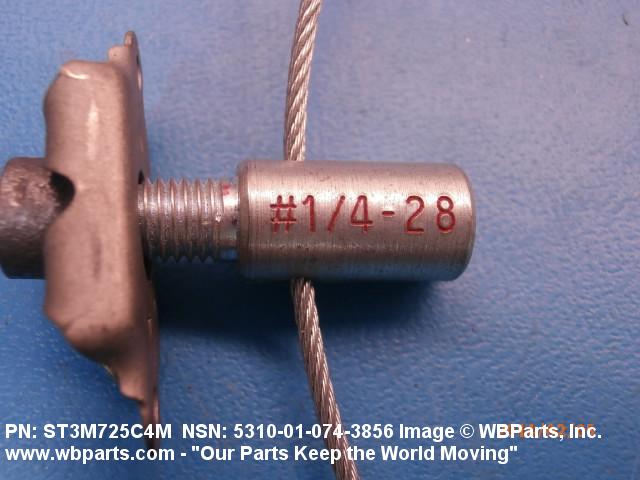

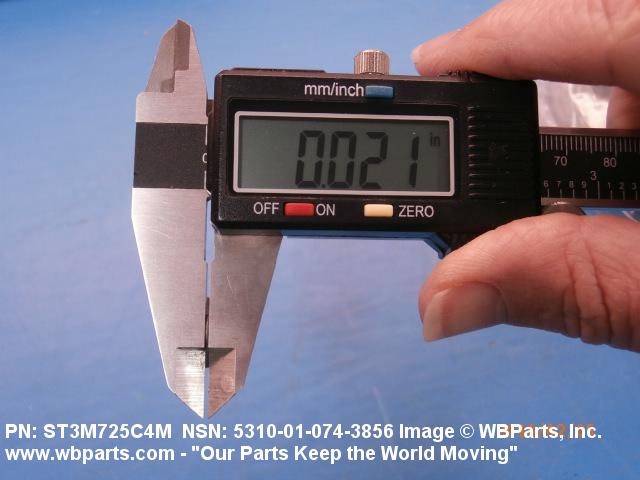

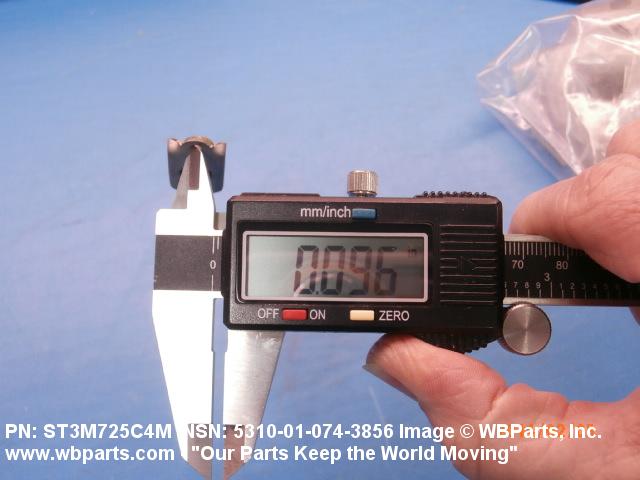

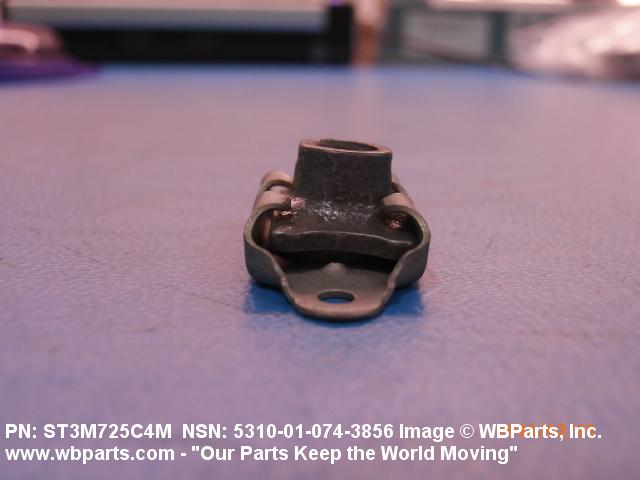

Drawings & Photos | NSN 5310-01-074-3856
Demand History | NSN 5310-01-074-3856
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST3M725C4M | 2025-09-259 | 30 | UM |
| 5310-01-074-3856 | 2024-03-66 | 200 | US |
| 5310-01-074-3856 | 2022-02-33 | 1007 | United States |
| BFN725C4M | 2021-09-272 | 1007 | DIBBS |
| F12198-4 | 2021-09-272 | 1007 | DIBBS |
| F50405-4 | 2021-09-272 | 1007 | DIBBS |
| NS2023212-048 | 2021-09-272 | 1007 | DIBBS |
| BFN725C4M | 2021-08-220 | 17 | DIBBS |
| F12198-4 | 2021-08-220 | 17 | DIBBS |
| F50405-4 | 2021-08-220 | 17 | DIBBS |
| NS2023212-048 | 2021-08-220 | 17 | DIBBS |
| BFN725C4M | 2021-06-173 | 27 | DIBBS |
| F12198-4 | 2021-06-173 | 27 | DIBBS |
| F50405-4 | 2021-06-173 | 27 | DIBBS |
| NS2023212-048 | 2021-06-173 | 27 | DIBBS |
| BFN725C4M | 2021-05-143 | 361 | DIBBS |
| F12198-4 | 2021-05-143 | 361 | DIBBS |
| F50405-4 | 2021-05-143 | 361 | DIBBS |
| NS2023212-048 | 2021-05-143 | 361 | DIBBS |
| BFN725C4M | 2019-12-350 | 194 | DIBBS |
| F12198-4 | 2019-12-350 | 194 | DIBBS |
| F50405-4 | 2019-12-350 | 194 | DIBBS |
| NS2023212-048 | 2019-12-350 | 194 | DIBBS |
| BFN725C4M | 2019-12-342 | 194 | DIBBS |
| F12198-4 | 2019-12-342 | 194 | DIBBS |
| F50405-4 | 2019-12-342 | 194 | DIBBS |
| NS2023212-048 | 2019-12-342 | 194 | DIBBS |
| 5310-01-074-3856 | 2019-11-310 | 157 | United States |
| BFN725C4M | 2019-07-212 | 110 | DIBBS |
| F12198-4 | 2019-07-212 | 110 | DIBBS |
| F50405-4 | 2019-07-212 | 110 | DIBBS |
| NS2023212-048 | 2019-07-212 | 110 | DIBBS |
| BFN725C4M | 2019-03-60 | 121 | DIBBS |
| F12198-4 | 2019-03-60 | 121 | DIBBS |
| F50405-4 | 2019-03-60 | 121 | DIBBS |
| NS2023212-048 | 2019-03-60 | 121 | DIBBS |
| BFN725C4M | 2019-02-52 | 121 | DIBBS |
| F12198-4 | 2019-02-52 | 121 | DIBBS |
| F50405-4 | 2019-02-52 | 121 | DIBBS |
| NS2023212-048 | 2019-02-52 | 121 | DIBBS |
| ST3M725C4M | 2014-01-28 | 208 | Australia |
| 5310-01-074-3856 | 2012-12-354 | 278 | DIBBS |
| 5310-01-074-3856 | 2011-08-213 | 162 | DIBBS |
| 5310-01-074-3856 | 2010-12-348 | 346 | DIBBS |
| 5310-01-074-3856 | 2010-05-138 | 24 | United States |
| 5310-01-074-3856 | 2010-04-120 | 50 | United States |
| 5310-01-074-3856 | 2009-08-232 | 317 | DIBBS |
Cross Reference | NSN 5310-01-074-3856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BFN725C4M | 27238 | BRISTOL INDUSTRIES |
| F12198-4 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F12198-4 | 72962 | HARVARD INDUSTRIES INC |
| F50405-4 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| NS20212-048 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NS2023212-048 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M725C4M | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-074-3856
Related Products | NSN 5310-01-074-3856
Technical Data | NSN 5310-01-074-3856
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

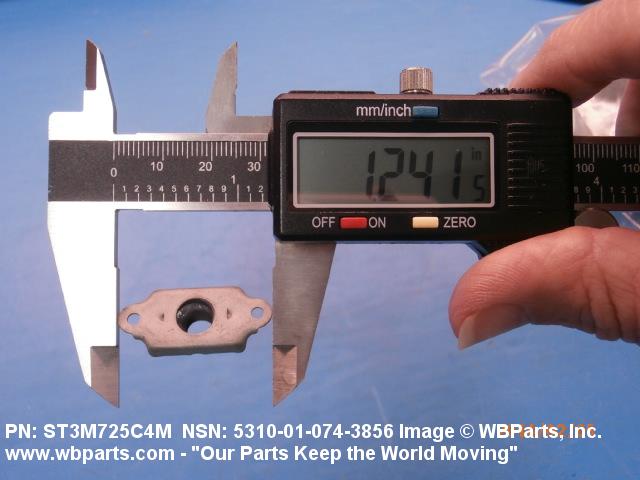

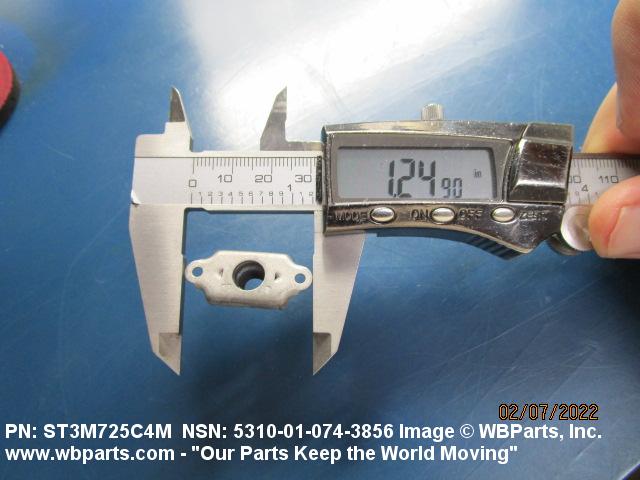

| NUT LENGTH | 1.252 INCHES MAXIMUM |

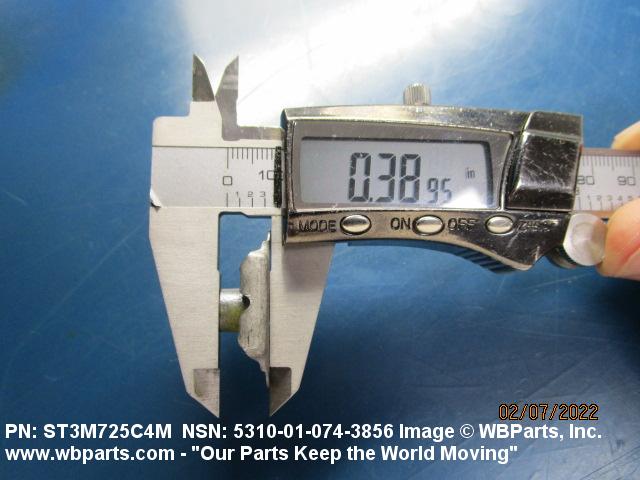

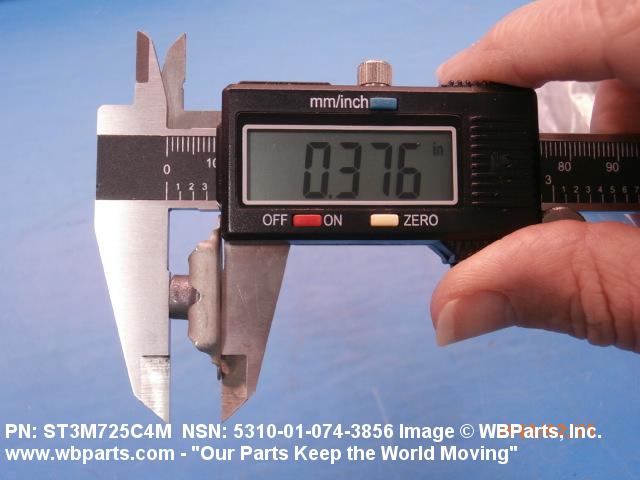

| NUT HEIGHT | 0.406 INCHES MAXIMUM |
| PLATE THICKNESS | 0.020 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |

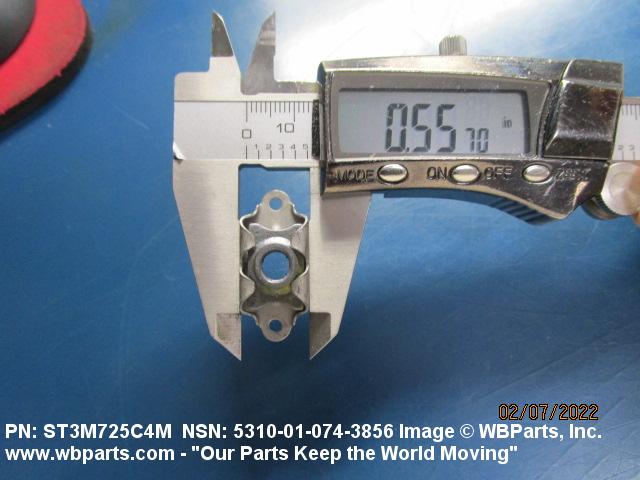

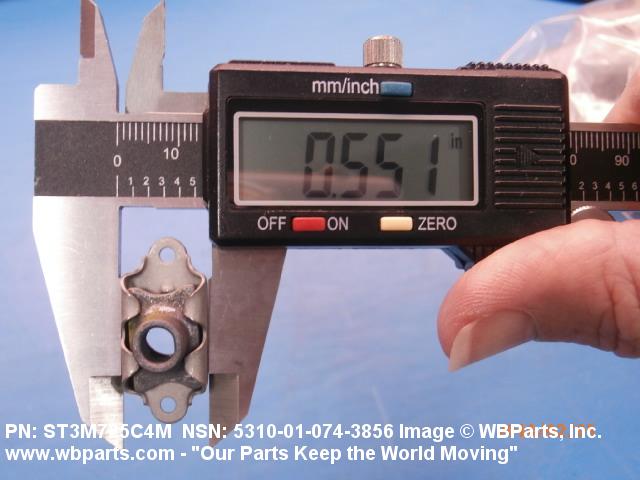

| PLATE WIDTH | 0.562 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |

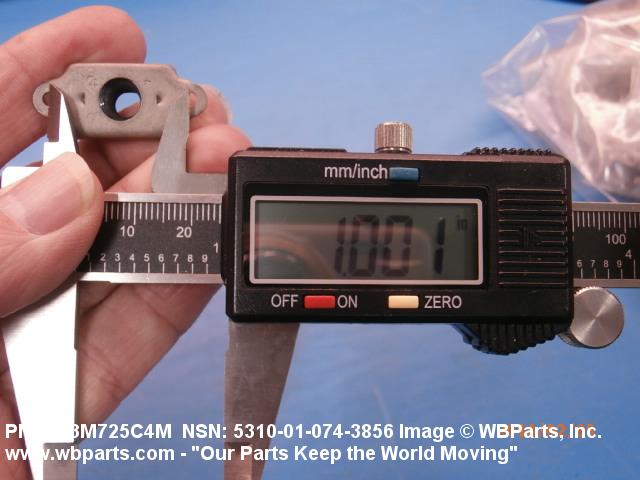

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | COLOR YELLOW |
| SPECIFICATION/STANDARD DATA | 76301-ST3M725 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-074-3856
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-074-3856
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
