NSN 5310-01-081-6150 H111F363130, H111F363-130, 8033358
Product Details | BLIND RIVET PLAIN NUT
5310-01-081-6150 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: H111F363130, H111F363-130, 8033358, 803335-8, 12702094, 5310-01-081-6150, 01-081-6150, 5310010816150, 010816150
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 1979 | 01-081-6150 | 01873 ( NUT, PLAIN, BLIND RIVET ) |

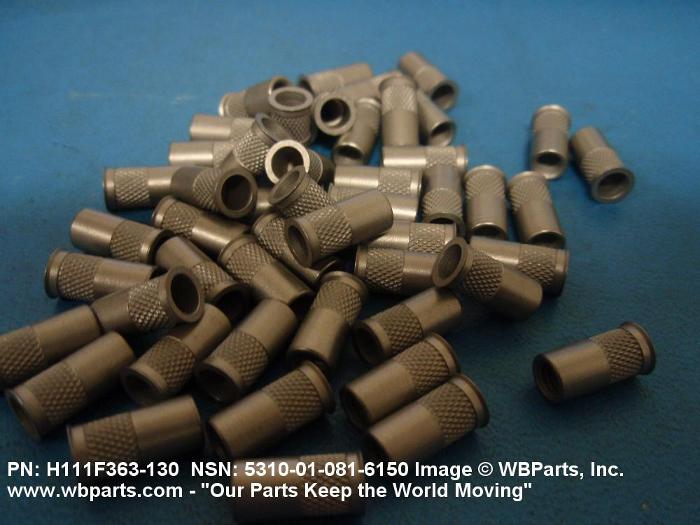

Drawings & Photos | NSN 5310-01-081-6150
Demand History | NSN 5310-01-081-6150
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-081-6150 | 2012-08-227 | 500 | United States |
| H111F363130 | 2011-04-103 | 50 | United States |
| 5310-01-081-6150 | 2011-04-102 | 50 | United States |
| 5310-01-081-6150 | 2011-04-102 | 100 | United States |
| 5310-01-081-6150 | 2011-04-102 | 175 | United States |
| H111F363130 | 2006-08-237 | 108 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-081-6150
Technical Data | NSN 5310-01-081-6150
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5640 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.255 INCHES MAXIMUM |
| NUT LENGTH | 0.540 INCHES NOMINAL |
| NUT GRIP RANGE | 0.081 TO 0.130 INCHES |
| HEAD STYLE | D13 FLAT |
| HEAD DIAMETER | 0.300 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| HEAD HEIGHT | 0.020 INCHES NOMINAL |
| SHANK END TYPE | OPEN |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | KNURLED SECTION ON NUT DIA |
| MANUFACTURERS CODE | 29372 |
| DESIGN CONTROL REFERENCE | H111F363-130 |
Restrictions/Controls & Freight Information | NSN 5310-01-081-6150
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
