NSN 5310-01-106-0354 BACN10RB3, F52165002, F52-1650-02
Product Details | BLIND RIVET SELF-LOCKING NUT
5310-01-106-0354 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10RB3, F52165002, F52-1650-02, 717890-119, 5310-01-106-0354, 01-106-0354, 5310011060354, 717890119, 011060354
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JAN 1981 | 01-106-0354 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |

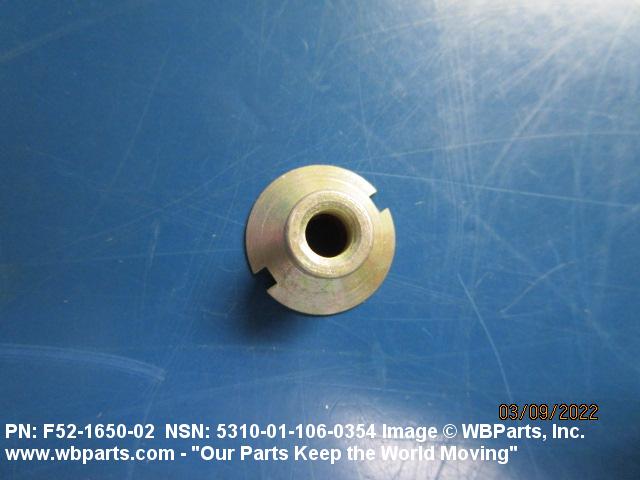

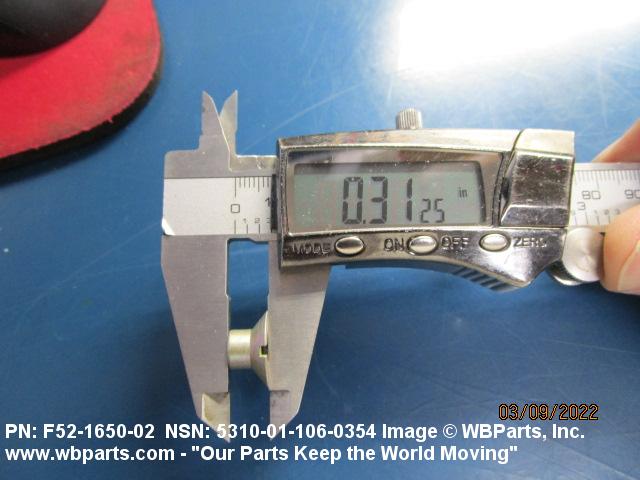

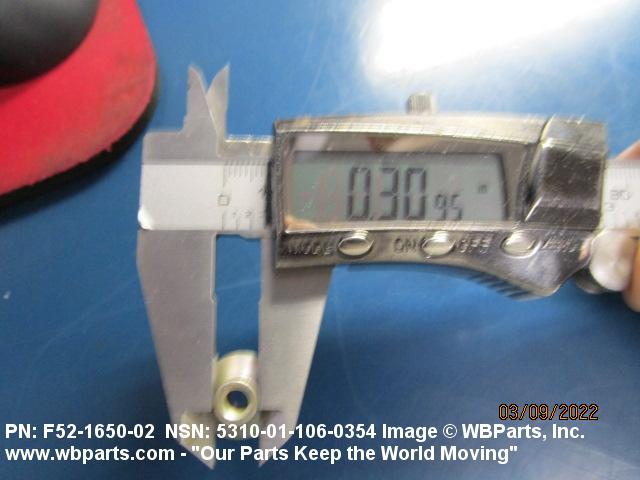

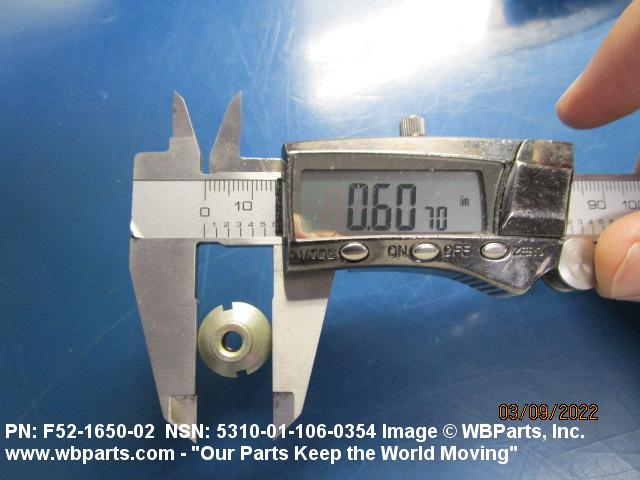

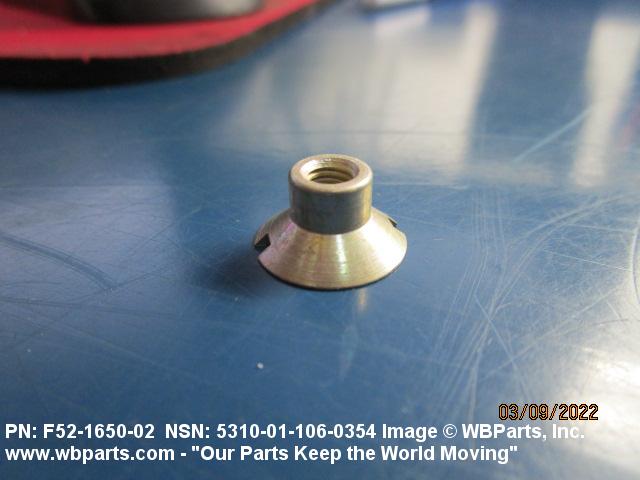

Drawings & Photos | NSN 5310-01-106-0354
Demand History | NSN 5310-01-106-0354
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10RB3 | 2025-11-307 | 10 | us |
| 5310-01-106-0354 | 2024-12-345 | 1000 | US |
| 5310-01-106-0354 | 2024-12-345 | 1000 | US |
| 5310-01-106-0354 | 2023-12-341 | 250 | US |
| 5310-01-106-0354 | 2023-08-237 | 100 | United States |
| 5310-01-106-0354 | 2022-02-45 | 100 | United States |
| 5310-01-106-0354 | 2020-11-327 | 767 | DIBBS |
| 5310-01-106-0354 | 2014-05-139 | 4350 | United States |
| 5310-01-106-0354 | 2012-12-339 | 1000 | United States |
| 5310-01-106-0354 | 2011-12-340 | 600 | US |
| 5310-01-106-0354 | 2008-10-298 | 2930 | DIBBS |
Cross Reference | NSN 5310-01-106-0354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 717890-119 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| BACN10RB3 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BACN10RB3 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10RB3 | 82918 | THE BOEING COMPANY DBA BOEING |
| F52-1650-02 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52-1650-02 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-106-0354
Related Products | NSN 5310-01-106-0354
Technical Data | NSN 5310-01-106-0354
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 1137 NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY 1, CL 3 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.307 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| NUT LENGTH | 0.307 INCHES MINIMUM AND 0.319 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| HEAD STYLE | D11 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.626 INCHES NOMINAL |
| HEAD COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK END TYPE | OPEN |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
| SPECIFICATION/STANDARD DATA | 81205-BACN10RB PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-106-0354
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
