NSN 5310-01-110-9788 NAS1789C3M, 01-110-9788, 011109788

Product Details | PLATE SELF-LOCKING NUT

5310-01-110-9788 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NAS1789C3M, 5310-01-110-9788, 01-110-9788, 5310011109788, 011109788

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 APR 1981	01-110-9788	05280 ( NUT, SELF-LOCKING, PLATE )

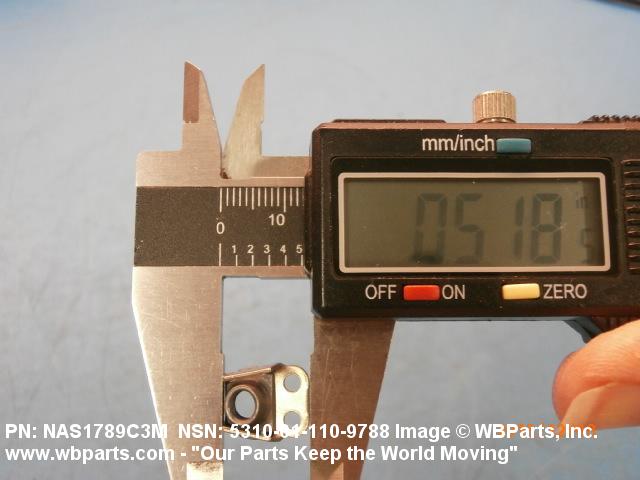

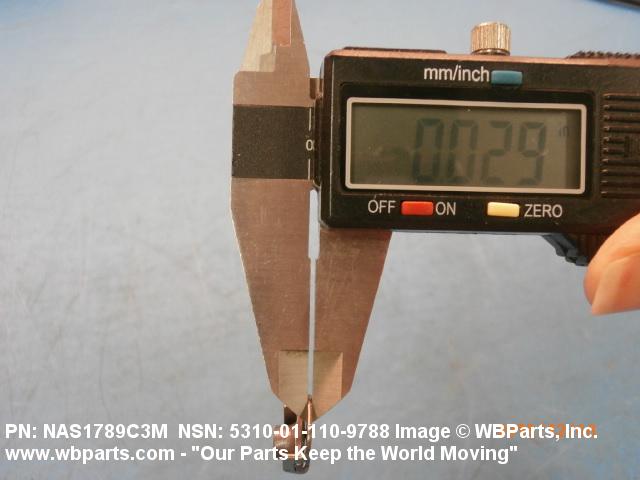

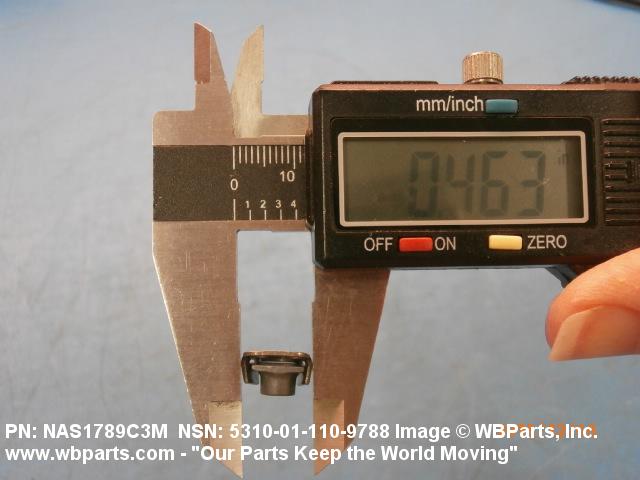

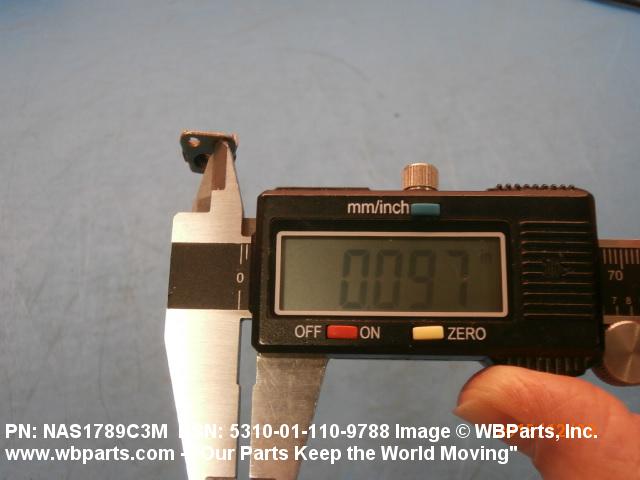

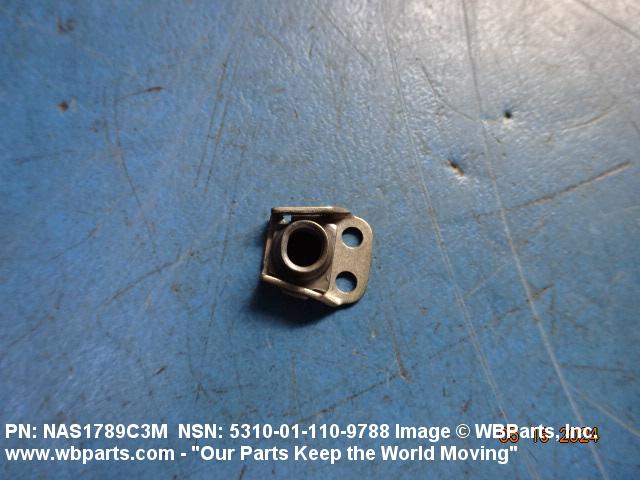

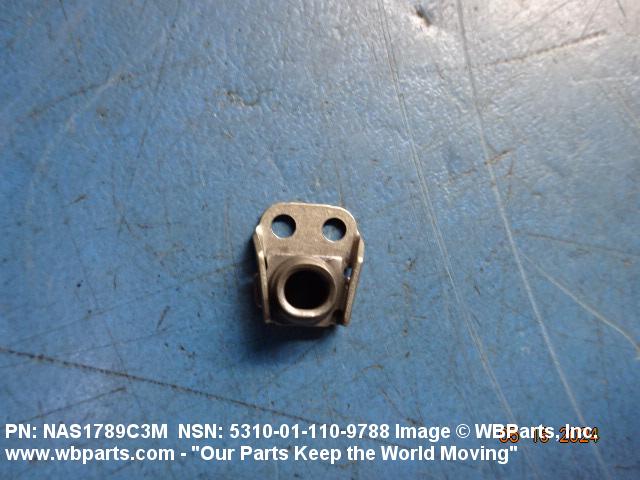

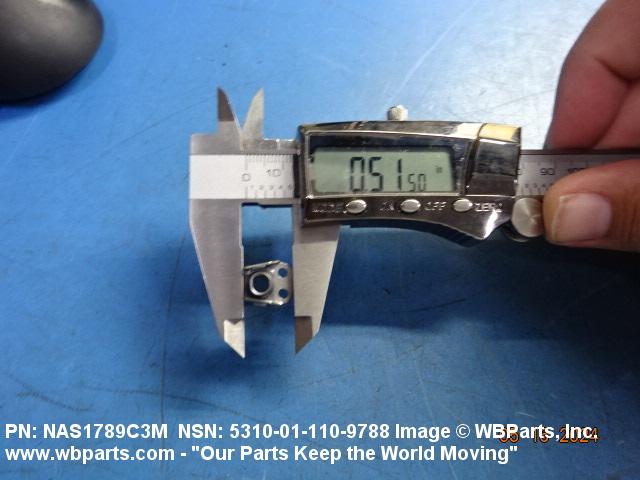

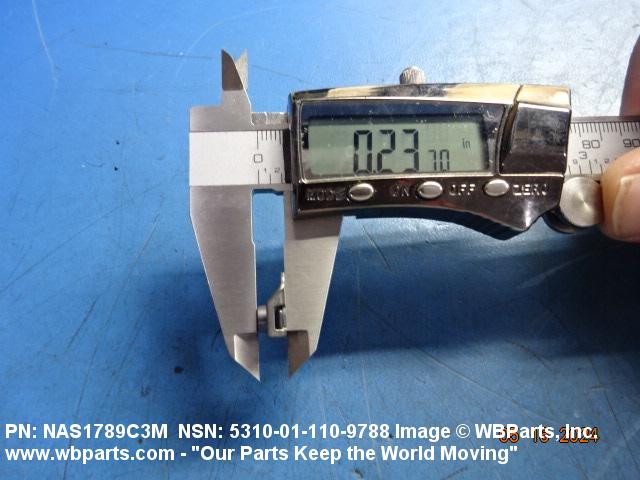

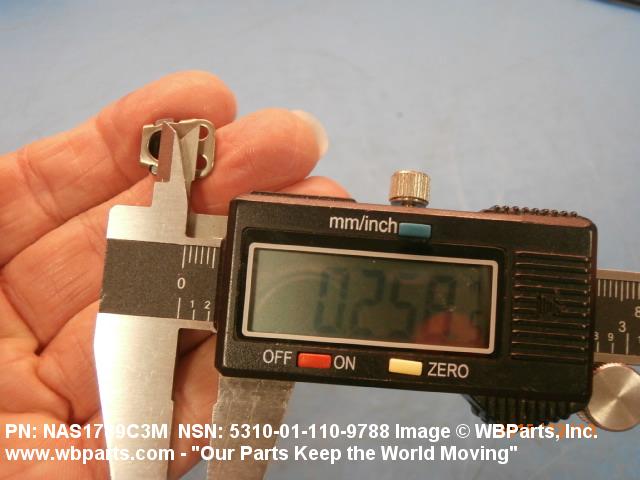

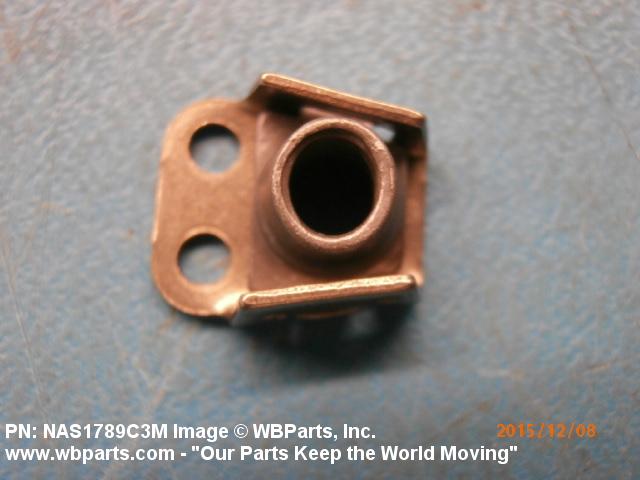

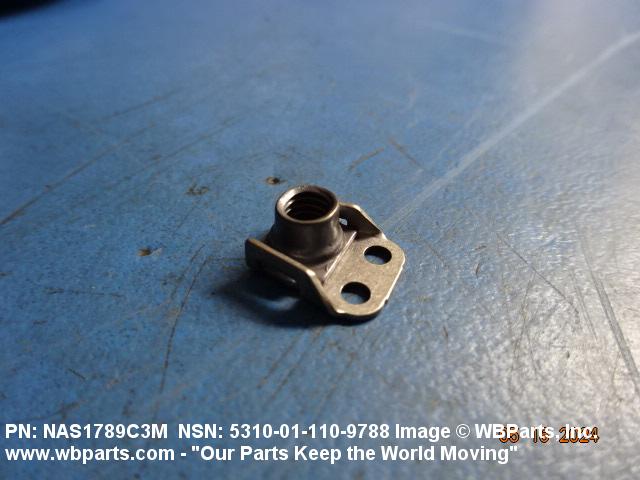

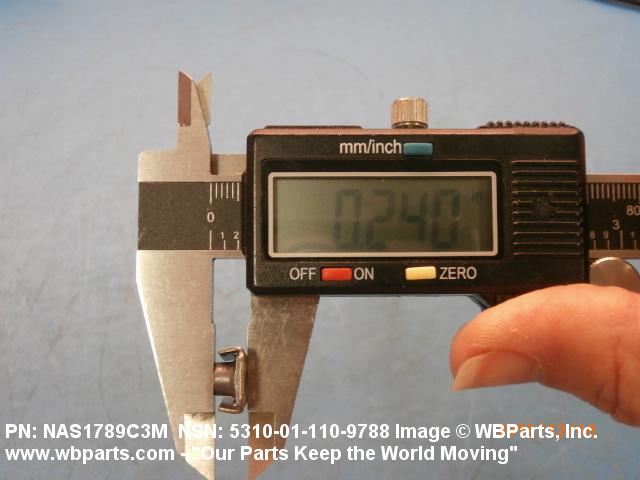

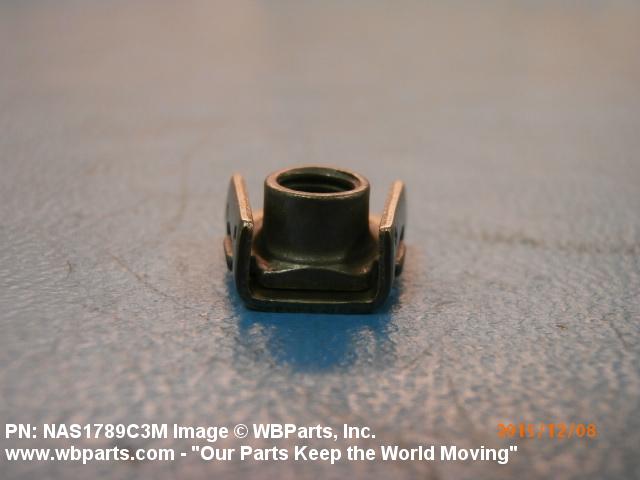

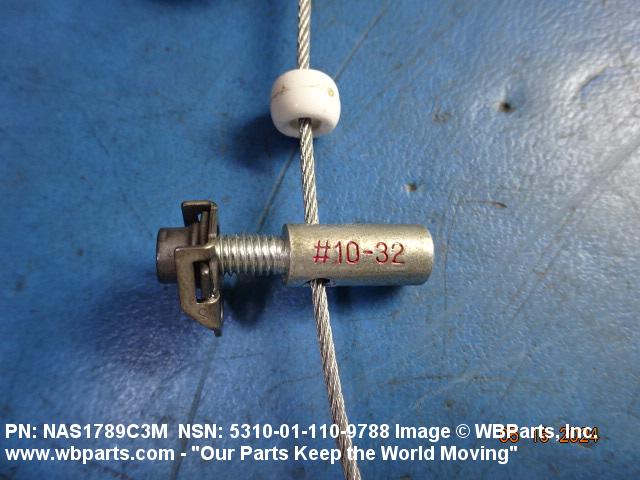

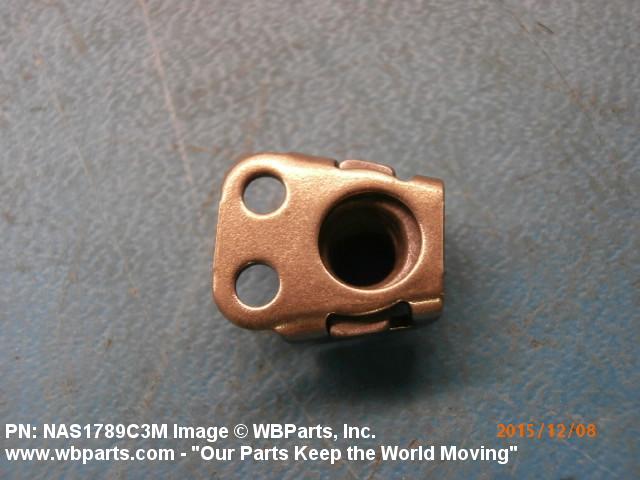

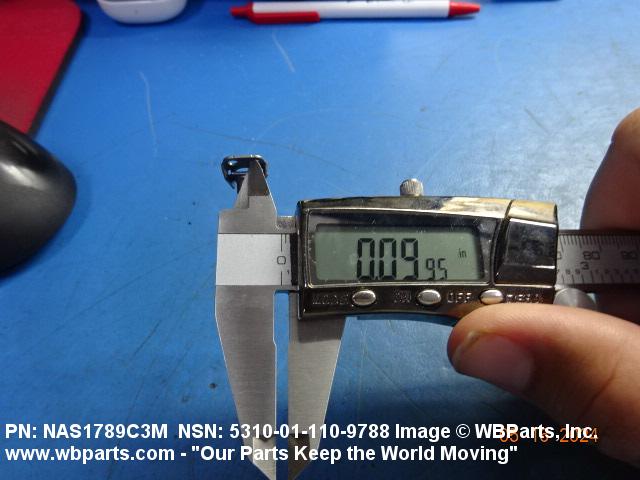

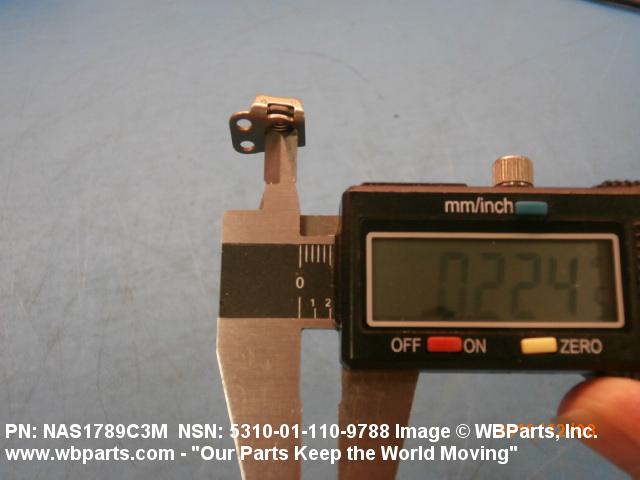

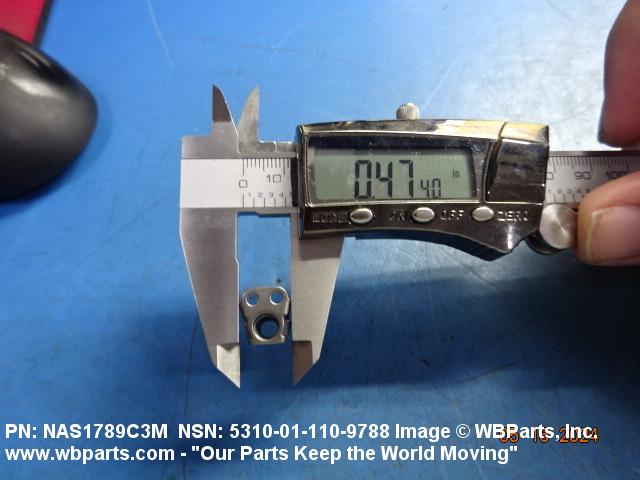

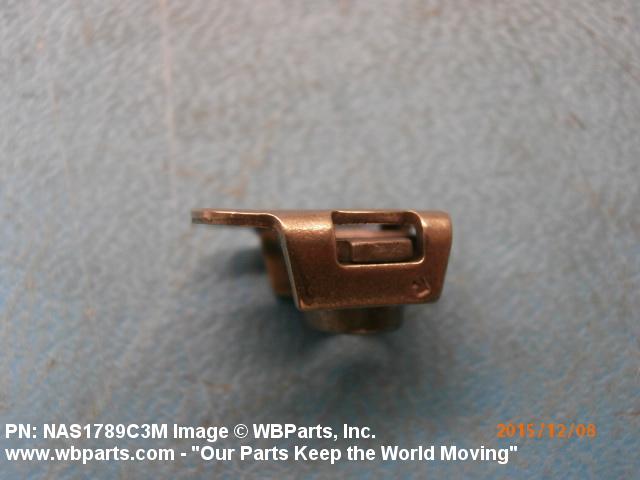

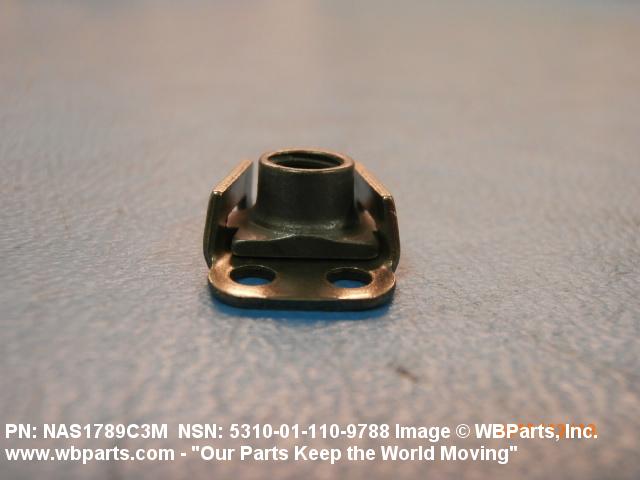

Drawings & Photos | NSN 5310-01-110-9788

Part Number	Request Date	QTY	Origin
NAS1789C3M	2025-12-349	26	us
NAS1789C3M	2024-04-102	100	United States
NAS1789C3M	2016-02-60	12	United States
NAS1789C3M	2016-01-28	2	United States
NAS1789C3M	2016-01-28	6	United States
NAS1789C3M	2015-12-336	50	United States
5310-01-110-9788	2015-04-120	235	DIBBS
NAS1789C3M	2014-07-212	50	us
NAS1789C3M	2014-04-97	100	UK
NAS1789C3M	2013-10-276	8	US
5310-01-110-9788	2012-10-286	6	US
5310-01-110-9788	2012-10-286	6	US
NAS1789C3M	2012-05-143	1000	US
NAS1789C3M	2012-04-94	22	United States
5310-01-110-9788	2012-03-90	205	DIBBS
NAS1789C3M	2012-02-55	268	United States
5310-01-110-9788	2011-08-223	40	United States
5310-01-110-9788	2011-07-211	250	US
NAS1789C3M	2009-11-334	30	US
NAS1789C3M	2009-06-180	100	US
5310-01-110-9788	2009-02-45	50	US
NAS1789C3M	2008-12-350	5	US
5310-01-110-9788	2008-05-128	92500	United States
NAS1789C3M	2007-10-296	200	US
NAS1789C3M	2007-02-59	540	US

Cross Reference | NSN 5310-01-110-9788

Part Number	Cage Code	Manufacturer
NAS1789C3M	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-110-9788

Compare

Related Products | NSN 5310-01-110-9788

5310-01-110-9789, 5310-01-110-9790, 5310-01-110-9791, 5310-01-111-0035, 5310-01-111-0129

Technical Data | NSN 5310-01-110-9788

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A127 PLATE
DISTANCE FROM CENTERLINE TO FLAT	ANY ACCEPTABLE
NUT LENGTH	0.525 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.032 INCHES MAXIMUM
PLATE WIDTH	0.490 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.062 INCHES MINIMUM NUT
COUNTERBORE DIAMETER	0.194 INCHES MINIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F45 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.250 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH	0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
FEATURES PROVIDED	FLOATING NUT
SPECIFICATION/STANDARD DATA	80205-NAS1789 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-01-110-9788

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-110-9788

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
