NSN 5310-01-111-0644 BACN10EJ9LS, FNA101098, FNA101-098
Product Details | PLATE SELF-LOCKING NUT

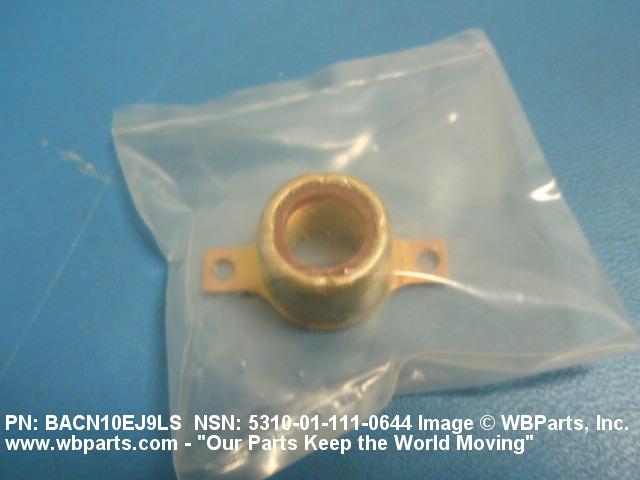

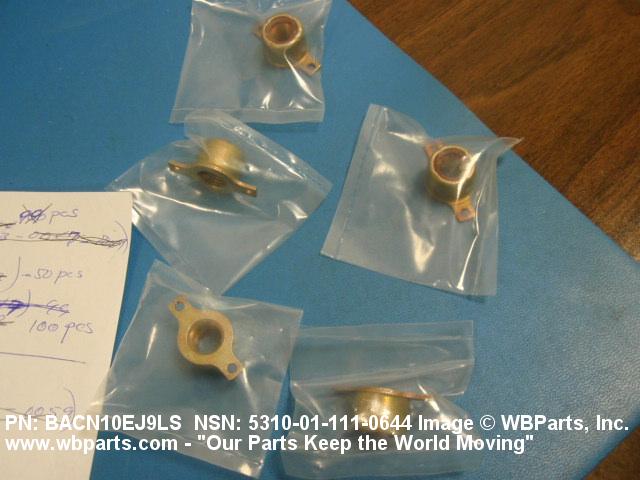

5310-01-111-0644 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10EJ9LS, FNA101098, FNA101-098, 5310-01-111-0644, 01-111-0644, 5310011110644, 011110644
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 APR 1981 | 01-111-0644 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-111-0644
Demand History | NSN 5310-01-111-0644
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-111-0644 | 2016-04-103 | 11 | DIBBS |
| BACN10EJ9LS | 2015-11-322 | 1 | United States |
| 5310-01-111-0644 | 2015-05-130 | 22 | DIBBS |
| 5310-01-111-0644 | 2014-03-71 | 13 | DIBBS |
| 5310-01-111-0644 | 2013-11-321 | 5 | DIBBS |
| 5310-01-111-0644 | 2012-05-130 | 16 | DIBBS |
| 5310-01-111-0644 | 2012-03-73 | 50 | DIBBS |
| 5310-01-111-0644 | 2012-01-09 | 16 | DIBBS |
| 5310-01-111-0644 | 2010-11-322 | 100 | DIBBS |
| 5310-01-111-0644 | 2010-09-251 | 12 | DIBBS |
| 5310-01-111-0644 | 2010-05-145 | 5 | DIBBS |
| 5310-01-111-0644 | 2010-04-102 | 29 | DIBBS |
| BACN10EJ9LS | 2009-10-292 | 20 | France |
| FNA101098 | 2009-10-292 | 20 | France |
| 5310-01-111-0644 | 2009-08-226 | 5 | United States |
| 5310-01-111-0644 | 2009-08-225 | 29 | DIBBS |
