NSN 5310-01-113-0566 NAS1330H08K106, 01-113-0566, 011130566
Product Details | BLIND RIVET PLAIN NUT

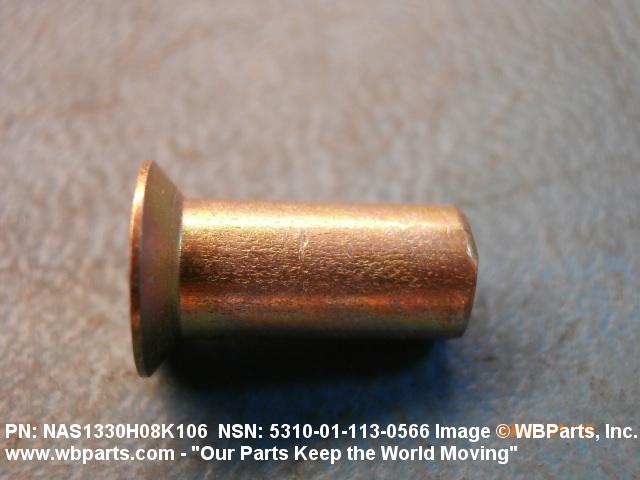

5310-01-113-0566 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: NAS1330H08K106, 5310-01-113-0566, 01-113-0566, 5310011130566, 011130566
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAY 1981 | 01-113-0566 | 01873 ( NUT, PLAIN, BLIND RIVET ) |

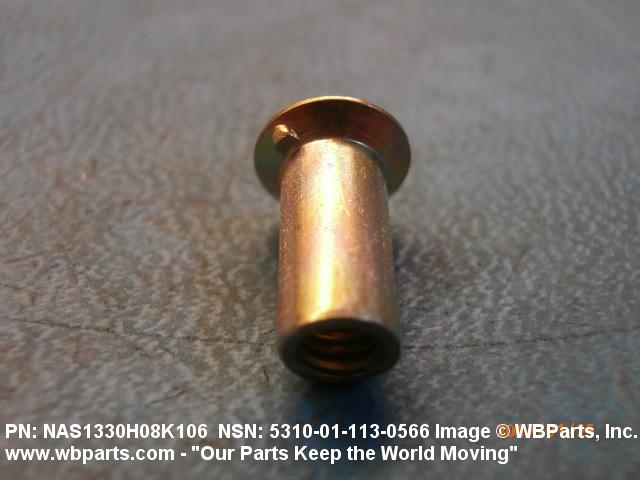

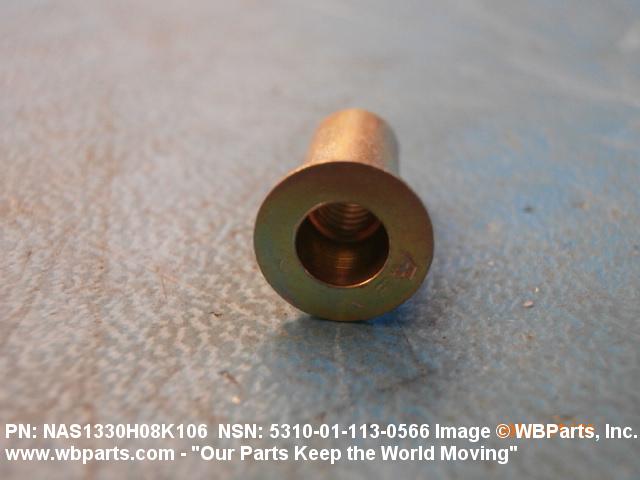

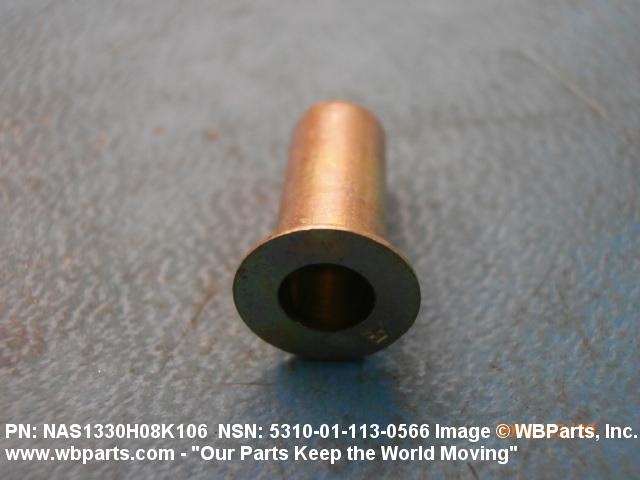

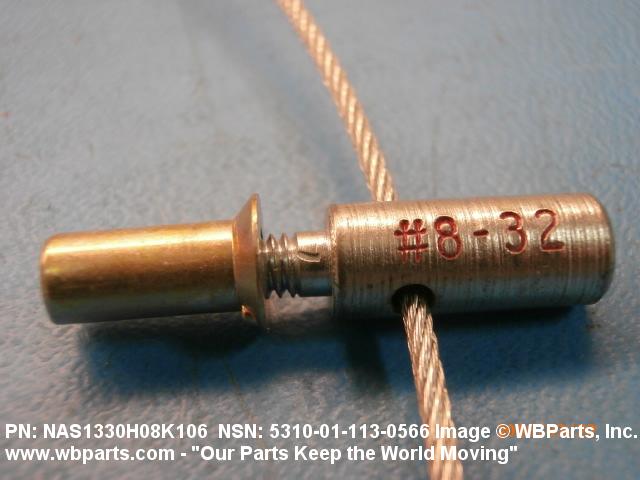

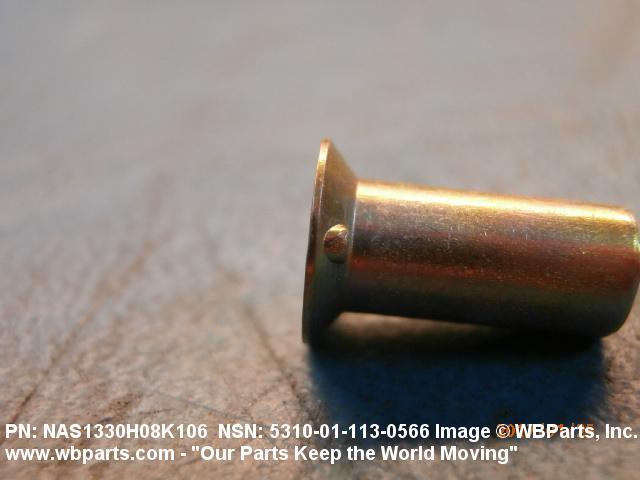

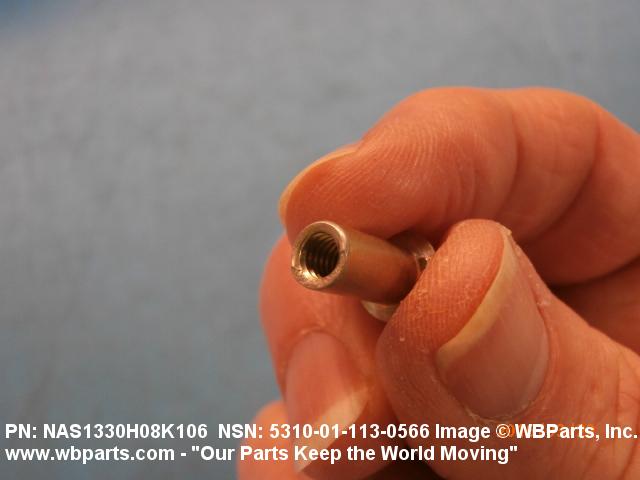

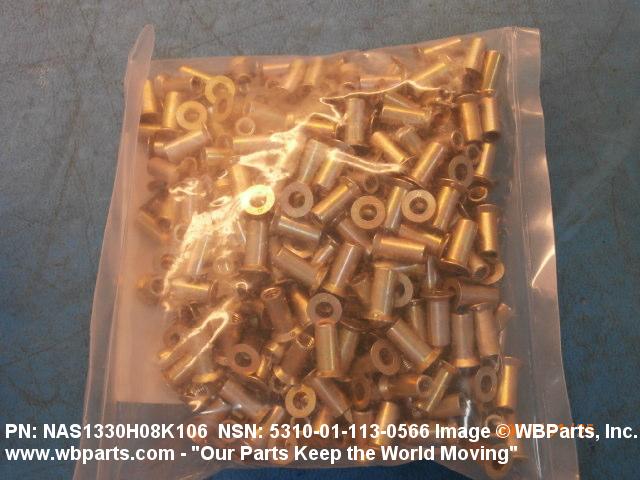

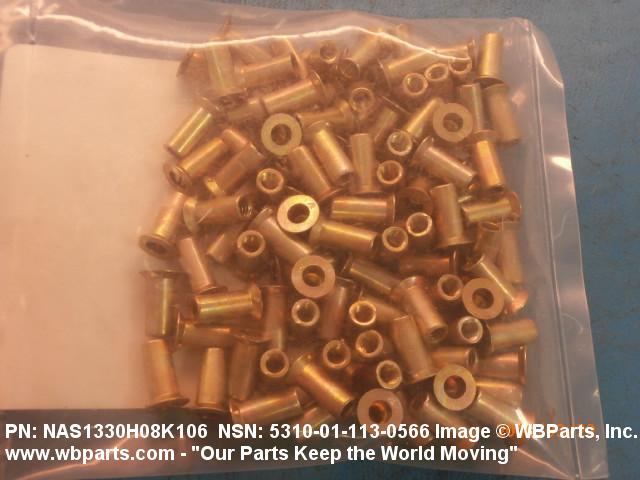

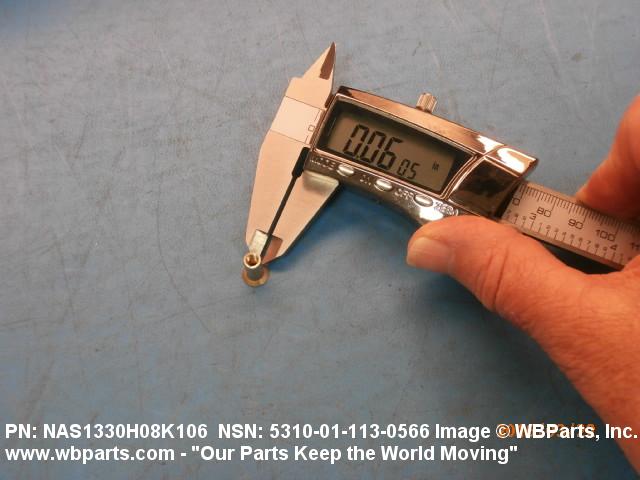

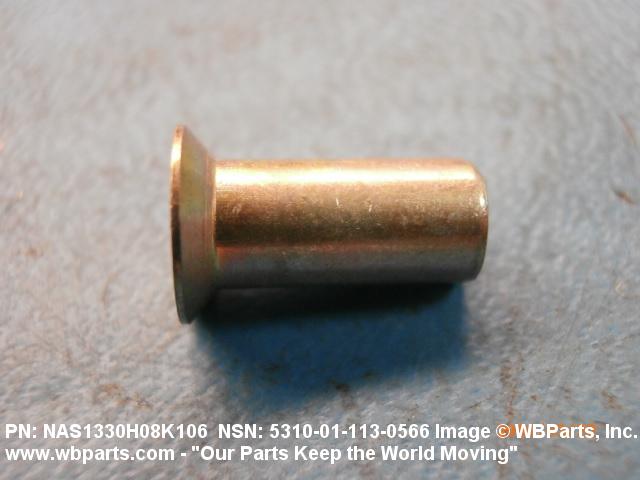

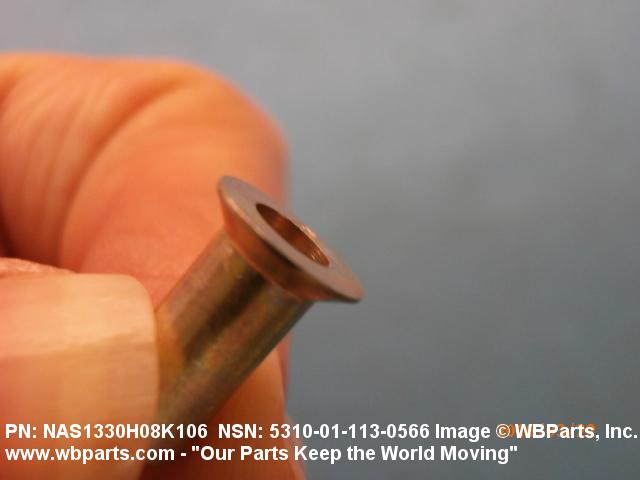

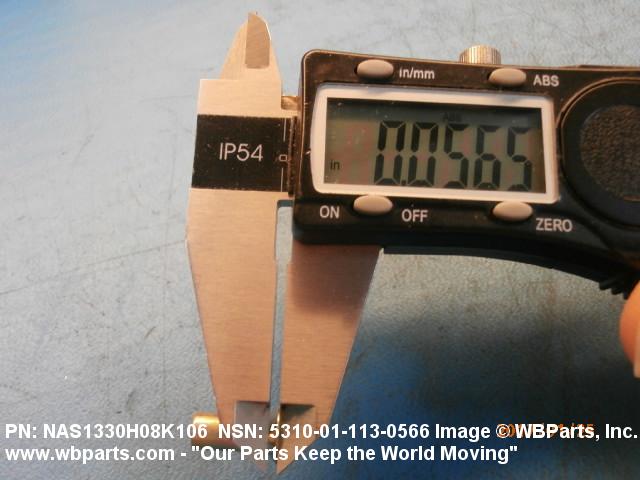

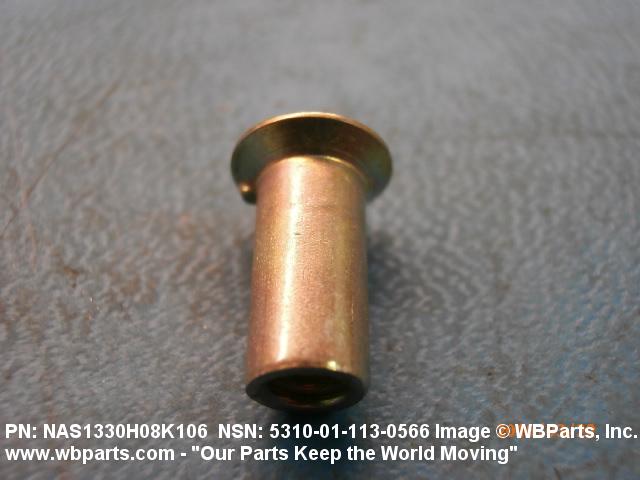

Drawings & Photos | NSN 5310-01-113-0566
Demand History | NSN 5310-01-113-0566
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-113-0566 | 2025-12-338 | 50 | United States |
| NAS1330H08K106 | 2021-11-319 | 300 | United States |
| NAS1330H08K106 | 2019-01-17 | 300 | United States |
| NAS1330H08K106 | 2018-05-143 | 200 | United States |
| NAS1330H08K106 | 2017-04-101 | 300 | United States |
| NAS1330H08K106 | 2017-01-20 | 300 | United States |
| 5310-01-113-0566 | 2016-06-153 | 1 | DIBBS |
| 5310-01-113-0566 | 2016-05-145 | 1 | DIBBS |
| NAS1330H08K106 | 2016-03-70 | 100 | United States |
| NAS1330H08K106 | 2014-06-174 | 1 | United States |
| NAS1330H08K106 | 2014-06-174 | 25 | United States |
| NAS1330H08K106 | 2013-04-92 | 240 | US |
| NAS1330H08K106 | 2010-12-356 | 1 | Italy |
| NAS1330H08K106 | 2010-04-117 | 48 | Italy |
| NAS1330H08K106 | 2008-07-212 | 10 | US |
Cross Reference | NSN 5310-01-113-0566
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1330H08K106 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-113-0566
Related Products | NSN 5310-01-113-0566
Technical Data | NSN 5310-01-113-0566
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4037 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A547 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |

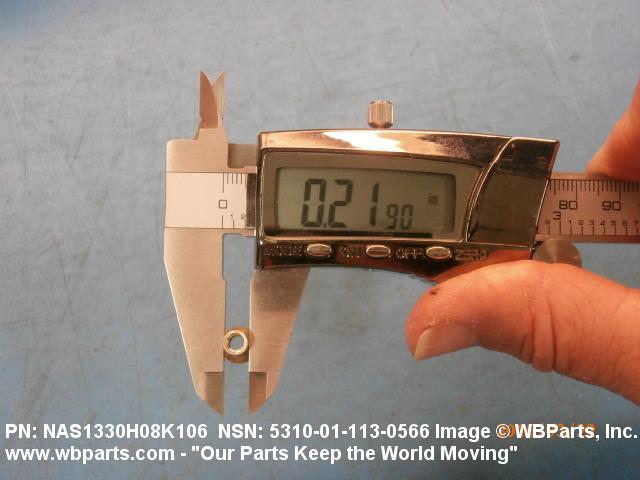

| NUT DIAMETER | 0.217 INCHES MINIMUM AND 0.221 INCHES MAXIMUM |

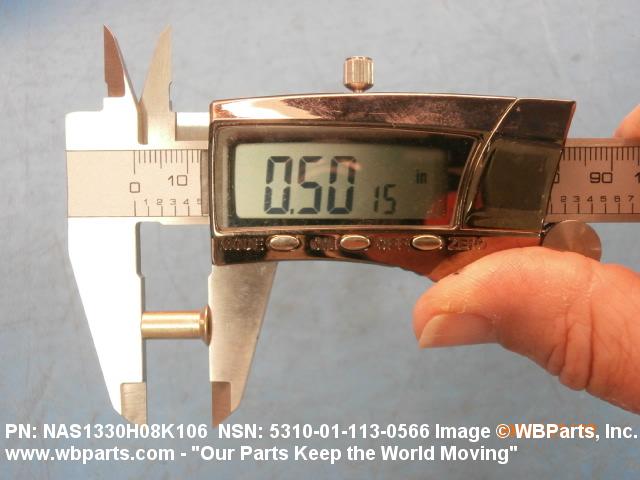

| NUT LENGTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| NUT GRIP RANGE | 0.065 TO 0.106 INCHES |
| HEAD STYLE | D16 FLAT COUNTERSUNK REVERSE KEYED |

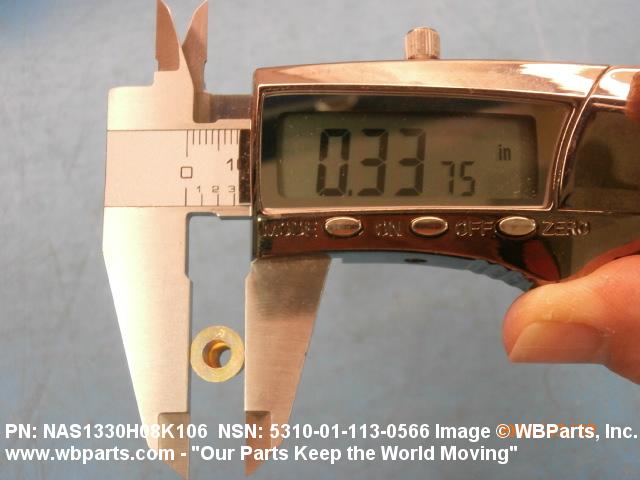

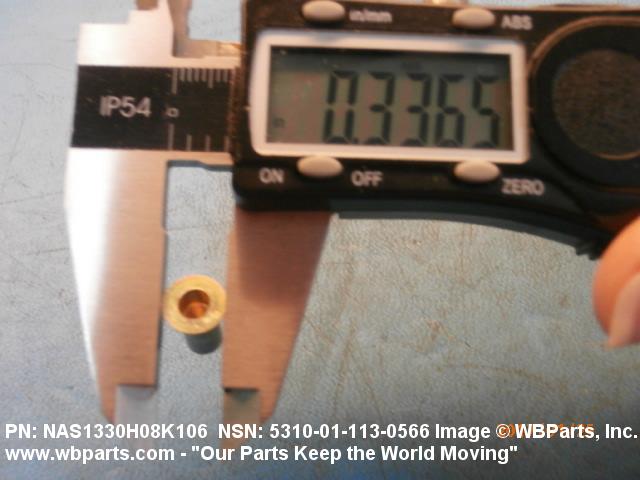

| HEAD DIAMETER | 0.355 INCHES NOMINAL |

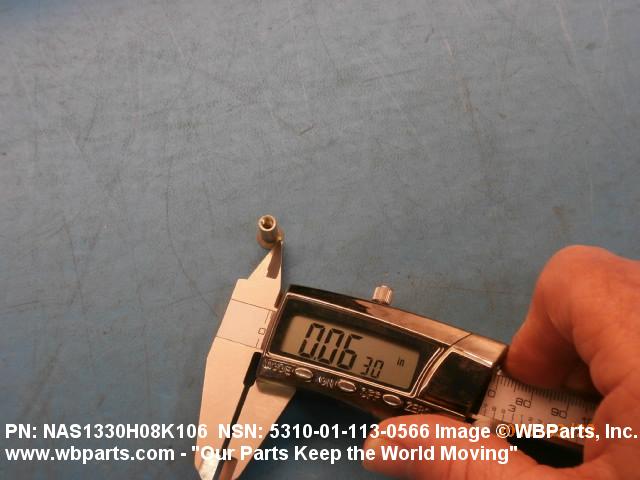

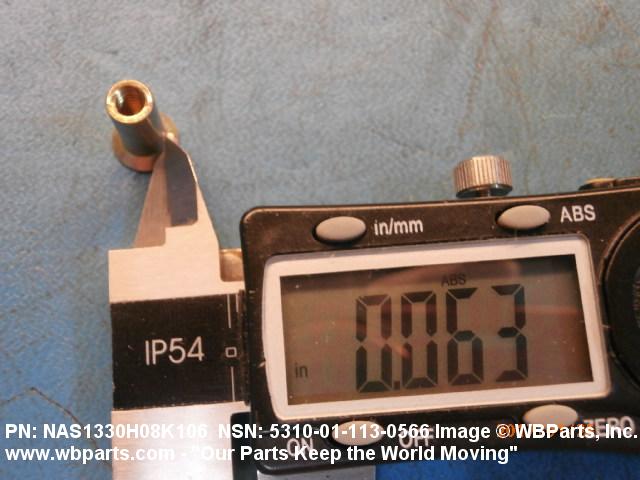

| KEY LENGTH | 0.063 INCHES NOMINAL |
| HEAD HEIGHT | 0.063 INCHES MAXIMUM |
| HEAD COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK END TYPE | OPEN |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80205-NAS1330 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-113-0566
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-113-0566
Air Force
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
