Product Details | PLATE SELF-LOCKING NUT

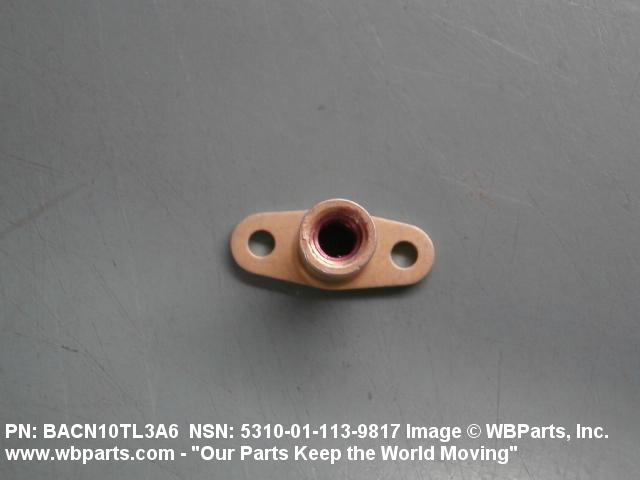

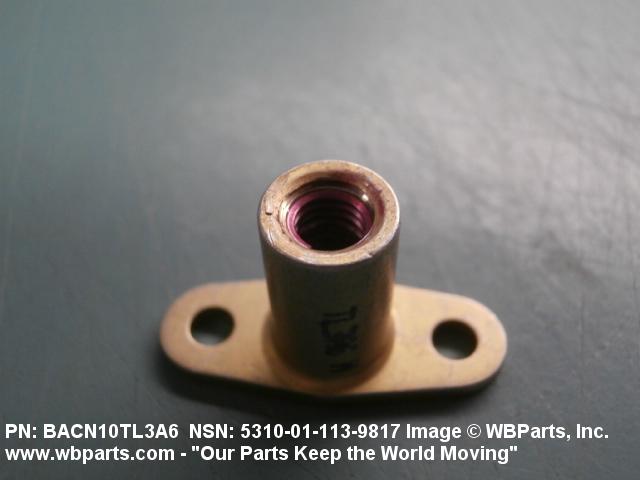

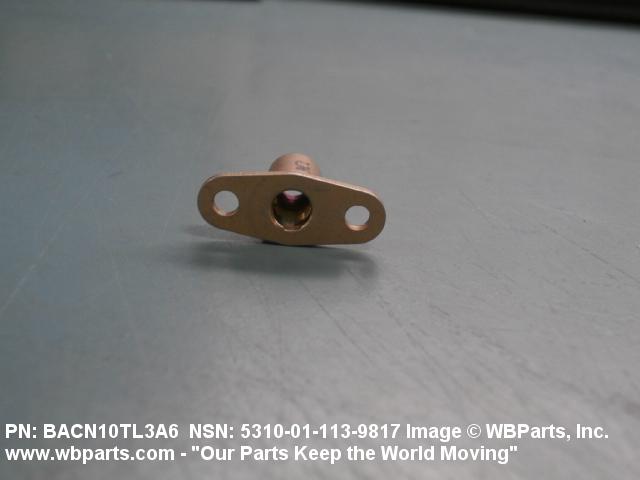

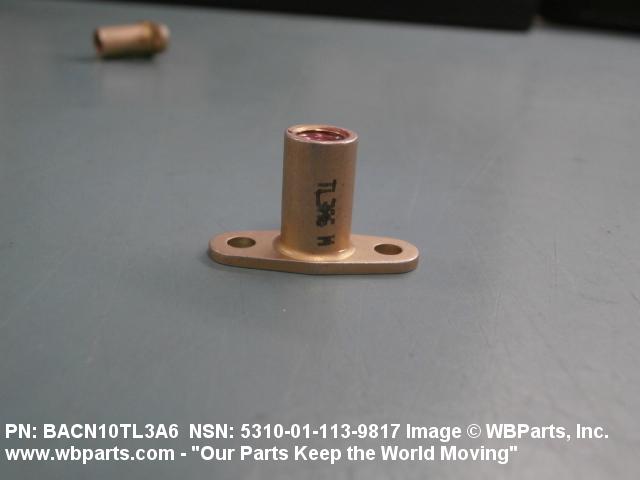

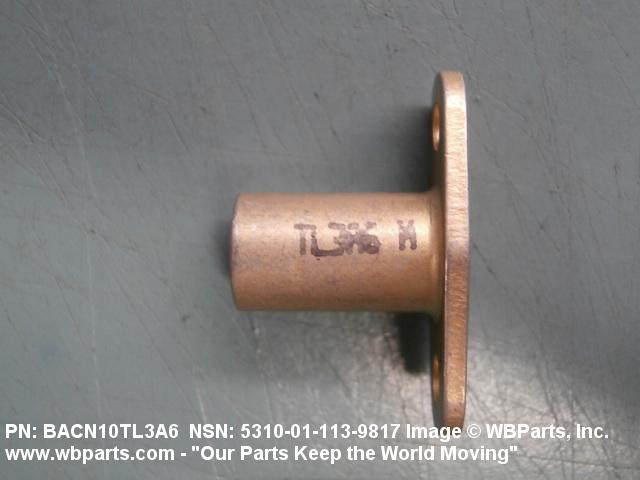

5310-01-113-9817 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10TL3A6, 5310-01-113-9817, 01-113-9817, 5310011139817, 011139817
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 JUN 1981 | 01-113-9817 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

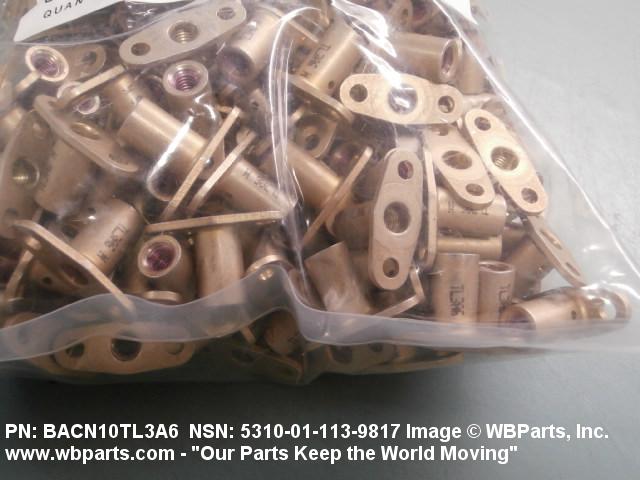

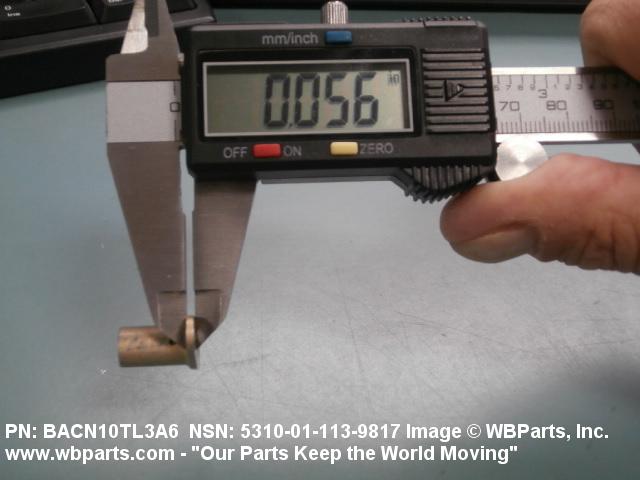

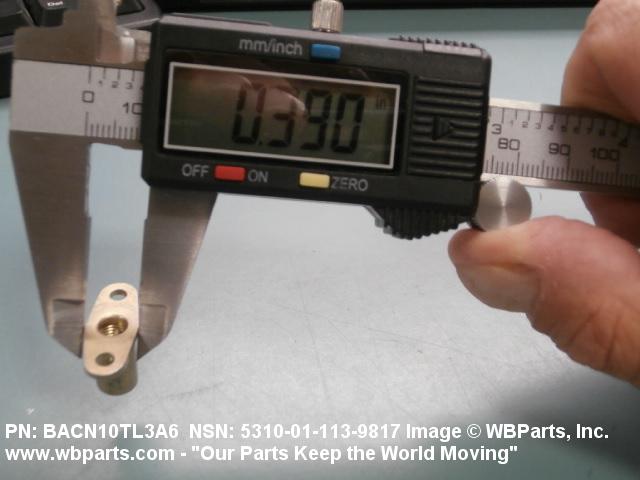

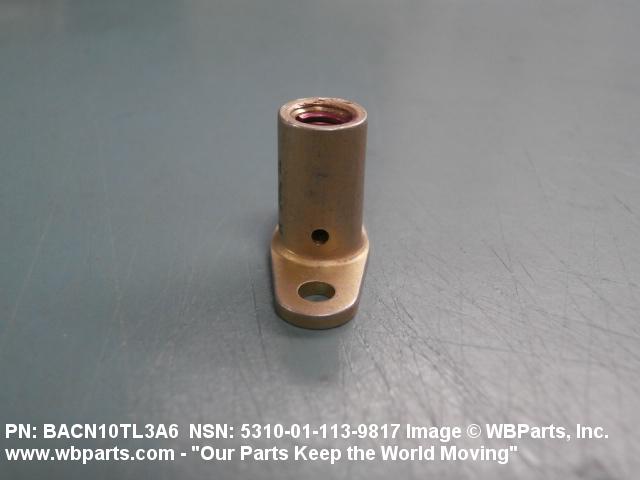

Drawings & Photos | NSN 5310-01-113-9817
Demand History | NSN 5310-01-113-9817
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-113-9817 | 2022-04-102 | 25 | US |
| BACN10TL3A6 | 2021-07-182 | 9 | India |
| BACN10TL3A6 | 2021-03-71 | 15 | United States |
| BACN10TL3A6 | 2021-01-12 | 63 | United States |
| 5310-01-113-9817 | 2020-01-27 | 125 | United States |
| BACN10TL3A6 | 2018-04-115 | 125 | United States |
| 5310-01-113-9817 | 2018-03-90 | 100 | United States |
| 5310-01-113-9817 | 2018-03-89 | 100 | United States |
| BACN10TL3A6 | 2017-01-18 | 4 | United States |
| BACN10TL3A6 | 2014-11-330 | 25 | United States |
| BACN10TL3A6 | 2014-11-330 | 50 | United States |
| 5310-01-113-9817 | 2013-10-298 | 2 | United States |
| BACN10TL3A6 | 2013-09-268 | 250 | United States |
| BACN10TL3A6 | 2012-11-314 | 300 | United States |
| 5310-01-113-9817 | 2010-08-230 | 100 | US |
| BACN10TL3A6 | 2009-10-285 | 80 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-113-9817
Related Products | NSN 5310-01-113-9817
Technical Data | NSN 5310-01-113-9817
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-12545,TEMPER T6 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

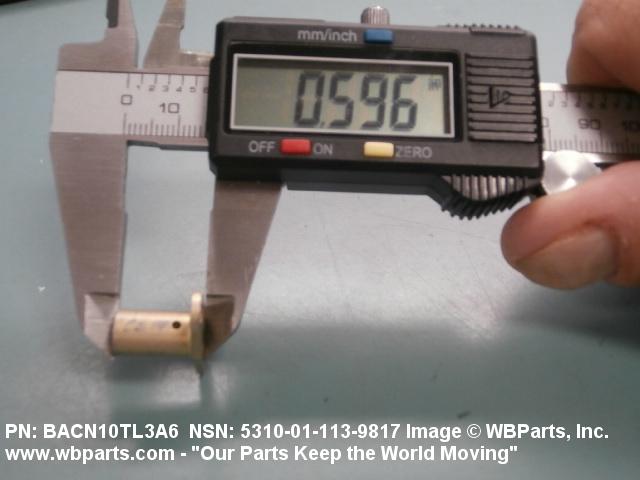

| NUT LENGTH | 0.975 INCHES MINIMUM AND 0.995 INCHES MAXIMUM |
| NUT HEIGHT | 0.580 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| PLATE THICKNESS | 0.050 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| PLATE WIDTH | 0.386 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH METALLIC INSERT |
| NUT COUNTERBORE DEPTH | 0.139 INCHES MINIMUM AND 0.155 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.196 INCHES MINIMUM AND 0.202 INCHES MAXIMUM NUT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |

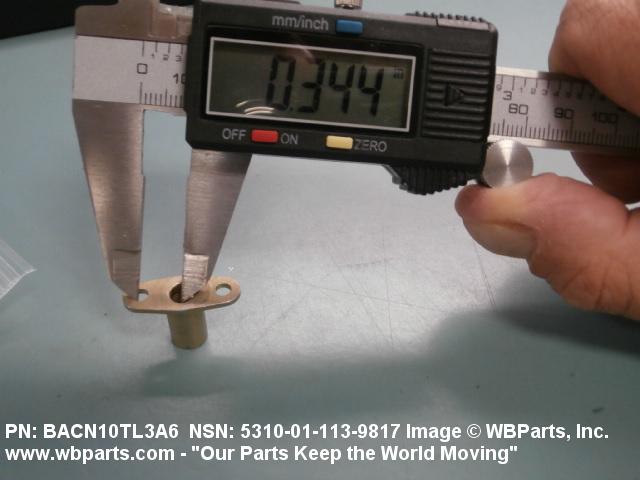

| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | BACN10TL3A6 |
