NSN 5310-01-160-2037 NA0027030M, NA0027-030M, 01-160-2037
Product Details | PLATE SELF-LOCKING NUT
5310-01-160-2037 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NA0027030M, NA0027-030M, 5310-01-160-2037, 01-160-2037, 5310011602037, 011602037
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1983 | 01-160-2037 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

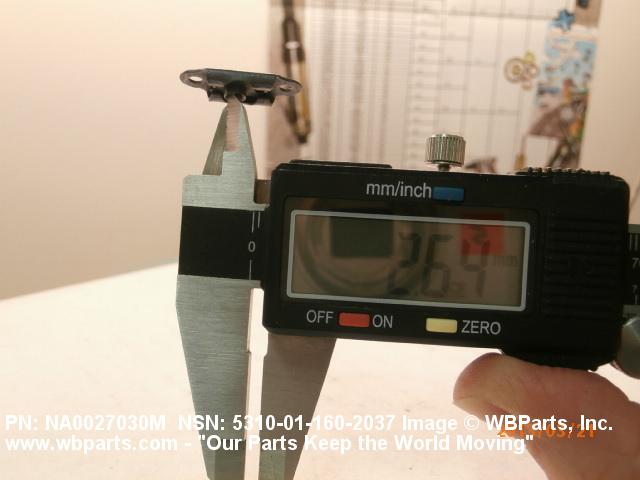

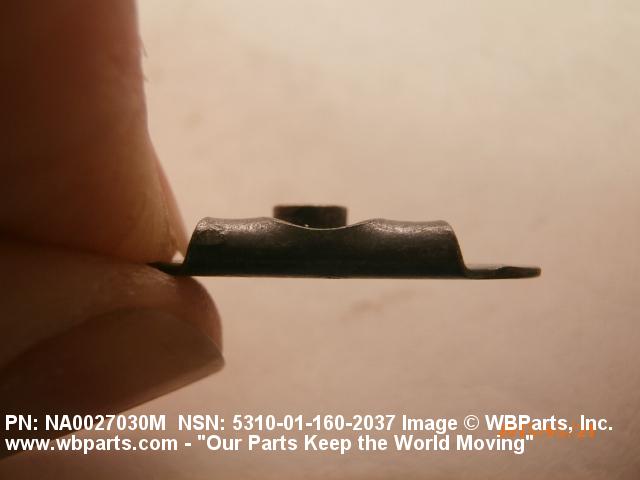

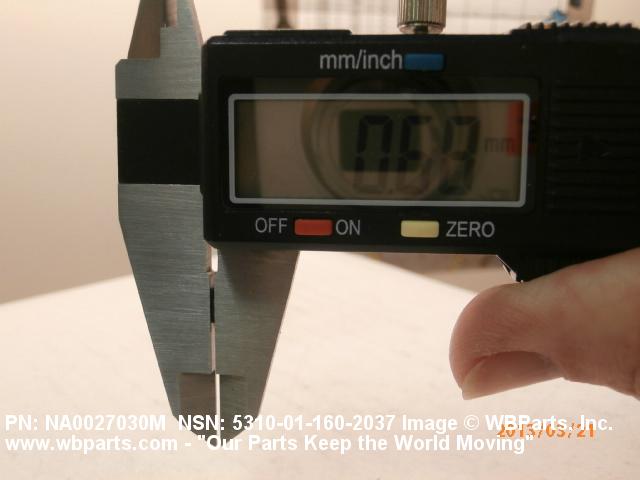

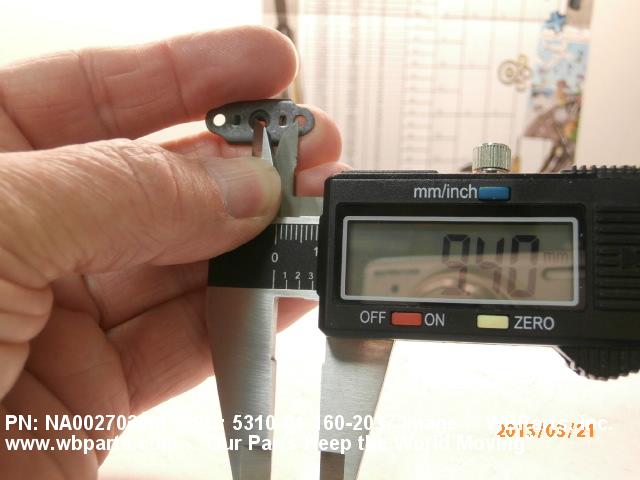

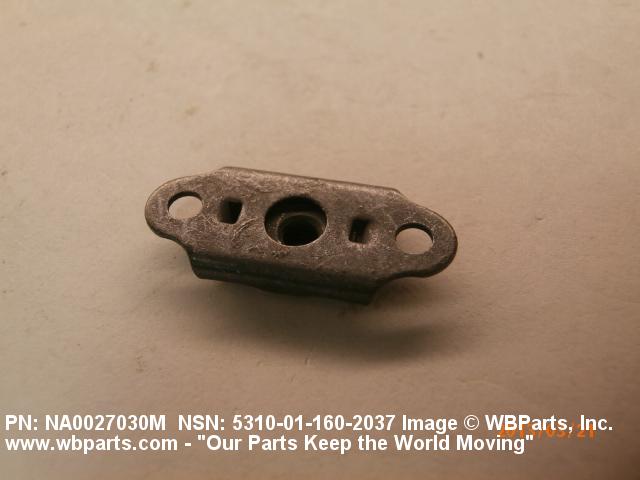

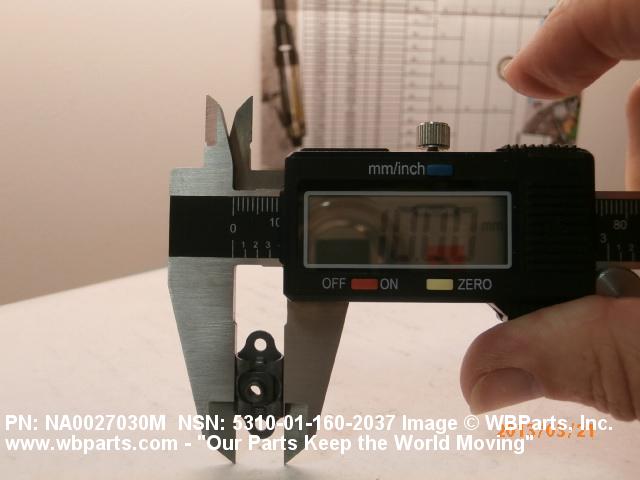

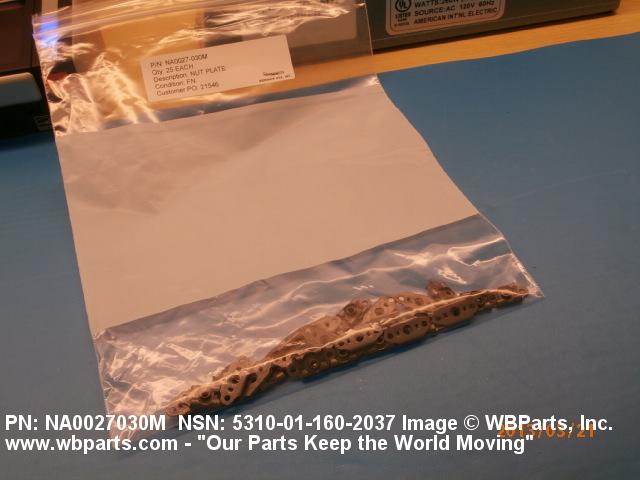

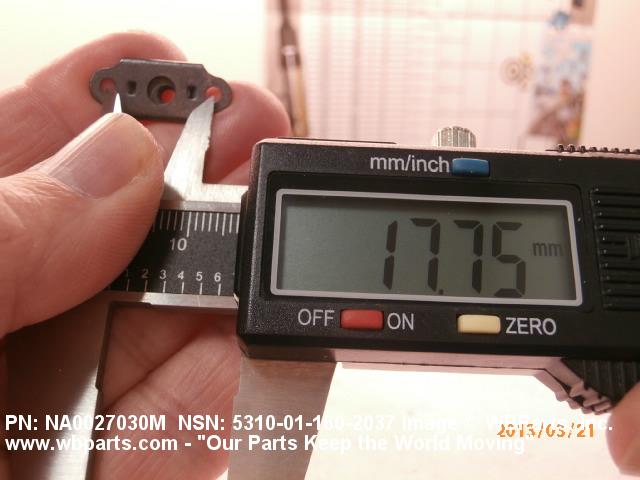

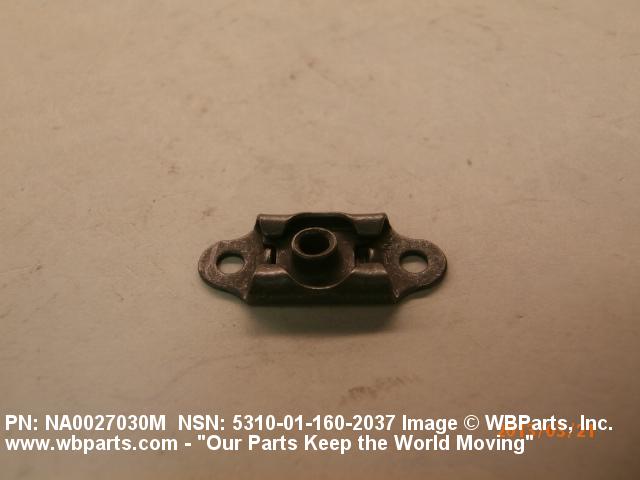

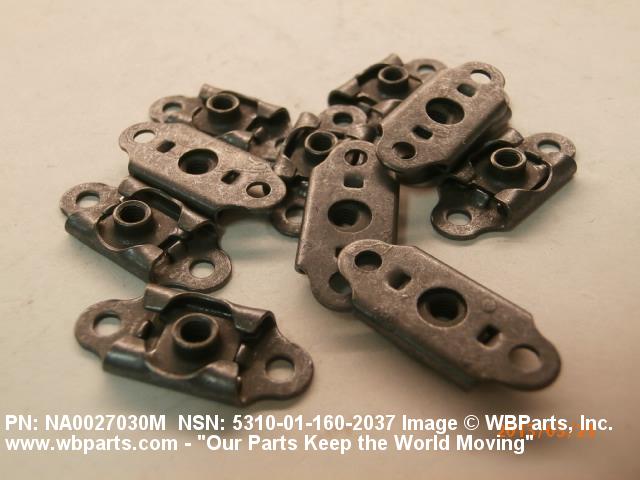

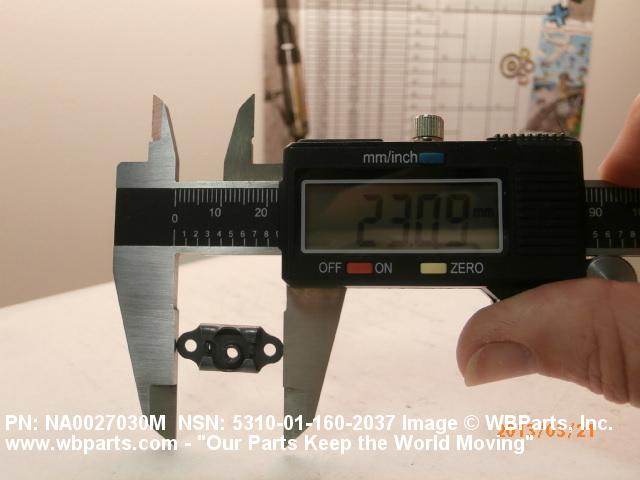

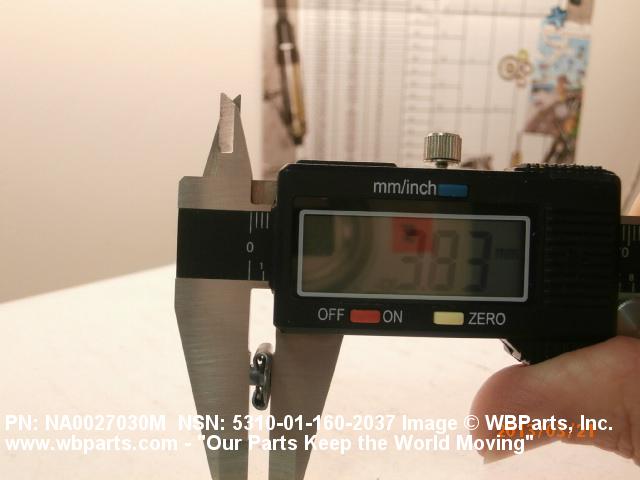

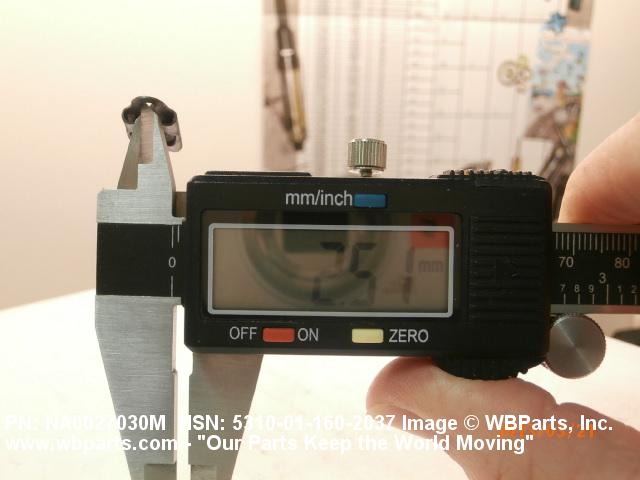

Drawings & Photos | NSN 5310-01-160-2037
Demand History | NSN 5310-01-160-2037
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-160-2037 | 2023-03-66 | 9 | DIBBS |
| 5310-01-160-2037 | 2023-01-26 | 2 | DIBBS |
| 5310-01-160-2037 | 2022-01-28 | 11500 | IN |
| 5310-01-160-2037 | 2022-01-28 | 11500 | IN |
| 5310-01-160-2037 | 2019-01-09 | 650 | US |
| NA0027030M | 2016-09-245 | 60 | United States |
| NA0027030M | 2015-12-350 | 40 | United States |
| NA0027030M | 2015-11-314 | 40 | United States |
| NA0027030M | 2015-07-191 | 48 | United States |
| NA0027030M | 2015-07-191 | 80 | United States |
| NA0027030M | 2015-02-34 | 32 | United States |
| NA0027030M | 2013-03-79 | 25 | United States |
| NA0027030M | 2009-12-363 | 240 | US |
Cross Reference | NSN 5310-01-160-2037
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NA0027-030M | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-160-2037
Related Products | NSN 5310-01-160-2037
Technical Data | NSN 5310-01-160-2037
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | ISO M |
| NOMINAL THREAD SIZE | 3.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 0.50 |
| THREAD TOLERANCE CLASS | 4H6H INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 18.2 MILLIMETERS MAXIMUM |
| NUT HEIGHT | 3.9 MILLIMETERS MAXIMUM |
| PLATE THICKNESS | 0.7 MILLIMETERS MAXIMUM |
| PLATE WIDTH | 11.0 MILLIMETERS MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 2.5 MILLIMETERS MINIMUM AND 2.7 MILLIMETERS MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 6.0 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 12.0 MILLIMETERS NOMINAL |
| TEMP RATING | 235.0 DEG CELSIUS MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 80205-NA0027 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-160-2037
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-160-2037
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
