NSN 5310-01-163-2477 NS20247802, NS202478-02, BACN10KB3CFD
Product Details | PLATE SELF-LOCKING NUT

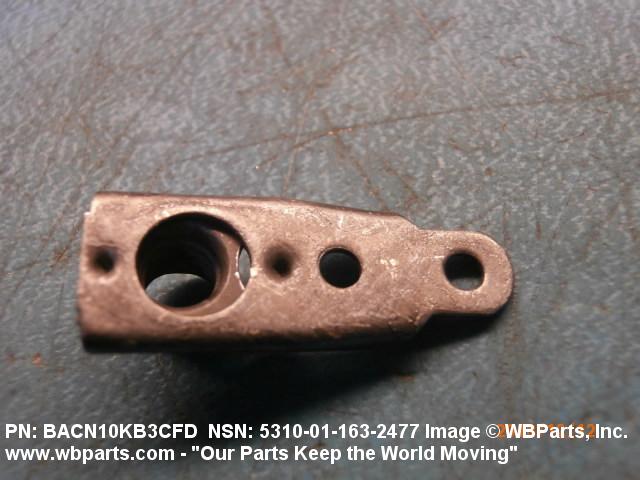

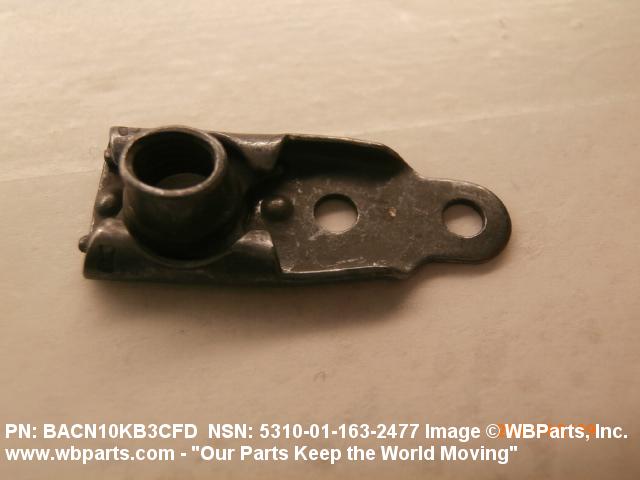

5310-01-163-2477 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS20247802, NS202478-02, BACN10KB3CFD , BRF100C3D, BRF100X3, F516043, F51604-3, 102F9207P3, 102F9207P-3, 5310-01-163-2477, 01-163-2477, 5310011632477, 011632477
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 SEP 1983 | 01-163-2477 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

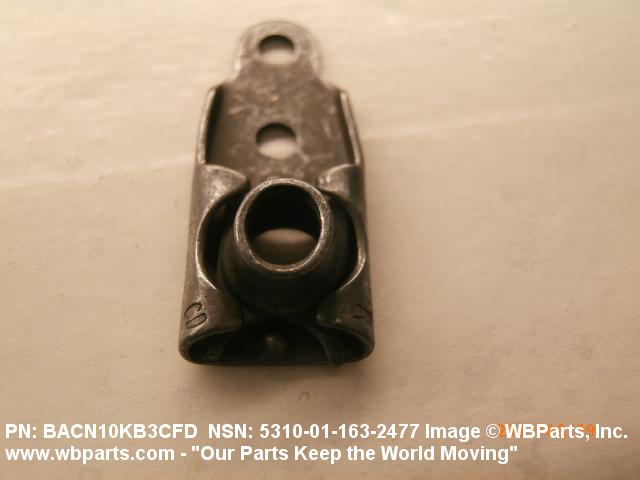

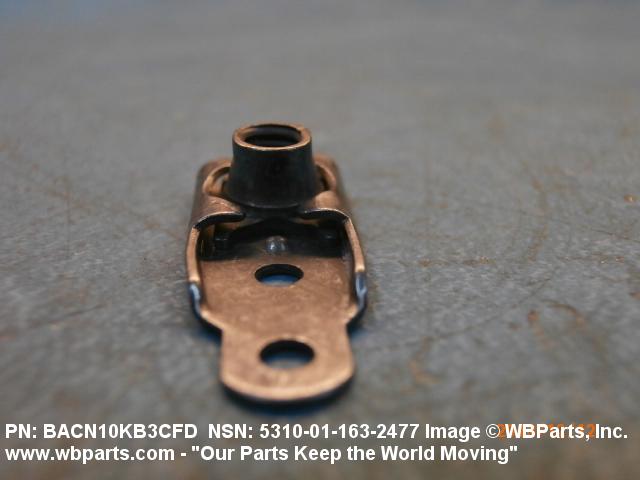

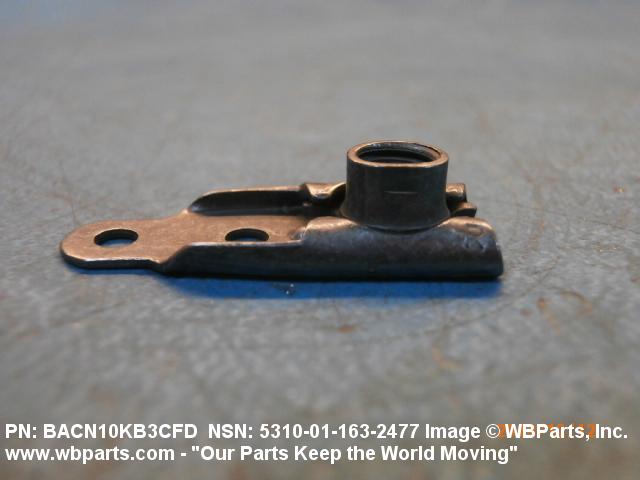

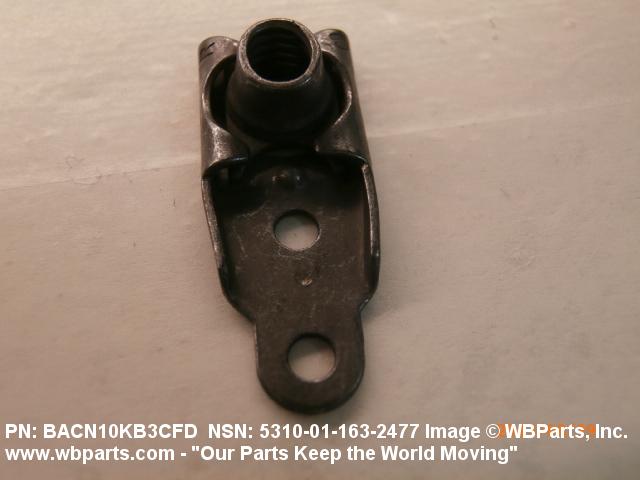

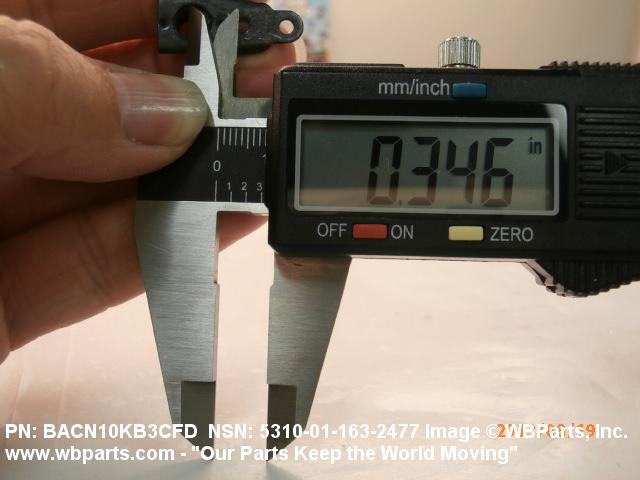

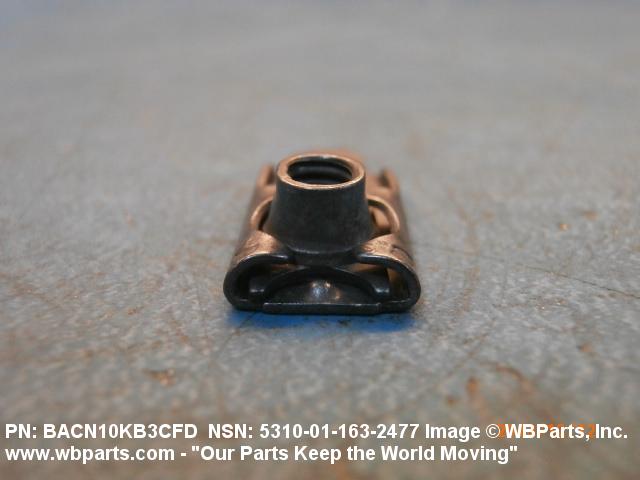

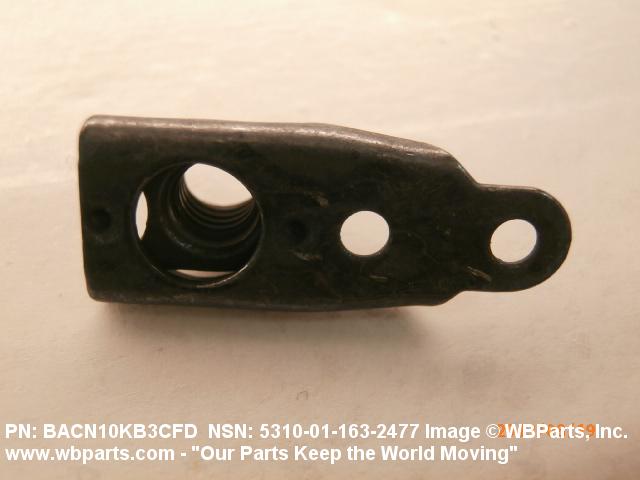

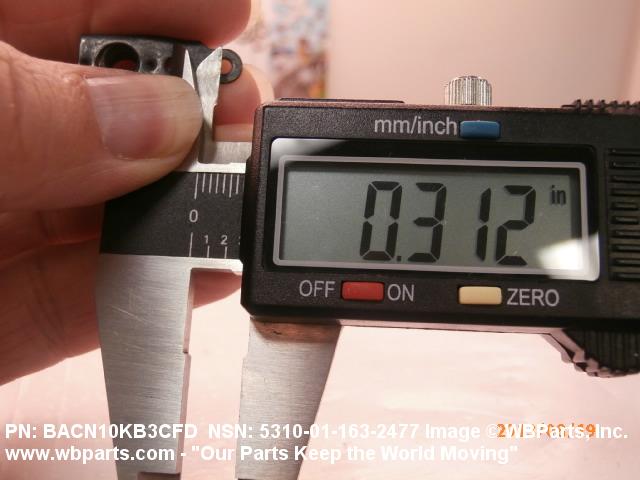

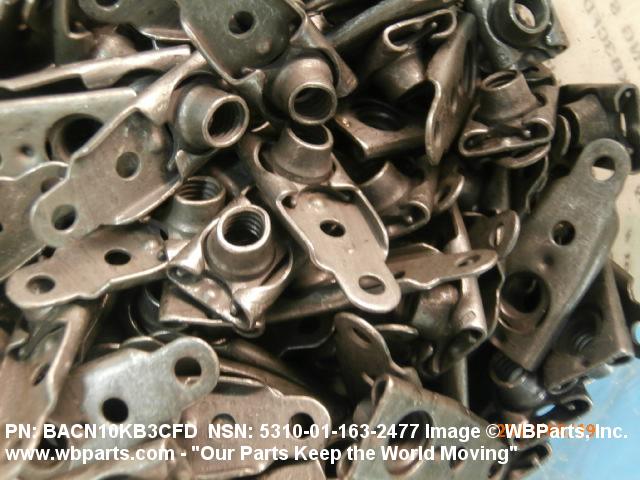

Drawings & Photos | NSN 5310-01-163-2477
Demand History | NSN 5310-01-163-2477
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10KB3CFD | 2024-04-93 | 412 | US |
| BACN10KB3CFD | 2023-08-243 | 130 | United States |
| BACN10KB3CFD | 2023-07-188 | 100 | United States |
| BACN10KB3CFD | 2022-12-341 | 115 | United States |
| BACN10KB3CFD | 2022-03-75 | 2647 | DIBBS |
| BRF100C3D | 2022-03-75 | 2647 | DIBBS |
| BRF100X3 | 2022-03-75 | 2647 | DIBBS |
| F51604-3 | 2022-03-75 | 2647 | DIBBS |
| NS202478-02 | 2022-03-75 | 2647 | DIBBS |
| BACN10KB3CFD | 2021-09-256 | 255 | United States |
| BACN10KB3CFD | 2021-07-187 | 5 | United States |
| BRF100C3D | 2021-06-180 | 10 | US |
| BACN10KB3CFD | 2020-12-350 | 125 | United States |
| BACN10KB3CFD | 2020-11-317 | 75 | United States |
| BACN10KB3CFD | 2020-10-289 | 1127 | DIBBS |
| BRF100C3D | 2020-10-289 | 1127 | DIBBS |
| BRF100X3 | 2020-10-289 | 1127 | DIBBS |
| F51604-3 | 2020-10-289 | 1127 | DIBBS |
| NS202478-02 | 2020-10-289 | 1127 | DIBBS |
| BACN10KB3CFD | 2020-10-275 | 450 | DIBBS |
| BRF100C3D | 2020-10-275 | 450 | DIBBS |
| BRF100X3 | 2020-10-275 | 450 | DIBBS |
| F51604-3 | 2020-10-275 | 450 | DIBBS |
| NS202478-02 | 2020-10-275 | 450 | DIBBS |
| BACN10KB3CFD | 2020-09-273 | 150 | DIBBS |
| BRF100C3D | 2020-09-273 | 150 | DIBBS |
| BRF100X3 | 2020-09-273 | 150 | DIBBS |
| F51604-3 | 2020-09-273 | 150 | DIBBS |
| NS202478-02 | 2020-09-273 | 150 | DIBBS |
| BACN10KB3CFD | 2020-07-211 | 156 | DIBBS |
| BRF100C3D | 2020-07-211 | 156 | DIBBS |
| BRF100X3 | 2020-07-211 | 156 | DIBBS |
| F51604-3 | 2020-07-211 | 156 | DIBBS |
| NS202478-02 | 2020-07-211 | 156 | DIBBS |
| BACN10KB3CFD | 2020-06-161 | 125 | United States |
| 5310-01-163-2477 | 2020-02-34 | 100 | United States |
| BACN10KB3CFD | 2020-01-06 | 2500 | US |
| BACN10KB3CFD | 2019-08-242 | 60 | United States |
| 5310-01-163-2477 | 2018-12-349 | 5000 | IN |
| BACN10KB3CFD | 2018-12-338 | 100 | United States |
| BACN10KB3CFD | 2018-04-115 | 100 | United States |
| BACN10KB3CFD | 2017-09-263 | 4 | US |
| 5310-01-163-2477 | 2017-06-178 | 100 | United States |
| BACN10KB3CFD | 2017-04-103 | 100 | United States |
| BACN10KB3CFD | 2017-01-09 | 100 | United States |
| 5310-01-163-2477 | 2016-12-355 | 300 | DIBBS |
| BACN10KB3CFD | 2014-11-330 | 25 | United States |
| BACN10KB3CFD | 2014-11-330 | 50 | United States |
| 5310-01-163-2477 | 2014-11-316 | 201 | DIBBS |
| BACN10KB3CFD | 2013-12-336 | 8 | US |
| BACN10KB3CFD | 2013-12-336 | 8 | US |
| 5310-01-163-2477 | 2013-08-239 | 10 | United States |
| BACN10KB3CFD | 2013-08-218 | 100 | United States |
| BACN10KB3CFD | 2013-08-218 | 200 | United States |
| BACN10KB3CFD | 2013-08-218 | 500 | United States |
| BACN10KB3CFD | 2013-08-218 | 1000 | United States |
| BACN10KB3CFD | 2013-07-192 | 40 | US |
| BACN10KB3CFD | 2012-07-192 | 20 | United States |
| 5310-01-163-2477 | 2012-04-96 | 840 | United States |
| BACN10KB3CFD | 2012-01-27 | 200 | United States |
| BACN10KB3CFD | 2009-07-209 | 10 | US |
| BACN10KB3CFD | 2008-11-311 | 100 | United States |
| BACN10KB3CFD | 2008-02-58 | 3200 | Canada |
| BACN10KB3CFD | 2007-02-54 | 4150 | US |
Cross Reference | NSN 5310-01-163-2477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102F9207P-3 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 102F9207P-3 | 72962 | HARVARD INDUSTRIES INC |
| BACN10KB3CFD | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10KB3CFD | Z03F0 | BOEING DEFENCE AUSTRALIA LTD |
| BACN10KB3CFD | Z8T75 | BOEING DEFENCE AUSTRALIA LTD |
| BRF100C3D | 52828 | REPUBLIC FASTENER MFG. CORP. |
| BRF100X3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| F51604-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| NS202478-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-163-2477
Related Products | NSN 5310-01-163-2477
Technical Data | NSN 5310-01-163-2477
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A124 PLATE |

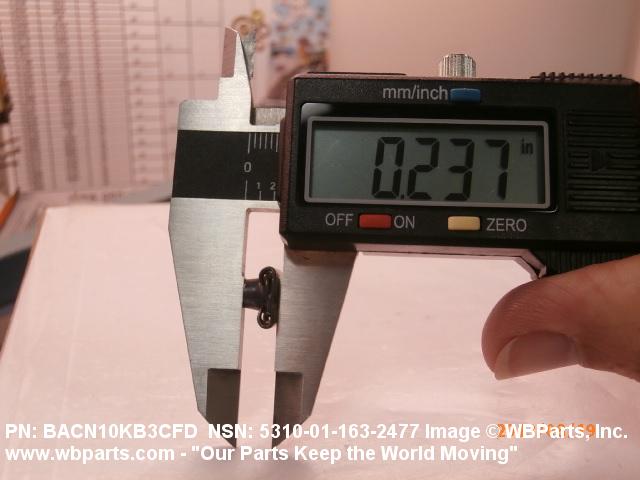

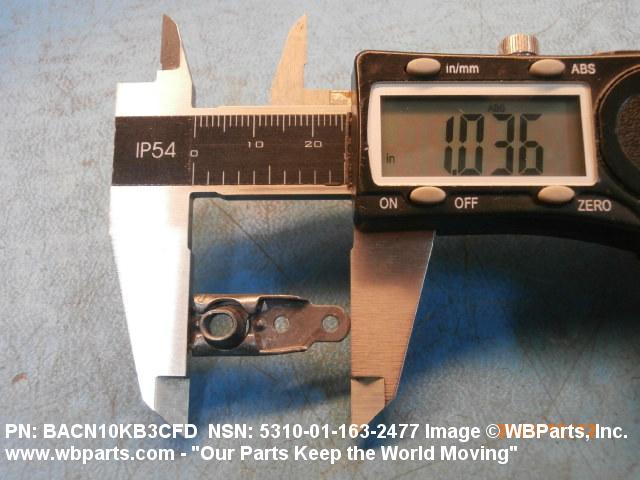

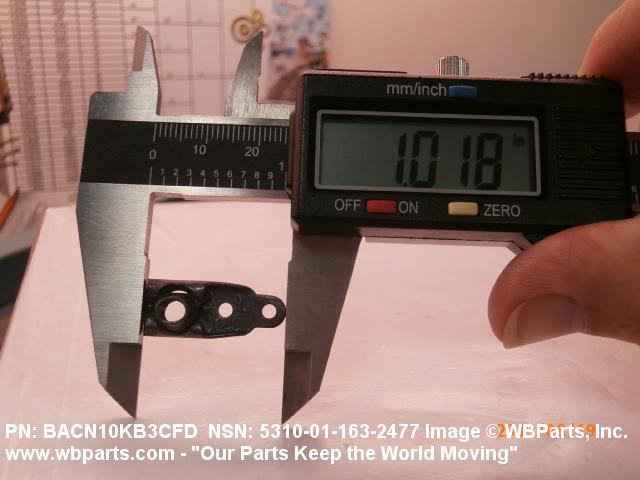

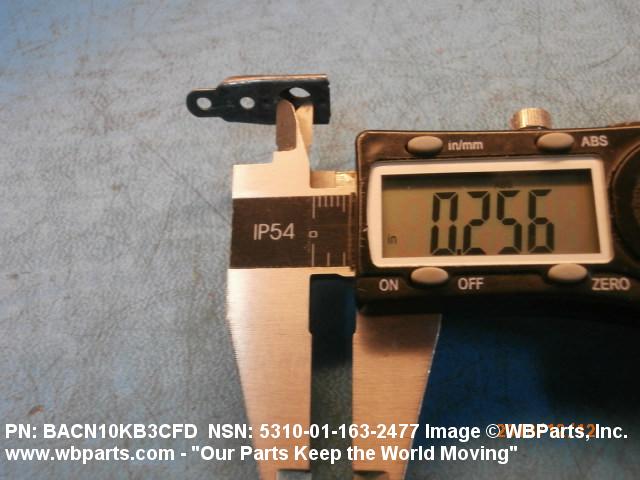

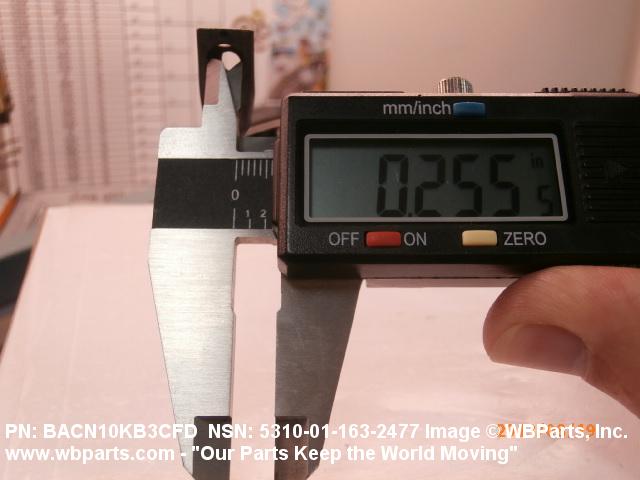

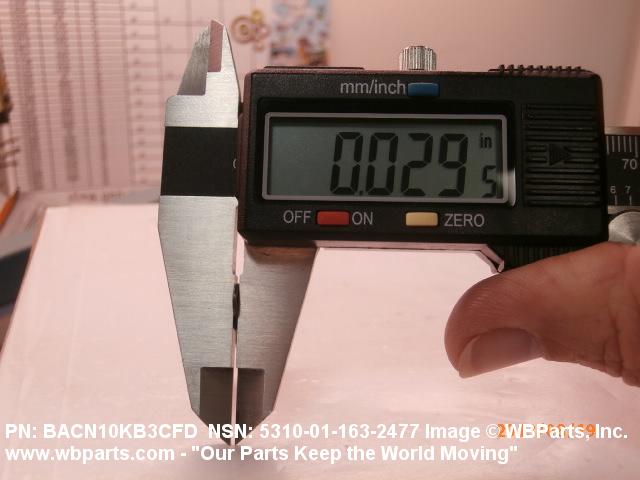

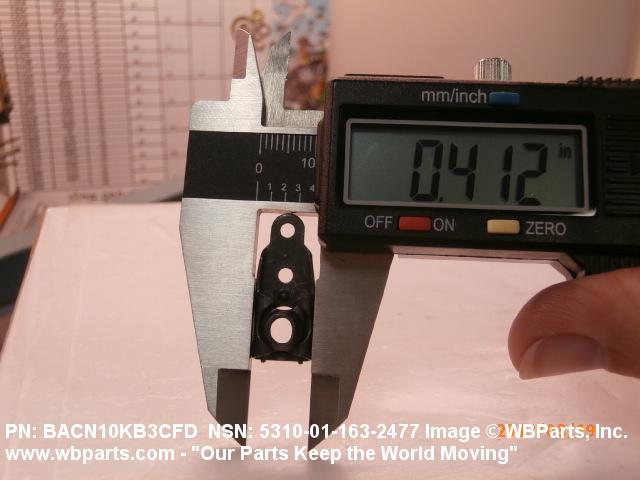

| NUT LENGTH | 1.051 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.032 INCHES MAXIMUM |
| PLATE WIDTH | 0.422 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.060 INCHES NOMINAL NUT |
| COUNTERBORE DIAMETER | 0.194 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F44 2 HOLES |

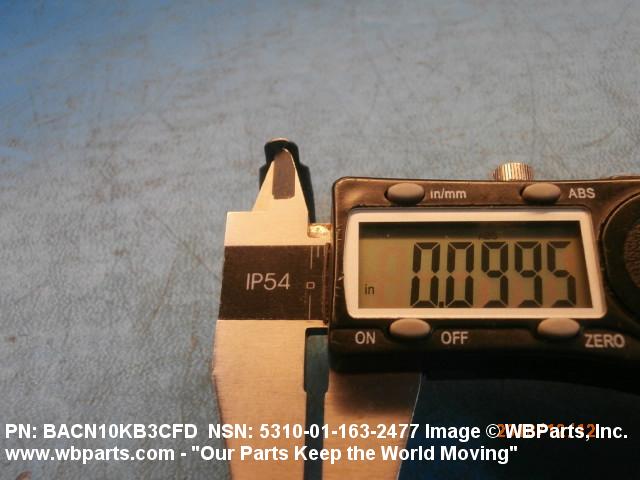

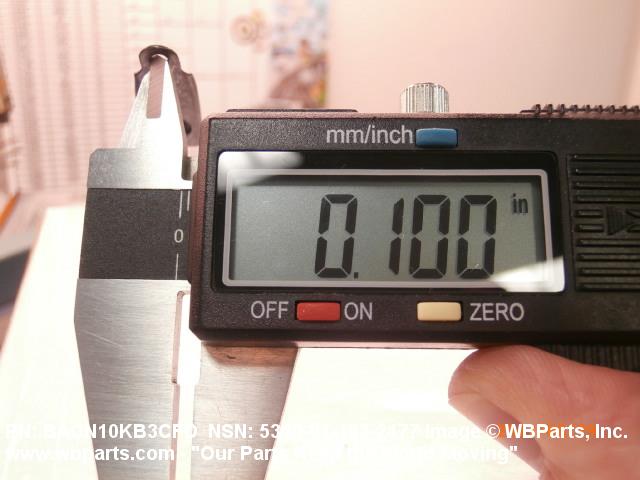

| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
