Product Details | PLATE SELF-LOCKING NUT

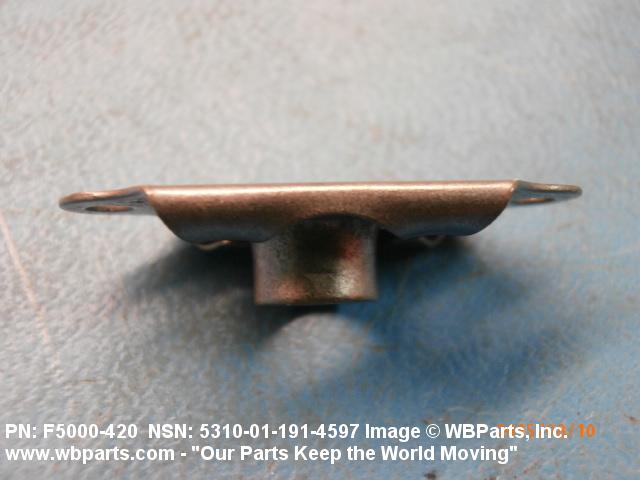

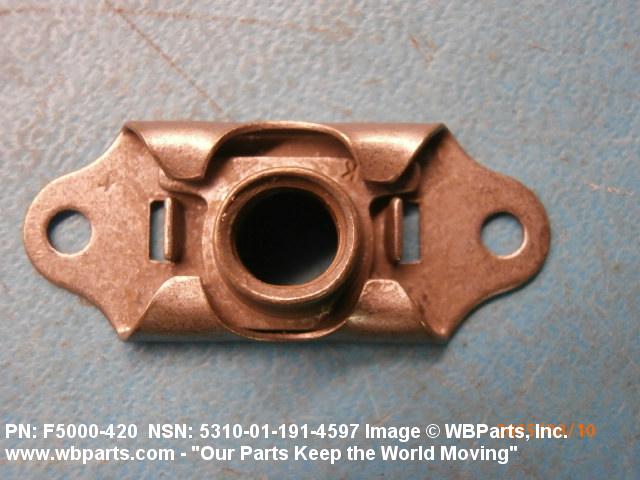

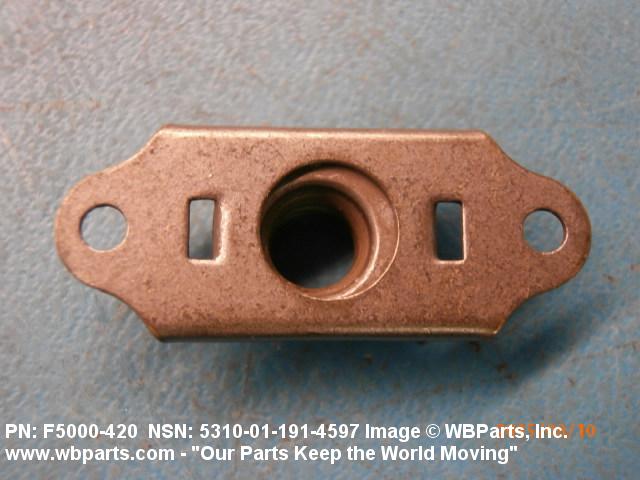

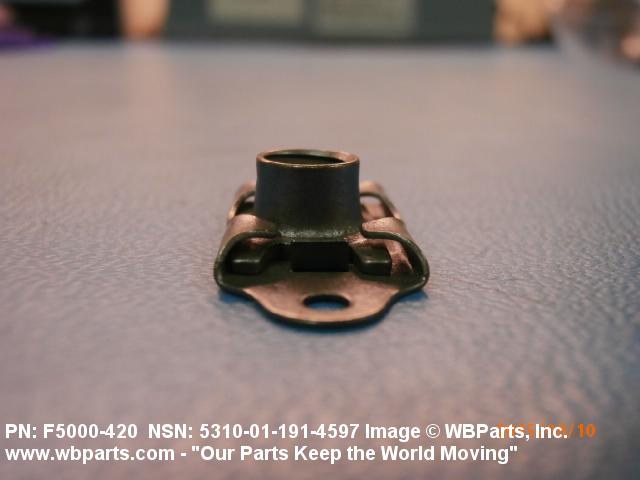

5310-01-191-4597 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: F5000420, F5000-420, GN502AM040, MILSTD130, MIL-STD-130, 13605040, 13605-040, 5310-01-191-4597, 01-191-4597, 5310011914597, 011914597

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 OCT 1984	01-191-4597	05280 ( NUT, SELF-LOCKING, PLATE )

Drawings & Photos | NSN 5310-01-191-4597

Part Number	Request Date	QTY	Origin
5310-01-191-4597	2017-12-341	1	US
5310-01-191-4597	2017-07-186	100	US
5310-01-191-4597	2016-05-146	32	United States
5310-01-191-4597	2016-05-146	32	United States
5310-01-191-4597	2015-07-203	32	United States
F5000420	2012-04-115	16	US
5310-01-191-4597	2010-05-130	100	US
5310-01-191-4597	2009-03-72	400	UM
F5000420	2008-08-220	160	US

Cross Reference | NSN 5310-01-191-4597

Part Number	Cage Code	Manufacturer
13605-040	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
F5000-420	15653	ALCOA GLOBAL FASTENERS, INC.
F5000-420	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
GN502AM040	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MIL-STD-130	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-191-4597

Compare

Related Products | NSN 5310-01-191-4597

5310-01-191-4599, 5310-01-191-4757, 5310-01-191-5191, 5310-01-191-5304, 5310-01-191-5305

Technical Data | NSN 5310-01-191-4597

Characteristic	Specifications
THREAD SERIES	UNJC

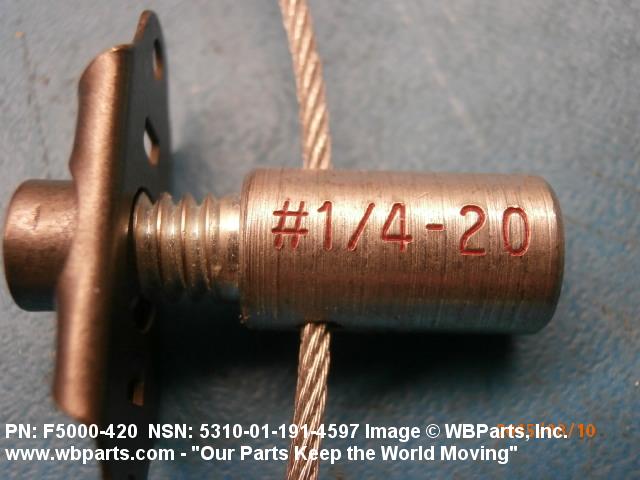

NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OR CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 1 CLASS 1 OR CLASS 2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TYPE 2 CLASS 1 OR CLASS 2 FED SPEC 2ND TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A116 PLATE
NUT LENGTH	1.292 INCHES MAXIMUM
NUT HEIGHT	0.281 INCHES MAXIMUM

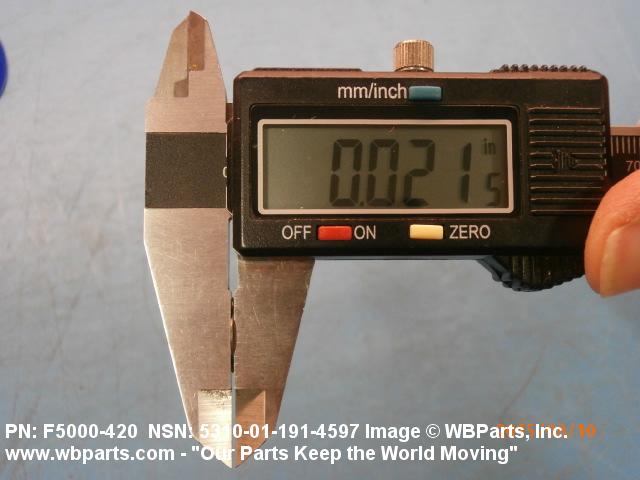

PLATE THICKNESS	0.025 INCHES NOMINAL

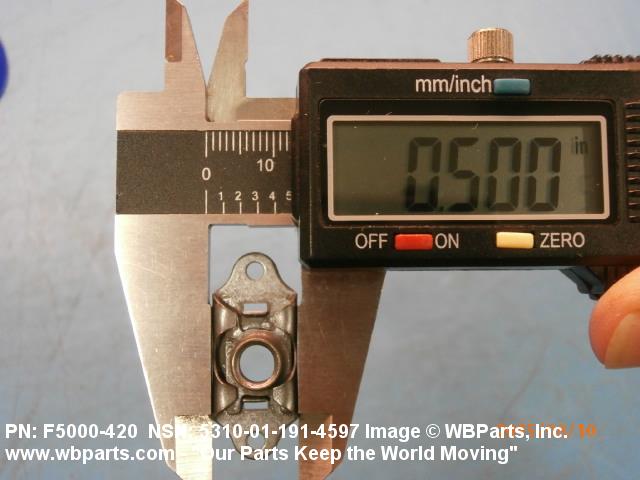

PLATE WIDTH	0.516 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN

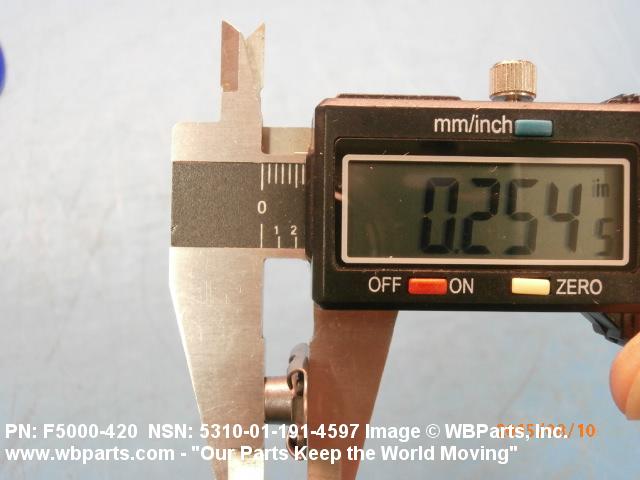

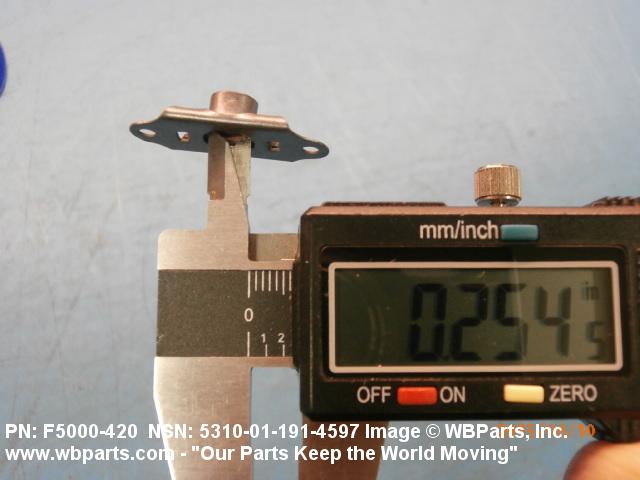

COUNTERBORE DIAMETER	0.254 INCHES MINIMUM BASE
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

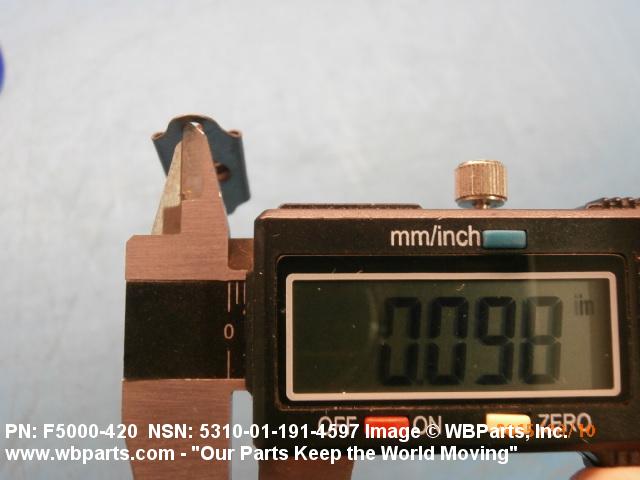

MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM

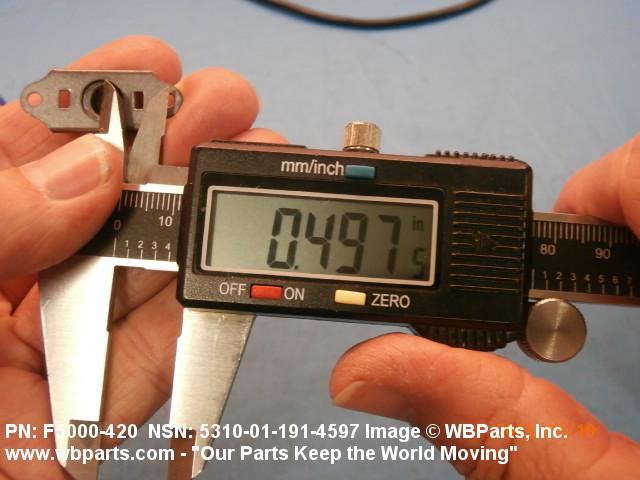

DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM

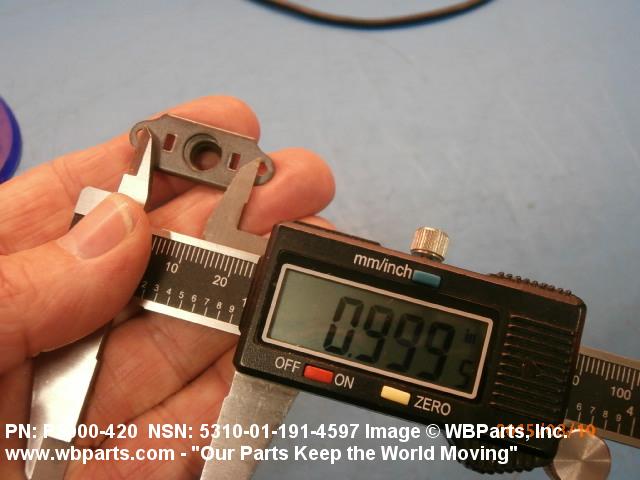

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM
