NSN 5310-01-223-7139 14000720192, 140-007-20-19-2, 01-223-7139
Product Details | RECESSED WASHER
5310-01-223-7139 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: 14000720192, 140-007-20-19-2, 5310-01-223-7139, 01-223-7139, 5310012237139, 012237139
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JAN 1986 | 01-223-7139 | 15933 ( WASHER, RECESSED ) |

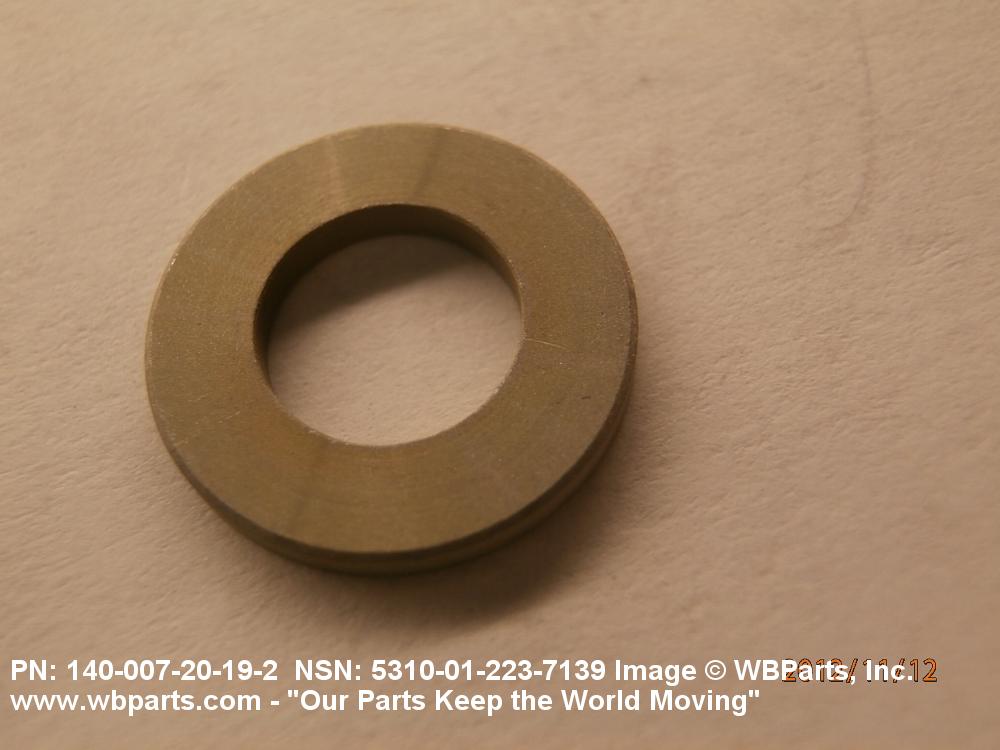

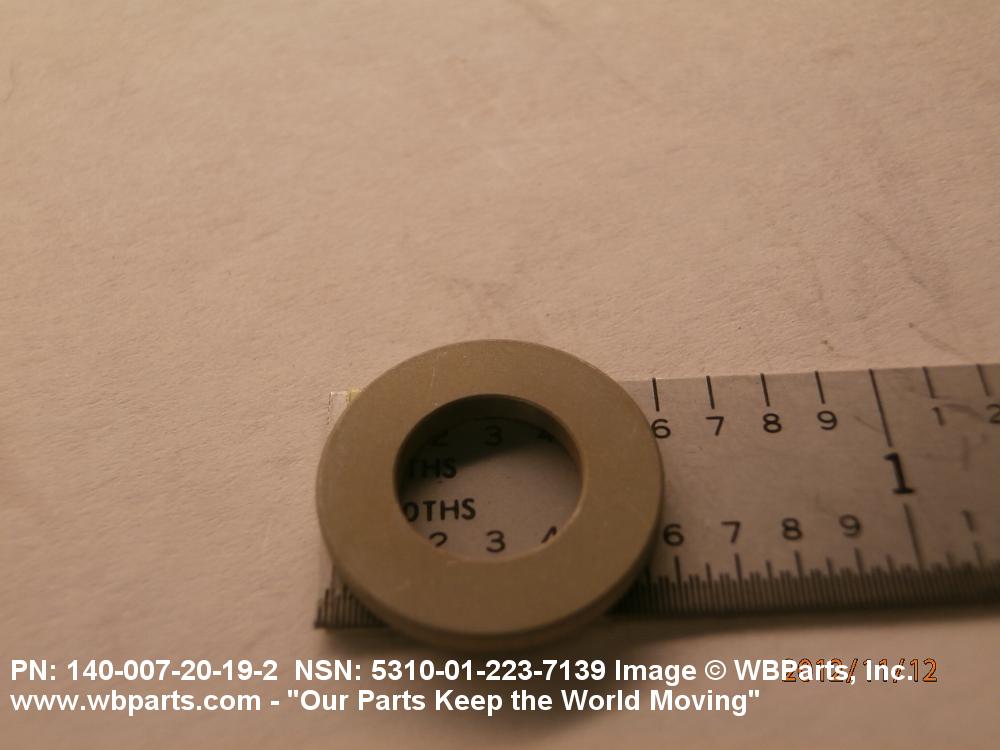

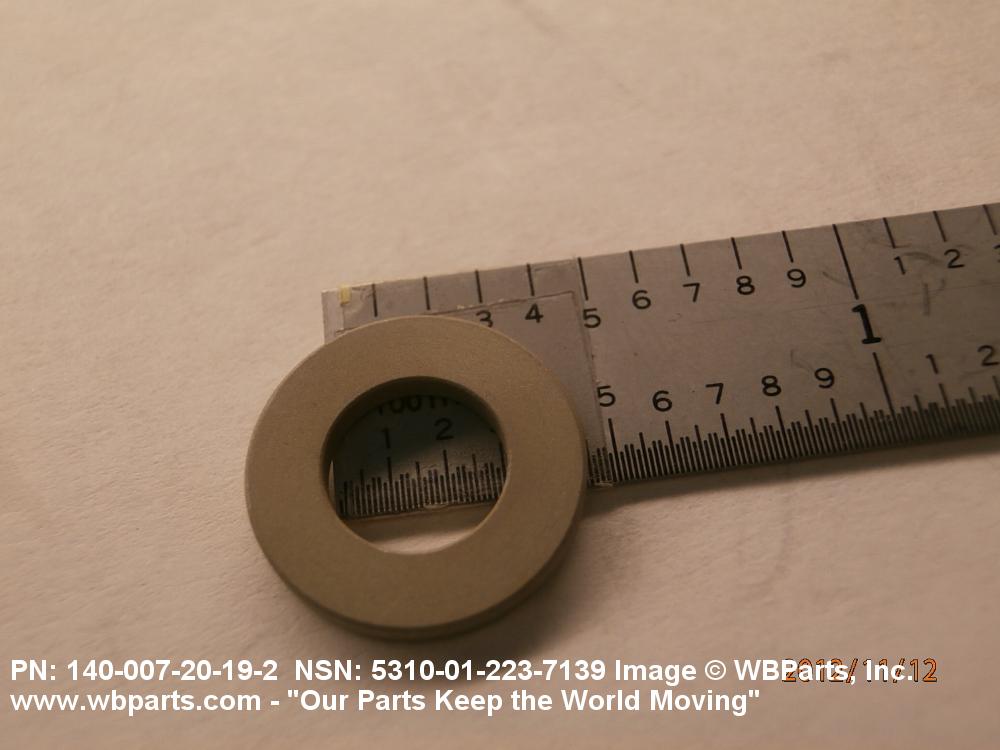

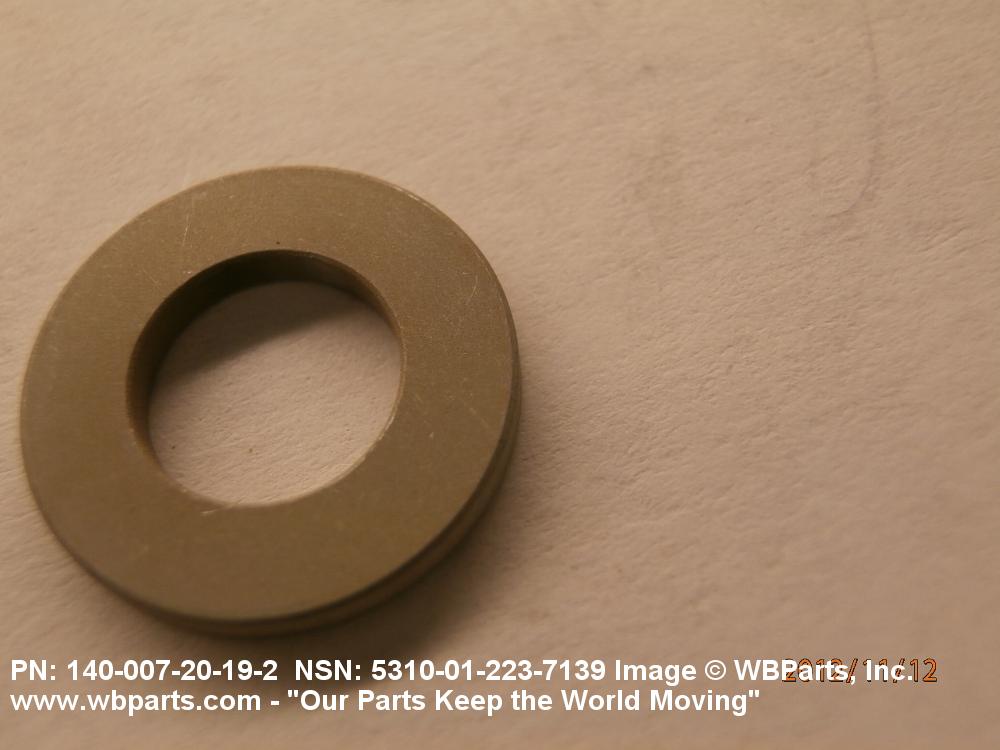

Drawings & Photos | NSN 5310-01-223-7139
Demand History | NSN 5310-01-223-7139
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-223-7139 | 2023-05-135 | 32 | US |
| 5310-01-223-7139 | 2012-11-306 | 8 | United States |
| 5310-01-223-7139 | 2012-10-300 | 8 | United States |
| 5310-01-223-7139 | 2012-08-243 | 30 | DIBBS |
| 5310-01-223-7139 | 2012-06-159 | 10734 | DIBBS |
| 5310-01-223-7139 | 2012-05-130 | 11486 | DIBBS |
| 140-007-20-19-2 | 2012-04-114 | 25 | Taiwan |
| 5310-01-223-7139 | 2012-04-114 | 25 | MANUAL |
| 5310-01-223-7139 | 2011-03-80 | 9757 | DIBBS |
| 5310-01-223-7139 | 2010-04-120 | 1487 | DIBBS |
| 5310-01-223-7139 | 2010-01-14 | 2470 | DIBBS |
| 5310-01-223-7139 | 2009-02-55 | 1086 | DIBBS |
| 5310-01-223-7139 | 2009-02-48 | 698 | DIBBS |
| 5310-01-223-7139 | 2008-12-343 | 1085 | DIBBS |
| 5310-01-223-7139 | 2008-10-303 | 1056 | DIBBS |
| 5310-01-223-7139 | 2008-08-235 | 2360 | DIBBS |
| 5310-01-223-7139 | 2008-01-28 | 318 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-223-7139
Related Products | NSN 5310-01-223-7139
Technical Data | NSN 5310-01-223-7139
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6485 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-8837 MIL SPEC ALL TREATMENT RESPONSES OVERALL |
| COLOR | YELLOW OR BROWN OVERALL |
| STYLE DESIGNATOR | 28 RECESSED BOTH SIDES |
| HOLE DIAMETER | 0.312 INCHES MINIMUM AND 0.319 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.584 INCHES MINIMUM AND 0.604 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.062 INCHES MINIMUM AND 0.071 INCHES MAXIMUM |
| TOP RECESS DIAMETER | 0.352 INCHES MINIMUM AND 0.379 INCHES MAXIMUM |
| BOTTOM RECESS DIAMETER | 0.352 INCHES MINIMUM AND 0.379 INCHES MAXIMUM |
| BOTTOM RECESS ANGLE | 89.0 DEGREES MINIMUM AND 91.0 DEGREES MAXIMUM |
| TOP RECESS ANGLE | 89.0 DEGREES MINIMUM AND 91.0 DEGREES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES TOP 63.0 MICROINCHES BOTTOM |
| SPECIAL FEATURES | SURFACES ARE VACUUM PLATED |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY HEAT TREAT PER MIL-H-6875 |
| III MINIMUM TENSILE STRENGTH | 240000 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 5310-01-223-7139
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-223-7139
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
