NSN 5310-01-231-5183 SS25KB451, 7010216-28, 01-231-5183
Product Details | BLIND RIVET PLAIN NUT
5310-01-231-5183 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: SS25KB451, 7010216-28, 5310-01-231-5183, 01-231-5183, 5310012315183, 701021628, 012315183
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 APR 1986 | 01-231-5183 | 01873 ( NUT, PLAIN, BLIND RIVET ) |

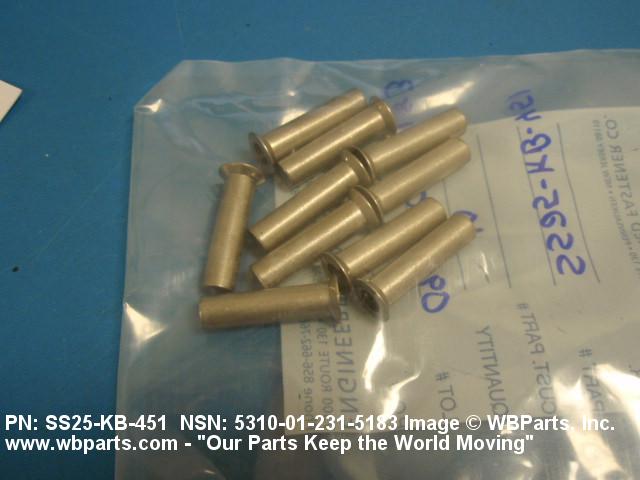

Drawings & Photos | NSN 5310-01-231-5183
Demand History | NSN 5310-01-231-5183
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS25KB451 | 2009-07-195 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-231-5183
Technical Data | NSN 5310-01-231-5183
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 430 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.328 INCHES MINIMUM AND |
| NUT LENGTH | 1.297 INCHES MINIMUM AND |
| NUT GRIP RANGE | 0.391 TO 0.451 INCHES |
| HEAD STYLE | FLAT COUNTERSUNK REVERSE KEYED |
| HEAD DIAMETER | 0.514 INCHES MINIMUM AND |
| KEY LENGTH | 0.089 INCHES NOMINAL |
| HEAD HEIGHT | 0.089 INCHES NOMINAL |
| HEAD COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND |
| SHANK END TYPE | CLOSED |
Restrictions/Controls & Freight Information | NSN 5310-01-231-5183
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
