NSN 5310-01-232-3542 NAS577B4A, F18004, F1800-4
Product Details | BARREL SELF-LOCKING NUT
5310-01-232-3542 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.
Part Alternates: NAS577B4A, F18004, F1800-4, 5310-01-232-3542, 01-232-3542, 5310012323542, 012323542
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAY 1986 | 01-232-3542 | 15891 ( NUT, SELF-LOCKING, BARREL ) |

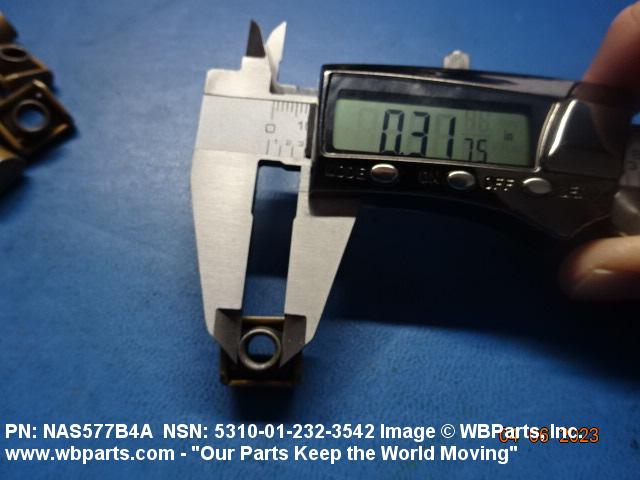

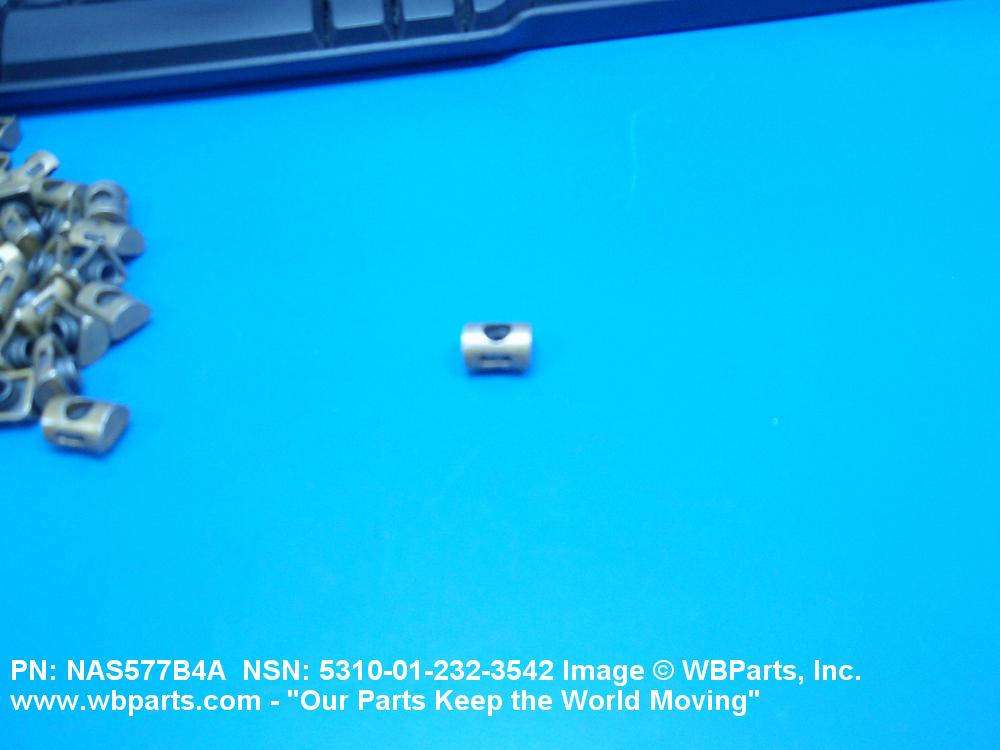

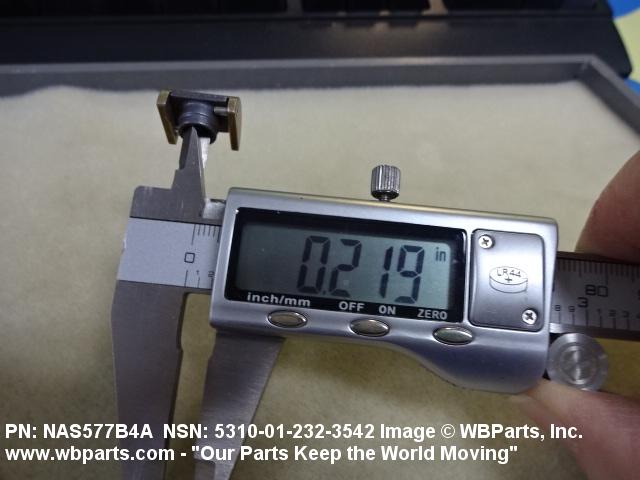

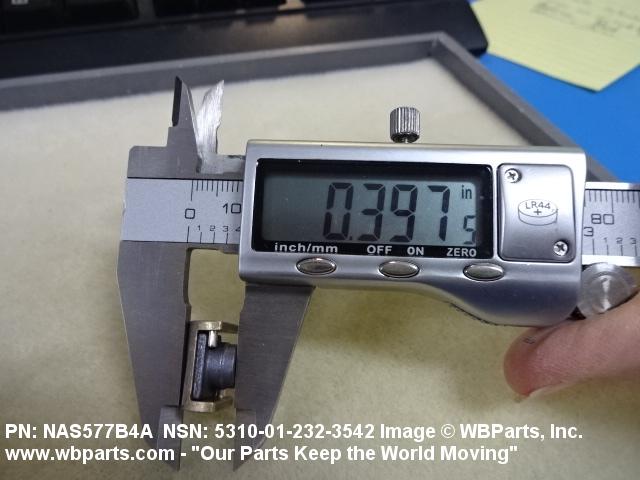

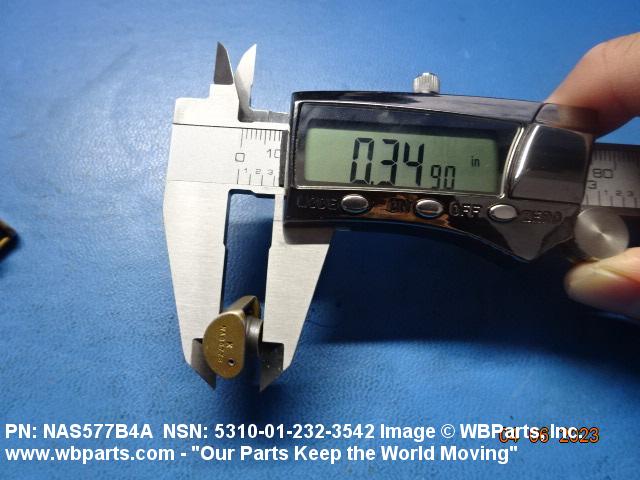

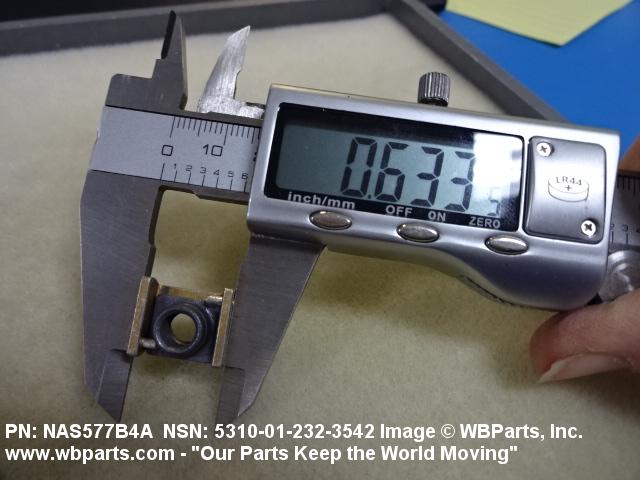

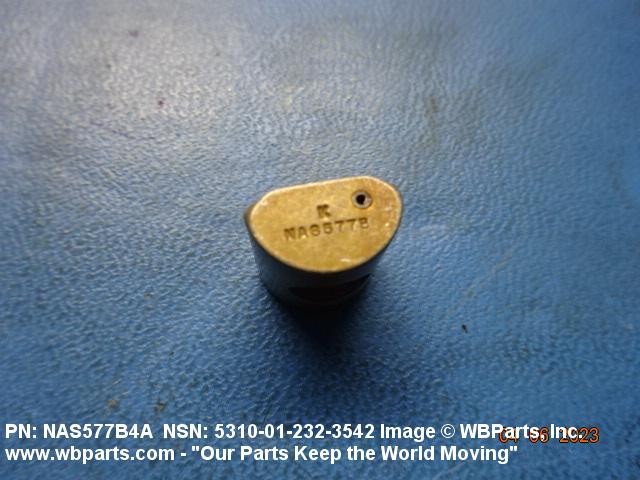

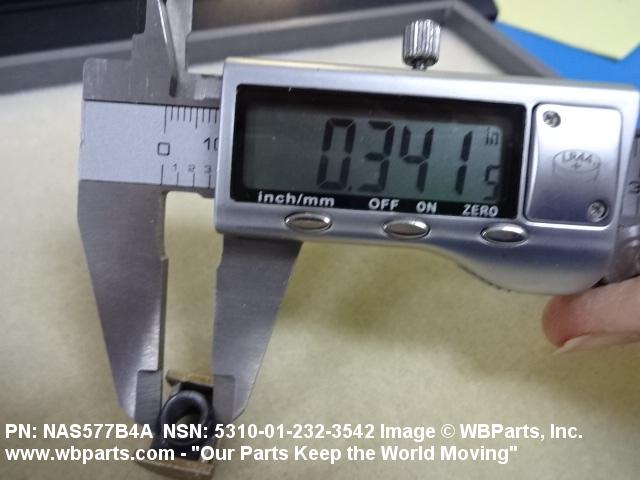

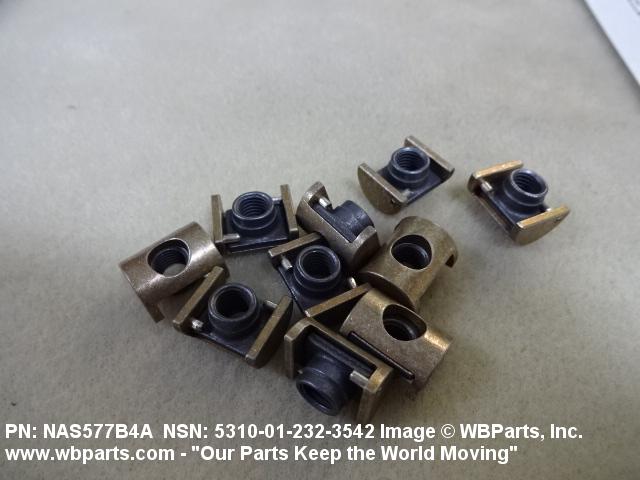

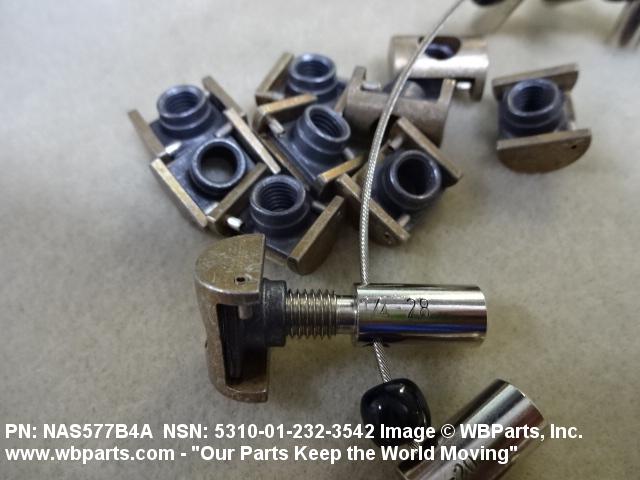

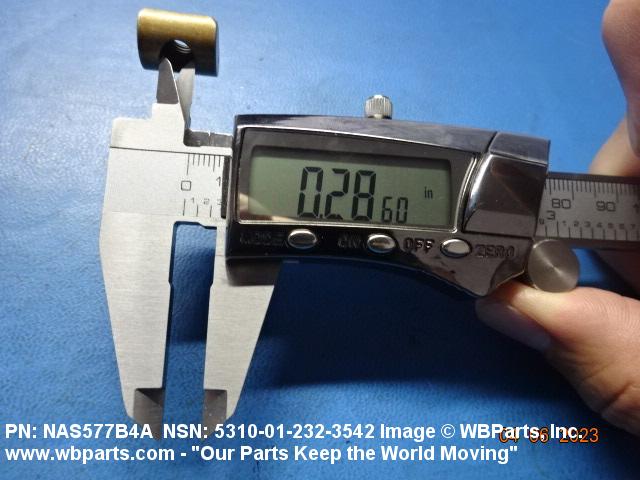

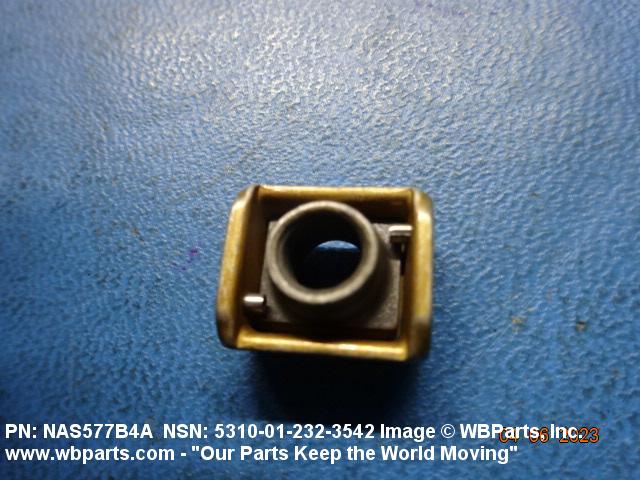

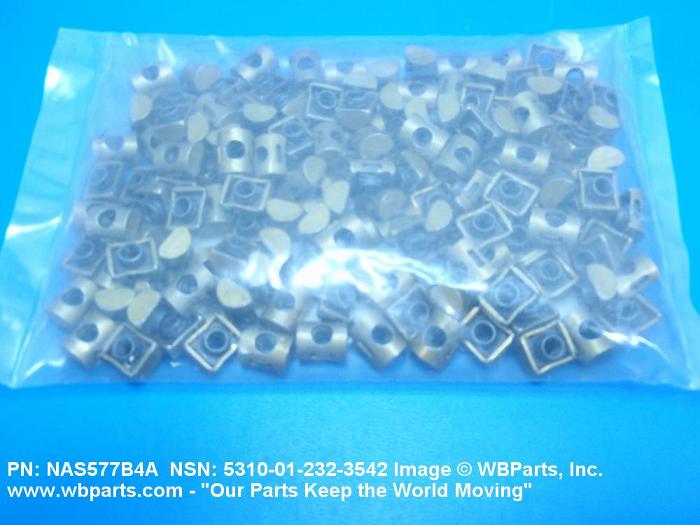

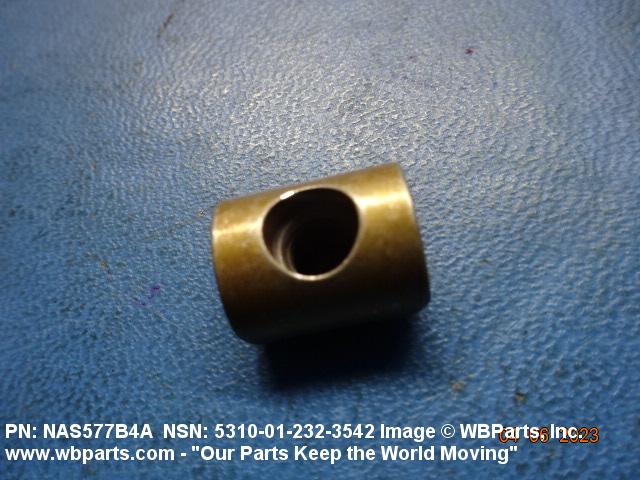

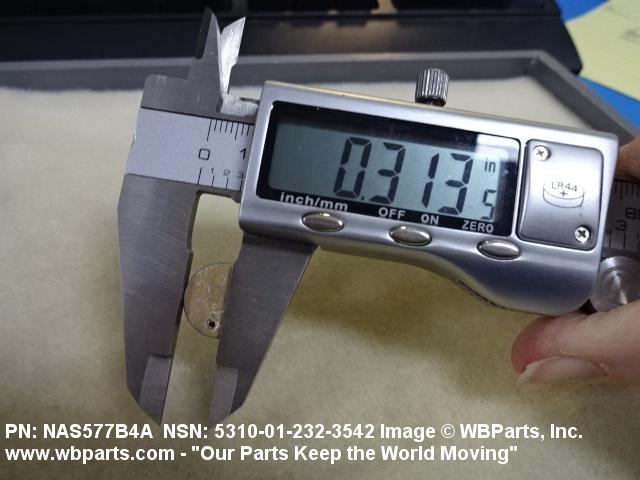

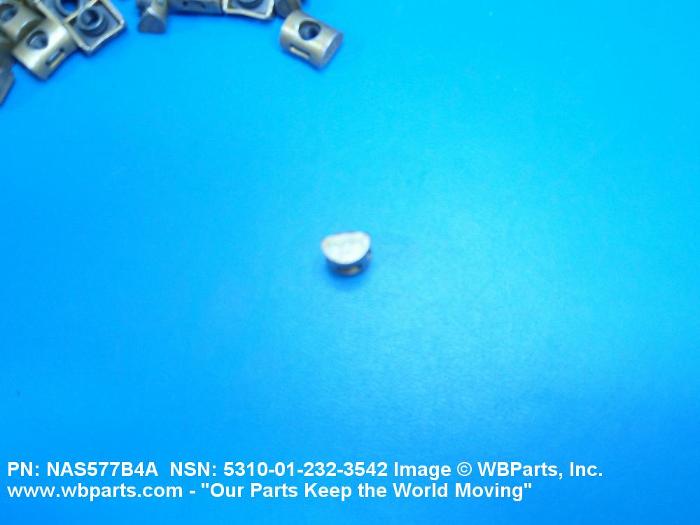

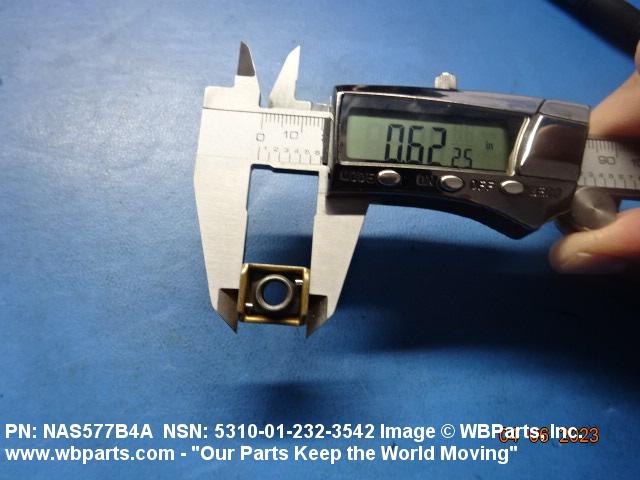

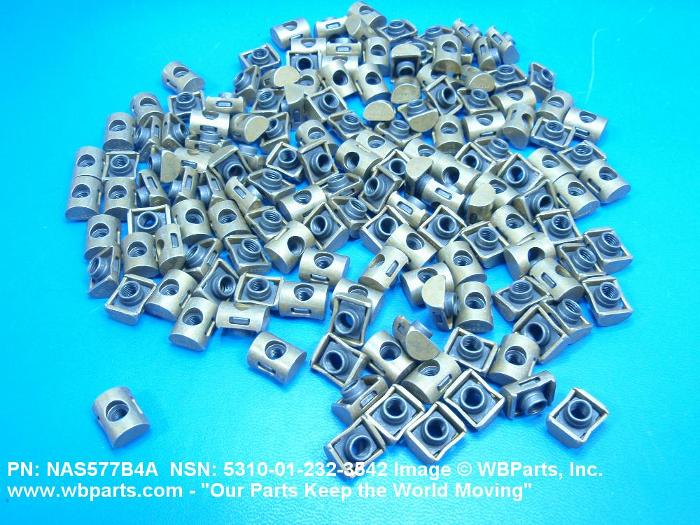

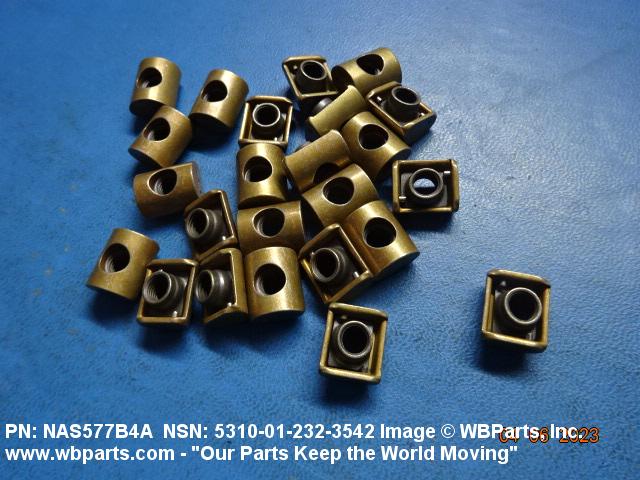

Drawings & Photos | NSN 5310-01-232-3542
Demand History | NSN 5310-01-232-3542
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS577B4A | 2025-06-154 | 5 | United States |
| NAS577B4A | 2025-06-154 | 2594 | DIBBS |
| NAS577B4A | 2025-06-154 | 3208 | DIBBS |
| NAS577B4A | 2025-05-149 | 252 | DIBBS |
| NAS577B4A | 2025-05-149 | 2594 | DIBBS |
| NAS577B4A | 2025-01-21 | 2989 | DIBBS |
| NAS577B4A | 2024-11-319 | 378 | DIBBS |
| 5310-01-232-3542 | 2024-10-277 | 30 | Taiwan |
| NAS577B4A | 2024-09-256 | 1216 | DIBBS |
| NAS577B4A | 2024-09-247 | 1216 | DIBBS |
| NAS577B4A | 2024-08-239 | 1216 | DIBBS |
| NAS577B4A | 2024-08-231 | 1216 | DIBBS |
| 5310-01-232-3542 | 2024-08-221 | 200 | Sweden |
| NAS577B4A | 2024-06-162 | 80 | us |
| NAS577B4A | 2024-06-161 | 2830 | DIBBS |
| NAS577B4A | 2024-02-51 | 4403 | DIBBS |
| 5310-01-232-3542 | 2024-01-03 | 24 | United States |
| NAS577B4A | 2023-12-340 | 2022 | DIBBS |
| 5310-01-232-3542 | 2023-03-87 | 24 | United Kingdom |
| NAS577B4A | 2019-11-325 | 20 | United States |
| NAS577B4A | 2019-06-171 | 1 | United States |
| NAS577B4A | 2019-05-135 | 800 | United States |
| NAS577B4A | 2019-04-115 | 4 | US |
| 5310-01-232-3542 | 2018-10-294 | 3768 | DIBBS |
| NAS577B4A | 2018-09-269 | 400 | US |
| NAS577B4A | 2018-08-234 | 2 | US |
| 5310-01-232-3542 | 2018-07-189 | 2382 | DIBBS |
| 5310-01-232-3542 | 2018-04-107 | 7078 | DIBBS |
| 5310-01-232-3542 | 2018-03-67 | 3785 | DIBBS |
| 5310-01-232-3542 | 2017-12-345 | 3293 | DIBBS |
| NAS577B4A | 2017-11-310 | 10 | United States |
| NAS577B4A | 2017-10-290 | 20 | United States |
| NAS577B4A | 2017-08-234 | 8 | LB |
| NAS577B4A | 2016-10-293 | 10 | Taiwan |
| NAS577B4A | 2016-09-252 | 9 | United States |
| 5310-01-232-3542 | 2016-06-158 | 4388 | DIBBS |
| 5310-01-232-3542 | 2016-03-90 | 2239 | DIBBS |
| 5310-01-232-3542 | 2015-07-201 | 2748 | DIBBS |
| 5310-01-232-3542 | 2015-07-188 | 2748 | DIBBS |
| 5310-01-232-3542 | 2014-12-337 | 2425 | DIBBS |
| NAS577B4A | 2014-11-314 | 4 | IN |
| 5310-01-232-3542 | 2014-09-246 | 2946 | DIBBS |
| NAS577B4A | 2014-05-140 | 5 | Taiwan |
| 5310-01-232-3542 | 2013-08-241 | 4485 | DIBBS |
| NAS577B4A | 2013-07-200 | 60 | |
| NAS577B4A | 2011-03-81 | 50 | Australia |
| 5310-01-232-3542 | 2009-08-224 | 50 | IL |
| 5310-01-232-3542 | 2008-11-326 | 1000 | US |
| 5310-01-232-3542 | 2008-10-282 | 150 | United States |
| NAS577B4A | 2007-10-290 | 10 | Israel |
| NAS577B4A | 2007-01-02 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-232-3542
Related Products | NSN 5310-01-232-3542
Technical Data | NSN 5310-01-232-3542
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| THREAD SERIES | UNJF |
| NUT STYLE | FLOATING SELF-LOCKING BARREL |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| BARREL HEIGHT | 0.310 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 28 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-8844 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| NUT LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| HARDNESS RATING | NOT RATED |
| NUT DIAMETER | 0.525 INCHES MINIMUM AND 0.528 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4340 OVERALL |
| NUT HEIGHT | 0.406 INCHES MAXIMUM |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| FEATURES PROVIDED | FLOATING NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD CLASS | 3B |
| SPECIFICATION/STANDARD DATA | 80205-NAS577 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-232-3542
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
