NSN 5310-01-234-1685 CG2057130513, 01-234-1685, 012341685
Product Details | KEY WASHER
5310-01-234-1685 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: CG2057130513, 5310-01-234-1685, 01-234-1685, 5310012341685, 012341685
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 1986 | 01-234-1685 | 01869 ( WASHER, KEY ) |

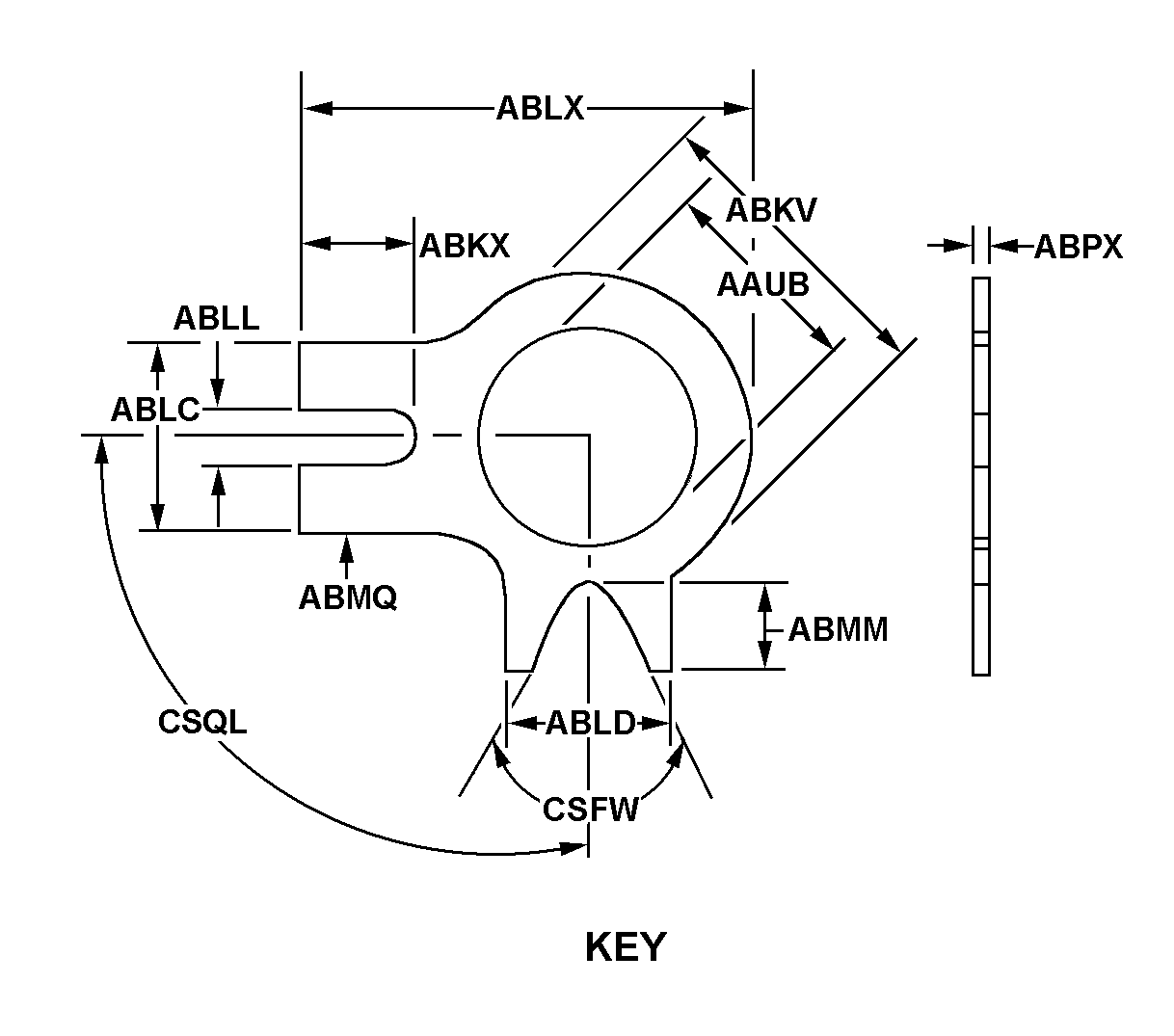

Drawings & Photos | NSN 5310-01-234-1685
Cross Reference | NSN 5310-01-234-1685
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CG2057130513 | 56852 | DASSAULT FALCON JET CORP. DIV DASSAULT FALCON JET - WILMINGTON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-234-1685
Technical Data | NSN 5310-01-234-1685
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 164 KEY |
| EXTERNAL KEY QUANTITY | 4 |
| HOLE DIAMETER | 0.312 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.594 INCHES NOMINAL |
| EXTERNAL STRAIGHT KEY LENGTH | 0.156 INCHES NOMINAL |
| EXTERNAL STRAIGHT KEY WIDTH | 0.312 INCHES NOMINAL |
| EXTERNAL TAPERED KEY WIDTH | 0.312 INCHES NOMINAL |
| EXTERNAL KEYWAY WIDTH | 0.125 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 0.719 INCHES NOMINAL |
| SPLIT KEY LENGTH | 0.219 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| ANGLE BETWEEN EXTERNAL KEYS | 45.0 DEGREES NOMINAL |
| ANGLE BETWEEN EXTERNAL KEY CENTERLINES | 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 56852 |
| DESIGN CONTROL REFERENCE | CG2057130513 |
Restrictions/Controls & Freight Information | NSN 5310-01-234-1685
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-234-1685
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
