NSN 5310-01-248-8389 BACN10KE3B2C, BACN10KE3B2CM, F5174732
Product Details | PLATE SELF-LOCKING NUT
5310-01-248-8389 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10KE3B2C, BACN10KE3B2CM, F5174732, F51747-3-2, 101F921323, 101F9213-2-3, 5310-01-248-8389, 01-248-8389, 5310012488389, 012488389
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 JAN 1987 | 01-248-8389 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

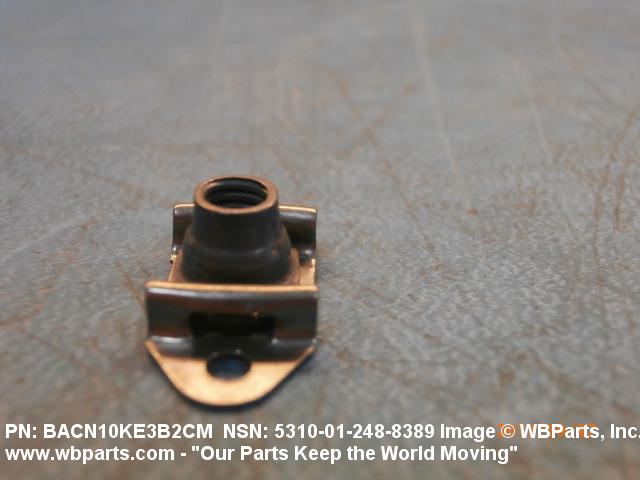

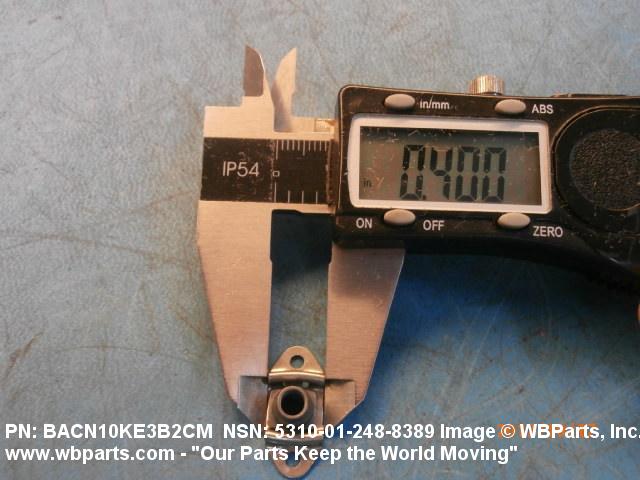

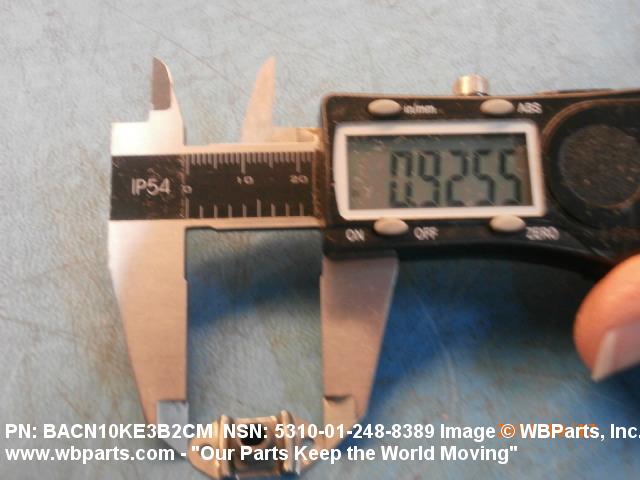

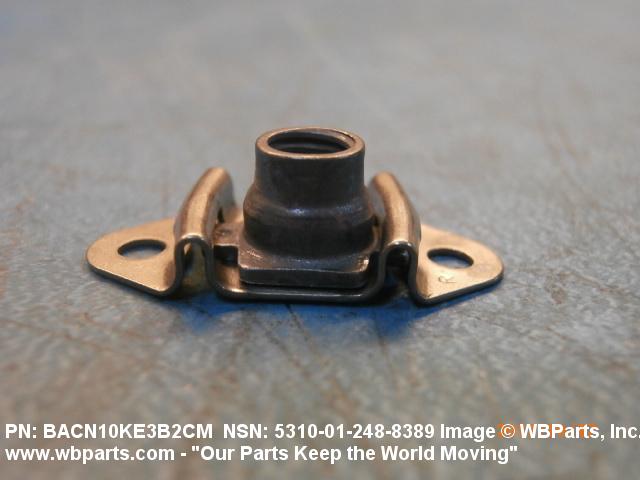

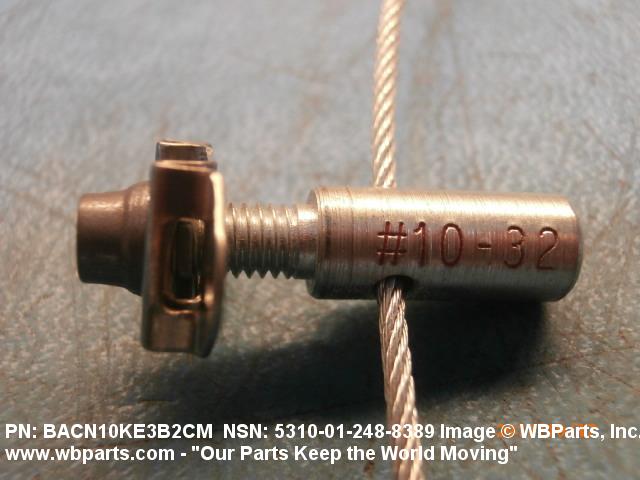

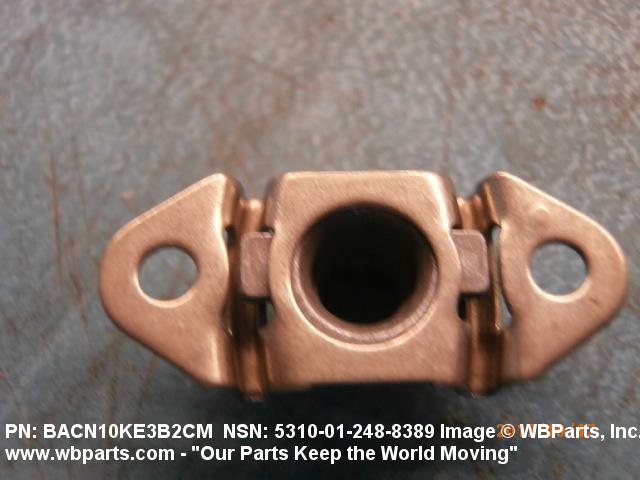

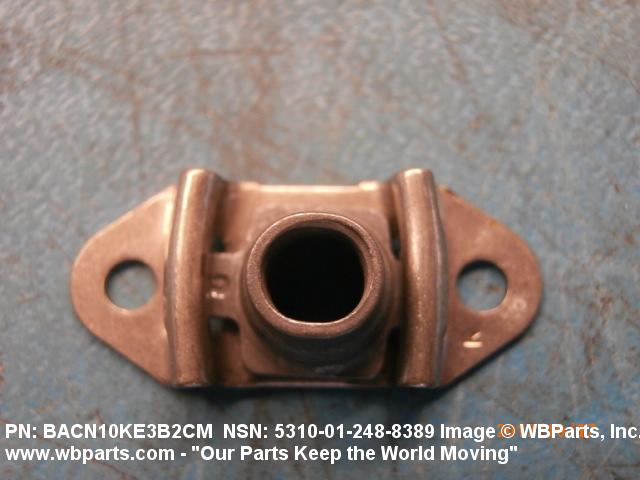

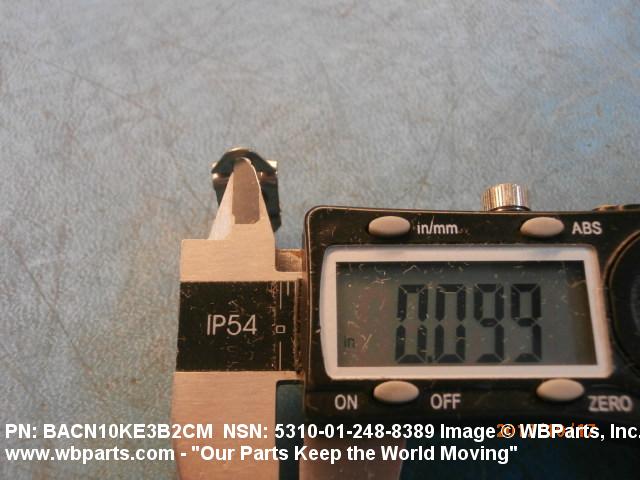

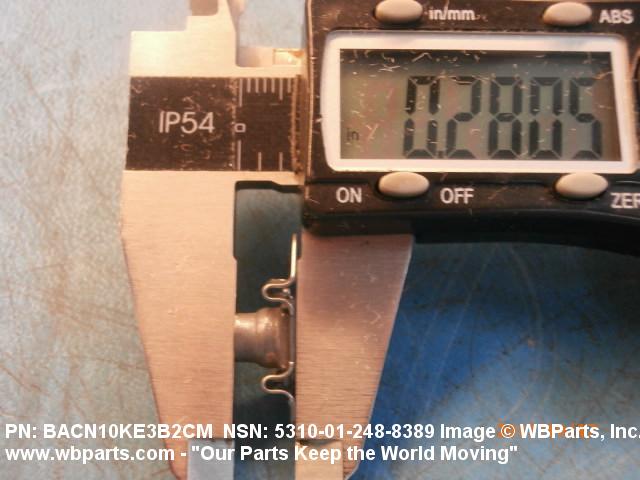

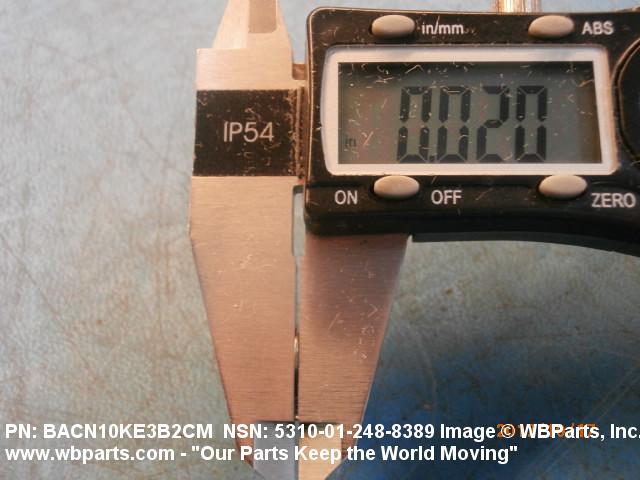

Drawings & Photos | NSN 5310-01-248-8389
Demand History | NSN 5310-01-248-8389
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 101F9213-2-3 | 2024-05-148 | 1 | DIBBS |
| BACN10KE3B2C | 2024-05-148 | 1 | DIBBS |
| BACN10KE3B2CM | 2024-05-148 | 1 | DIBBS |
| F51747-3-2 | 2024-05-148 | 1 | DIBBS |
| 101F9213-2-3 | 2023-06-157 | 35 | DIBBS |
| BACN10KE3B2C | 2023-06-157 | 35 | DIBBS |
| BACN10KE3B2CM | 2023-06-157 | 35 | DIBBS |
| F51747-3-2 | 2023-06-157 | 35 | DIBBS |
| 101F9213-2-3 | 2023-03-89 | 1 | DIBBS |
| BACN10KE3B2C | 2023-03-89 | 1 | DIBBS |
| BACN10KE3B2CM | 2023-03-89 | 1 | DIBBS |
| F51747-3-2 | 2023-03-89 | 1 | DIBBS |
| 101F9213-2-3 | 2023-03-82 | 1 | DIBBS |
| BACN10KE3B2C | 2023-03-82 | 1 | DIBBS |
| BACN10KE3B2CM | 2023-03-82 | 1 | DIBBS |
| F51747-3-2 | 2023-03-82 | 1 | DIBBS |
| 101F9213-2-3 | 2023-02-57 | 2 | DIBBS |
| BACN10KE3B2C | 2023-02-57 | 2 | DIBBS |
| BACN10KE3B2CM | 2023-02-57 | 2 | DIBBS |
| F51747-3-2 | 2023-02-57 | 2 | DIBBS |
| 101F9213-2-3 | 2023-01-26 | 1 | DIBBS |
| BACN10KE3B2C | 2023-01-26 | 1 | DIBBS |
| BACN10KE3B2CM | 2023-01-26 | 1 | DIBBS |
| F51747-3-2 | 2023-01-26 | 1 | DIBBS |
| 101F9213-2-3 | 2022-11-331 | 1 | DIBBS |
| BACN10KE3B2C | 2022-11-331 | 1 | DIBBS |
| BACN10KE3B2CM | 2022-11-331 | 1 | DIBBS |
| F51747-3-2 | 2022-11-331 | 1 | DIBBS |
| 101F9213-2-3 | 2022-07-195 | 1 | DIBBS |
| BACN10KE3B2C | 2022-07-195 | 1 | DIBBS |
| BACN10KE3B2CM | 2022-07-195 | 1 | DIBBS |
| F51747-3-2 | 2022-07-195 | 1 | DIBBS |
| 101F9213-2-3 | 2020-12-344 | 1 | DIBBS |
| BACN10KE3B2C | 2020-12-344 | 1 | DIBBS |
| BACN10KE3B2CM | 2020-12-344 | 1 | DIBBS |
| F51747-3-2 | 2020-12-344 | 1 | DIBBS |
| 101F9213-2-3 | 2020-08-222 | 25 | DIBBS |
| BACN10KE3B2C | 2020-08-222 | 25 | DIBBS |
| BACN10KE3B2CM | 2020-08-222 | 25 | DIBBS |
| F51747-3-2 | 2020-08-222 | 25 | DIBBS |
| 101F9213-2-3 | 2020-04-114 | 1 | DIBBS |
| BACN10KE3B2C | 2020-04-114 | 1 | DIBBS |
| BACN10KE3B2CM | 2020-04-114 | 1 | DIBBS |
| F51747-3-2 | 2020-04-114 | 1 | DIBBS |
| 101F9213-2-3 | 2020-04-93 | 1 | DIBBS |
| BACN10KE3B2C | 2020-04-93 | 1 | DIBBS |
| BACN10KE3B2CM | 2020-04-93 | 1 | DIBBS |
| F51747-3-2 | 2020-04-93 | 1 | DIBBS |
| 101F9213-2-3 | 2019-10-287 | 1 | DIBBS |
| BACN10KE3B2C | 2019-10-287 | 1 | DIBBS |
| BACN10KE3B2CM | 2019-10-287 | 1 | DIBBS |
| F51747-3-2 | 2019-10-287 | 1 | DIBBS |
| 101F9213-2-3 | 2019-07-206 | 1 | DIBBS |
| BACN10KE3B2C | 2019-07-206 | 1 | DIBBS |
| BACN10KE3B2CM | 2019-07-206 | 1 | DIBBS |
| F51747-3-2 | 2019-07-206 | 1 | DIBBS |
| 5310-01-248-8389 | 2017-11-311 | 1 | DIBBS |
| 5310-01-248-8389 | 2017-08-240 | 16 | United States |
| 5310-01-248-8389 | 2017-01-22 | 6 | DIBBS |
| BACN10KE3B2CM | 2016-03-77 | 12 | United States |
| BACN10KE3B2CM | 2007-05-143 | 5000 | US |
Cross Reference | NSN 5310-01-248-8389
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-248-8389
Related Products | NSN 5310-01-248-8389
Technical Data | NSN 5310-01-248-8389
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.953 INCHES MAXIMUM |
| NUT HEIGHT | 0.290 INCHES MAXIMUM |
| PLATE THICKNESS | 0.030 INCHES MAXIMUM |
| PLATE WIDTH | 0.410 INCHES MAXIMUM |
| REMOVABLE NUT MANUFACTURER CODE | 15653 |
| REMOVABLE NUT MANUFACTURER PART NUMBER | F51747-3-2 |
| LOCKING FEATURE | ANY ACCEPTABLE |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 900.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-01-248-8389
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | 9Z | DLIS-K Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-248-8389
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
