NSN 5310-01-257-0726 M14650H054, M14650H-054, 900335
Product Details | PLATE SELF-LOCKING NUT

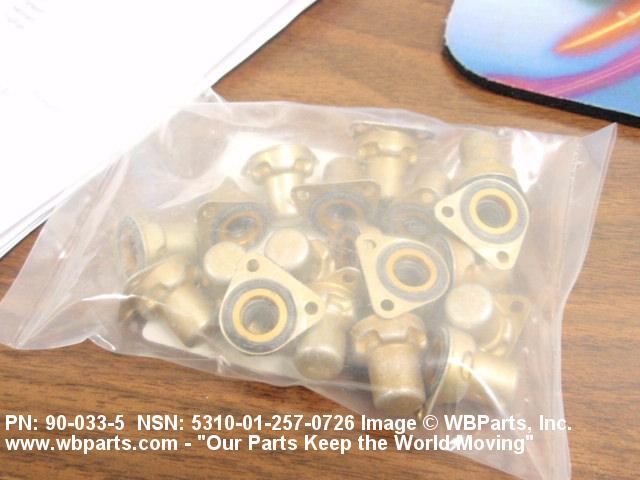

5310-01-257-0726 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: M14650H054, M14650H-054, 900335, 90-033-5, 14650H054, 14650H-054, 5310-01-257-0726, 01-257-0726, 5310012570726, 012570726
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUN 1987 | 01-257-0726 | 05280 ( NUT, SELF-LOCKING, PLATE ) |
Drawings & Photos | NSN 5310-01-257-0726
Demand History | NSN 5310-01-257-0726
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-257-0726 | 2017-11-317 | 28 | DIBBS |
| 14650H054 | 2013-02-44 | 50 | United States |
| 14650H054 | 2010-09-271 | 33 | United States |
| 900335 | 2010-09-271 | 19 | United States |
| 5310-01-257-0726 | 2010-09-247 | 33 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-257-0726
Related Products | NSN 5310-01-257-0726
Technical Data | NSN 5310-01-257-0726
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY BASE ALUMINUM ALLOY CAP STEEL NUT RUBBER SYNTHETIC SEAL STEEL SHELL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855,CLASS 1 GRADE 60 MIL SPEC 4TH MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | ANODIZE BASE CADMIUM AND CHROMATE SHELL CADMIUM AND CHROMATE BOTH ENDS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 3 FED SPEC 2ND TREATMENT RESPONSE SHELL QQ-P-416,TYPE 2 CLASS 3 FED SPEC 3RD TREATMENT RESPONSE BOTH ENDS |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A121 PLATE |
| OVERALL HEIGHT | 0.828 INCHES MAXIMUM |
| NUT LENGTH | 1.025 INCHES MAXIMUM |
| NUT HEIGHT | 0.372 INCHES MAXIMUM |
| PLATE THICKNESS | 0.030 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.135 INCHES NOMINAL NUT |
| COUNTERBORE DIAMETER | 0.372 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F53 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| TEMP RATING | 225.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 80539 |
| DESIGN CONTROL REFERENCE | 14650H-054 |
