NSN 5310-01-265-6043 ST3M862N1M142, ST3M862N1M14-2, 01-265-6043
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY
5310-01-265-6043 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: ST3M862N1M142, ST3M862N1M14-2, 5310-01-265-6043, 01-265-6043, 5310012656043, 012656043
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 OCT 1987 | 01-265-6043 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

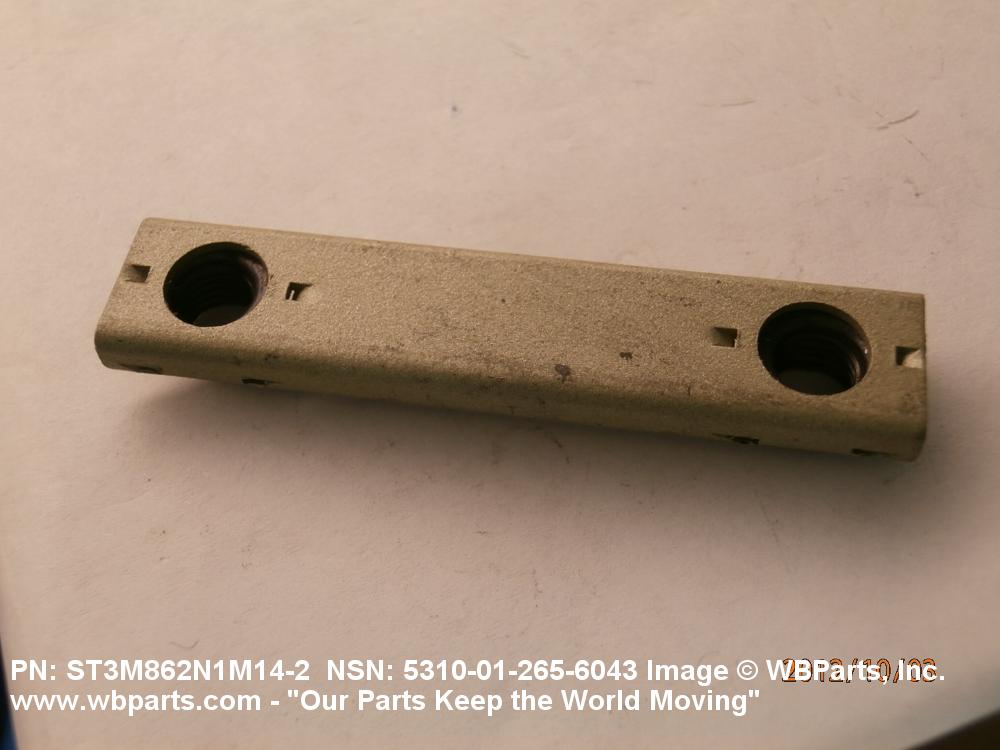

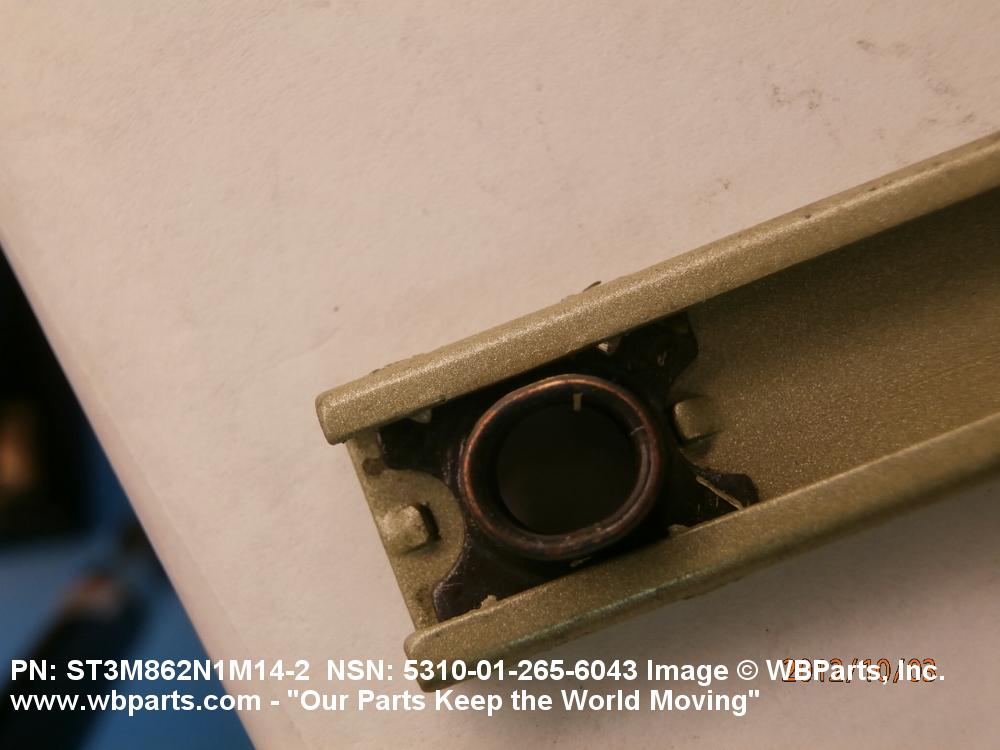

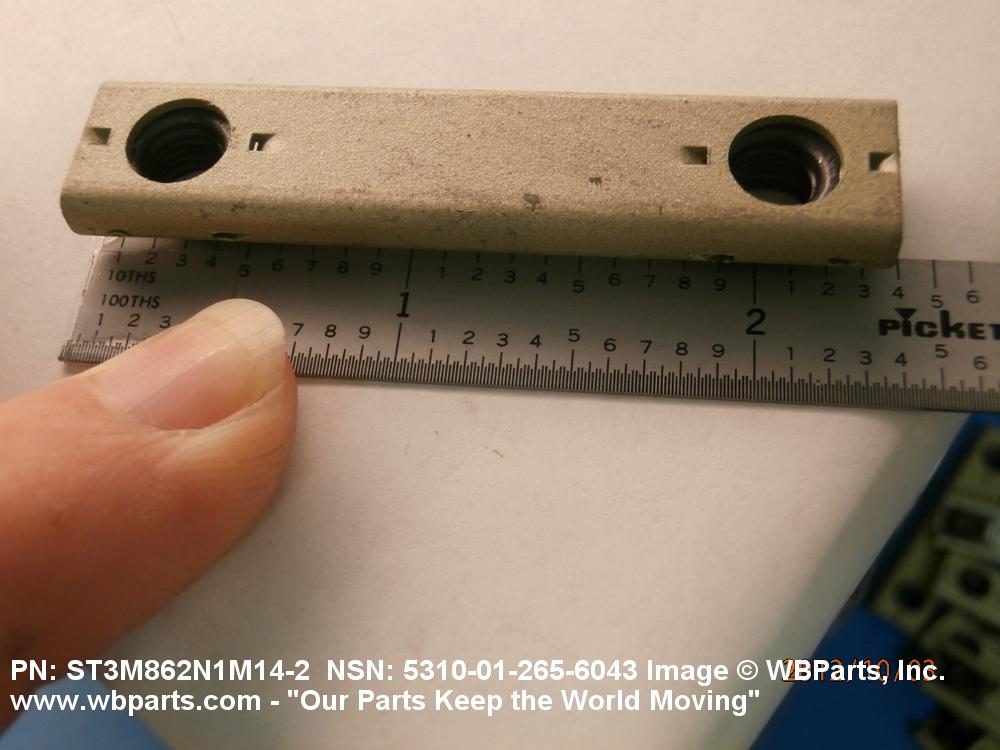

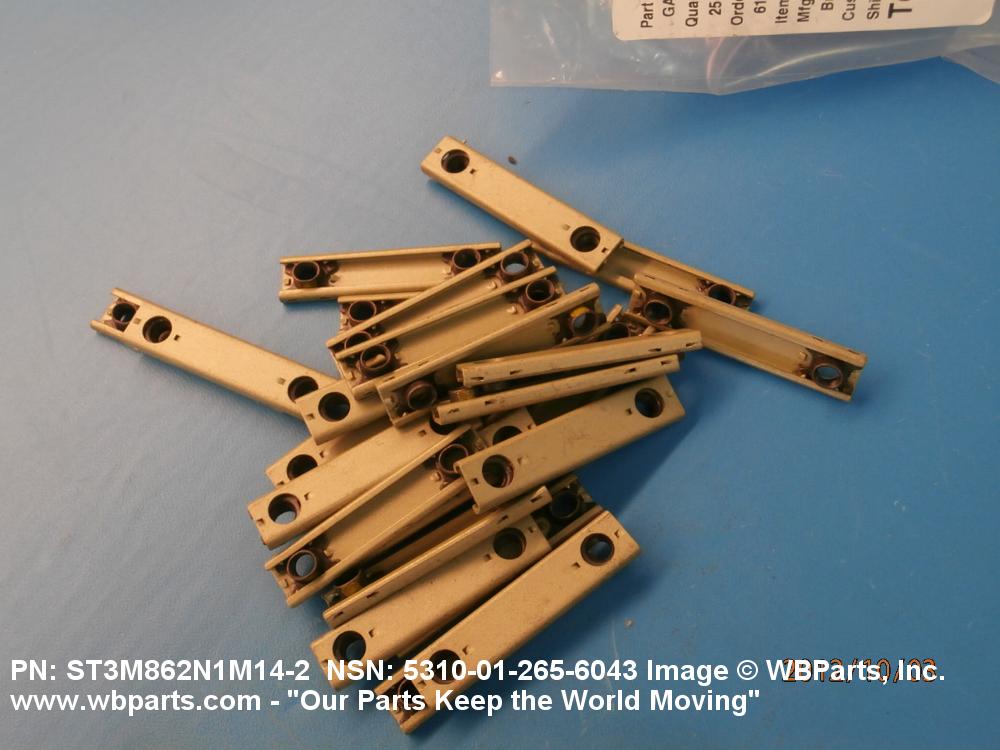

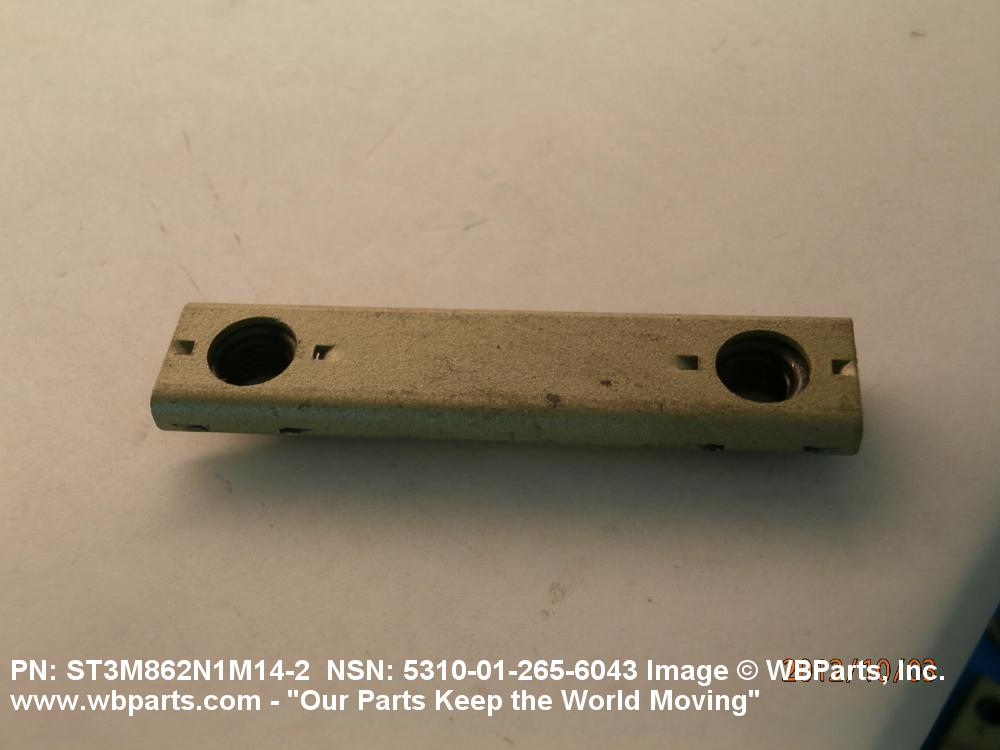

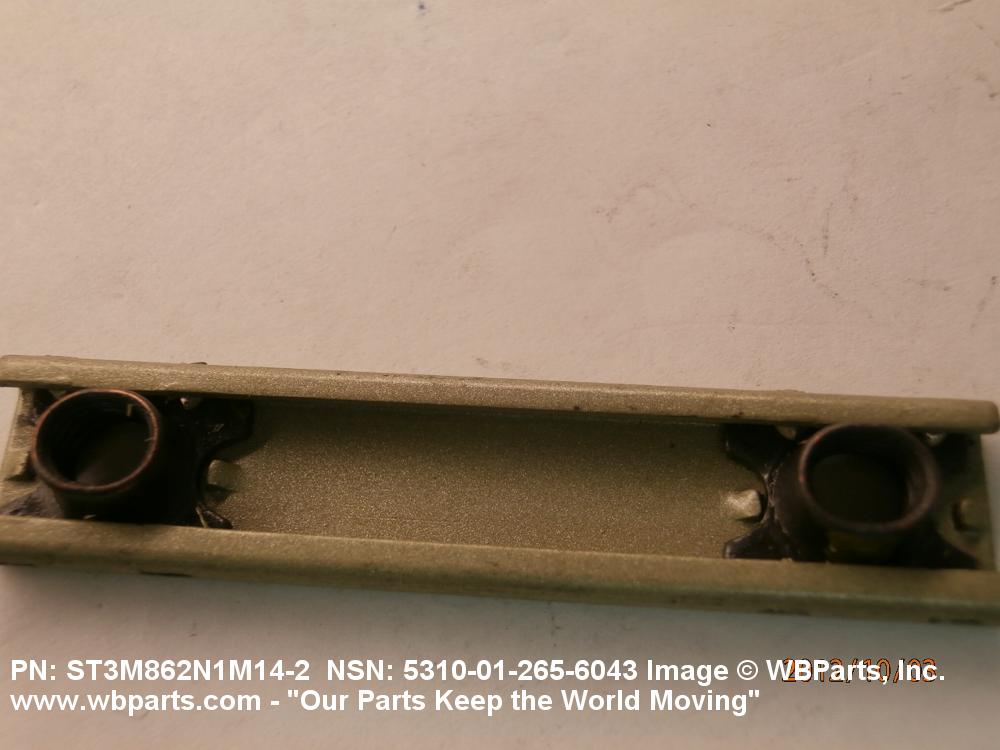

Drawings & Photos | NSN 5310-01-265-6043
Demand History | NSN 5310-01-265-6043
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-265-6043 | 2012-09-264 | 25 | United States |
Cross Reference | NSN 5310-01-265-6043
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M862N1M14-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-265-6043
Technical Data | NSN 5310-01-265-6043
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM CHANNEL IRON ALLOY 660 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | ANODIZE CHANNEL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE CHANNEL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| BASE WIDTH | ANY ACCEPTABLE |
| NUT LENGTH | ANY ACCEPTABLE |
| BASE THICKNESS | ANY ACCEPTABLE |
| NUT HEIGHT | 0.249 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | C1 STRAIGHT TYPE |
| OVERALL LENGTH | 71.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.516 INCHES MAXIMUM |
| ASSEMBLY OVERALL HEIGHT | 0.281 INCHES MAXIMUM |
| CHANNEL HEIGHT | 0.188 INCHES MAXIMUM |
| NUT SPACING | 1.750 INCHES MINIMUM AND 1.770 INCHES MAXIMUM |
| NUT QUANTITY | 2 |
| NUT COUNTERBORE DEPTH | 0.062 INCHES NOMINAL NUT |
| COUNTERBORE DIAMETER | 0.254 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-01-265-6043
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
